K702
Service Manual
2458Z00190
AKG Service Department, Lemböckgasse 21-25, A-1230 Wien, Austria.Tel.: (431)86654-0, FAX: (431)86654-1514, e-mail:
service@akg.com
06/09
10
11
13
14
16
7
15
5
8
17
4
6
3
9
1
22
23
2
12
18
19
20
21
red/rot
yellow/gelb
Mini XLR
°
white/weiß
1/3
Advertisement
Related Manuals for AKG K 702
Summary of Contents for AKG K 702

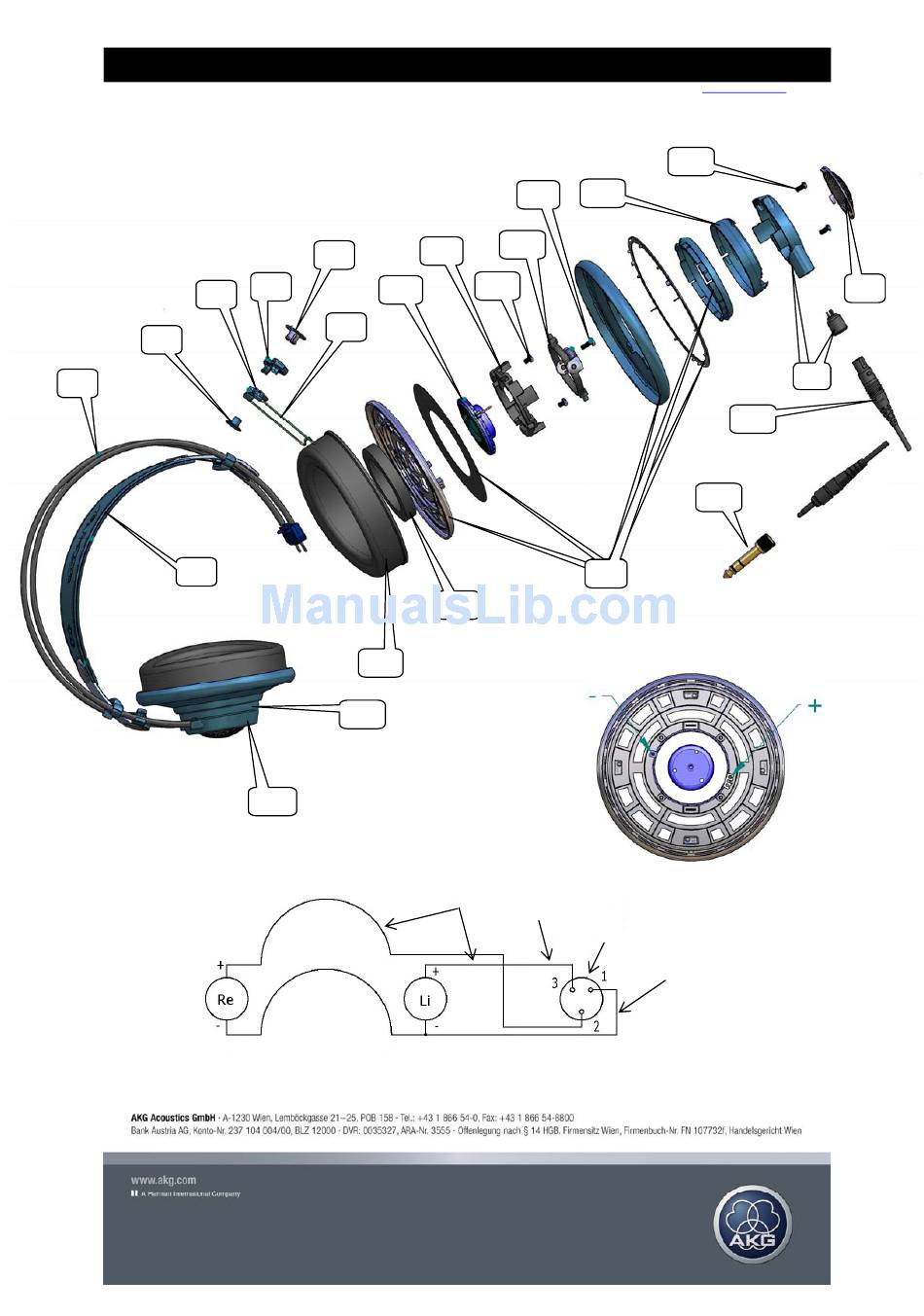

- Page 1 K702 Service Manual 2458Z00190 AKG Service Department, Lemböckgasse 21-25, A-1230 Wien, Austria.Tel.: (431)86654-0, FAX: (431)86654-1514, e-mail: service@akg.com 06/09 red/rot yellow/gelb Mini XLR ° white/weiß...
