Boland LVB32 User Manual

Lvb-series multi format lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Multi Format LCD Monitor

User Manual

LVB-Series
User Manual
1 of 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVB32 and is the answer not in the manual?

Questions and answers

Related Manuals for Boland LVB32

Summary of Contents for Boland LVB32

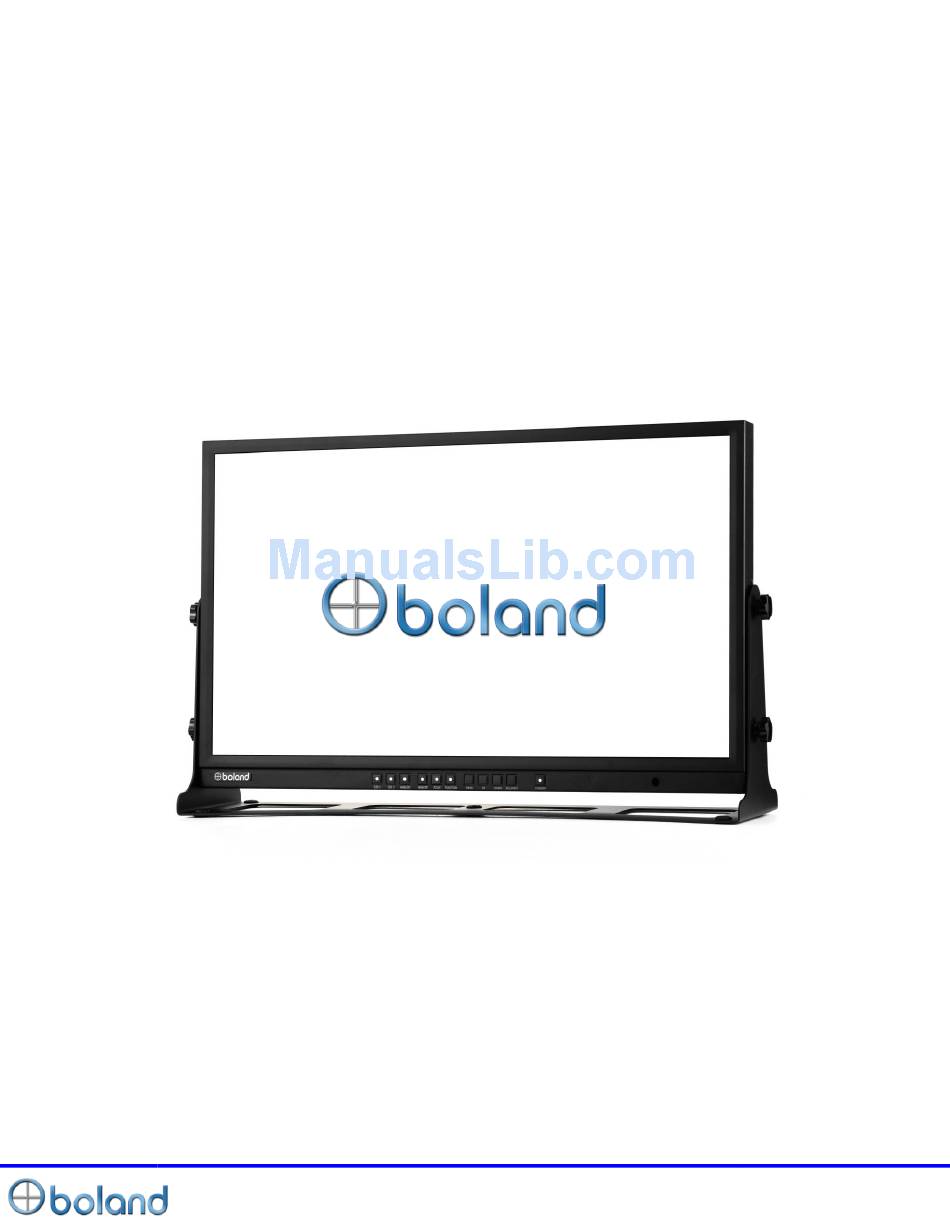

  • Page 1: User Manual

    Multi Format LCD Monitor User Manual LVB-Series User Manual 1 of 21...

  • Page 2: Table Of Contents

    CAUTION ..............................3 FEATURES ..............................5 CONTROLS, INDICATORS AND CONNECTIONS ..................6 MENU BASIC OPERATION ........................10 PICTURE MENU ............................12 DISPLAY MENU ............................15 SETUP MENU ............................. 16 INFO MENU ..............................18 INPUT SUPPORT MODE ..........................19 MECHANICAL DIMENSION ........................21 User Manual 2 of 21...

  • Page 3: Caution

    A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn. Attachments Do not use attachments not recommended by Boland as they may cause hazards. Ventilation Do not block any of the ventilation openings.
  • Page 4 Caution If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. A “face plate” also needs to be installed with an isolating capacitor to prevent any damage from static. Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.

  • Page 5: Features

    Features This product is the multi-format Digital LCD Panel to display various kinds of digital video input signal as HD/SD-SDI/DVI/HDMI Digital and analog signal such as Composite/S-Video/RGB/PC-RGB/ Component. This is also High Definition Broadcasting Monitor which can make it available to do output of stable video signal with the menu of considering convenient user interface and the easy control for brightness and color.

  • Page 6: Controls, Indicators And Connections

    Controls, Indicators and Connections LVB17 Front SDI-1 SDI-2 STANDBY ANALOG SEL/INPUT MARKER DOWN SCAN FUNCTION MENU LVB17 Rear ETHERNET SDI 1 IN SDI 1 OUT SDI 2 IN SDI 2 OUT HDMI LAN UPDATE RS-422 OUT RS-422 IN PC RGB RS-232C CVBS1/Pr/R OUT CVBS1/Pr/R IN...
  • Page 7 Controls, Indicators and Connections LVB23 Front SDI-1 SDI-2 STANDBY ANALOG SEL/INPUT MARKER DOWN SCAN FUNCTION MENU LVB23 Rear ETHERNET SDI 1 IN SDI 1 OUT SDI 2 IN SDI 2 OUT HDMI RS-422 OUT RS-422 IN PC RGB RS-232C CVBS1/Pr/R OUT CVBS1/Pr/R IN CVBS2/Y/G/Y OUT CVBS2/Y/G/Y IN...
  • Page 8 Controls, Indicators and Connections Front Keys Arrangements  STANDBY Power ON/OFF Button. This button is operated after being pressed about 3 seconds.  SDI 1 / SDI 2 Select SDI 1/ SDI 2 source directly  ANALOG Select ANALOG source directly ( ‘CVBS1’ ->‘CVBS 2’ ->‘CVBS 3’->’S-video’->’G.B.R’->’Y.Pb.P’ ->’PC’->’HDMI’->’DVI’) ...
  • Page 9 Controls, Indicators and Connections REAR Panel  SDI 1/SDI 2 IN HD SDI / SD SDI Input  SDI 1/SDI 2 OUT SDI 1, SDI 2 Loop Out  RS-232C IN Update /Auto color calibration  LAN UPDATE LAN Board Update ...

  • Page 10: Menu Basic Operation

    MENU Basic Operation In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings. If you press the MENU button, only the first and second level of the menu system will appear on the monitor screen.
  • Page 11 MENU Basic Operation On Screen Menus Language Selection - Display -> OSD Set -> Language - The menus can be shown on the screen in the selected language. - Supported Language: English, Spanish, Portuguese, German, French, Italian How to Select Video Source by OSD 1.

  • Page 12: Picture Menu

    PICTURE MENU Video Menus of each Input modes < Video (NTSC) Picture menu> < PC Picture menu> < SDI, HDMI Picture menu> Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 Contrast, Brightness, Sharpness, Color (All Sources), Tint (without PC, DVI, HDMI, Component), Phase (Component).
  • Page 13 PICTURE MENU  ZOOM - Can see the enlarged picture by (2X, 3X, 4X, 5X) ratios. - If user select the Zoom 2X, can see the below yellow box in picture. - Press Select or Enter button, user can see the enlarged picture.
  • Page 14 PICTURE MENU  Input Source - PIP input Source can operate with different signal and type. - SDI1, Analog (CVBS 1, 2, 3, Y.Pb.Pr, GBR, PC) inputs +SDI2, Digital (DVI, HDMI) inputs -SDI + SDI input PIP Ex) AV + S-Video (X), DVI + SDI1 (O), PC + DVI (O), HDMI+SDI2 (X) - PIP MATRIX TABLE SDI 1 SDI 2...

  • Page 15: Display Menu

    DISPLAY MENU Marker  Aspect - 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, Custom fitted panel size marker on screen.  Area - Area: Draw dotted line Marker on screen in case of images. (16:9 95/93/90/88/80%, 4:3 95/93/90/88/80%, EBU Action 16:9/14:9/4:3, EBU Graphic 16:9/14:9/4:3) ...

  • Page 16: Setup Menu

    SETUP MENU Setup Load & Setup Save - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. Function Switch - Function 1: Select the function to be allocated to the FUNCTION 1, 2 buttons Function1 button Description Undefined...
  • Page 17 SETUP MENU Control  Front LED - Front LED on/off  Local Enable -Power, up and down key is only worked, if Local enable is off.  Remote Enable - Select the controller of local or remote. If remote controller is selected, both local (front key) and remote are worked.

  • Page 18: Info Menu

    Screen Saver  Blue Screen - Enables screen saver functions to avoid panel burning.  BG Gray - Select gray level on besides display picture. (0~7)  Power Save - DPMS (Display Power Management Signaling) Power Save Mode. SETUP MENU Fan Control ...

  • Page 19: Input Support Mode

    Input Support Mode Supported Signals Items Specifications HD SDI- 2.970Gbps Serial Digital Interface SD HDI- 270Mbps H Frequency Range : 20~82 kHz V Frequency Range : 55 ~ 90 Hz HDMI Maximum resolution :1920x1080 60Hz DVI-I (DVI+VGA_IN) Maximum pixel rate : 162 MHz DTV mode support : 720P, 1080i, 1080p Supported H Frequency Range : 20~82 kHz...
  • Page 20 720x400 37.927 85.039 35.5 800x600 35.156 56.25 36.0 800x600 37.879 60.317 40.0 800x600 43.764 70.02 45.513 800x600 48.077 72.188 50.0 800x600 46.875 75.0 49.5 800x600 53.674 85.061 56.25 800x600 56.880 90.0 60.065 832x624 49.726 74.551 57.284 1024x768 48.780 60.001 64.11 1024x768 48.363 60.004...

  • Page 21: Mechanical Dimension

    Mechanical Dimension LVB17 LVB23 User Manual 21 of 21...

This manual is also suitable for:

Lvb17
