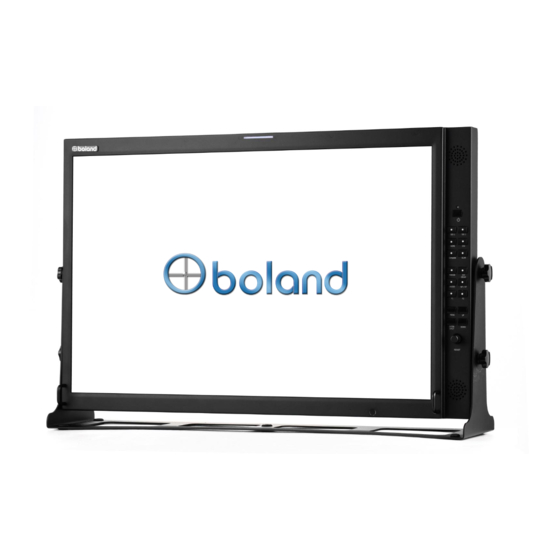

Boland PVB17 User Manual

Pvb series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Multi Format LCD Monitor

User Manual

PVB-Series
User Manual
1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVB17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boland PVB17

Summary of Contents for Boland PVB17

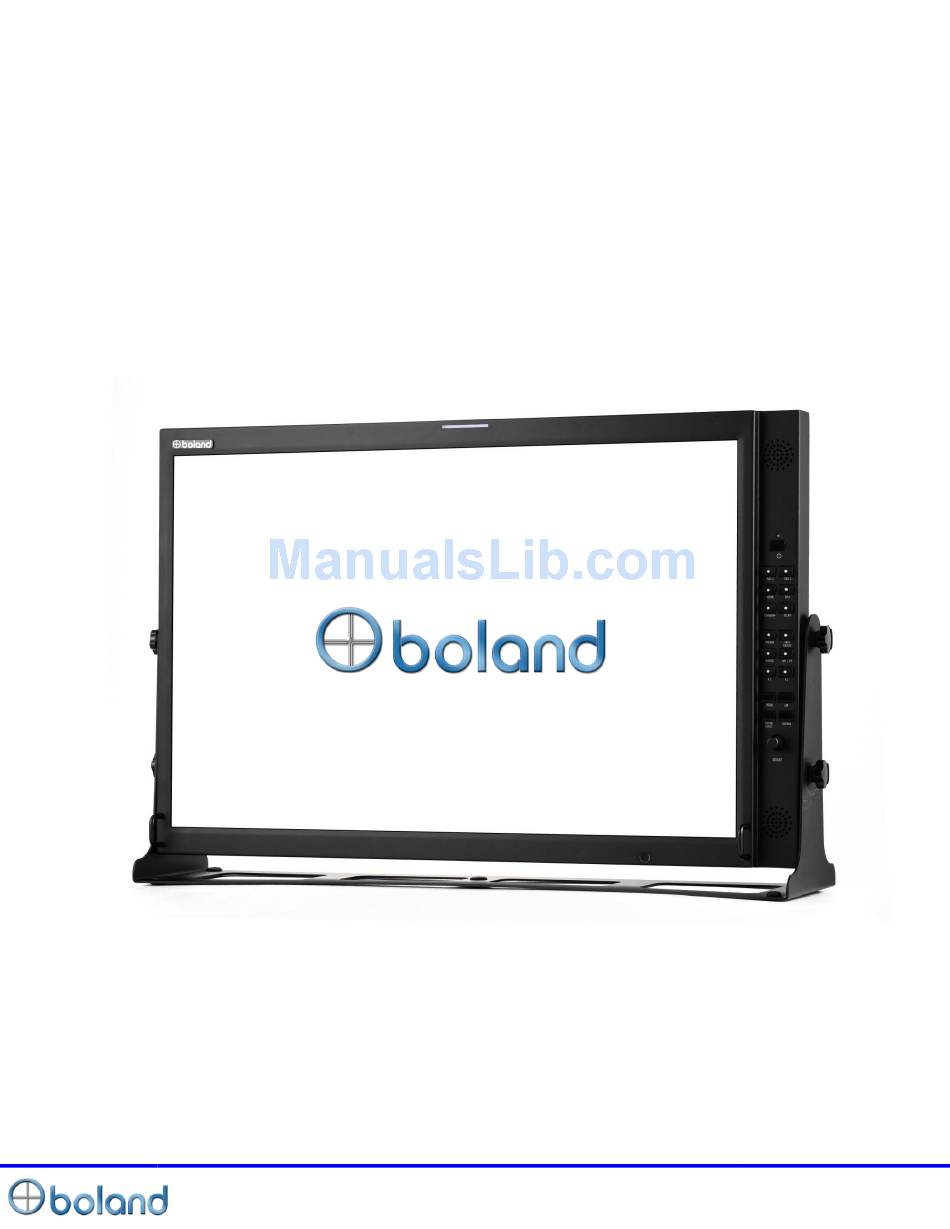

  • Page 1: User Manual

    Multi Format LCD Monitor User Manual PVB-Series User Manual 1 of 26...

  • Page 2: Table Of Contents

    CAUTION ..............................3 FEATURES ..............................5 CONTROLS, INDICATORS AND CONNECTIONS ..................6 MENU BASIC OPERATION ........................11 PICTURE MENU ............................13 AUDIO MENU ............................. 16 DISPLAY MENU ............................17 REMOTE MENU ............................20 SETUP MENU ............................. 21 INFO MENU ..............................23 INPUT SUPPORT MODE ..........................

  • Page 3: Caution

    A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn. Attachments Do not use attachments not recommended by Boland as they may cause hazards. Ventilation Do not block any of the ventilation openings.
  • Page 4 Caution If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. A “face plate” also needs to be installed with an isolating capacitor to prevent any damage from static. Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.

  • Page 5: Features

    Features This product is the multi-format Digital LCD Panel to display various kinds of digital video input signal as HD/SD-SDI/DVI/HDMI Digital and analog signal such as Composite/S-Video/RGB/PC-RGB/ Component. This is also High Definition Broadcasting Monitor which can make it available to do output of stable video signal with the menu of considering convenient user interface and the easy control for brightness and color.

  • Page 6: Controls, Indicators And Connections

    Controls, Indicators and Connections PVB17 Front SPEAKER_L STANDBY SDI1 SDI2 HDMI Composite SCAN MARKER H/V DELAY AUDIO WF/VT MENU DOWN ENTER/INPUT ADJUST SPEAKER_R PVB17 Rear RS422 IN RS422 OUT ETHERNET SDI 1 IN SDI 1 OUT SDI 2 IN SDI 2 OUT...
  • Page 7 Controls, Indicators and Connections PVB24 Front SPEAKER_L STANDBY SDI1 SDI2 HDMI Composite SCAN MARKER H/V DELAY AUDIO WF/VT MENU DOWN ENTER/INPUT ADJUST SPEAKER_R PVB24 Rear SDI 1 IN SDI 1 OUT SDI 2 IN SDI 2 OUT RS-232 IN RS-232 OUT HDMI CVBS1/Pr/R IN CVBS1/Pr/R OUT...
  • Page 8 Controls, Indicators and Connections PVB47 Front STANDBY SDI2 SCAN H/V DELAY WF/VT DOWN ADJUST SPEAKER_R ENTER/INPUT MENU SPEAKER_L AUDIO HEADPHONE MARKER Composiet HDMI SDI1 PVB47 Rear ETHERNET RS422 IN RS422 OUT SDI 1 IN SDI 1 OUT SDI 2 IN SDI 2 OUT RS-232 OUT RS-232 IN...
  • Page 9 Controls, Indicators and Connections Front Keys Arrangements  STANDBY Power ON/OFF Button. This button is operated after being pressed about 3 seconds.  SDI 1 / SDI 2 Select SDI 1/ SDI 2 source directly  HDMI Select HDMI source directly ...
  • Page 10 Controls, Indicators and Connections REAR Panel  SDI 1/SDI 2 IN HD SDI / SD SDI Input  SDI 1/SDI 2 OUT SDI 1, SDI 2 Loop Out  RS-232C IN Update /Auto color calibration  DVI-I DVI-I Type Digital / Analog PC-RGB Video Input ...

  • Page 11: Menu Basic Operation

    MENU Basic Operation In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings. If you press the MENU button, only the first and second level of the menu system will appear on the monitor screen.
  • Page 12 MENU Basic Operation On Screen Menus Language Selection - Display -> OSD Set -> Language - The menus can be shown on the screen in the selected language. - Supported Language: English, Spanish, Portuguese, German, French, Italian How to Select Video Source by OSD 1.

  • Page 13: Picture Menu

    PICTURE MENU Video Menus of each Input modes < Video (NTSC) Picture menu> < PC Picture menu> < SDI, HDMI Picture menu> Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 Contrast, Brightness, Sharpness, Color (All Sources), Tint (without PC, DVI, HDMI, Component), Phase (Component).
  • Page 14 PICTURE MENU  ZOOM - Can see the enlarged picture by (2X, 3X, 4X, 5X) ratios. - If user select the Zoom 2X, can see the below yellow box in picture. - Press Select or Enter button, user can see the enlarged picture.
  • Page 15 PICTURE MENU  Input Source - PIP input Source can operate with different signal and type. - Analog (CVBS 1, 2, 3, Y.Pb.Pr, GBR, PC) inputs + Digital (DVI, HDMI) + SDI (SDI1, SDI2) inputs -SDI + SDI input PIP Ex) AV + S-Video (X), DVI + SDI (O), PC + DVI (O), SDI1+SDI2 (O) - PIP MATRIX TABLE SDI 1...

  • Page 16: Audio Menu

    AUDIO MENU Audio out - Select Internal Speaker out. (Auto/SDI1/SDI2/HDMI/Line in) Audio Selection -PIP & W/F Double mode only. Select the Main or Sub. SDI out -SDI Audio output Group & Channel source select  SDI Gr/Ch - Audio output Group source select. (Group1, 2, 3, 4) - Audio output Channel source select.

  • Page 17: Display Menu

    DISPLAY MENU Marker  Aspect - 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, Custom fitted panel size marker on screen.  Area - Area: Draw dotted line Marker on screen in case of images. (16:9 95/93/90/88/80%, 4:3 95/93/90/88/80%, EBU Action 16:9/14:9/4:3, EBU Graphic 16:9/14:9/4:3) ...
  • Page 18 DISPLAY MENU  Type -Pair: Respectively Channel with right and left display -Group: Respectively group display  Position - Level Meter Position selects. (  Scale - Level Meter Scale mode selects. (Digital/Nordic/BBC/EBU/DIN/Expanded DIN/SMPTE VU/EBU VU/France VU) Time code  Enable - Time code Display (off/LTC/DVITC, SDI only) ...
  • Page 19 DISPLAY MENU U.M.D Channel-01 Channel-01 Tally Red Channel-01  Tally Green - UMD display on/off  Character - UMD Character Select  Position - UMD display position select. (L-T, C-T, R-T, L-B, C-B, R-B)  FG Color - UMD Character color Select (RGB_255_192_128_0_Transpareut) ...

  • Page 20: Remote Menu

    Remote MENU GPI Control & GPI# - For allocating functions to particular GPI pins. - When remote control operations are to be performed using the GPI Controller. - GPI Control: GPI function Enable/Disable - GPI 1 ~ 7 GPI Function Description Undefined Not set (no function allocated)

  • Page 21: Setup Menu

    SETUP MENU Setup Load & Setup Save - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. Function Switch - Function 1, 2: Select the function to be allocated to the FUNCTION 1, 2 buttons Function1&2 button Description Undefined...
  • Page 22 SETUP MENU Control  Front LED - Front LED on/off  Local Enable -Power, up and down key is only worked, if Local enable is off.  Remote Enable - Select the controller of local or remote. If remote controller is selected, both local (front key) and remote are worked.

  • Page 23: Info Menu

    SETUP MENU Fan Control  Fan Control - Internal Fan Controls driving option by temperature sensor Auto / force on / force off  Active Temp - Adjusts fan driving temperature by Celsius degree. It works only when the Fan Control setting is Auto. ...

  • Page 24: Input Support Mode

    Input Support Mode Supported Signals Items Specifications HD SDI- 2.970Gbps Serial Digital Interface SD HDI- 270Mbps H Frequency Range : 20~82 kHz V Frequency Range : 55 ~ 90 Hz HDMI Maximum resolution :1920x1080 60Hz DVI-I (DVI+VGA_IN) Maximum pixel rate : 162 MHz DTV mode support : 720P, 1080i, 1080p Supported H Frequency Range : 20~82 kHz...
  • Page 25 640x480 43.269 85.008 36.0 640x480 45.540 90.0 37.889 720x400 31.469 70.087 28.322 720x400 37.927 85.039 35.5 800x600 35.156 56.25 36.0 800x600 37.879 60.317 40.0 800x600 43.764 70.02 45.513 800x600 48.077 72.188 50.0 800x600 46.875 75.0 49.5 800x600 53.674 85.061 56.25 800x600 56.880 90.0...

  • Page 26: Mechanical Dimension

    Mechanical Dimension PVB17 PVB24 PVB47 User Manual 26 of 26...

This manual is also suitable for:

Pvb47Pvb24
