Summary of Contents for Boland TP Series

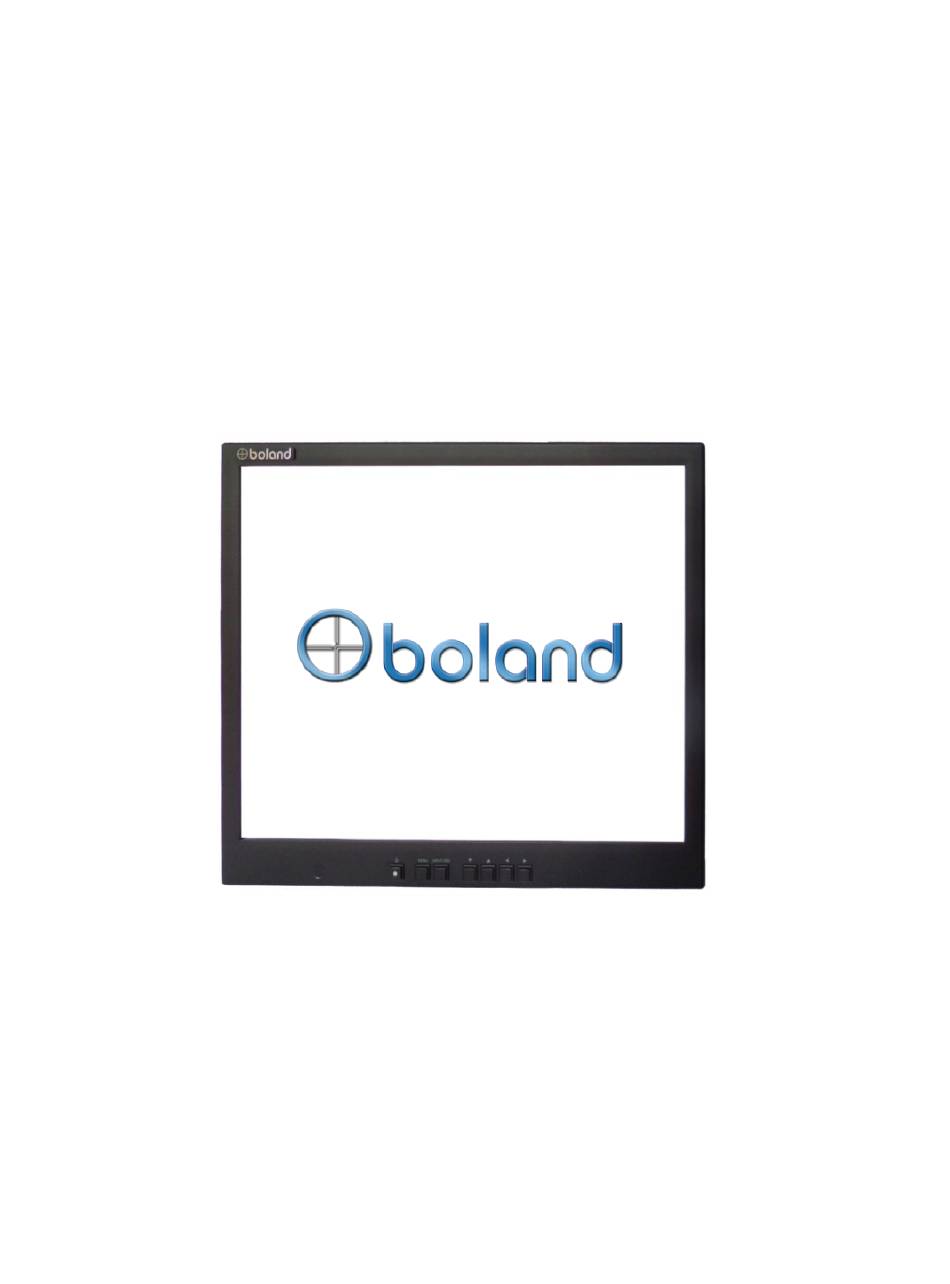

- Page 1 Teleprompter LCD Monitor User Manual...
-
Page 2: Table Of Contents
CAUTION ..............................3 FEATURES ..............................5 CONTROLS, INDICATORS AND CONNECTIONS ..................6 TP12/15/17/19 F ..........................6 RONT TP12/15/17/19 R ..........................6 ........................7 RONT RRANGEMENTS REAR P .............................. 8 ANEL MENU BASIC OPERATION ......................... 9 ........................ 9 O SHOW AND REMOVE THE .......................... -
Page 3: Caution
A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn. Attachments Do not use attachments not recommended by Boland as they may cause hazards. Ventilation Do not block any of the ventilation openings. - Page 4 Caution If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built- ge from static. Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
-
Page 5: Features
Features This product is the multi-format Digital LCD Panel to display various kinds of digital video input signal as HD/SD-SDI/HDMI Digital and analog signal such as Composite/PC-RGB This is also High Definition Broadcasting Teleprompter Monitor which can make it available to do output of stable video signal with the menu of considering convenient user interface and the easy control for brightness and color. -
Page 6: Controls, Indicators And Connections
Controls, Indicators and Connections TP12/15/17/19 Front RIGHT POWER LIFT MENU DOWN INPUT/SEL TP12/15/17/19 Rear CVBS OUT CVBS IN VGA IN HDMI IN SDI OUT SDI IN DC 12V IN User Manual 6 of 19 07/04/16... -
Page 7: Front Keys Arrangements
Controls, Indicators and Connections Front Keys Arrangements Power Key Power ON/OFF Button. This button is operated after being pressed about 1 second. MENU Activates main OSD menu Navigates higher menu in main OSD menu Exits OSD menu INPUT/SEL Activates OSD menu of input source selecting Changes input source by selecting Executes functions (by OSD help commands) in main OSD menu Activates child menu... -
Page 8: Rear Panel
Controls, Indicators and Connections REAR Panel SDI IN HD SDI / SD SDI Input SDI OUT SDI Loop Out Software Update HDMI High Definition Multimedia Input PC-RGB Analog PC-RGB Video Input CVBS IN CVBS Input CVBS OUT CVBS Loop Out DC 12V IN PIN NO(4P_12V) Description... -
Page 9: Menu Basic Operation
MENU Basic Operation In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings. If you press the MENU button, only the first and second level of the menu system will appear on the monitor screen. -
Page 10: On Screen Menus Language Selection
MENU Basic Operation On Screen Menus Language Selection OSD Language - Option -> OSD Language English Franais - The menus can be shown on the screen in the selected language. Deutsch Italiano Svenska - Supported Language: English, French, Espaol, Svenska, Espaol Nederlands Chinese... -
Page 11: Picture Menu
PICTURE MENU Picture Mode Picture Adjust Picture Adjust Standard Contrast 50 Color Temperature Brightness 50 Aspect Ratio Color 50 Sharpness 0 tint 50 PICTURE Backlight 90 -Pictuer Mode : Standard, Dynamic, Mild, User - User Mode Adjust the values of Brightness, Contrast, Color and Tint directly from 0 to 100 Color Temperature Color Tempera.. -
Page 12: Option Menu
PICTURE MENU Picture Adjust Standard Color Temperature Auto Adjust Aspect Ratio Horizontal Pos. 50 Vertical Pos. 50 Phase 7 PICTURE -Only Pc Mode - Auto-Adjust automatically set the optimum values of Phase, HV position and Frequency. OPTION MENU OSD Language OSD Language OSD Language English H_Flip Disable... -
Page 13: Reset
OPTION MENU Reset OSD Language English H_Flip Disable V_Flip Disable Restore Factory Default Osd Duration 5sec DPMS Disable OPTION Software Update(USB) - Resets user setting values as default OSD Duration Adjusting the keep the time OSD.(off/5sec/10sec/15sec) DPMS OSD Language English H_Flip Disable V_Flip Disable Restore Factory Default... -
Page 14: Input Support Mode
Input Support Mode Supported Signals Items Specifications HD SDI- 2.970Gbps Serial Digital Interface SD HDI- 270Mbps H Frequency Range : 20~82 kHz V Frequency Range : 55 ~ 90 Hz HDMI Maximum resolution :1920x1080 60Hz Maximum pixel rate : 162 MHz Supported DTV mode support : 720P, 1080i, 1080p Signals... - Page 15 800x600 48.077 72.188 50.0 800x600 46.875 75.0 49.5 800x600 53.674 85.061 56.25 800x600 56.880 90.0 60.065 832x624 49.726 74.551 57.284 1024x768 48.780 60.001 64.11 1024x768 48.363 60.004 65.0 1024x768 56.476 70.069 75.0 1024x768 57.703 72.039 78.476 1024x768 60.241 74.927 81.724 1024x768 60.030 75.029...
-
Page 16: Mechanical Dimension
Mechanical Dimension TP12 User Manual 16 of 19 07/04/16... -
Page 17: Tp15
Mechanical Dimension TP15 10.787 [274] 10.787 [274] 10.201 [259.1 10.118 [257 1.142 [29] 0.669 [17] 0.413 [10.5] 0 [0] 0 [0] M4 THREADED INSERTS 8 PLCS 10-32 THREADED INSERTS 4 PLCS 10-32 THREADED INSERTS 2 PLCS 10.787 [274] 10.118 [257] 8.996 [228.5] 8.644 [219.5] 8.366 [212.5]... -
Page 18: Tp17
Mechanical Dimension TP17 User Manual 18 of 19 07/04/16... -
Page 19: Tp19
Mechanical Dimension TP19 User Manual 19 of 19 07/04/16...
