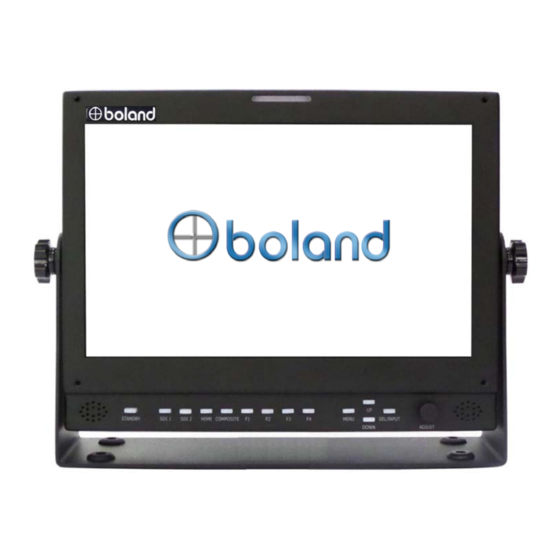

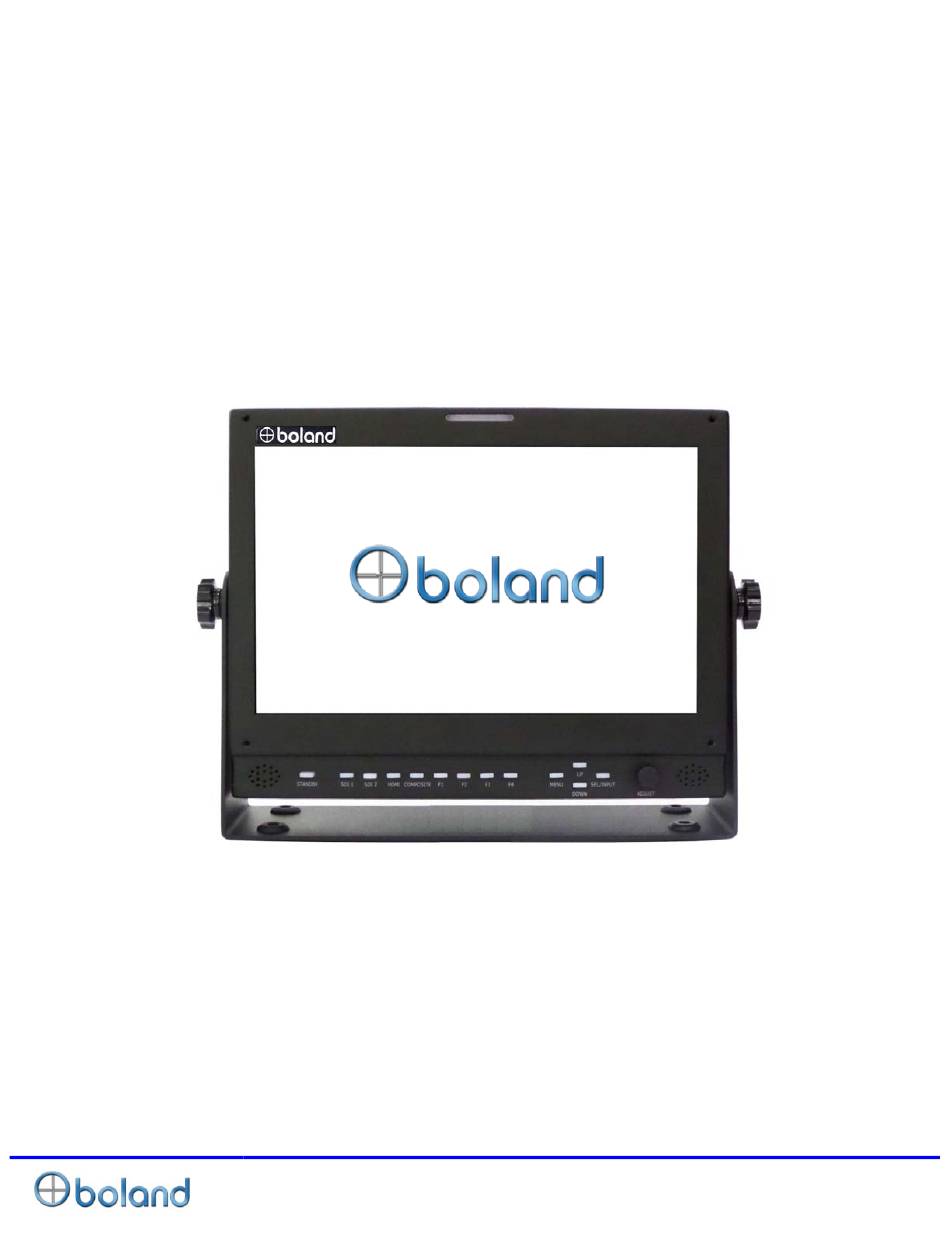

- Page 1 High-Definition Serial Digital Interface High Bright / 2-Way Cross-Conversion Monitor BVB07 User Manual BVB07, BVB07a, BVB07b User Manual 1 of 24...
-
Page 2: Table Of Contents
CAUTION ..............................4 FEATURES ..............................6 CONTROLS, INDICATORS AND CONNECTIONS ..................7 BVB7 F ............................... 7 RONT BVB7 R ..............................7 ........................... 8 RONT PERATIONS REAR P .............................. 9 ANEL MENU BASIC OPERATION ........................10 ......................10 O SHOW AND REMOVE THE .......................... - Page 3 SETUP MENU ............................. 21 & S ........................21 ETUP ETUP ............................. 21 UNCTION WITCH ..............................21 ONTROL ............................22 OMMUNICATION IP C ..............................22 ONFIG ............................22 CREEN AVER ..........................22 HECK ERIOD SDI O / HDMI O ..........................22 INFO MENU ..............................
-
Page 4: Caution
A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn. Attachments Do not use attachments not recommended by Boland as they may cause hazards. Ventilation Do not block any of the ventilation openings. - Page 5 Caution If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built- pacitor to prevent any damage from static. Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
-
Page 6: Features
Features This product is the multi-format Digital LCD Panel to display various kinds of digital video input signal as HD/SD-SDI/DVI/HDMI Digital and analog signal such as Composite/S-Video/RGB/PC-RGB/ Component. This is also High Definition Broadcasting Monitor which can make it available to do output of stable video signal with the menu of considering convenient user interface and the easy control for brightness and color, and by EQ function of HD-SDI input part. -
Page 7: Controls, Indicators And Connections
Controls, Indicators and Connections BVB7 Front SPEAKER_L SPEAKER_R STANDBY ADJUST SDI1 SEL/INPUT SDI2 DOWN HDMI MENU Composite BVB7 Rear See Next Pages >> SDI 1 IN SDI 2 IN SDI OUT HDMI IN HDMI OUT AUDIO IN RS232C AUDIO OUT ETHERNET COMPOSITE UPDATE... - Page 10 RS-232 / GPI / RS-422 PIN Assignment 1. RS-232 Connector D-sub 9P MALE Pin Signal Description Rx(PC to Monitor) Tx(Monitor to PC) SIGNAL GROUND Monitor RS-232 SERIAL CONTROL PC CONNECTION 2. GPI Connector (Contact Closure to Ground) RJ-45 8P MALE...
-
Page 12: Front Keys Operations
Controls, Indicators and Connections Front Keys Operations STANDBY Power On/Off Button. This button is operated after being pressed about 3 seconds. SDI 1 / SDI 2 Select SDI 1/ SDI 2 source directly HDMI Select HDMI source directly Composite Select ANALOG source directly FUNCTION 1 ~ 4 Executes functions of user selected (Undefined, Scan, Marker, Level Meter, Waveform, Aspect, Time Code, Color Only, Audio Group,... -
Page 13: Rear Panel
Controls, Indicators and Connections Rear Panel SDI 1/SDI 2 IN 3G / HD / SD SDI Input SDI OUT SDI to SDI Out / HDMI to SDI Out RS-232C IN Update /Auto color calibration HDMI High Definition Multimedia Input CVBS1 In CVBS1 Input AUDIO IN CVBS1 Sound Input... -
Page 14: Menu Basic Operation
MENU Basic Operation In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings. If you press the MENU button, only the first and second level of the menu system will appear on the monitor screen. -
Page 15: On Screen Menus Language Selection
MENU Basic Operation On Screen Menus Language Selection - Display -> OSD Set -> Language - The menus can be shown on the screen in the selected language. - Supported Language: English, Spanish, Portuguese, German, French, Italiano How to Select Video Source by OSD 1. -
Page 16: Picture Menu
PICTURE MENU Video Menus of each Input modes < Video (NTSC) Picture menu> < SDI, HDMI Picture menu> Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 - Brightness, Contrast, Color, Sharpness, Tint Color Temperature Control - For Setting the Color temperature or adjusting RGB Gain/Offset value directly - User (User setting RGB gain value), VAR(3200K ~ 11000K), Often used value(11000K, 9300K, 6500K,... -
Page 17: Aspect Ratio
PICTURE MENU Aspect Ratio - For setting the aspect ratio. - Full Screen: The images are displayed with a panel size. - Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1: The images are displayed with each aspect ratio. - Function-key operate Rotation, Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1 - AFD function Added Zoom... -
Page 18: Pip (Picture In Picture)
PICTURE MENU PIP (Picture IN Picture) - Watch two programs or source at the same time. And set up PIP size and position. PIP on/off - Control PIP function On/Off. Input Source - PIP input Source can operate with different signal and type. - Analog (CVBS 1) inputs + Digital (HDMI) + SDI (SDI1, SDI2) inputs -SDI + SDI input PIP - PIP MATRIX TABLE... -
Page 19: Dual Link Mode (Sdi Only)
PICTURE MENU Dual Link Mode (SDI only) -Dual Link Mode select. (Auto/Off/RGB444/YCbCr444/YCbCr422) Peaking Filter -Peaking Filter: Peaking Filter On/Off. -Peaking Color: Red/Blue/White/Violet. -Peaking Level: 0~100. Max Brightness -Max Brightness On/Off. Back Light -Inverter dimming Level select (0~100) User Manual 15 of 24... -
Page 20: Audio Menu
AUDIO MENU Audio Output - Select Internal Speaker out. (Auto/SDI1/SDI2/HDMI/Line in) Audio Selection -PIP & W/F Double mode only. Select the Main or Sub. SDI out -SDI Audio output Group & Channel source select SDI Gr/Ch - Audio output Group source select. (Group1, 2, 3, 4) - Audio output Channel source select. -
Page 21: Display Menu
DISPLAY MENU Marker Aspect - 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, Custom fitted panel size marker on screen. Area - Area: Draw dotted line Marker on screen in case of images. (16:9 95/93/90/88/80%, 4:3 95/93/90/88/80%, EBU Action 16:9/14:9/4:3, EBU Graphic 16:9/14:9/4:3) Center Maker Aspect L. -
Page 22: Time Code
DISPLAY MENU Type -Pair: Respectively Channel with right and left display -Group: Respectively group display Position - Level Meter Position selects. ( Scale - Level Meter Scale mode selects. (Digital/Nordic/BBC/EBU/DIN/Expanded DIN/SMPTE VU/EBU VU/France VU) Size -Small or Large Time code Enable - Time code Display (off/LTC/DVITC, SDI only) Position... -
Page 23: Input I.d
DISPLAY MENU U.M.D Channel-012 Channel-012 Tally Red Channel-012 Tally Green - UMD display on/off Character - UMD Character Select Position - UMD display position select. (L-T, C-T, R-T, L-B, C-B, R-B) FG Color - UMD Character color Select (RGB_255_192_128_0_Transpareut) BG Color - UMD BG color Select (RGB_255_192_128_0_Transpareut) Input I.D. -
Page 24: Remote Menu
REMOTE MENU GPI Control & GPI # - For allocating functions to particular GPI pins. - When remote control operations are to be performed using the GPI Controller. - GPI Control: GPI function Enable/Disable - GPI 1 ~ 7 GPI Function Description Undefined Not set (no function allocated) -
Page 25: Setup Menu
SETUP MENU Setup Load & Setup Save - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. Function Switch - Function 1~4: Select the function to be allocated to the FUNCTION 1~4 buttons Function1~4 button Description... -
Page 26: Communication
SETUP MENU Source Key (Front Input Button/ Remote Controller Source Button) -Menu: Select the input signals to the input menu OSD. -Rotate: Press Button to rotate the input source. Auto Source - When there is no input signal, Auto Source change. Communication Baud Rate _ 422 Baud Rate - 2400/4800/9600/19200/38400/57600/115200... -
Page 27: Info Menu
INFO MENU - Model, H/W Version, FPGA, F/W Release, Operating Time, Cal. ID Input Support Mode Support Signals Items Specifications HD SDI- 2.970Gbps Serial Digital Interface SD HDI- 270Mbps H Frequency Range : 20~82 kHz V Frequency Range : 55 ~ 90 Hz Supported Signals HDMI... -
Page 28: Mechanical Dimension
User Manual 24 of 24...
