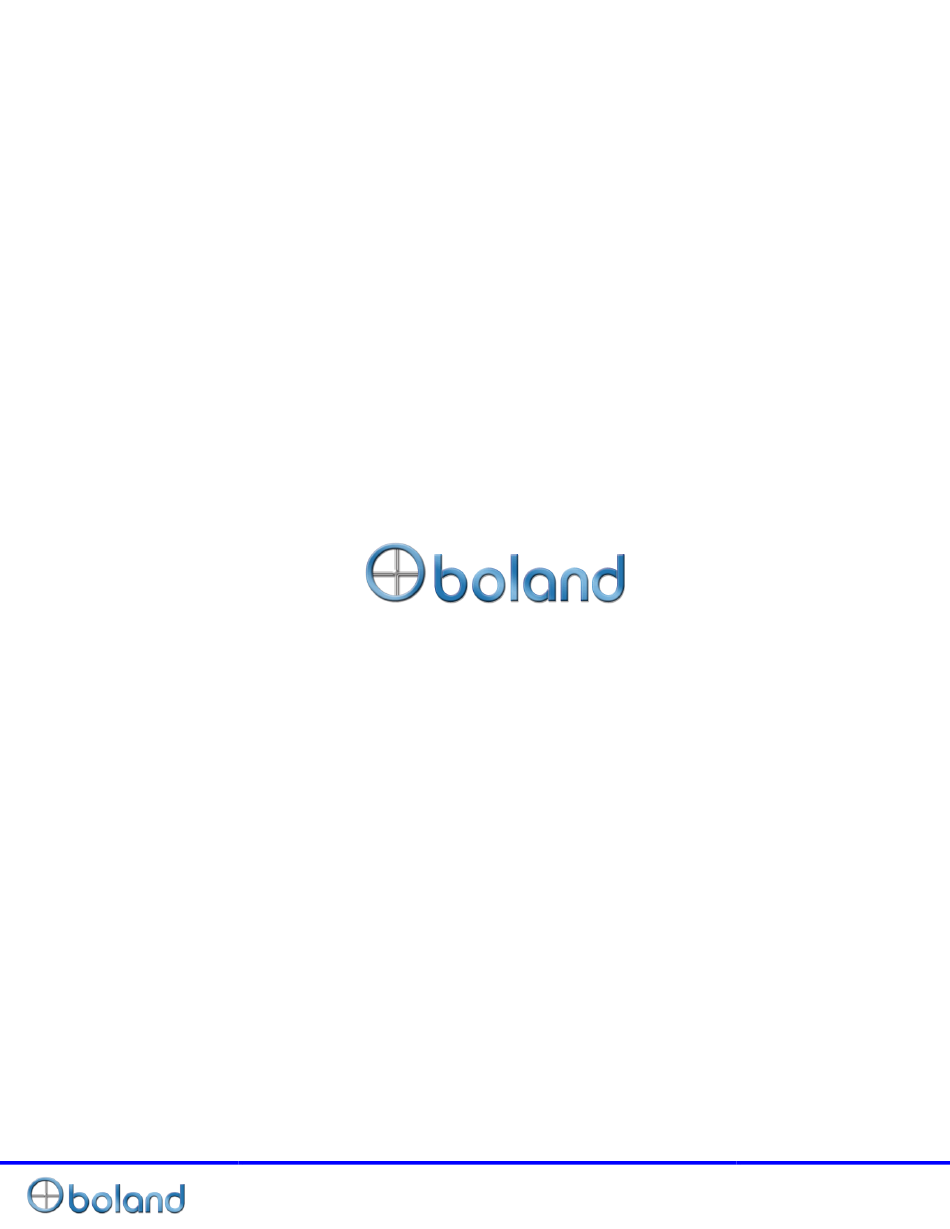

- Page 1 High-Definition Serial Digital Interface Multi Format 4K LCD Monitor User Manual BVB4K-24 User Manual 1 of 23...
-
Page 2: Table Of Contents
CAUTION ..............................4 FEATURES ..............................6 CONTROLS, INDICATORS AND CONNECTIONS ..................7 BVB4K-24 F ............................7 RONT BVB4K-24 R ............................7 ........................... 8 RONT PERATIONS REAR P .............................. 9 ANEL MENU BASIC OPERATION ........................10 ......................10 O SHOW AND REMOVE THE .......................... - Page 3 ............................21 OLOR ONTROL ............................... 22 ESET ..............................22 OWNLOAD ..............................22 ERSION INPUT SUPPORT MODE ..........................23 ............................. 23 UPPORT IGNALS ............................. 23 UPPORT IMINGS MECHANICAL DIMENSION ........................23 BVB4K-24 ..............................23 User Manual 3 of 23...
-
Page 4: Caution
A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn. Attachments Do not use attachments not recommended by Boland as they may cause hazards. Ventilation Do not block any of the ventilation openings. - Page 5 Caution If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. A “face plate” also needs to be installed with an isolating capacitor to prevent any damage from static. Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
-
Page 6: Features
Features This product is the multi-format Digital LCD Panel to display various kinds of digital video input signal as 12G/HD/SD-SDI//HDMI Digital. This is also High Definition Broadcasting Monitor which can make it available to do output of stable video signal with the menu of considering convenient user interface and the easy control for brightness and color, and by EQ function of HD-SDI input part. -
Page 7: Controls, Indicators And Connections
Controls, Indicators and Connections BVB4K-24 Front Tally LED (Power) SDI 1 SDI 2 QUAD HDMI MENU▼ ▲ ◀ INPUT▶ ADJUST HEADPHONE BVB4K-24 Rear SDI 1 OUT SDI 1 IN SDI 2 OUT SDI 2 IN SDI 3 OUT SDI 3 IN... -
Page 8: Front Keys Operations
Controls, Indicators and Connections Front Keys Operations (Power) Power ON/OFF Button. SDI 1 / SDI 2 Input Select SDI 1/ SDI 2 input signal. QUAD Select QUAD-SDI input signal. Select 2-SAMPLEINT-SDI input signal. HDMI Select HDMI input signal ... -
Page 9: Rear Panel
Controls, Indicators and Connections REAR Panel SDI 1/SDI 2 IN_OUT 12G/HD SDI / SD SDI Input_ Loop Out SDI 3/SDI 4 IN SDI 3, SDI 4 Only Quad Input SDI 3/4 OUT SDI 3/4 Loop Out HDMI High Definition Multimedia Input ... -
Page 10: Menu Basic Operation
MENU Basic Operation In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings. If you press the MENU button, only the first and second level of the menu system will appear on ▶... -
Page 11: How To Select Video Source By Osd
MENU Basic Operation How to Select Video Source by OSD 1. Press the INPUT button and then UP/DOWN button to select each video source. 2. Press the INPUT button to go to desired video source. 3. If Input Name is enabled, The INPUT button goes into input name edit mode instead of selecting source. User Manual 11 of 23... -
Page 12: Picture Menu
PICTURE MENU Adjust -Back Light: Inverter dimming Level select (0~100) - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 Color Temperature Control - For Setting the Color temperature or adjusting RGB Gain/Offset value directly - User (User setting RGB gain value), VAR(3200K ~ 9300K), Often used value( 9300K, 6500K, 5400K,3200K) and 3D LUT Calibration value(D65 –... -
Page 13: Picture Option
PICTURE MENU Picture Option Gamma Select Gamma Level Select (0.8 ~ 3.0) Color Only Mono Color/Blue only Function on/off Flip H-Flip / V-Flip / H+V-Flip (without OSD) Patterns Auto Run, White, Red, Green, Blue, Yellow, Cyan, Magenta ... -
Page 14: Audio Menu
AUDIO MENU SDI Group/Channel -SDI Audio output Group & Channel source select Volume - Adjust the speaker or headphone Volume level. User Manual 14 of 23... -
Page 15: Display Menu
DISPLAY MENU Marker Aspect - 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, Custom fitted panel size marker on screen. Area - Area: Draw dotted line Marker on screen in case of images. (16:9 95/93/90/88/80%, 4:3 95/93/90/88/80%, EBU Action 16:9/14:9/4:3, EBU Graphic 16:9/14:9/4:3) ... -
Page 16: Time Code
DISPLAY MENU Scale - Level Meter Scale mode selects. (Digital/Nordic/BBC/EBU/DIN/Expanded DIN/SMPTE VU/EBU VU/France VU) Time Code Enable - Time code Display (off/LTC/DVITC, SDI only) Size -Time code size select. (Small, Middle, Large) Position - Time code display position selects (L-T, C-T, R-T, L-B, C-B, R-B) ... -
Page 17: Caption
DISPLAY MENU Character - UMD Character Select Position - UMD display position select. (L-T, C-T, R-T, L-B, C-B, R-B) FG Color - UMD Character color Select (RGB_255_192_128_0_Transpareut) BG Color - UMD BG color Select (RGB_255_192_128_0_Transpareut) Caption ... -
Page 18: Remote Menu
Remote MENU GPI Control & GPI# - For allocating functions to particular GPI pins. - When remote control operations are to be performed using the GPI Controller. - GPI Control: GPI function Enable/Disable - GPI 1 ~ 7 GPI Function Description Undefined Not set (no function allocated) -
Page 19: Setup Menu
SETUP MENU Factory Default - Factory Default: User Reset. Function Switch - Function 1~5: Select the function to be allocated to the FUNCTION 1~5 buttons Function1&2 button Description Undefined Not set (no function allocated) Aspect Sets the aspect ratio of the images Color Only Execute Mono color or Blue Only Level Meter... -
Page 20: Control
SETUP MENU Control Front LED - Front LED on/off/off after 15s Local Enable -Power, up and down key is only worked, if Local enable is off. IR Enable - Select the controller of local or remote. If remote controller is selected, both local (front key) and remote are worked. -
Page 21: Info Menu
Info MENU - Model, F/W Version, FPGA, Operating Time, Cal. ID Factory MENU Factory mode menu entry -Front key: “Menu” + “UP” for about 5 seconds. (Until the menu OSD disappears) -IR: Press ATTENTION button (Input source OSD On) Press 0 + 0 + 7 + 8 Color Control - Adjust the values SUB Brightness/Contrast/Red/Green/Blue. - Page 22 Factory MENU Reset Reset Factory Default - All setting values are initialized. (Except Operating Time/Calibration Data) Reset Operating Time - Operating Time reset. Reset Calibration Data - Calibration Data reset. Download -Used to upgrade the firmware using the USB memory. -Do not turn off the monitor while the upgrade is conducting.
- Page 23 SMPTE-425M(3G) 1920x1080P(50/60) SMPTE-260M 1920x1035i(60/59.94) SMPTE-259M 1920x1080i(50) 1920x1080i (50/59.94/60) SMPTE-274M 1920x1080P (30Psf/25Psf/24Psf/30) SMPTE-296M 1280x720P (50/59.94/60) Mechanical Dimension BVB4K-24 13.937 [354] 13.937 [354] 12.986 [329.8] 13.563 [344.5] 12.705 [322.7] 11.165 [283.6] 9.075 [230.5] 6.968 [177] Max. Screw Pene tration 1/4”(6mm) 10-32(6) M5(10) 5.138 [130.5]...
