V
P
Monitors
IEW
ORT

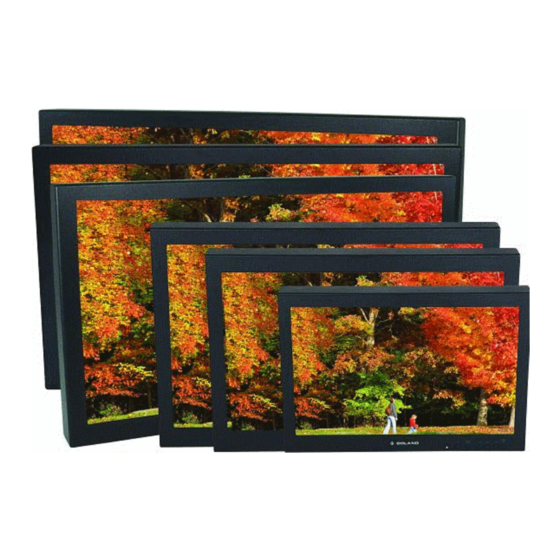

Color Active Matrix LCD Video/VGA Combi Screens
STANDARD DEFINITION MODELS
NTSC/PAL/SECAM & NTSC4.43/PAL-M
Full PC Scaling from EGA to WUXGA
4:3, 16:9, Variable Aspect Ratios
H & V Scan Reverse
Picture-in-Picture
User Manual
for models:
8.4" Models d084c, xd084b, d084cDB
17.0" Models d170c, d170cDB
10.4" Models d104h, xd104d
19.0" Models d190c
12.1" Models d121e, d121eDB
20.1" Model d201c
15.0" Models d150c, d151cDB
& -x1, -x2 Rackmounted versions of above
(800) 918-9090
www.bolandcom.com
Lake Forest, CA 92630
(949) 465-9911
Fax: (949) 465-9944
9
V
P
IEW
ORT
d series
071007
Advertisement
Table of Contents
Related Manuals for Boland ViewPort d084c
Summary of Contents for Boland ViewPort d084c
-
Page 1: User Manual
Monitors Color Active Matrix LCD Video/VGA Combi Screens STANDARD DEFINITION MODELS NTSC/PAL/SECAM & NTSC4.43/PAL-M Full PC Scaling from EGA to WUXGA 4:3, 16:9, Variable Aspect Ratios H & V Scan Reverse Picture-in-Picture User Manual for models: 8.4" Models d084c, xd084b, d084cDB 17.0"... - Page 2 HDTV. Auto-detected. NTSC Y/C filter provides full resolution Reclock/regen output(s). • customer support BOLAND COMMUNICATIONS Boland provides a full range of support from sales through installation (949) 465-9911, or application of our products. We are here to (800) 918-9090, help.
-
Page 3: Installation
(optional power supply substitution caution). cabinets are available). Note that although most Boland screens Note the normal operating and storage are glass, they are still somewhat sens- temperatures in the specifications. Do not itive to scratching. Please clean with a... -
Page 4: System Requirements
Video from a 525 or 625 standard video images from CGA (320 x 480) to WUXGA signal at a nominal 1.0 Vpp (when (1920 x 1200) resolutions. Boland models properly 75 ? terminated, where source for high resolutions formats, like HDTV, are video is 2.0 Vpp unterminated), and are... -
Page 5: Operation
Installation • computer connections The "VGA" connection may be made with the supplied cord, plugging a cord into the back of the monitor and into the (back) of the computer. Supply the monitor with a CGA (320 x 480) up to a WUXGA (1920 x 1200) signal. A built-in processor will adjust the Connector Well, typical of 10.4 to 37"... -
Page 6: Controls And Connections
Operation Controls and Connections Monitor Front Side: Monitor Back Side: Power On/Off Input Connector Well, Power When power is applied, the monitor will (Recessed wiring location for all cables) come on. This button then turns the Place the plug from the world-wide AC monitor on and off. -
Page 7: Osd Menu Functions
OSD Menu Functions Note: Software updates may enhance these menu offerings. Picture Menu Note: ">" indicates a sub-menu (use > button to enter) Brightness brightness level (picture blacks level) (100 steps) Contrast contrast level (picture whites level) (100 steps) Saturation* colors saturation (100 steps) Hue* hue of colors (flesh tones) (100 steps) - Page 8 Utilities Menu Setup > Auto Picture Setup: Auto adjust the image position, phase and size Auto Color Gain: Auto Color Calibration (RGB white levels) Wide Screen Mode detection : Choose to recognize the VGA mode as a normal or wide screen input: - Normal 4:3 - 1280x768 Widescreen - 1366x768 Widescreen 16:9...
- Page 9 Utilities Menu (continued) Hot Keys > Sets operation of button pairs to directly access functions when OSD menu is not visible. Use up / down arrow keys to highlight desired function and use > key to select: Hot Key 1: Volume / Brightness / Contrast / Input / Aspect / PIP Size / PIP Swap / Image Orientation Hot Key 2:...
- Page 10 High Bright Monitors Description The High Brite Option is a factory-installed accessory for an LCD video monitor to boost its brightness to full daylight readability. The 12 and 15" displays are specified at about 1800 nts (cd/m²). Operation In addition to the standard button controls of a normal monitor, a knob is added to the front panel to control the brightness of the internal lamps.
-
Page 11: Maintenance
After about fifty thousand hours of service the temperature is cold. In these cases, (as long as 10 years, even if used often, the full brightness may be restored by depending on the Boland model), it may replacing the special type of internal possible notice... - Page 12 All monitors with a serial number less than 009001, manufactured before April 2005, carry their original one year warranty. In the event of a repair under this warranty, Boland's sole obligation is to replace or repair, at Boland's option, any Product free of charge. Any replaced parts shall become Boland's property.
