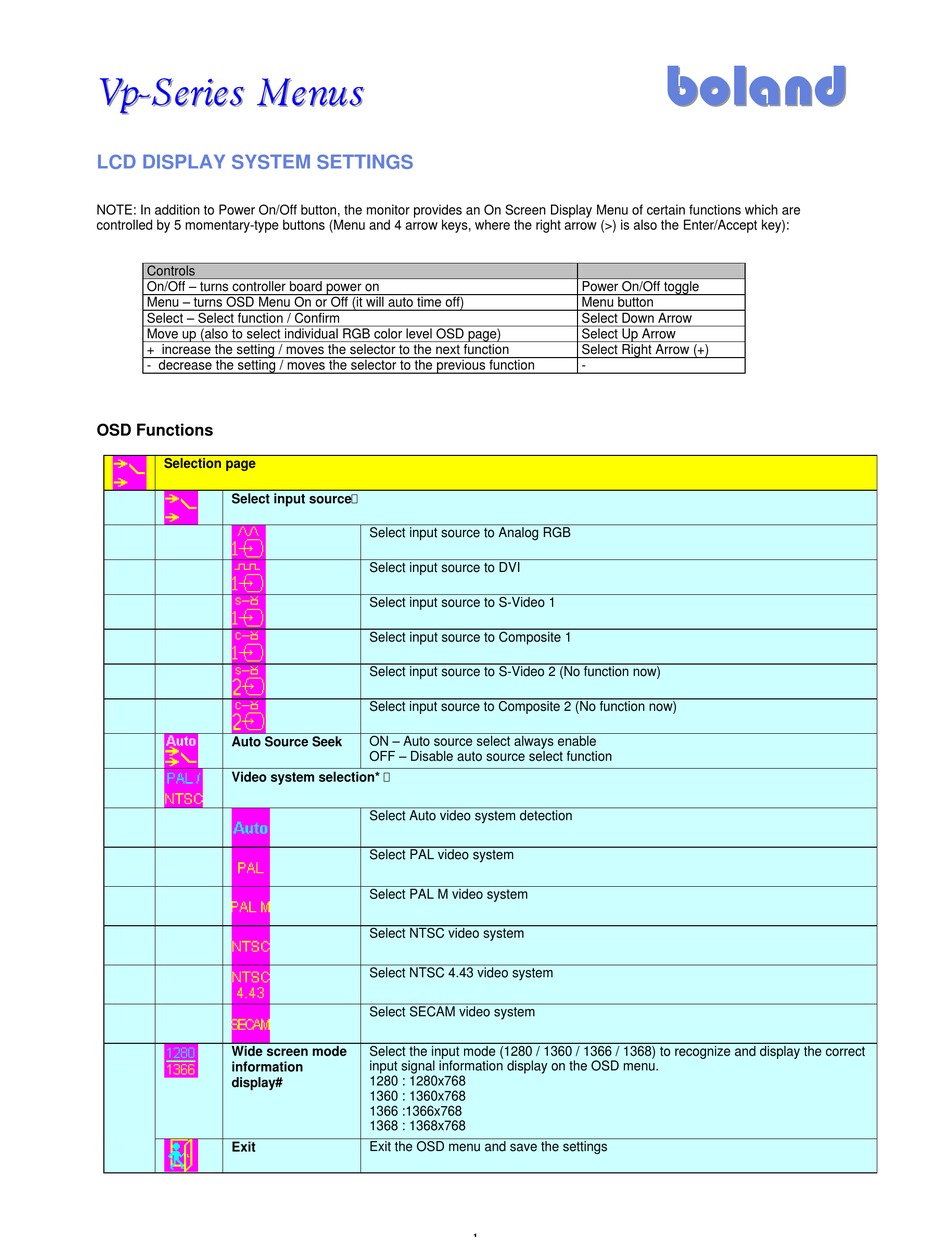

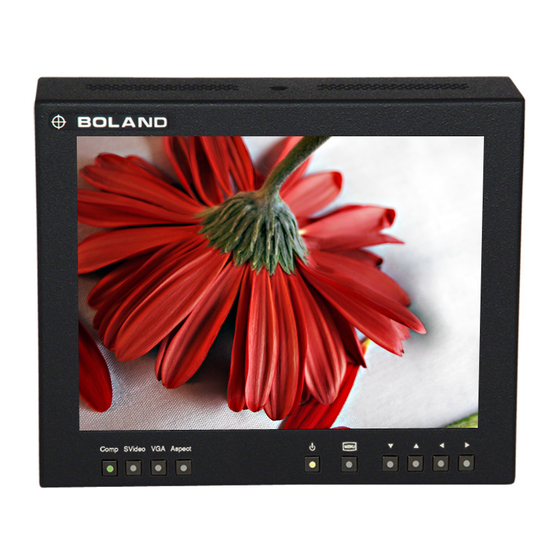

LCD DISPLAY SYSTEM SETTINGS
NOTE: In addition to Power On/Off button, the monitor provides an On Screen Display Menu of certain functions which are
controlled by 5 momentary-type buttons (Menu and 4 arrow keys, where the right arrow (>) is also the Enter/Accept key):
Controls
On/Off – turns controller board power on
Menu – turns OSD Menu On or Off (it will auto time off)
Select – Select function / Confirm
Move up (also to select individual RGB color level OSD page)
+ increase the setting / moves the selector to the next function
- decrease the setting / moves the selector to the previous function
OSD Functions
Selection page
Select input source?
Auto Source Seek
Video system selection* ?
Wide screen mode
information
display#
Exit
e n u s
e n u s
e n u s
Select input source to Analog RGB
Select input source to DVI
Select input source to S-Video 1
Select input source to Composite 1
Select input source to S-Video 2 (No function now)
Select input source to Composite 2 (No function now)
ON – Auto source select always enable
OFF – Disable auto source select function
Select Auto video system detection
Select PAL video system
Select PAL M video system
Select NTSC video system
Select NTSC 4.43 video system
Select SECAM video system
Select the input mode (1280 / 1360 / 1366 / 1368) to recognize and display the correct
input signal information display on the OSD menu.
1280 : 1280x768
1360 : 1360x768
1366 :1366x768
1368 : 1368x768
Exit the OSD menu and save the settings
Power On/Off toggle
Menu button
Select Down Arrow
Select Up Arrow
Select Right Arrow (+)
-
