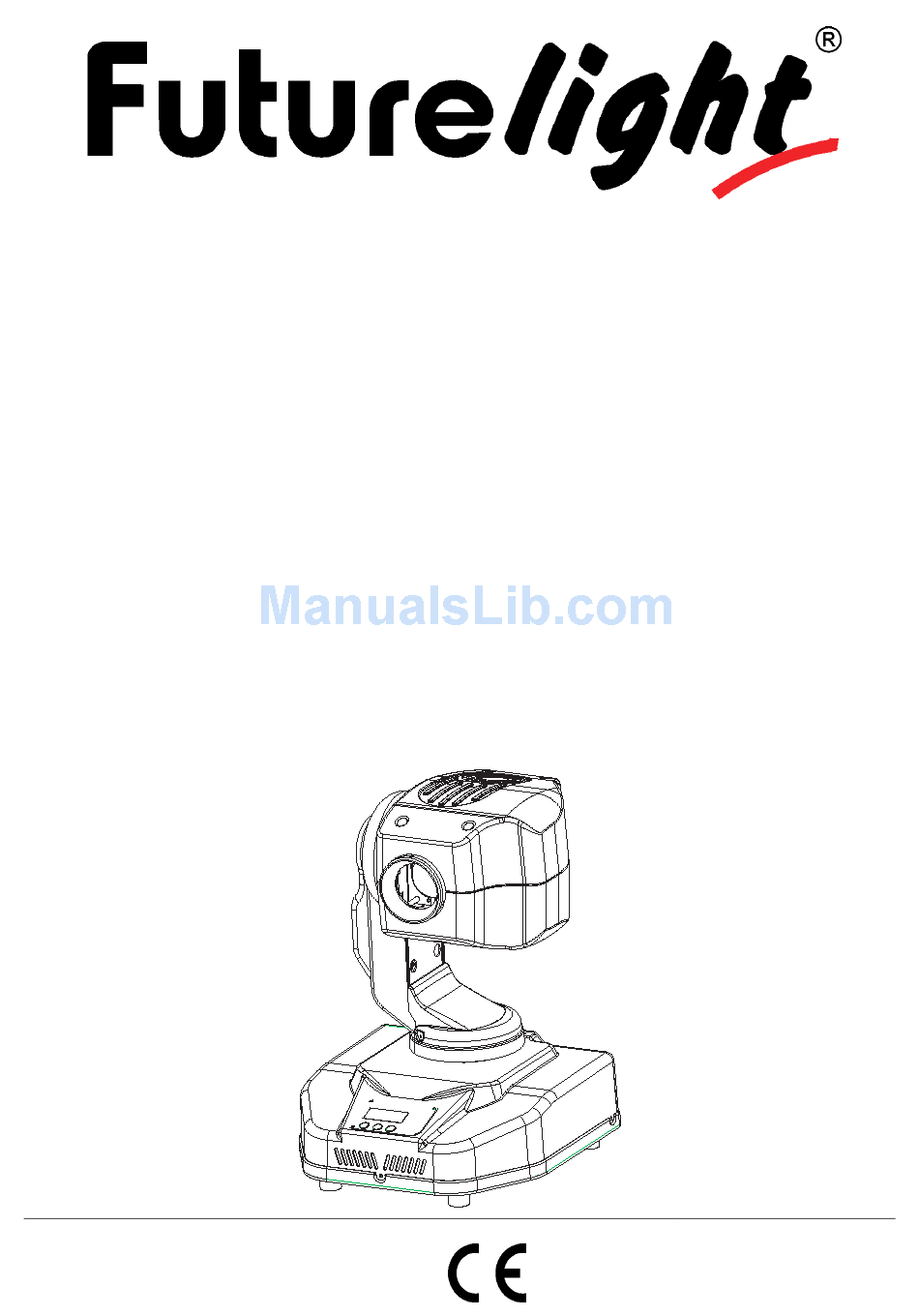

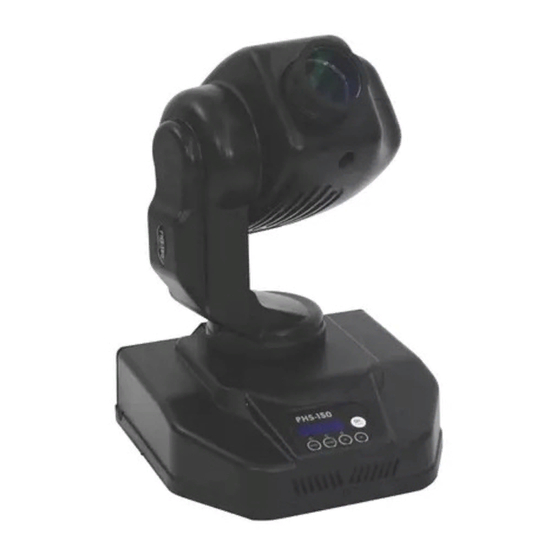

    BEDIENUNGSANLEITUNG USER MANUAL MODE D'EMPLOI MANUAL DEL USUARIO PHS-150 Moving-Head © Für weiteren Gebrauch aufbewahren! Copyright Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit! Guarde este manual para posteriores usos.

  • Page 2: Table Of Contents

    MULTI-LANGUAGE-INSTRUCTIONS Inhaltsverzeichnis Table of contents Sommaire Contenido EINFÜHRUNG..............................4 SICHERHEITSHINWEISE..........................4 BESTIMMUNGSGEMÄßE VERWENDUNG..................... 6 GERÄTEBESCHREIBUNG ..........................7 Features ................................. 7 Geräteübersicht.............................. 8 INSTALLATION .............................. 11 Lampeninstallation/Lampenwechsel ......................11 Lampenjustierung............................12 Einsetzen/Austauschen von Gobos ......................12 Projektormontage............................13 Anschluss an den DMX-512 Controller / Verbindung Projektor - Projektor ..........15 Anschluss ans Netz............................
  • Page 3 INTRODUCTION ............................. 55 INSTRUCTIONS DE SÉCURITÉ ........................55 EMPLOI SELON LES PRESCRIPTIONS ....................... 57 DESCRIPTION DE L'APPAREIL........................58 Features ............................... 58 Aperçue des parties ............................. 59 INSTALLATION .............................. 61 Installer/Remplacer la lampe ........................61 Ajustage de la lampe............................ 62 Introduire/échanger gobos ........................... 63 Montage du projecteur ..........................

  • Page 4: User Manual

    - pass this manual on to every further owner or user of the product - download the ultimate version of the user manual from the Internet INTRODUCTION Thank you for having chosen a FUTURELIGHT PHS-150. You will see you have acquired a powerful and versatile device. Unpack your PHS-150.
  • Page 5 If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.

  • Page 6: Operating Determinations

    HEALTH HAZARD! Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)! Keep away children and amateurs! Never leave this device running unattended. OPERATING DETERMINATIONS This device is a moving-head spot for creating decorative effects. This product is only allowed to be operated with an alternating current of 220-250 V, 50 Hz and was designed for indoor use only.

  • Page 7: Features

    The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may explose and emit a high ultraviolet radiation, which may cause burns. The maximum ambient temperature t = 45° C must never be exceeded. Operate the device only after having familiarized with its functions.
  • Page 8 Overview (1) Projector head (2) Objective-lens (3) Yoke (4) Base (5) Control Board (6) Ventilation fan (7) Housing screws (8) Mode/Enter-button (9) Down-button (10) Up-button (11) Display 34/104 51838155_V_1_1.DOC...
  • Page 9 (12) DMX-Out socket (13) DMX-In socket (14) Carrying handle (15) Fuseholder (16) Power supply (17) Lamp system 35/104 51838155_V_1_1.DOC...
  • Page 10 (18) Feet (19) Fixation holes adapter plate (20) Safety-rope holes 36/104 51838155_V_1_1.DOC...

  • Page 11: Installation

    INSTALLATION Installing/Replacing the lamp DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before! For the installation, you need one CDM 150 lamp. The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron).

  • Page 12: Lamp Adjustment

    Lamp adjustment The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance. Strike the lamp, open the shutter, set the dimmer intensity onto 100 % and direct the light towards a flat surface (wall).
  • Page 13 Rigging DANGER TO LIFE! Please consider the EN 60598-2-17 and the respective national norms during the installation! The installation must only be carried out by an authorized dealer! The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
  • Page 14 The Moving-Head can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characte- ristics (see the drawing). The fixture’s base enables to be mounted in two ways. For overhead use (mounting height >100 cm), always install a safety-rope that can hold at least 12 times the weight of the fixture.

  • Page 15: Connection With The Mains

    DMX-512 connection / connection between fixtures Projector 3 Projector 2 Projector 1 Starting address 21 Starting address 11 Starting address 1 120 Ohms DMX-512 Controller The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly. Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

  • Page 16: Control Board

    PHS-150 will respond to the controller. If you set, for example, the address to channel 11, the PHS-150 will use the channel 11 to 20 for control. Please, be sure that you don’t have any overlapping channels in order to control each PHS-150 correctly and independently from any other fixture on the DMX-chain.
  • Page 17 - the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the device. - the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.
  • Page 18 Control channel 5 - Rotating gobo-wheel, gobo shake DMX-value Feature Open 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-89 Gobo 1 shake with increasing speed 90-109 Gobo 2 shake with increasing speed 110-129 Gobo 3 shake with increasing speed 130-149...

  • Page 19: Control Board

    Control Board The Control Board offers several features: you can simply set the starting address, switch on and off the lamp, run the pre-programmed program or make a reset. The main menu is accessed by pressing the Enter-button for 3 seconds until the display starts flashing. Browse through the menu by pressing the Up-button.

  • Page 20: Main Functions

    Main functions - Main menu 0 ♦ Press [ENTER] for 3 seconds to enter the main menu "MODE" (display flashing) ♦ Press [ENTER] and select "ADDR", “RUN” or "DISP" by pressing [UP] button. ♦ Press [ENTER] for selecting the desired sub menu. - DMX address setting, Slave setting - DMX address setting With this function, you can adjust the desired DMX-address via the Control Board.
  • Page 21 ♦ Select "AUTO" or "SOUN" by pressing [UP]. ♦ Press [ENTER] for selecting the desired extension menu. ♦ Select "ALON" or "MAST" by pressing [UP]. ♦ Press [ENTER] to confirm. ♦ Press [EXIT/DN] in order to return to the main menu. Disp - Display the DMX-value, Reverse display, Shut off LED display - Display the DMX 512 value of each channel...
  • Page 22 ♦ Press [UP] to select “LAMP”. - Lamp on/off With this function you can switch the lamp on or off via the Control Board. ♦ Select "OPEN" by pressing [UP] button. ♦ Press [ENTER], the display shows“ON” or “OFF”. ♦ Press [UP] to select “ON” if you wish to switch on the lamp or “OFF” if you wish to switch off the lamp. ♦...
  • Page 23 ♦ Press [UP] to select “ON” in order to set 16 bit, or “OFF” in order to set 8 bit. The channels PAN Fine and TILT Fine will be disabled. ♦ Press [ENTER] or [EXIT/DN] to exit. Rest - Reset With this function you can Reset the device via the Control Board.
  • Page 24 - Main menu 4 ♦ Press [ENTER] for 3 seconds to enter the main menu (display flashing). ♦ Press [UP] to select “TIME”. - Fixture running time With this function you can display the running time of the device. ♦ Select “MATI” by pressing [UP] button. ♦...
  • Page 25 - Editing the channels of the individual scenes With this function you can edit the program to be called up in Run. a) Editing via the Control Board ♦ Select “SC01” by pressing [UP] button. ♦ Press [ENTER], the display shows “SCXX”, “X” stands for the scene no.

  • Page 26: Error Messages

    Error Messages When you turn on the fixture, it will make a reset first. The display may show “XXEr” while there are problems with one or more channels. “XX” stands for the channels equipped with a testing sensor. For example, when the display shows “04Er”, it means there is some error in channel 4. If there are some errors on channel 4, channel 5, channel 6 at the same time, you may see the error message “04Er”, “05Er”,”06Er”...

  • Page 27: Installing/Replacing The Lamp

    CAUTION! The lens has to be replaced when it is obviously damaged, so that its function is impaired, e. g. due to cracks or deep scratches! The objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-output very quickly.

  • Page 28: Technical Specifications

    TECHNICAL SPECIFICATIONS Power supply: 220-250 V AC, 50 Hz ~ Power consumption: 285 W DMX-control-channels: DMX-512-connection: 3-pin XLR Flash-rate: 10 Hz Colour-wheel: 8 dichroic filters and open Rotating gobo-wheel: 6 gobos and open Outside diameter of the gobos: 27 mm Image diameter of the gobos: 23 mm Length of base:...
