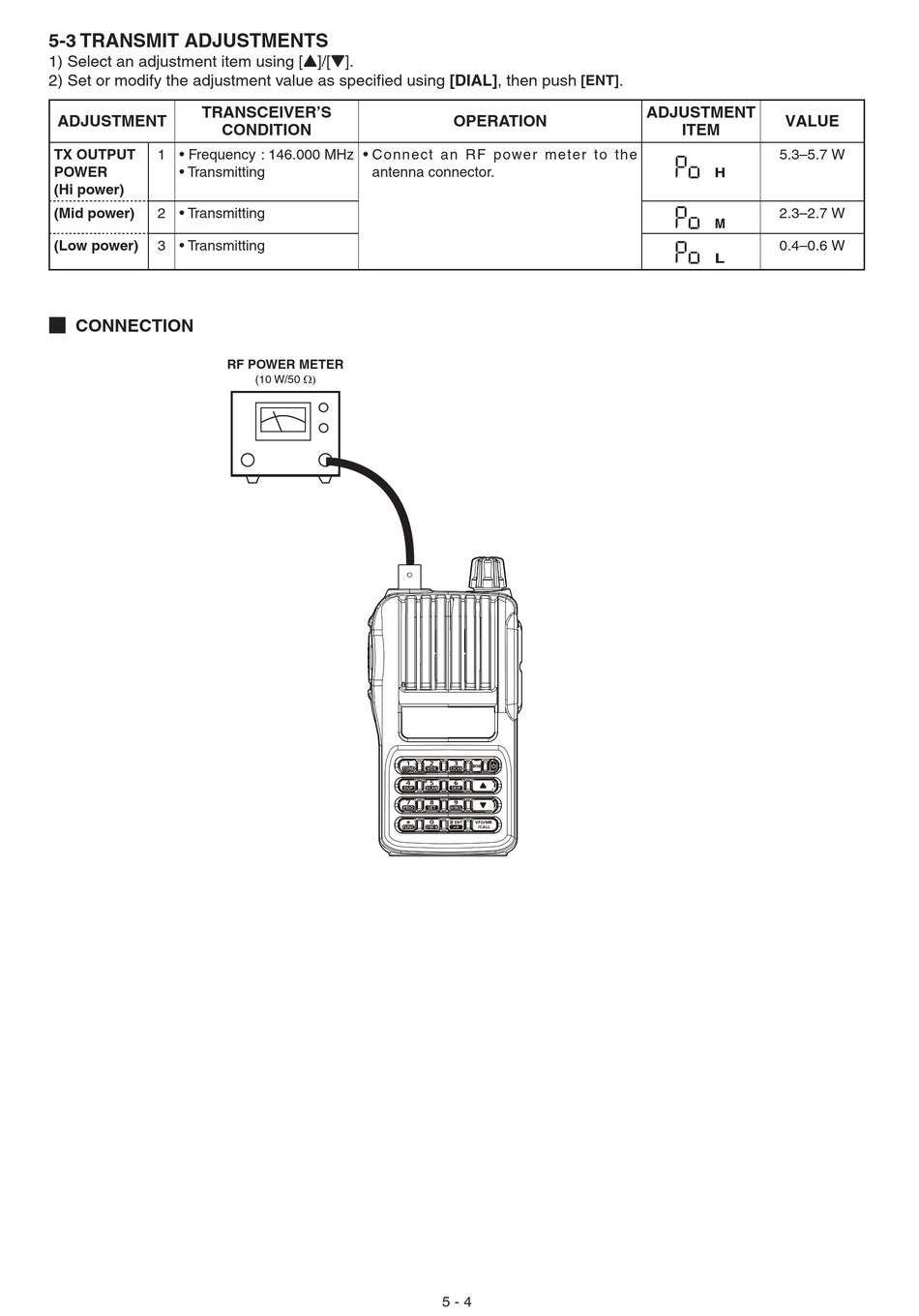

5-3 TRANSMIT ADJUSTMENTS

1) Select an adjustment item using [Y]/[Z].
2) Set or modify the adjustment value as specifi ed using [DIAL], then push
TRANSCEIVER'S
ADJUSTMENT
TX OUTPUT 1 • Frequency : 146.000 MHz
POWER • Transmitting
(Hi power)
(Mid power) 2 • Transmitting
(Low power) 3 • Transmitting
¤ CONNECTION
CONDITION
• Connect an RF power meter to the
antenna connector.
RF POWER METER
(10 W/50 Ω)
[ENT]
OPERATION
5 - 4
.
ADJUSTMENT
VALUE
ITEM
5.3–5.7 W
2.3–2.7 W
0.4–0.6 W
