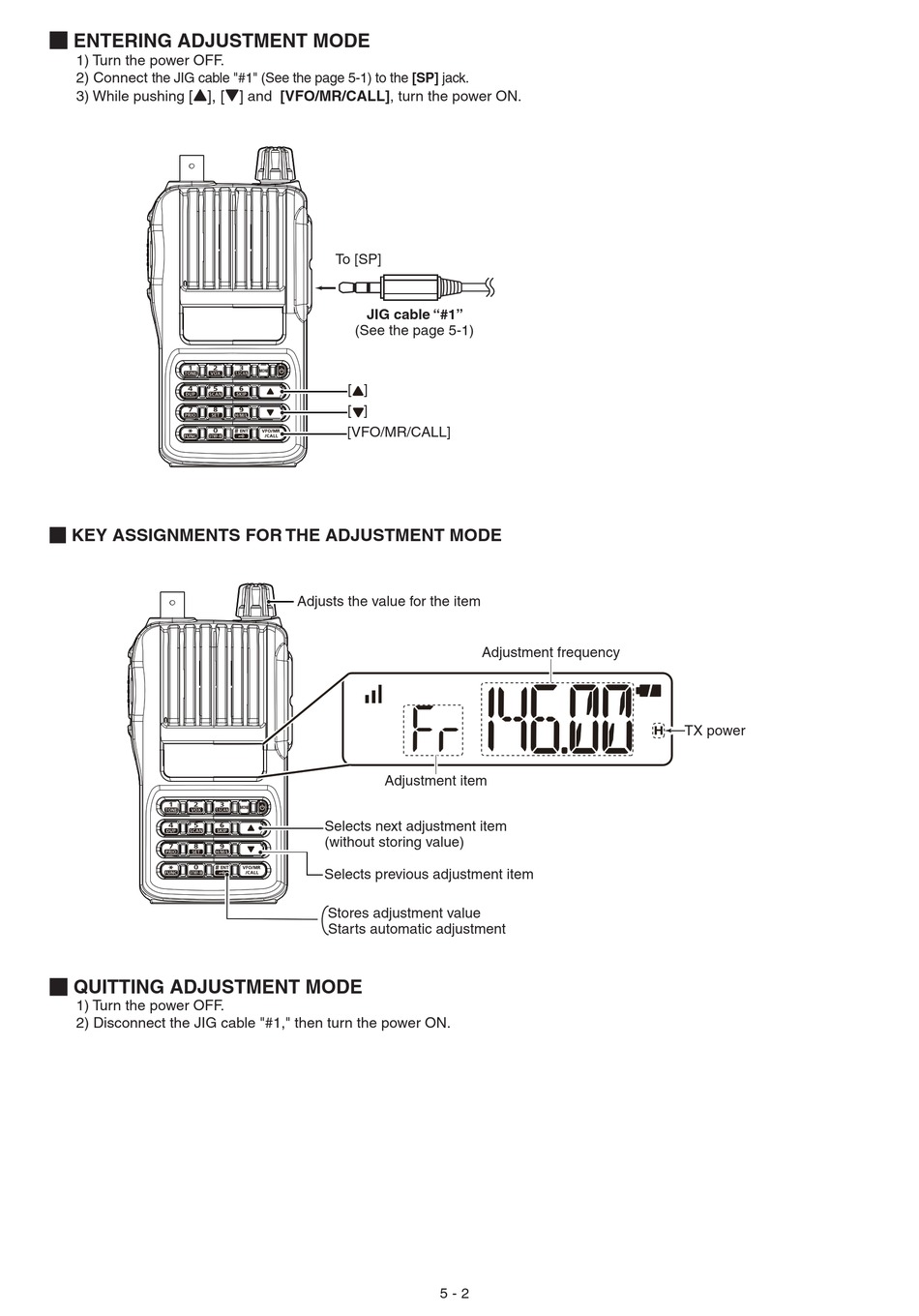

M ENTERING ADJUSTMENT MODE
1) Turn the power OFF.
2) Connect the JIG cable "#1" (See the page 5-1) to the [SP] jack.
3) While pushing [Y], [Z]
M KEY ASSIGNMENTS FOR THE ADJUSTMENT MODE
M QUITTING ADJUSTMENT MODE
1) Turn the power OFF.
2) Disconnect the JIG cable "#1," then turn the power ON.
and [VFO/MR/CALL], turn the power ON.
To [SP]
JIG cable "#1"
(See the page 5-1)
[ ]
[ ]
[VFO/MR/CALL]
Adjusts the value for the item
Adjustment item
Selects next adjustment item
(without storing value)
Selects previous adjustment item
Stores adjustment value
Starts automatic adjustment
Adjustment frequency
5 - 2
TX power
