Disassembly Instruction - Icom IC-V80E Service Manual Addendum

SECTION 3.

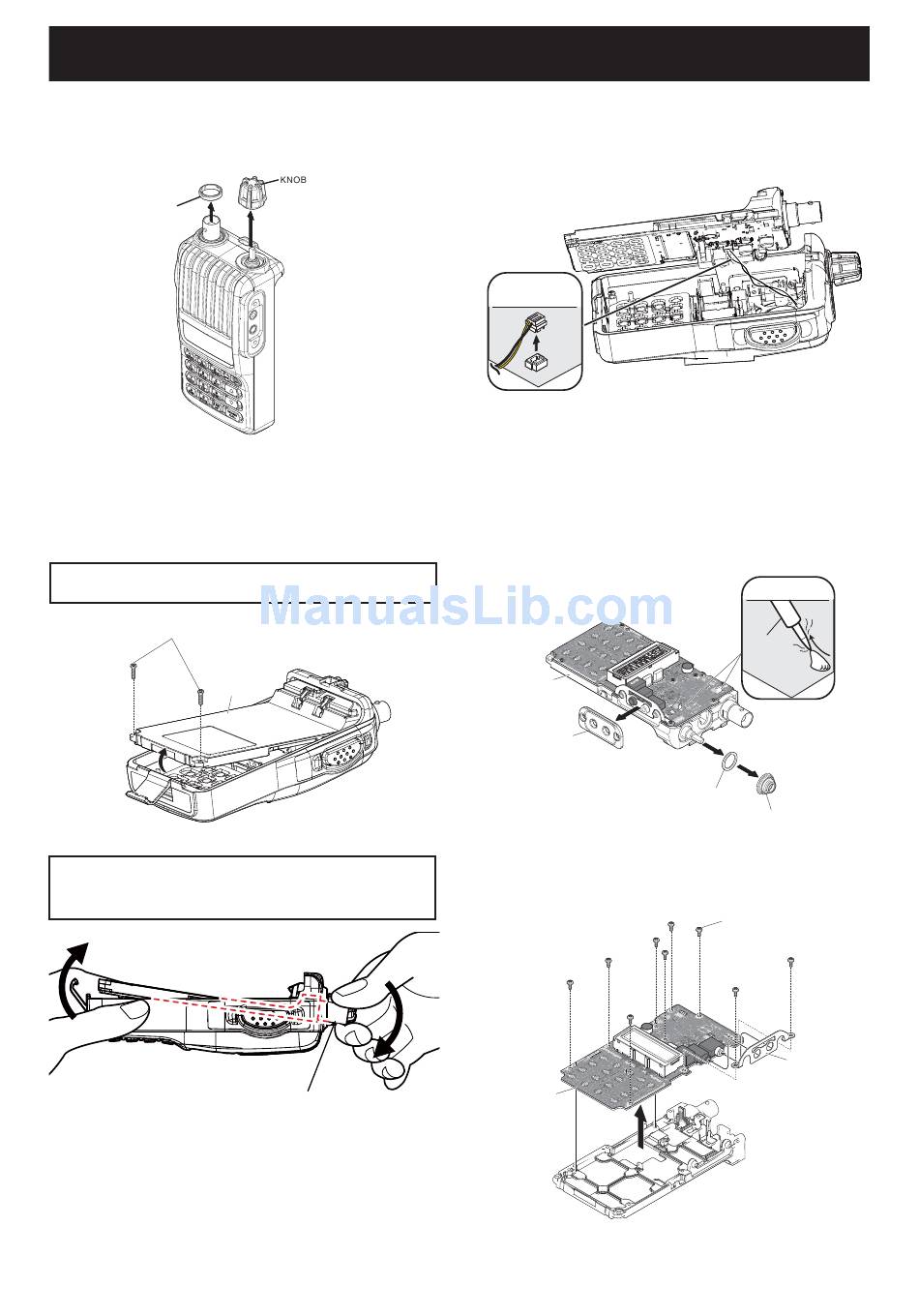

1. REMOVING THE CHASSIS
1) Remove the ANT connector nut and knob.
ANT CONNECTOR NUT
2) Remove 2 screws from the bottom of the CHASSIS.
3) Lift the bottom of the CHASSIS up in the direction
of the arrow.
BE CAREFUL to not pull out the speaker wire when
separating the CHASSIS and the FRONT PANEL.
SCREW×2
CHASSIS
For easy separation of the CHASSIS
Use the antenna connector as the grip to GENTLY lift the
bottom of the CHASSIS up slightly.

DISASSEMBLY INSTRUCTION

Antenna connector
(Continued to the right above)
4) CAREFULLY lift the chassis out of the FRONT PANEL
and turn it over in order to unplug the speaker wire.
SPEAKER
WIRE
2. REMOVING THE MAIN UNIT
1) Remove the top seal, side seal and nut from the
CHASSIS.
2) Unsolder the 2 points shown.
CHASSIS
SIDE SEAL
3) Remove the 9 screws and the side plate from the
MAIN UNIT.
MAIN UNIT
3 - 1
UNSOLDER
Solder
remover
NUT
TOP SEAL
SCREW×9
SIDE PLATE
