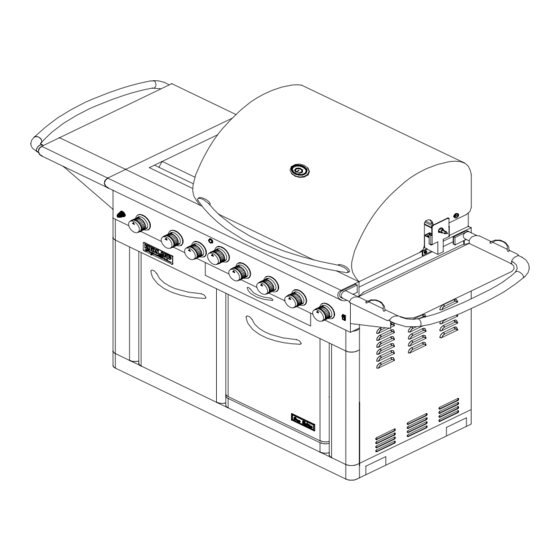

ASSEMBLY & OPERATING INSTRUCTIONS
300
400
500
6 00
200
1 00
700
8 00
FOR OUTDOOR USE ONLY
Model: 720-0432
A16Y07P-1
PLEASE CONTACT 1-866-984-7455 FOR ASSISTANCE
ABOUT ASSEMBLY OR GRILL OPERATION
DO NOT RETURN TO THE PLACE OF PURCHASE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 720-0432 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kirkland Signature 720-0432

Summary of Contents for Kirkland Signature 720-0432

  • Page 1 ASSEMBLY & OPERATING INSTRUCTIONS 6 00 1 00 8 00 FOR OUTDOOR USE ONLY Model: 720-0432 A16Y07P-1 PLEASE CONTACT 1-866-984-7455 FOR ASSISTANCE ABOUT ASSEMBLY OR GRILL OPERATION DO NOT RETURN TO THE PLACE OF PURCHASE...
  • Page 2 SAFETY INSTRUCTION RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS DANGER If you smell gas: Shut off gas to the appliance. Extinguish any open flames. Open lid. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. WARNING Do not try to light this appliance without first reading the “LIGHTING INSTRUCTIONS”...
  • Page 3 SAFETY INSTRUCTION WARNING WARNING Do not use the grill if the odor of gas is Spiders and insects can nest inside the present. Contact customer service at 1- burners of the grill and disrupt gas flow. 866-984-7455. This very dangerous condition could cause a fire behind valve...
  • Page 4 SAFETY INSTRUCTION WARNING WARNING Make sure the light switch is on “OFF” The light glass cover should not be in position and power plug is disconnected contact with water or any other liquid when from power outlet prior to cleaning the it’s warm.

  • Page 5: Table Of Contents

    MESSAGE TO OUR CONSUMERS Thank you for selecting our stainless steel gas grill. Because this appliance contains features which may not found on other grills, we recommend that you read this entire booklet before your first use. Keep it in a handy place as it has answers to questions that may occur during future use.

  • Page 6: Precautions

    PRECAUTIONS SAFETY PRACTICES TO AVOID PERSONAL WARNING INJURY Do not try to light this appliance without first When properly cared for, your stainless steel reading the “LIGHTING INSTRUCTIONS” grill will give safe, reliable service for many section in this manual. years.
  • Page 7 PRECAUTIONS PROPER PLACEMENT AND CLEARANCE OF GRILL LP-Gas Supply System •Never use your gas grill in a garage, porch, shed, only use a 20 lb tank breezeway or any other enclosed area. Your gas grill is to be used outdoors only. Minimum clearance from sides and back of unit to combustible construction, 24 A tank of approximately 12 inches in diameter by 18-1/2 inches (61cm) from sides and 24 inches (61cm) from...

  • Page 8: Placement Of The Grill

    PRECAUTIONS Do not use the grill for cooking excessively outside in a well ventilated area, out of the fatty meats or products which promote flare- reach of children. ups. Do not operate the grill under DO NOT USE BRIQUETTES OF ANY KIND IN unprotected combustible construction.

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ASSEMBLE INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP ► Propane Tank is not include ► Phillips head Screwdriver (not provided) STEP 1:The screws used to attach the side shelf are already screwed into the left panel (see the figure below).
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 2:Find 4 screws used to attach the push bar are screwed into the right panel (see the figure below), align with the holes in the push bar, and then screw into the holes on the right panel of the grill.
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 3: Find the 4 screws used to attach the right push bar brackets. Align with the holes on the right panel beneath the push bar. Insert the screws and loosely attach the brackets. Locate the 2 screws which will attach the bracket to the push bar itself, as shown in the diagram below. These screws will install from the under side of the push bar through the hole in bracket.
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 4: Battery is inserted for the Rotisserie burner . To install the battery, turn the ignition button cap counterclockwise and remove it. Replace the ignition button cap after the battery are installed. A16Y07P-1...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 5: Attach propane gas tank to regulator inlet fitting by turning the regulator clockwise as shown in figure below. LP gas cylinder must be fitted with a listed overfill prevention device (OPD). Open the door and pull out the tray, place the gas tank cylinder in the tank tray , then use retention kit that showed as below diagram to secure the tank cylinder .
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 6: The screws for rotisserie drive motor bracket are screwed into the right side of the grill housing. Remove the screws and install the rotisserie motor bracket as shown in the figure below. Assemble the rotisserie skewer as shown in the figure below. 4 sets screws A16Y07P-1 10...

  • Page 15: Gas Hook-Up

    GAS HOOK-UP QCC1 in the standard for compressed gas NEVER CONNECT AN UNREGULATED GAS cylinder valve outlet and inlet connection SUPPLY LINE TO THE APPLIANCE. USE ANSI/CGA-V-1. THE REGULATOR/HOSE ASSEMBLY SUPPLIED. Manifold pressure: 11”(27.94cm) water This is a liquid propane configured grill. Do not column (W.C.).

  • Page 16: Installer Final Check List

    GAS HOOK-UP 5. When connecting regulator assembly to the 7. If you have a gas connection leak you valve, hand tighten the quick coupling nut cannot repair, turn gas OFF at supply tank, clockwise to a complete stop. Do not use a disconnect fuel line from your grill and call wrench to tighten.

  • Page 17: Leak Testing

    LEAK TESTING Only those parts recommended by the GENERAL manufacturer should be used on the grill. Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete Substitution will void the warranty. Do not use gas tightness check must be performed at the the grill until all connections have been checked installation site due to possible mishandling in...
  • Page 18 CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane. The gas must be turned off at the supply cylinder when the unit is not in use.

  • Page 19: Operation Instructions

    OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND WARNING: IMPORTANT! ROTISSERIE USING THE SIDE BURNER: Each main burner is rated at 10,000 Btu/hr. Inspect the gas supply hose prior to turning The main grill burners encompass the entire the gas “ON”. If there is evidence of cuts, cooking area and are side ported to wear or abrasion, it must be replaced prior minimize blockage from falling grease and...
  • Page 20 OPERATING INSTRUCTIONS USING THE OVEN OVEN VENT: Do not block the ducts at the rear of the range when cooking in the oven. It is important that the flow of hot air from the oven and fresh air into the oven burner never be interrupted. Avoid touching the vent openings or nearby surfaces during oven or broiler operation –...

  • Page 21: Grill Lighting Instructions

    OPERATING INSTRUCTIONS CAUTION: PLEASE TAKE OFF THE WARMING RACK WHEN USING THE ROTIS BURNER. THE HIGH HEAT COMING FROM THE ROTIS BURNER MAY CAUSE THE WARMING RACK TO BEND. GRILL LIGHTING INSTRUCTIONS Never substitute regulators and hose assembly for those supplied with the grill. If WARNING: IMPORTANT! a replacement is necessary, contact the BEFORE LIGHTING…...
  • Page 22 GRILL LIGHTING INSTRUCTIONS If you’ve just attempted to light the burner TO LIGHT THE GRILL BURNER: with the igniter, allow 5 minutes for any Make sure all knobs are “OFF” then turn on accumulated gas to dissipate. Keep your face the gas supply from the LP tank.
  • Page 23 GRILL LIGHTING INSTRUCTIONS A16Y07P-1 19...
  • Page 24 GRILL LIGHTING INSTRUCTIONS flame is noisy and tends to lift away from the FLAME CHARACTERISTICS burner, it indicates too much air. Check for proper burner flame characteristics. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting. If Each burner is adjusted prior to any of these conditions exist call our shipment;...

  • Page 25: Lighting Illustrations

    LIGHTING ILLUSTRATION Main & Side Burner Lighting Illustration Rotisserie Burner or Searing Burner Lighting Illustration Step 1. Step to light the Rotisserie Burner : Make sure the Lid is open Push and turn the rotisserie knob to “ON” position and hold down for 3-4 seconds then push electronic ignition button at the same time, until burner is lit.

  • Page 26: Converting To Natural Gas

    LIGHTING ILLUSTRATION ( cont’d ) Step 1.Push & Turn the Knob to light the oven Step 2.After the burner is lit, adjust the Burner, it may take about 36-50 seconds to light temperature the Oven burner as you need CONVERTING TO NATURAL GAS This Grill is portable and configured for use with Liquid Propane (LP Gas), which is delivered to the grill from removable tanks (LP tanks and their use are covered elsewhere in this manual).
  • Page 27 INSTRUCTIONS FOR CONVERTING TO NATURAL GAS TOOLS NEEDED: A- 6mm & 7mm LONG SOCKET & DRIVER B-PHILLIPS & C-FLAT-HEAD SCREWDRIVER D-ADJUSTABLE WRENCH E-10mm OPEN END WRENCH F-VICE GRIPS Step 1: Replace Main Burner Orifice a. Remove cooking-grids & flame tamers b.
  • Page 28 Gas Conversion Step 2:Replace Side Burner Orifice a. Remove side burner cooking grid & burner b. Locate & Replace side burner orifice (NG orifices 1.7mm) using a 7mm socket(refer to below illustration) c. Replace burner side burner & grid Step 3: Replace Rear Burner Orifice a.
  • Page 29 Gas Conversion Step 4: Replace Searing Burner Orifice a. Remove the thermocouple cover at back of fire-box, then remove the thermocouple. Remove the COTTER-PIN under Searing burner and remove the burner b. Locate LP-Orifice (inside front wall of firebox) & and use 7mm long socket to replace with NG-Orifice (2.1 mm) c.
  • Page 30 Gas Conversion Step 4: Replace Oven Burner Orifice a. Remove Back Access Panel from the rear panel (Fig 1) b. Grasp brass elbow with vice grip or plyers (Fig 2) c. With 10 mm wrench, remove LP orifice and replace with NG orifice(1.98mm) (Fig 3 & 4) d.
  • Page 31 Gas Conversion Step 5: Adjustment of Control Valves for Main Burner, Side burner. a Remove all control-knobs with 5/32” Allen wrench (provided) b. Adjust gas valve through access hole at knob-bezel by inserting a flat head screw-driver. Turn the screw driver clockwise (to tighten) until it stops. (Not: it may already be fully turned so it will not turn further).

  • Page 32: Care And Maintenance

    CARE AND MAINTENANCE MAIN GRILL BURNER CLEANING STAINLESS STEEL Ensure the gas supply is off and the knobs are The grill is made from non-rusting and non- in the “OFF” position. Make sure the grill is cool. magnetic stainless steel. There are many Clean the exterior of the burner with a wire different stainless steel cleaners available.

  • Page 33: Stainless Steel

    CARE AND MAINTENANCE STAINLESS STEEL : HOW TO REPLACE MAIN BURNER Step 1. Insert the burner onto the orifice. There are many different stainless steel cleaners available. Always use the mildest cleaning procedure first, scrubbing in the direction of the grain. Do not use steel wool as it will scratch the surface.

  • Page 34: Oven Maintenance And Cleaning

    OVEN MAINTENANCE AND CLEANING CLEANING INSIDE THE OVEN: Bottom of the oven is partially covered by the Oven Cover (#44). This cover may be removed for cleaning by lifting it up and out of the oven. The Flame Tamer (#87) can be removed by loosening the nuts attached to the screws holding the flame tamer in place.
  • Page 35 REMOVE THE OVEN DOOR The oven door can be removed for cleaning. Please see the following illustrations. Oven Door Disassembling as shown in the figure: 2.Keeping the door at 30-45 degrees angle, lift 1.Slide the locking bracket (Left & Right each) of the door, pull it up &...

  • Page 36: Trouble Shooting

    TROUBLE SHOOTING SPIDER AND INSECT WARNING!!! WHEN TO LOOK FOR SPIDERS Spiders and small insects occasionally spin You should inspect the burners at least once webs or make nests in the grill burner tubes a year or immediately after any of the during transit and warehousing.
  • Page 37 TROUBLE SHOOTING PREHEATING: The grill lid should be in a closed position during the preheat time period. It is necessary to preheat the grill for a short time before cooking certain foods, depending on the type of food and the cooking temperature. Food that requires a high cooking temperature needs a pre-heat period of five minutes;...
  • Page 38 TROUBLE SHOOTING --Cover may be incorrect for your grill. It may be a tight fit. Ensure the cover correct length for your grill. Measure it left to right. Compare to the grill’s measurement. --Compare the location and size of the hood portion of the cover to your grill. --Spread the cover and allow it to relax, preferably in warm sunlight or in a warm room.
  • Page 39 TROUBLE SHOOTING Rotisserie motor will not turn --Check the voltage at the outlet. --If an extension cord is required, ensure it is a 16 gauges, grounded cord. --Ensure the on/off switch is on. --Ensure the load does not exceed the 40 pounds operational capacity.

  • Page 40: Parts List

    PARTS LIST A16Y07P-1 36...
  • Page 41 PARTS LIST PART (DESCRIPTION) Q'TY PART (DESCRIPTION) Q'TY Main Lid Grease Tray handle Temperature gauge Side shelf push bar, left Main Lid Handle Heat Insulating Spacer Side Shelf, left Main Lid Handle Heat Insulating cover Side Shelf front panel, left Main Lid Handle Tube Side Panel, Left Side burner lid...
  • Page 42 PARTS LIST PART (DESCRIPTION) Q'TY PART (DESCRIPTION) Q'TY Oven Lamp Center panel Oven Flue Logo Oven Grill Inside Liner Back Access Panel Ceramic Hot Surface Ignitor Conduit Cart Frame, Front Plastic bushing Cart Frame, Rear Power cord Rotisserie Motor Bracket U Shape Burner Side Plate Spit Fork U Shape Burner Side Plate...

  • Page 43: Electrical Wiring Diagram

    ELECTRICAL WIRING DIAGMAN LIGHT SWITCH WARNING! ELECTRICAL GROUNDING INSTRUCTIONS: this outdoor cooking gas appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three- pronged receptacle. DO NOT cut or remove the grounding prong from the plug. Caution: Label all wires prior to disconnection when servicing controls.

  • Page 44: Ordering Parts

    ORDERING PARTS IMPORTANT REPLACEMENT PARTS HOW TO ORDER Use only factory authorized parts. The use of To make sure you obtain the correct any part that is not factory authorized can be replacement part(s) for your gas grill, please dangerous. This will also void your warranty. refer to the parts list on this page.

  • Page 45: Grill Cooking Chart

    GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS AND FOOD THICKNESS FLAME SIZE TIME TIPS VEGETABLES Slice.Dot with butter or margarine Wrap in heavy-duty foil.Grill,turning occasionally Fresh Beets 12 to 20 minutes Carrots Grill,turning once.Brush Occasionally Turnips With melted butter or margarine Onion 1/2 inch slices 8 to 20 minutes...
  • Page 46 GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS FLAME SIZE TIME AND TIPS Tenderloin, Porterhouse, Remove excess fat from edge. Slash T-Bone, Sirloin remaining fat at 2-inch intervals. Rare 1 inch High 8 to 14 minutes Grill, turning once. 1-1/2 inch High 11 to 18 minutes...
  • Page 47 GRILL COOKING CHART WEIGHT OR APPROXIMATE SPECIAL INSTRUCTIONS FLAME SIZE FOOD THICKNESS TIME AND TIPS FISH AND SEAFOOD Grill,turning once.Brush with melted butter,margarine or oil To keep moist. Steaks Halibut 3/4 to 1 inch Medium to 8 to 15 minutes Salmon High Swordfish...

  • Page 48: Grill Recipe Suggestions

    GRILL RECIPE SUGGESTIONS Half hour before cooking, turn the BBQ SALMON TANGY SEAFOOD KABOBS burner to the grill on full. Drain 1 lb. Large shrimp, shelled & 2 large salmon steaks deveined seafood reserving marinade. On 2 tbs. Oil each of twelve 10” skewers, thread ¾...
  • Page 49 GRILL RECIPE SUGGESTIONS Preheat grill. Combine cheese, Pound flank steak to ¼ inch In blender, process 1/3 c. water, condensed soup, milk, BBQ sauce, thickness or flatten chicken breasts. onion, soy sauce, 2 tsp. oil and the oregano, salt and pepper in a large Mix oil, lime juice and seasonings next 8 ingredients until smooth.
  • Page 50 GRILL RECIPE SUGGESTIONS Marinade ribs for 3 hours. Use CHICKEN TANDOORI STYLE TURKEY marinade for basting by adding 8 large chicken thighs or 12 lb. turkey drumsticks beer to it. Place pan under the ribs Beer basting sauce: and baste frequently. To cook ribs 1 c.

  • Page 51: Limited Warranty

    LIMITED WARRANTY LIMITED WARRANTY MODEL 720-0432 STAINLESS STEEL OUTDOOR GAS GRILL Nexgrill Industries, Inc. warrants to the original consumer purchaser of each Outdoor Gas Grill that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below.
