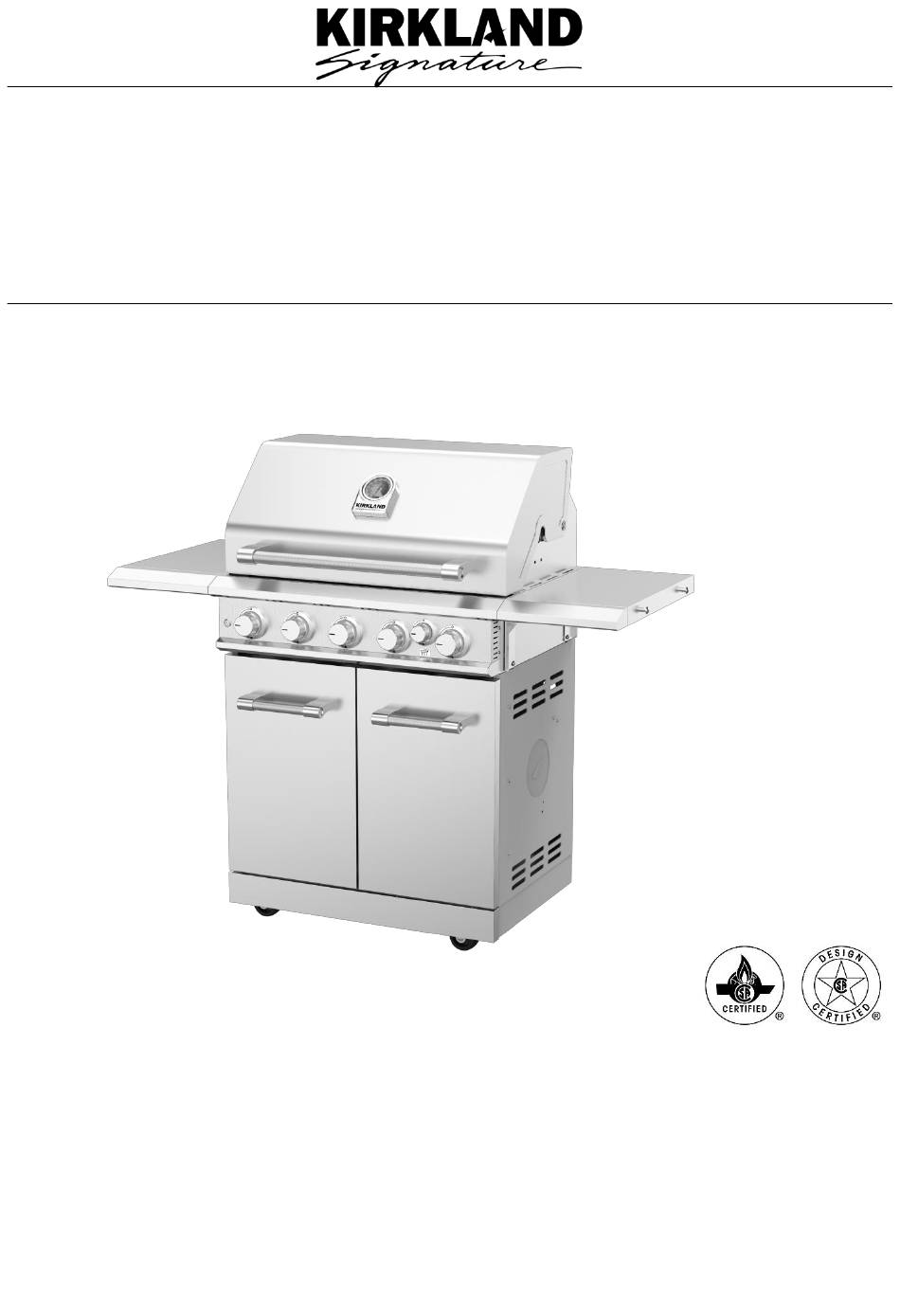

ITM. / ART. 2327661
FREESTANDING OUTDOOR GRILL
Installation Instructions and Use & Care Guide
Missing Parts / Questions / Issues
For assistance with parts, assembly, installation, etc. Please call: 1-866-984-7455
Languages spoken: English, French, Spanish 8 a.m.-5 p.m., PST. Monday-Friday.
Costco Member Service Number: 1-800-774-2678
Operating hours 8 a.m.-5 p.m., PST. Monday-Friday.
www.Costco.com
19001000A0
FOR OUTDOOR USE ONLY.
NOT FOR COMMERCIAL USE.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
720-1068 (LP) / 730-1068 (NG)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kirkland Signature 2327661
Summary of Contents for Kirkland Signature 2327661
- Page 1 ITM. / ART. 2327661 FREESTANDING OUTDOOR GRILL Installation Instructions and Use & Care Guide Missing Parts / Questions / Issues For assistance with parts, assembly, installation, etc. Please call: 1-866-984-7455 Languages spoken: English, French, Spanish 8 a.m.-5 p.m., PST. Monday-Friday.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Using Your Top Sear Burner……………………………………40 OUTDOOR GRILL SAFETY…………………………..…………3 TIPS FOR OUTDOOR GRILLING ……………..……………...41 PACKAGE PARTS LIST…............5 Cooking Methods ………………….…………………………….41 ASSEMBLY INSTRUCTIONS .…………………..……….……9 OUTDOOR GRILL CARE ………………………………...……42 INSTALLATION REQUIREMENTS…………………………...28 Replacing the Igniter Battery …….…………………..……..42 Location Requirements………………………………...………28 General Cleaning ……………………………………….…..…42 Product Dimensions………………………………..……….…28 ADJUSTMENT OF GRILL DOORS…………………..………44 Gas Supply Requirements………………………………………29... -
Page 3: Outdoor Grill Safety
OUTDOOR GRILL SAFETY CALIFORNIA RESIDENTS ONLY - WARNING: Fuels used in liquefied propane gas appliances, and the products of combustion of such fuels, can expose you to chemicals including benzene, which is known to the State of California to cause cancer and reproductive harm. - Page 4 IMPORTANT SAFETY INSTRUCTIONS ◼ WARNING: To reduce the risk of fire, electrical shock, The LP gas supply cylinder to be used must be: Injury to persons, or damage when using the outdoor cooking Constructed and marked in accordance with the gas appliance, follow basic precautions, including the following: Specification for LP Gas cylinders of the U.S.
-
Page 5: Package Parts List
PACKAGE PARTS LIST... - Page 6 PACKAGE PARTS LIST...
- Page 7 PACKAGE PARTS LIST...
- Page 8 TOOLS NEEDED Some parts come with Screws pre- installed. Loosen and tighten for final assembly. HARDWARE PACKAGE LIST Truss head screw Truss head screw Socket head screw 5/32-32 x 25/64” 1/4-20X1/2” 5/32-32x 25/64 "...
-
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS... - Page 25 Propane tank is not included...
-
Page 28: Installation Requirements
INSTALLATION REQUIREMENTS Location Requirements Product Dimensions The model/serial number rating plate is located on the inside of the left cabinet door. See the following illustration. Select a location that provides minimum exposure to wind and traffic paths. The location should be away from strong draft areas. -
Page 29: Gas Supply Requirements
Gas Supply Line Pressure Testing Gas Supply Requirements Testing above 1/2 psi (3.5 kPa) or 14" (35.5 cm) WCP (gauge): The grill and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures greater than 1/2 psi (3.5 kPa). - Page 30 Place the 20 lb propane tank bottom collar into the Natural Gas Conversion mounting hole in the tank tray. Tighten the locking screw against the bottom collar of the The conversion must be made by a qualified gas technician. 20 lb propane tank to secure. The qualified Natural Gas technician shall provide the Natural Gas supply to the selected grill location in accordance with the National Fuel Gas Code ANSI Z223.1/NFPA 54 - latest edition,...
-
Page 31: Make Gas Connection
Make Gas Connection Using your hand, turn the gas pressure regulator/hose assembly clockwise to connect to the 20 lb propane tank as shown. NOTE: If grill is to be converted to Natural Gas, follow Hand tighten only. Use of a wrench could damage the instructions in the “Gas Conversions”... -
Page 32: Gas Conversion
GAS CONVERSIONS 720-1068 (LP), 730-1068 (NG) orifice sizes Liquid Propane (LP) Natural Gas (NG) Components Orifice Size BTU/HR Orifice Size BTU/HR Main Burner 0.94 mm 10,000 1.54 mm 10,000 Top Searing Burner 1.07 mm 13,000 1.84 mm 13,000 IMPORTANT: The different burner valves in this grill have different BTU ratings. This means that the amount of gas coming from each orifice varies in order to create the BTU's. -
Page 33: Conversion From Lp Gas To Natural Gas
Conversion from LP Gas to Change Grill Main Burner Valve Orifices Natural Gas Remove the grates and flame tamers. Remove the screw and cotter clip that hold the burner in Installation of the regulator place. Set the screw and clip aside. Turn off the main gas supply valve. - Page 34 Reinsert the burner and reattach using the cotter clip and Change The Top Sear Burner Orifice screws previously removed. Repeat the procedure for each main burner. Use a screwdriver to remove the two screws from the top sear burner heat shield. Remove the heat shield. Use an adjustable wrench to remove the brass elbow.
-
Page 35: Make Gas Connection
Make Gas Connection Reinstall the top sear burner brass elbow by using a wrench. Before making any connections, check to ensure the Natural Gas inlet pressure falls between the allowable range of 7" W.C. / 0.25 psi and 14" W.C. / 0.5 psi. If the NG inlet pressure does not fall within this range, contact your local gas supplier. - Page 36 Adjust High Flame Setting Screw Place the burner control knobs back to their original positions. When converting from LP Gas to Natural Gas, you will need to adjust the high flame setting screw for ideal burner flame height. Remove each control knob for the main burners. Use a flat-blade screwdriver to turn the high flame setscrew counterclockwise approximate 90º.
-
Page 37: Check And Adjust The Burners
Check and Adjust the Burners Low Flame Adjustment If the flame goes out on the “L” setting, the low flame setting The burners are tested and factory-set for most efficient must be adjusted. operation. However, variations in gas supply and other Turn off the valve and wait until grill and burners are cool. -
Page 38: Outdoor Grill Use
OUTDOOR GRILL USE This manual covers several different models. The grill you have purchased may have some or all of the features listed. The locations and appearances of the features shown here may not match those of your model. Control Panel Knob Light Switch Bottom Main Burner Knob Top Searing Burner Knob... - Page 39 You will hear the “snapping” sound of the spark. When Prepare the Grill for Lighting burner is lit, release the knob. Turn knob to desired setting. Open the hood completely. Do not light burners with the Repeat for each of the other burners as needed. hood closed.
-
Page 40: Using Your Top Sear Burner
Using Your Top Sear Burner Lighting the Top Sear Burner Strike the match to light it. Hold the lit match close to the top sear burner. Open the main burner cover. Do not light burners with the cover on. Do not lean over the grill. Push in and turn the grill control knob to “●”, while continuing to hold it in. -
Page 41: Tips For Outdoor Grilling
TIPS FOR OUTDOOR GRILLING Cooking Methods Direct Heat Cooking by direct heat means the food is placed on grill grates directly above or below lighted burners. Hood position can be up or down. If hood is in the up position, total cooking times may be longer. -
Page 42: Outdoor Grill Care
OUTDOOR GRILL CARE GRILL GRATES Replacing the Igniter Battery IMPORTANT: Immediately after you are finished cooking, turn If igniters stop sparking, the battery should be replaced. all burners to HIGH for 10-15 minutes with the hood closed to burn off food residue. Turn off all burners, raise the hood and The igniter button cap is located on the outside of the grill’s let the grates cool. - Page 43 BURNERS TOP SEAR BURNER Cleaning Method: Cleaning Method: ◼ Light the top seal burner. See the “Using Your Top Sear Clean the exterior of the burner with a wire brush. ◼ Burner” section. Clear any clogged burner ports with a straightened paper clip.
-
Page 44: Adjustment Of Grill Doors
ADJUSTMENT OF GRILL DOORS Your grill is equipped with adjustable door hinges which may Adjustment of Grill Doors need adjustment if doors become misaligned. The hinges are made of two pieces which can easily be detached if door removal is ever necessary for maintenance. In the case that your grill doors need minor adjustments, the two screws on the main hinge piece can be adjusted as shown Removal of Grill Doors... -
Page 45: Troubleshooting
Excessive flare-ups TROUBLESHOOTING ▪ Is there excessive fat in the food being grilled? Keep flame on low or turn one burner off. Grill will not light Keep the hood up when grilling to avoid excessive flare- ups. ▪ Is the 20 lb propane tank valve turned off? Move food to the warming rack until flames subside. -
Page 46: Warranty
LIMITED WARRANTY (Model # 720/730-1068) Warranty is to the original consumer-purchaser only that this product (Model# 720/730-1068) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. - Page 47 THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THlS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
-
Page 48: Replacement Parts
Replacement Parts... - Page 49 Parts List Warranty Warranty Part (Description) coverage Part (Description) coverage (year) (year) Main lid Main burner igniter wire A Main lid screw Main burner igniter wire B Temperature gauge Main burner igniter wire C Temperature gauge housing Main burner igniter wire D Main burner igniter wire E Temperature gauge seal piece Main Lid Handle Heat Insulating...
- Page 50 Parts List Warranty Warranty Part (Description) coverage Part (Description) coverage (year) (year) Lighting rod Tank tray Wire cover Gas tank slide bracket, right Battery box Caster Electric igniter module Tank tray slide lock Electric igniter bracket Tank tray bolt Grease tray heat tent NG orifice pack Grease tray Top sear burner NG orifice...
- Page 51 Distributed by: Costco Wholesale Canada Ltd.* Costco Wholesale Corporation 415 W. Hunt Club Road P.O. Box 34535 Ottawa, Ontario Seattle, WA 98124-1535 K2E 1C5, Canada 1-800-463-3783 1-800-774-2678 www.costco.ca www.costco.com * faisant affaire au Québec sous le nom les Entrepôts Costco Limited warranty provided by manufacturer.
