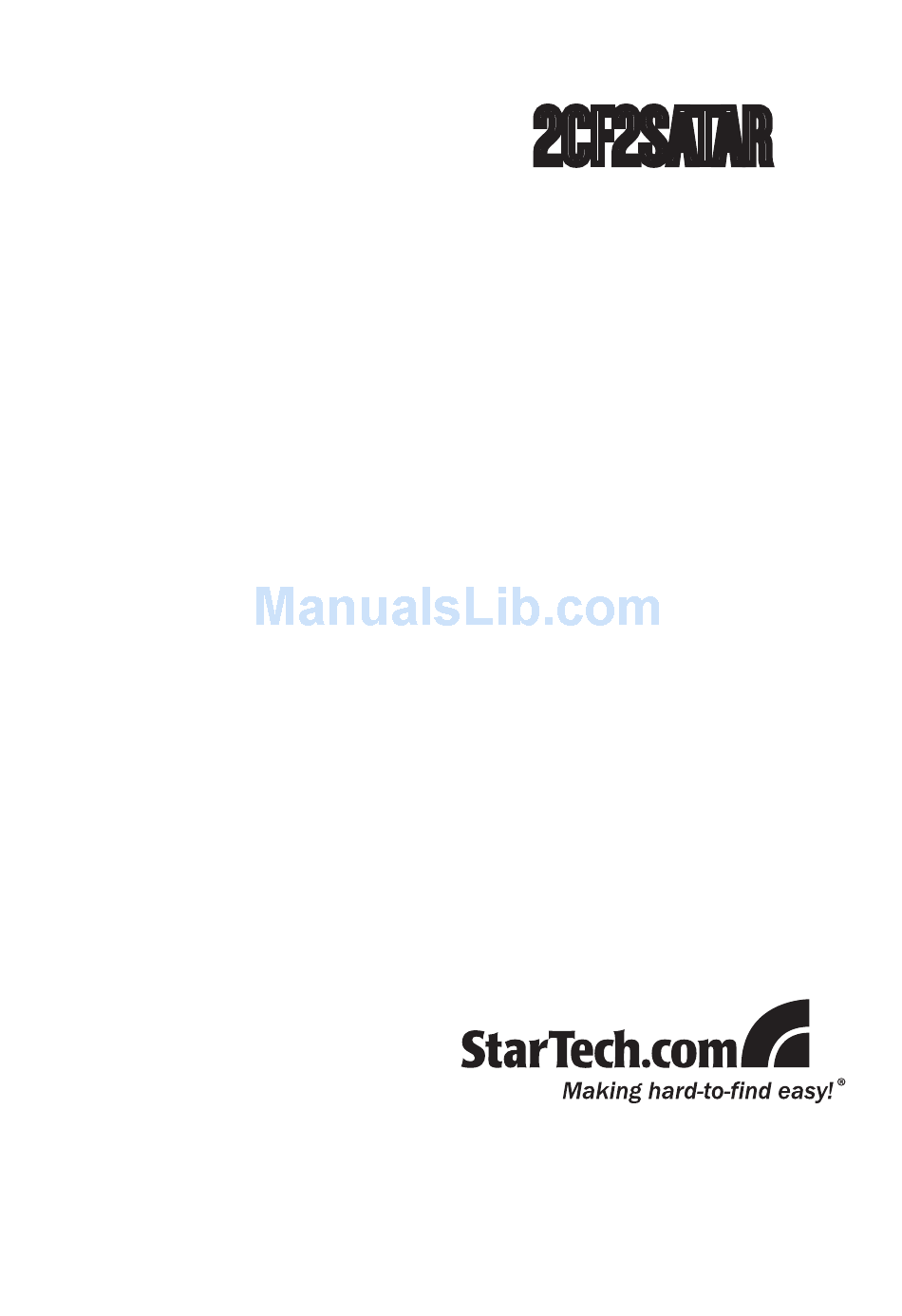

- Page 1 2CF2SATAR Instruction Manual SATA or USB to CompactFlash Adapter 2.5” SATA or USB to Dual CompactFlash SSD Adapter with RAID...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Top View ..................2 Bottom View .................2 Mode Switch ................3 LED Behaviour ................3 Hardware Installation ..............4 Driver Installation .................4 Software Installation ..............4 Troubleshooting .............. 5 Specifications ..............6 Technical Support ............ -
Page 4: Introduction
Introduction Packaging Contents • 1 x 2CF2SATAR adapter • 1 x 2.5” HDD Mounting Bracket (attached to adapter) • 1 x Mounting Screw • 1 x USB mini-B to A Cable • 1 x User Manual • 1 x Software CD System Requirements •... -
Page 5: Installation
Installation Top View Bottom View... -
Page 6: Mode Switch
Mode Switch LED Behaviour LED1 (Ready) Description Indicator Board Ready Board Fail LED2 (Activity) Description Indicator Unplugged Idle Accessing Flashing Rebuilding Rebuild-Verify Flashing Error... -
Page 7: Hardware Installation
Connect the SATA data and power connectors. Repeat Step 1 to Step 6 when installing new CF cards. Driver Installation No driver installation is required for the 2CF2SATAR adapter, as it is natively supported as a standard SATA hard disk drive or USB Mass Storage Device. -
Page 8: Troubleshooting
Troubleshooting Q1. Cannot access the disk after computer resumes from standby. A1. Unplug the SATA or USB connection and then plug in again. Q2. Configuration Manager Utility shows Raid failure. A2-1. RAID1 Mode: Change the failed CF card (Device 0 means CF on P3, Device 1 means CF on P4) and the adapter will automatically rebuild the Raid1 array. -
Page 9: Specifications
Specifications SATA 3Gbps Bus Interface USB 2.0 SATA: 3 Gbps Maximum Data Transfer Rate USB: 480 Mbps SATA 7+15 Connectors USB mini-B LED Indicators Ready, Activity, Alarm Supported Disk Modes RAID0, RAID1, Concatenation CF type I and II, CompactFlash Compatibility 2TB (maximum capacity) -
Page 10: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
