StarTech.com 25SATSAS35HD Quick Start Manual

Quick Start Guide

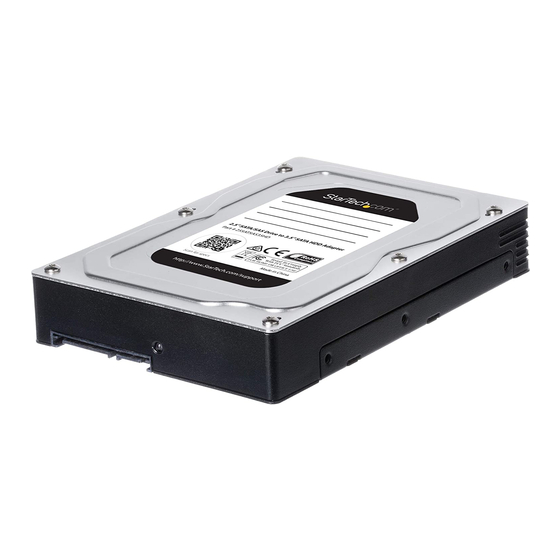

2.5" SATA/SAS Drive to 3.5" SATA Hard Drive Adapter Enclosure
25SATSAS35HD
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com

Package Contents

• 1 x Hard Drive Adapter Enclosure
• 1 x Set of Mounting Hardware
• 1 x Quick Start Guide

Requirements

Hardware:
Note: The following hardware is not included.
• 2.5" Hard Disk Drive (HDD) or Solid State Drive (SSD).
• 3.5" SATA/SAS host device (e.g. computer, docking system, or
backplane).
Note: When installing a SAS Drive into the Hard Drive Adapter
Enclosure, a SAS host device must also be used.
• Philps Head Screw Driver
• Computer with Available Drive Cage/Bay
• (OPTIONAL):
• SATA/SAS Data Cables
• 15-pin SATA Power Connector
• Motherboard with an Available SATA Data Header

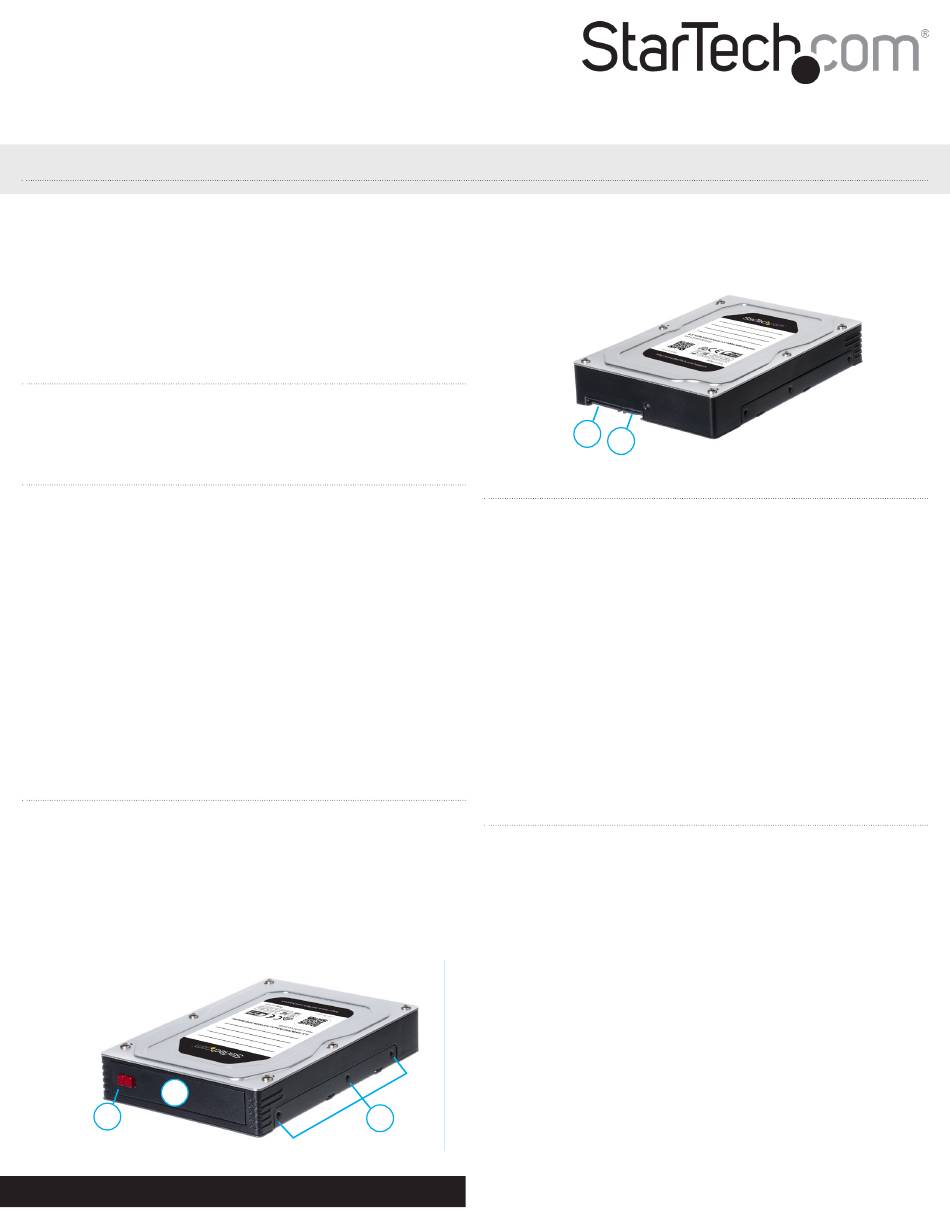

Product Diagram

Actual product may vary from photos.
Front View:
1. Release Switch
2. Enclosure Door
3. Mounting Holes (3 per side)
2
1
For the most up-to-date information, please visit:
www.startech. com/25SATSAS35HD
Rear View:
1. SATA/SAS Power Port
2. SATA/SAS Data Port

Installation (Tool-less)

Installing a Hard Drive into the Hard Drive Adapter
Enclosure:
Warning: Hard drives require careful handling.
1. On the Hard Drive Adapter Enclosure, slide the Release Switch to
the right.
2. The Enclosure Door will open giving you access to the 2.5" drive
slot.
3. (CAREFULLY) insert a 2.5" HDD or SSD (label side up) into the drive
slot. Make sure that the 2.5" HDD or SSD is properly aligned in the
Hard Drive Adapter Enclosure to ensure connectivity (with SATA/
SAS port).
4. (CAREFULLY) close the Enclosure Door, the 2.5"HDD or SSD will
slide into the Hard Drive Adapter Enclosure and connect to the
drive connector, securing the 2.5" HDD or SSD in place.

Mounting

Screw Mount:
Recommended: Leave space around the Hard Drive Adapter
Enclosure, when installing it into a PC or server chassis to ensure
proper airflow and heat dissipation.
1. Insert the Hard Drive Adapter Enclosure into the Drive Cage/Bay
label side up.
2. On the Drive Cage/Bay, align the mounting screw holes (on each
side) with the corresponding Mounting Hole on the Hard Drive
Adapter Enclosure.
3. Insert a screw (included) into each of the Mounting Holes.
4. Tighten the screws, making sure not to over-tighten.
3
1
2
Manual Revision: 10/25/2018
