Installation and
Operating Instructions
for Davey BT Series
Pressure Systems with
NOTE: Prior to installation remove the inlet and outlet
pipe transport plugs & associated seals from the
suction and/or discharge ports.
WARNING : The Torrium2 controller, pump and associated pipework operate
under pressure. Under no circumstances should the Torrium2 controller,
pump or associated pipework be disassembled unless the internal pressure
of the unit has been relieved. Failure to observe this warning will expose
persons to the possibility of personal injury and may also result in damage
to the pump, pipework or other property.
WARNING: Failure to follow these instructions and comply with all applicable
codes may cause serious bodily injury and/or property damage.
Please pass these instructions on to the operator of this equipment.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Davey BT14-300
Summary of Contents for Davey BT14-300
- Page 1 Installation and Operating Instructions for Davey BT Series Pressure Systems with NOTE: Prior to installation remove the inlet and outlet pipe transport plugs & associated seals from the suction and/or discharge ports. WARNING : The Torrium2 controller, pump and associated pipework operate under pressure.
- Page 2 Davey pressure system is designed to handle clean water. The system should not be used for any other purpose without specific referral to Davey. The use of the system to pump flammable, corrosive and other materials of a hazardous nature is specifically excluded.

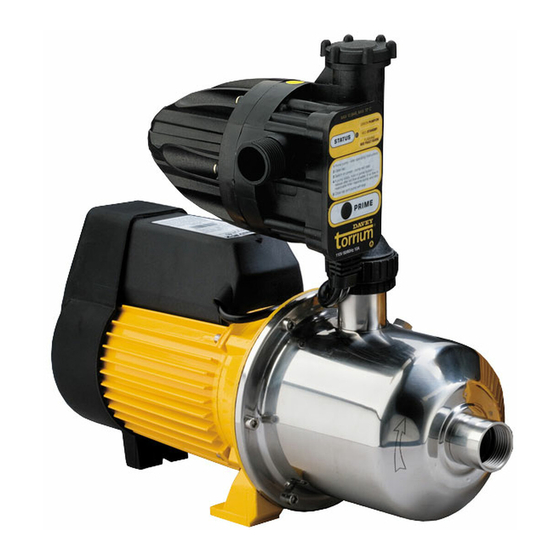

- Page 3 Priming Cap which covers the 1” Male Vertical Outlet and access to the internal check valve. Horizontal Outlet 1” Male Status Indicator Lights Prime Button Rotary Coupling Inlet 1” Male Fitting the Torrium2 directly to the Pump The Torrium2 is fitted with a rotary coupling. This coupling allows the pump controller to be fitted simply and easily to the pump discharge.
-
Page 4: Choosing A Site
If you use the vertical outlet instead or as well, you need to consider access to the inbuilt check valve in the Torrium. Davey suggest you use the enclosed flexible connection to allow for ease of access to the check valve. - Page 5 All wiring must conform to National (NEC), CSA, state, provincial, and local codes. Power supply voltage, phase and controls must match motor. The Davey Torrium2 fitted to this pump has status indicator light mounted on its front panel. These lights will only work when unit is connected to an electrical supply.
-
Page 6: Pipe Connections
NOTE: For protection, the Davey pump motors are fitted with an automatic reset thermal overload, constant tripping of this overload indicates a problem e.g. low voltage at pump, excessive temperature (above 115°F) in pump enclosure. Pipe Connections For best performance use P.V.C. - Page 7 Evaporative coolers, RO filters and extra draw-off capacity Where a Torrium2 equipped pump is required to supply water to an evaporative cooler, reverse osmosis (R.O.) filter or similar low flow device, the Torrium2 will detect the limited demand. This will result in the Torrium2 adapting to the slow demand. The pump start pressure will be allowed to drop to a lower cut in pressure each time low flows are detected.
- Page 8 Directly applied municipal pressure can exceed pump operating pressure and damage pump (see table overleaf). Models Maximum Inlet Pressure BT14-300 60 psi BT30-30 & BT20-30 50 psi BT14-45...
- Page 9 20psi 20psi The chart above shows the applicable settings for the pressure reducing valve.Davey Water Products Pty Ltd can not accept responsibility for loss or damage resulting from incorrect or unauthorised installations. Abrasive Materials The pumping of abrasive materials will cause damage to the pressure system which will then not be covered by the guarantee.
- Page 10 (DRIVEN) POINT INSTALLATIONS When a Multistage Pressure Boosting System is installed on a (driven or well) point, a check valve must be fitted immediately on top of the driven point itself, as shown in (B). DO NOT INSTALL THE CHECK VALVE AT THE PUMP OR AT THE TOP OF THE WELL.
-
Page 11: Maintenance
MOTOR STOPS - YELLOW STATUS INDICATOR LIGHT IS ILLUMINATED. 1. Motor ”over temperature” cut-out tripped. Consult Davey dealer. 2. Motor not free to turn - e.g. a jammed impeller. Consult Davey dealer. 3. Prime button has been held in for too long. Release prime button and switch off power for 1 minute to allow unit to reset. -
Page 12: After Sales Service
During servicing, use only approved, non-petrochemical based oring and gasket lubrication. If unsure, consult your Davey Dealer for advice. WARNING: Do not use hydrocarbon based or hydrocarbon propelled sprays around the electrical components of this pump. - Page 13 NOTES...
- Page 14 NOTES...
- Page 15 24 months from the date of purchase (warranty period). If a defect appears in the product before the end of the warranty period and Davey finds the product to be defective in materials or workmanship, Davey will, in its sole discretion, either: 1.
- Page 16 Website: davey.com.au Website: daveyeurope.eu ® Davey is a trademark of Davey Water Products Pty Ltd. © Davey Water Products Pty Ltd 2019. P/N 401341-10 * Installation and operating instructions are included with the product when purchased new. They may also be found on our website.
