Home Decorators Charles Mill Use And Care Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

XXX XXX/85798/23DE9448-NB04
XXX XXX/85521/23DE9448-NC01
XXX XXX/85804/23DE9448-NE01
XXX XXX/85811/23DE9448-PT85
USE AND CARE GUIDE

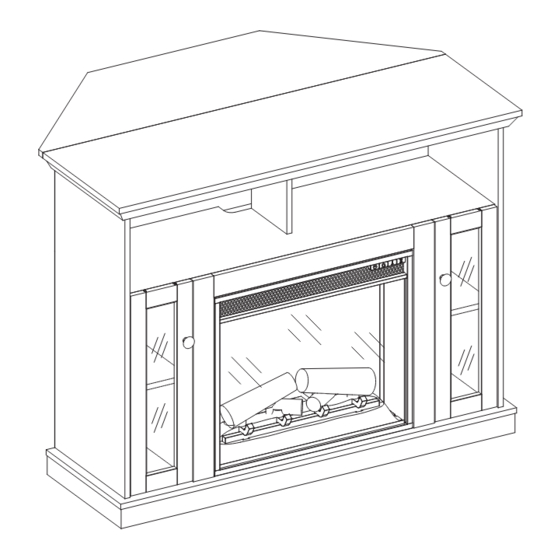

CHARLES MILL ELECTRIC FIREPLACE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-800-986-3640
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading

Related Manuals for Home Decorators Charles Mill

Summary of Contents for Home Decorators Charles Mill

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...

  • Page 2: Table Of Contents

    Table of Contents Maximum Load Warning ..............2 Package Contents ..............6 Safety Information ................3 Assembly ....................7 Warranty ....................4 Operation ...................15 Pre-Assembly ..................5 FCC/IC Information .................17 Hardware Included ........... 5 Care & Cleaning ................17 Product Specifications ............. 5 Troubleshooting ................18 Tools Required ................

  • Page 3: Safety Information

    Safety Information Important Safety Instructions Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-800-986-3460, 8 a.m.-6 p.m., EST, Monday-Friday. When using electrical appliances, always follow basic precautions to WARNING: Under no circumstances should this fireplace be reduce the risk of fire, electrical shock, and injury to persons, including...

  • Page 4: Warranty

    Warranty 1 Year Limited Warranty: The manufacturer warrants this product to be free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations: Install and operate this Electric Fireplace in accordance with the installation and operating instructions furnished with the product at all times.

  • Page 5: Pre-Assembly

    Pre-Assembly HARDWARE INCLUDED Plastic 19PCS Connector Block PH-PCBBLK001 16PCS Ø4*12mm BOLT Part Description Part Number Quantity 2 Hole Plastic Connector Block PH-PCBBLK001 3 Hole Plastic Connector Block PH-PCBBLK002 Short Flathead Screw Bolt PH-BLTBLK002 Floor Glide (Pre-attached) PH-GLDBRW001 Knob (with Screw) Long Flathead Screw Metal Plate (Pre-attached) PH-PLBLK001...

  • Page 6: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS NOTE: All panels are labeled left and right as viewed from the front of unit. Part Description Quantity Base Assembly Left Front Panel Left Partition Right Front Panel Right Partition Middle Front Panel Top Assembly Left Side Panel Right Side Panel Center Shelf Divider...

  • Page 7: Assembly

    Assembly Preparing the Partitions Preparing the Partitions Attach 2 Hole Plastic Connector Block (AA) to the Left Attach the Small Plastic Connector Block (II) to the Right Partition (C) using Bolts (DD). Partition (E) using Short Flathead Screws (CC). Repeat the process for the Right Partition (E). Repeat the process for the Left Partition (C).
  • Page 8 Assembly (continued) Preparing the Middle Front Panel Attaching the Middle Front Panel Insert the Wood Dowels (MM) into the pre-drilled holes Screw the Bolts (DD) through the 2 Hole Plastic on the ends of the Middle Front Panel (F). Connector Blocks (AA) into the Middle Front Panel (F) Connect the Left Front Panel (B) to the Middle Front and tighten.
  • Page 9 Assembly (continued) Attaching the Center Shelf Preparing the Side Panels Screw the Bolt (DD) through the 2 Hole Plastic Screw the Bolts (DD) through the 2 Hole Plastic Connector Block (AA) onto the edge of the Left Connector Blocks (AA) into the Center Shelf (J) Side Panel (H).
  • Page 10 Assembly (continued) Attaching the Side Panels Attaching the Base Assembly Attach the Left Side Panel (H) and the Right Side Panel Insert the Wood Dowels (MM) into the pre-drilled holes (I) to the assembly from the step 7. on the completed assembly from Step 10. Secure using the Bolts (DD) through the 2 Hole Plastic Using the Long Flathead Screw (GG) attach the Base Connector Blocks (AA).

  • Page 11: Side Back Panel

    Assembly (continued) Attaching the Divider Attaching the Top Assembly Insert Wood Dowels (MM) into the pre-drilled holes in Attach the Top Assembly (G) to the completed assembly the Divider (K). from Step 13. Secure the Divider (K) to the Center Shelf (J) with the Secure using the Bolts (DD) through the Large Flathead Screw (GG).
  • Page 12 Assembly (continued) Preparing the Doors Attaching the Knobs Remove the preassembled screws from the Knobs (FF), Attach the Hinges (L-2) to the Right Door (O) using the then attach the Knob (FF) to the Left Door (N) and Right Short Washerhead Screw (NN). Door (O) with the screws.

  • Page 13: Adjustable Shelf

    Assembly (continued) Installing the Fireplace Insert into Installing the Adjustable Shelves the Mantel Assembly Choose desired height of the Adjustable Shelf (P) and Lift the Fireplace Insert (T) carefully into the back of the place the four Shelf Pins (KK) in the corresponding unit and center in the fireplace insert opening.
  • Page 14 Assembly (continued) Preparing the Corner Extension Assembling the Corner Extension Place the Corner Extension (R) face down on a scratch Attach the Corner Brace (S) to the Corner Extension (R) free surface. by inserting Bolts (DD) through the holes in the 2 Hole Attach 2 Plastic Connector Blocks (AA) to the Corner Plastic Connector Block (AA) and tighten.

  • Page 15: Operation

    Operation Operation NOTE: The control panel can be accessed at the upper-right corner of the insert. When a function is changed from the control panel or remote control there will be a corresponding indicator (see Figure 1) on the upper-right of the projection screen.
  • Page 16 Operation (continued) Replacing the Remote Control Batteries Disposing of Used Batteries The battery may contain hazardous substances that When the remote control stops operating or its range could endanger the environment and human health. seems reduced, it is time to replace the batteries with new ones.

  • Page 17: Fcc/Ic Information

    FCC/IC Information This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipment off and on.

  • Page 18: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Unplug the fireplace, remove the back panel of the fireplace and check that the thermo- The thermostat sensor is stat is plugged into the main circuit board. The display shows “E1”. broken or disconnected. If this does not solve the problem contact customer service for a replacement thermo- stat sensor.

  • Page 19: Replacement Parts

    Replacement Parts For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-6 p.m., EST, Monday-Friday. Part Description Flame Generator Drive Motor Heater/Blower Assembly Main Circuit Board Control Panel Circuit Board Control Panel Buttons Emberbed with Log Emberbed Light Board Flame Circuit Board Spectrafire Flame Board LCD Display...
  • Page 20 Questions, problems, missing parts? Before returning to the store call Home Depot Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-986-3640 HOMEDEPOT.COM/HOMEDECORATORS RETAIN THIS MANUAL FOR FUTURE USE.
