SKU # 693962
Model #WSFP46ECHD-5

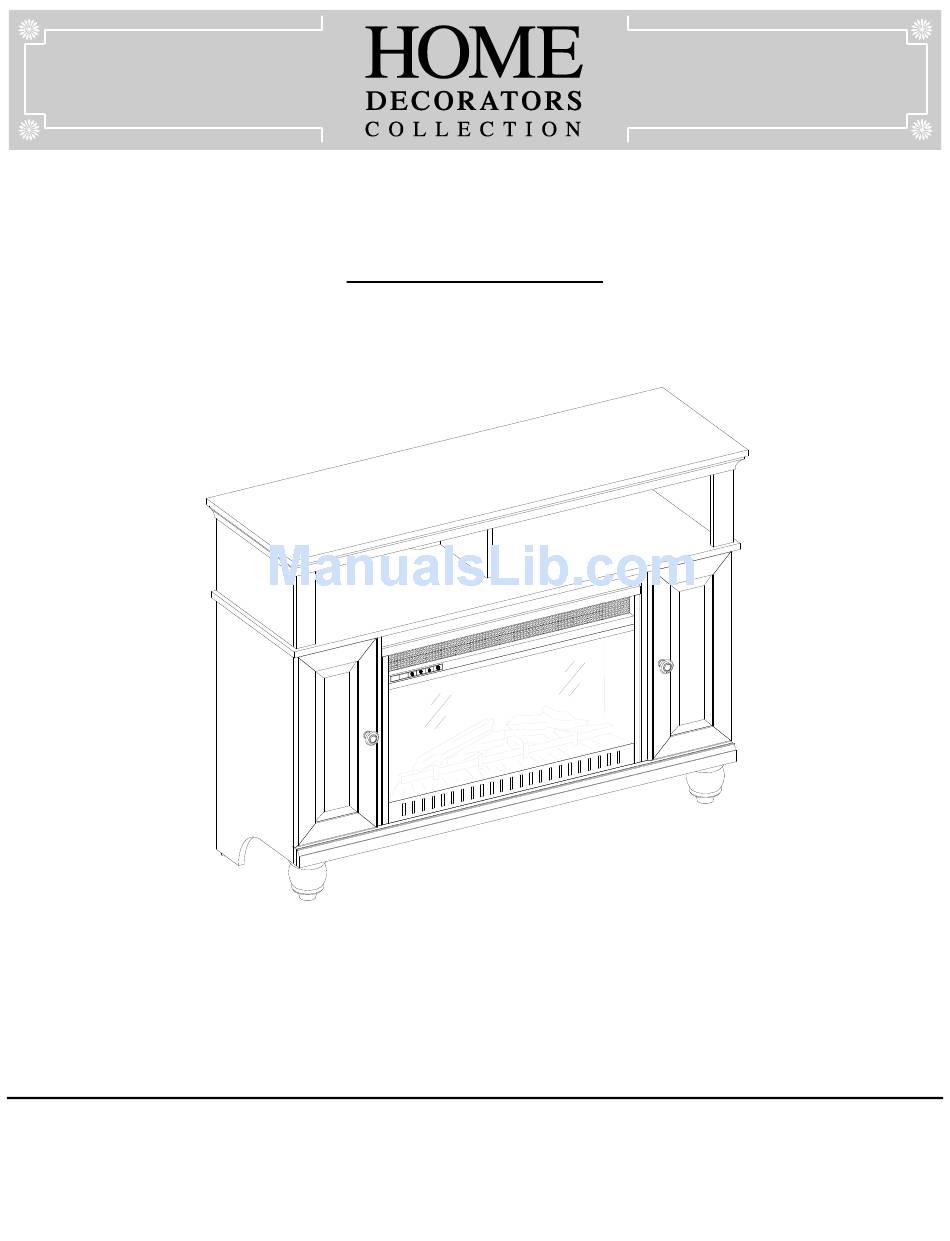

ASSEMBLY INSTRUCTIONS
Ashurst 46 inch Media Console Infrared Electric Fireplace
in Washed Linen Finish
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you
for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators WSFP46ECHD-5
Summary of Contents for Home Decorators WSFP46ECHD-5
-
Page 1: Assembly Instructions
THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you... -
Page 2: Table Of Contents
Table of Contents Hardware Included ............... 3 Table of Contents ............2 Safety Information ............2 Package Contents ................ 3 Warranty ................. 2 Assembly ............... 4 Pre-Assembly ..............2 Care and Maintenance ..........17 Planning Assembly ............... 2 Tools required ................2 Safety Information Please read and understand these instructions before assembling and using this console. -
Page 3: Hardware Included
Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. MAXIMUM LOAD 50 LB (22.7 kg) MAXIMUM LOAD 50 LB (22.7 kg) MAXIMUM LOAD 50 LB (22 MAXIMUM LOAD 50 MAXIMUM MAXIMUM LOAD 50 LB (22.7 kg) MAXIMUM LOAD 50 LB (22.7 kg) MAXIMUM LOAD 50 LB MAXIMUM LOA Part... -
Page 4: Assembly
Assembly Attaching the cam bolts NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a carpeted floor or the empty carton to □... - Page 5 Assembly (continued) Attaching the bottom panel molding Align and attach the bottom panel molding (Q) to the bottom panel (C) by using four wood dowels (CC) and three cam locks (AA). □ Attaching the foot support Align and attach the foot supports (T and U) to the bottom panel (C) with two wood dowels (CC) and three short screws (SS) in each, using □...
- Page 6 Assembly (continued) Installing the center support and bun-feet Tightly screw the center support (S) into the threaded insert on the bottom panel (C). □ Screw two bun feet (R) into the female connectors on the foot supports (T and U). □...
- Page 7 Assembly (continued) Attaching the middle crossbar Align and attach the middle crossbar (P) to the center shelf (B) by using two wood dowels (CC) and three cam locks (AA). □ Attaching the partition panel molding □ Fasten one lower partition panel molding (O) to the left lower partition panel (J) using two wood dowels (CC) and two cam locks (AA). Repeat the same procedure to combine the other lower partition panel molding (O) and right lower partition panel (K) together.
- Page 8 Assembly (continued) Attaching the lower partition panels Insert four wood dowels (CC) into the inner holes of both lower partition panels (J and K) and attach them to the bottom panel (C) by using □ four long screws (DD). Attaching the center shelf Insert eight wood dowels (CC) into the top inner holes of the lower side panels and lower partition panels (I, J, K and L).
- Page 9 Assembly (continued) Fastening the middle crossbar Stand the assembled unit upright. □ Fasten the middle crossbar (P) to both partition panel moldings (O) by attaching two metal brackets (II) at the joints, using two black screws □ (EE) per metal bracket. As shown. Attaching the cam bolts □...
- Page 10 Assembly (continued) Attaching the upper side panel moldings Securely screw two cam bolts (BB) into the designated small holes on one upper side panel molding (G) by a phillips screwdriver. □ Fasten the upper side panel molding (G) to one upper side panel (F) using one wood dowel (CC) and two cam locks (AA). As shown. □...
- Page 11 Assembly (continued) Attaching the cam bolts Securely screw six cam bolts (BB) into the designated small holes on the top panel (A) by a Phillips screwdriver. □ Attaching the top panel □ Insert five wood dowels (CC) into the top inner holes on upper side panels (F) and partition panel (E ). Position the top panel (A) onto the inserted wood dowels (CC) and fasten it in place with six cam locks (AA ).
- Page 12 Assembly (continued) Attaching the back panels Pick up the upper back panel (D) and align the pre-drilled holes against the upper long edge with the pilot holes on the back stretcher of top □ panel (A). Attach the back panel (D) in place using the provided washer head screws (FF). □...
- Page 13 Assembly (continued) Installing the door hinges Extend the door hinges (PP) and rest the hinge cups onto the cutouts of one door panel (N). Secure the door hinges (PP) in place by using □ two zinc screws (GG) in each. □...
- Page 14 Assembly (continued) Attaching the rubber bumpers and cam lock covers Plug the cam lock covers (JJ) onto the visible cams locks to conceal the cams. □ □ Stick the rubber bumpers (NN) on the outer corners of doors (N) as shown. Installing the fireplace insert Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening.
- Page 15 Assembly (continued) Attaching the firebox support Align and attach the firebox support (V) to the bottom panel (C) by screwing two large screws (HH) into the countersunk holes. □ Attaching the acrylic stopper NOTE: You must install the Acrylic TV Stopper to prevent TV from tipping when placing your flat panel television on the table-top Remove the paper backing of acrylic stopper (OO), then properly align the acrylic stopper into the cut-out on the acrylic stopper template on □...
- Page 16 Assembly (continued) Installing the tipping restraint hardware NOTE: Young children can be seriously injured by tipping furniture. You must install the tipping restraint hardware with the unit to prevent the unit from tipping, causing any accidents or damage. The tipping restraints are intended only as a deterrent, they are not a substitute for proper adult supervision.
-
Page 17: Care And Maintenance
Care and Maintenance A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or shipping. To clean and care for your furniture: □ Use a soft, clean cloth that will not scratch the surface when dusting. □... - Page 18 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
