Home Decorators WSFP42HD-11 Assembly Instructions Manual

Coleridge 42 in. mantel console with infrared electric fireplace in medium cherry finish

Advertisement

Quick Links

SKU # 1001803993
Model # WSFP42HD-11

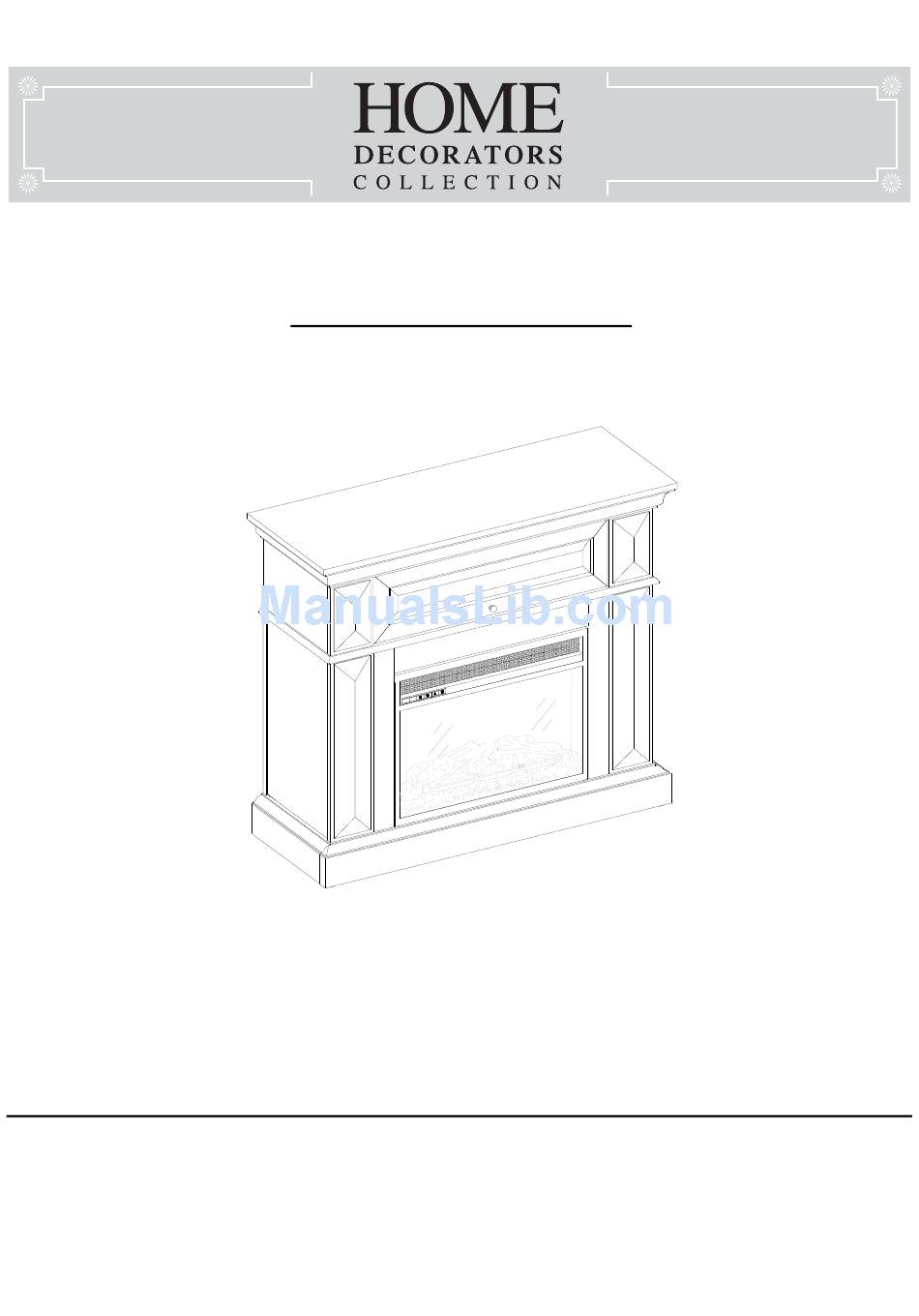

ASSEMBLY INSTRUCTIONS

Coleridge 42 in. Mantel Console with Infrared Electric Fireplace
in Medium Cherry Finish
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available
for your home improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

loading

Summary of Contents for Home Decorators WSFP42HD-11

  • Page 1: Assembly Instructions

    THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available...
  • Page 2 Table of Contents Table of Contents ..............2 Hardware Included ............3 Safety Information ..............2 Package Contents ............. 4 Warranty ................2 Assembly ................5 Pre-Assembly ................ 2 Care and Maintenance ............18 Planning Assembly............2 Tools required ..............2 Safety Information Fits up to most 127 cm / 50 in.
  • Page 3: Hardware Included

    Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Cam lock 39 + 1 extra Push magnetic catch Cam bolt 39 + 1 extra Corner connector Wood dowel 44 + 2 extra Hook Long wood screw 14 + 1 extra...
  • Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top panel Left lower side panel Center shelf Right lower side panel Base Lower back panel Back panel Lower front panel Left upper side panel Adjustable shelf Barrister door left support Barrister door Barrister door right support Center crossbar...
  • Page 5 Assembly Screwing the cam bolts NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. □ Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratches.
  • Page 6 Assembly (continued) Attaching the magnetic catches □ Flip the center shelf (B) around. □ Align two magnetic catches (LL) to the pilot holes on the center shelf (B). Keep the magnetic plates facing the finished edge. Then attach the magnetic catches (LL) in place using two long pan head screws (GG) per catch. Combining the upper moldings and side panels NOTE: Refer to the dowel and cam lock assembling guide drawings in this step for further clarification on how to properly glue in...
  • Page 7 Assembly (continued) Installing the upper side panel assemblies □ Glue six wood dowels (CC) into the inner holes drilled on the top edge of upper side panel assemblies (E, H and R) and attach them to the top panel (A) by engaging four cam locks (AA). Installing the corner connectors □...
  • Page 8 Assembly (continued) Attaching the barrister door supports □ Glue four wood dowels (CC) into the inner holes on the upper edge of the barrister door supports (F and G) and attach them to the top panel (A) by engaging four cam locks (AA). Securing the barrister door supports □...
  • Page 9 Assembly (continued) Attaching the center crossbar □ Align and attach the center crossbar (Q) to the center shelf (B) with two wood dowels (CC) and three cam locks (AA). Installing the center shelf □ Glue six wood dowels (CC) into the inner holes at the bottom edge of the upper side panels (E and H) and front moldings (R). □...
  • Page 10 Assembly (continued) Combining the lower panels □ Glue two wood dowels (CC) into the inner holes of left lower side panel (K) and attach it to one lower front panel (N) by engaging two cam locks (AA) as shown. □ Repeat the same procedure to combine the right lower side panel (L) and the other lower front panel (N) together.
  • Page 11 Assembly (continued) Installing the lower side panel assemblies □ Glue eight wood dowels (CC) into the top inner holes of both lower side panel assemblies. □ Align the large holes on the center shelf (B) with the inserted wood dowels (CC) and press them together. Secure the lower side panel assemblies in place by engaging twelve cam locks (AA).
  • Page 12 Assembly (continued) Securing the base □ Insert four long wood screws (DD) through the drilled holes on the base (C) and securely screw into the lower side panels (K and L). Installing the metal plate □ Flip the assembled unit around at its front edges. Secure the middle crossbar (Q) to both lower front panels (N) by attaching two metal plates (KK) at the joints, using two short wood screws (EE) in each, as shown.
  • Page 13 Assembly (continued) Attaching the back panel □ Pick up the back panel (D) and align the drilled holes against the upper long edge with the pilot holes on the back stretcher of the top panel (A). Attach the back panel (D) in place using the provided washer head screws (FF). Attaching the bottom pivot hinges □...
  • Page 14 Assembly (continued) Installing the left door □ Stand the assembled unit upright. □ Tilt and insert the pivot pin under the left door (I) into the plastic bushing pre-attached on the base (C). □ Attach the left upper pivot hinge (QQ) to the plastic bushing pre-attached on the center shelf (B) as shown. Make sure that the pivot hinge mounting plate will face inward.
  • Page 15 Assembly (continued) Installing the adjustable shelves and cam lock covers □ Open the doors (I and J) and insert four shelf supports (JJ) into the desired holes inside each side compartment. Make sure you place the four shelf supports in the same level so the shelf is not tilted. Rest the adjustable shelves (O) onto the shelf supports (JJ).
  • Page 16 Assembly (continued) Installing the fireplace insert □ Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO NOT drag the insert across the bottom panel (C) as it may scratch the unit. Attaching the L-shaped metal braces □...
  • Page 17 Assembly (continued) Installing the acrylic stopper □ Remove the paper backing of acrylic stopper (RR), then properly align the acrylic stopper into the cut-out on the acrylic stopper template on the front of the top panel (A). Press down on the acrylic stopper to help adhesion. □...
  • Page 18: Care And Maintenance

    Care and Maintenance A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or shipping. To clean and care for your furniture: □ Use a soft, clean cloth that will not scratch the surface when dusting. □...
  • Page 19 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
