USE AND CARE GUIDE

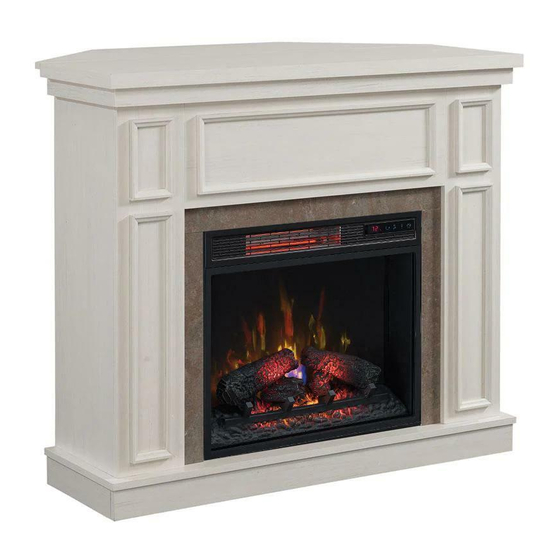

GRANVILLE ELECTRIC FIREPLACE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators GRANVILLE ELECTRIC FIREPLACE
Summary of Contents for Home Decorators GRANVILLE ELECTRIC FIREPLACE
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Maximum Load Warning ........... 2 Package Contents .............. 6 Safety Information ............. 3 Assembly ..............7 Warranty ..............4 Operation ..............12 Pre-Assembly ............. 5 FCC/ICC Information ............14 Hardware Included ........... 5 Care & Cleaning ............14 Product Specifications ............ -
Page 3: Safety Information
Safety Information Important Safety Instructions Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-800-986-3460, 8 a.m.-6 p.m., EST, Monday-Friday. When using electrical appliances, always follow basic precautions to WARNING: Under no circumstances should this fireplace be reduce the risk of fire, electrical shock, and injury to persons, including... -
Page 4: Warranty
Warranty 1 Year Limited Warranty: The manufacturer warrants this product to be free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations: Install and operate this Electric Fireplace in accordance with the installation and operating instructions furnished with the product at all times. -
Page 5: Pre-Assembly
Pre-Assembly HARDWARE INCLUDED Part Description Part Number Quantity Flat Head Screw Wood Dowel PH-DWLNTL002 Screw Bolt PH-BLTBLK002 2 Hole Plastic Connector PH-PCBBLK001 3 Hole Plastic Connector PH-PCBBLK002 Connection Plate (pre-attached) PH-PLTBLK002 Bracket (pre-attached) PH-BKTZNC001 Floor Glide (pre-attached) PH-GLDBRW001 Touch-up Pen NOTE: Hardware not shown to actual size. -
Page 6: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS NOTE: All panels are labeled left and right as viewed from the front of unit. Part Description Quantity Base Left Side Panel Right Side Panel Left Front Panel Right Front Panel Center Front Panel Center Decorative Panel Top Corner Extension “L”... -
Page 7: Assembly
Assembly Assembling the Center Panel Assembling the Center Panel Locate the Left Front Panel (D), Right Front Panel (E), Push the Left Front Panel (D) and Right Front Panel (E) Center Decorative Panel (H), and set out face down on a snug to the Center Decorative Panel (H). - Page 8 Assembly (continued) Attaching the Center Front Panel Attaching the Center Front Panel Insert Wood Dowels (BB) into the pre-drilled holes in the Attach the Center Front Panel (F) to the completed Center Front Panel (F). assembly from Step 3, using Flat Head Screws (AA) Push the Center Front Panel (F) snug to the Left Front through pre-drilled holes in the Center Front Panel (F).
- Page 9 Assembly (continued) Attaching the Base Attaching the Top Insert Wood Dowels (BB) into the pre-drilled holes Attach the Top (G) to the completed assembly from Step in the Base (A). 6 by inserting Bolts (DD) through the holes in the Plastic Attach the completed assembly from Step 5 to the Base Connectors (EE and FF).
- Page 10 Assembly (continued) Installing the Fireplace Insert Lift the fireplace insert carefully into the back of the unit and center in the insert in the opening. Do not drag the insert across the Hearth/Base (A) as it may scratch your unit. NOTE: Please read all “electric fireplace insert”...
- Page 11 Assembly (continued) Attaching the L Corner Brace Place the Top Corner Extension (I) face down on a scratch-free surface. Attach the "L" Corner Brace (J) by inserting Bolts (DD) through the holes in the Plastic Connector (EE) and tighten. Attaching the Top Corner Extension Insert Wood Dowels (BB) into the holes in the back of the Top (G).
-
Page 12: Operation
Operation Operation NOTE: The control panel can be accessed at the upper-right corner of the insert. When a function is changed from the control panel or remote control there will be a corresponding indicator (see Figure 1) on the upper-right of the projection screen. -
Page 13: Replacing The Remote Control Battery
Operation (continued) Replacing the Remote Control Battery Disposing of Used Batteries When the remote control stops operating or its range The battery may contain hazardous substances that seems reduced, it is time to replace the batteries with could endanger the enviroment and human health. new ones. -
Page 14: Fcc/Icc Information
FCC/IC Information This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipment off and on. -
Page 15: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Unplug the fireplace, remove the back panel of the fireplace and check that the thermo- The thermostat sensor is stat is plugged into the main circuit board. The display shows “E1”. broken or disconnected. If this does not solve the problem contact customer service for a replacement thermo- stat sensor. -
Page 16: Replacement Parts
Replacement Parts For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-6 p.m., EST, Monday-Friday. Part Description Flame Generator Drive Motor Heater / Blower Assembly Main Circuit Board Control Panel Circuit Board Control Panel Buttons Emberbed with Log Emberbed Light Board Flame Circuit Board Spectrafire Flame Board... - Page 17 Questions, problems, missing parts? Before returning to the store call Home Depot Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS RETAIN THIS MANUAL FOR FUTURE USE.
