1001 369 832 / 36II200CGT
690-456 / 36II200CGT
USE AND CARE GUIDE

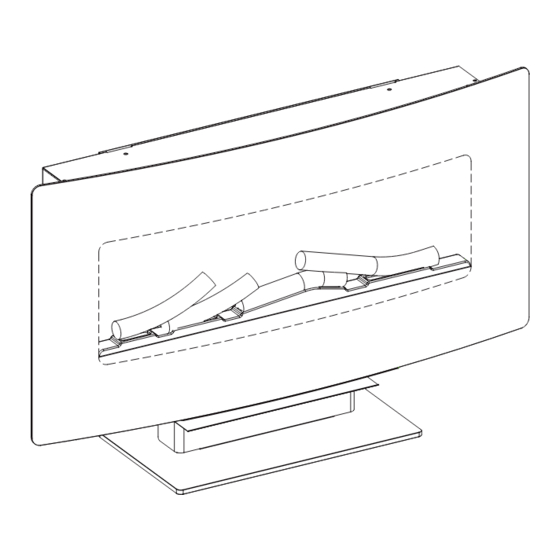

MATIAS WALL MOUNT
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HomeDepot.Com/HomeDeCorators
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators MATIAS WALL MOUNT
Summary of Contents for Home Decorators MATIAS WALL MOUNT
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Safety Information ............. 3 Installation Options ........... 8 Warranty ..............4 Wall Mounting ............9 Pre-Operation ............5 Pedestal Base ..............13 Pre-Assembly ............. 6 Fuel Bed Setup Instructions..........15 Hardware Included ........... 6 Operation ..............16 Product Specifications ............6 FCC/IC Information ............ -
Page 3: Safety Information
Safety Information WARNING: This heater may include an visual alarm to warn Please read and understand this entire manual before attempting to that parts of the heater are getting excessively hot. If the alarm assemble, operate or install the product. If you have any questions illuminates, immediately turn the heater off and inspect for any regarding the product, please call customer service at objects on or adjacent to the heater that may have blocked the... -
Page 4: Warranty
Warranty Warranty 1 Year Limited Warranty: The manufacturer warrants this product to be free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations: Install and operate this Electric Fireplace in accordance with the installation and operating instructions furnished with the product at all times. -
Page 5: Pre-Operation
Pre-Operation 1. Remove the product identification sticker from the front of the fireplace. Product Identification Sticker 2. Attach the Product Identification Sticker to this Manual below for future reference. This information is used for product registration and also is necessary for customer service. Attach Product Identification Sticker Here 3. -
Page 6: Pre-Assembly
Pre-Assembly HARDWARE INCLUDED Part Description Part Number Quantity Anchor Screw 36II200-AA Wall Anchor 36II200-BB Screw 4mm x 8mm (2 Pre-Attached) 36II200-CC Screw 4mm x 6mm 36II200-DD Screw 6mm x 14mm 36II200-EE Washer 36II200-FF NOTE: Hardware not shown to actual size. PRODUCT SPECIFICATIONS Voltage 120 VAC, 60 Hz... -
Page 7: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Mounting Bracket (Pre-Attached) Fireplace Front Frame Base Bracket Base Lower Air Outlet Baffle Logset Glass Baffle Upper Air Outlet Baffle Back Air Outlet Baffle Remote Control Decorative Rocks Varies Fireglass Varies HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 8: Installation Options
Installation Options Operation The fireplace can be installed with 2 options: 1. Hanging on a wall with provided mounting bracket. 2. Freestanding using the pedestal base. Follow installation instructions below based on installation preference. Option 2 Option 1 Pedestal Base..page 13 Wall Hanging..page 9 HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 9: Wall Mounting
Installation - Wall Mounting Operation Hanging on a wall Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location be sure to follow the general instructions included. For best results install out of direct sunlight. Power supply service must be either completed or placed within the electric fireplace prior to finishing to avoid reconstruction. - Page 10 Installation - Wall Mounting Operation Removing the Mounting Bracket Choosing a Wall Location Choose a wall location to attach the Mounting Remove the Mounting Bracket (A) from the back of the Bracket (A). Position the Mounting Bracket (A) Fireplace (B) by removing the two pre-attached Screws in the desired location.
-
Page 11: Lower Air Outlet Baffle
Installation - Wall Mounting (continued) Operation Operation Attaching the Mounting Bracket Attaching Lower Air Outlet Baffle Attach the Mounting Bracket (A) to the wall by fastening Attach Glass Baffle (H) to the fireplace by fastening the the six Anchor Screws (AA) into the wall anchors. Screws (CC). - Page 12 Installation - Wall Mounting (continued) Operation Operation Hanging the Front Frame Mount the Front Frame (C) to the Fireplace (B) using the mounting hooks to hang the front frame. Mounting Hooks Mounting Hooks Securing the Front Frame Secure the top frame hooks with the two retaining Screws (DD).
-
Page 13: Pedestal Base
Installation - Pedestal Base Operation Fastening the Base Bracket Attaching the Small Base Bracket Use four Screws (EE) and four Washers (FF) to fasten the Use two Screws (CC) to fasten the lower Air Outlet Baffle Base (E) to the Base Bracket (D). (F) to the Base Bracket (D). - Page 14 Installation - Pedestal Base Operation Attaching the Base Bracket Fasten the Base Bracket (D) to the Fireplace (B) with the provided Screws (EE). Securing the Top Frame Mount the Front Frame (C) to the Fireplace (B) using the mounting hooks to hang the front frame. Mounting Hooks Mounting Hooks...
-
Page 15: Fuel Bed Setup Instructions
Fuel Bed Setup Instructions Operation Removing the Logset The fireplace has the option of either using the pre-installed logset or the included transparent tray assembly. To change the logset to the tray remove the emberbed with logset. Placing the Fireglass/ Rocks Place the Fireglass (M) or the Rocks (L) as desired. -
Page 16: Operation
Operation Operation Display Control Panel The fireplace can be operated by either the remote control or the control panel. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. - Page 17 Operation (continued) Operation Powering the Fireplace Adjusting the Spectrafire Flame Push the Power button to supply power to all There are six brightness levels that can be selected. functions of the fireplace and put the insert in a standby mode. Settings 6 - 4 decrease in Spectrafire brightness.
-
Page 18: Replacing The Remote Control Battery
Operation (continued) Operation Replacing the Remote Control Battery Disposing of Used Batteries The battery may contain hazardous substances that When the remote control stops operating or its range could endanger the enviroment and human health. seems reduced, it is time to replace the battery with new ones. -
Page 19: Fcc/Ic Information
FCC/IC Information Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 20: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Unplug the fireplace, remove the back panel of the fireplace and check Display shows “ ”. The thermostat sensor is broken that the thermostat is plugged into the main circuit board. If this does not or disconnected. -
Page 21: Replacement Parts
Replacement Parts For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. Part Description Part Number Qty. Remote Control 7 Buttons P122 Flame Generator Drive Motor P10-6 Thermostat Sensor INS-NTC Control Panel Circuit Board Y15-S158-P32... - Page 22 Questions, problems, missing parts? Before returning to the store call Home Decorators Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS RETAIN THIS MANUAL FOR FUTURE USE.
