Summary of Contents for HobbyZone duet

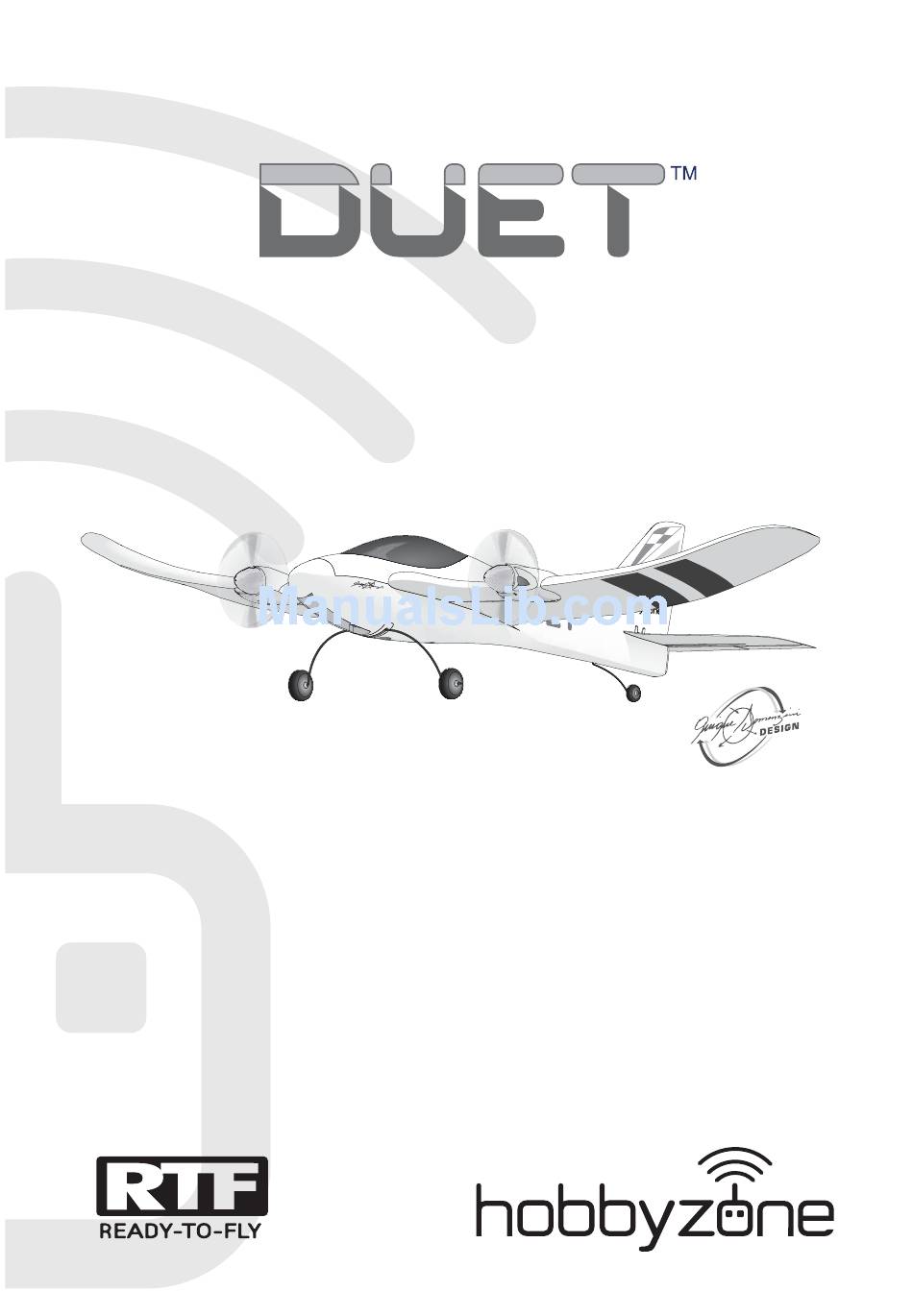

- Page 1 Instruction Manual • Bedienungsanleitung • Manuel d’utilisation • Manuale di Istruzioni ®...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Included In The Box
Included in the Box To register your product online, go to www.hobbyzonerc.com Ultra Micro Duet Aircraft Landing Gear Transmitter with Built-in Charger 150 mAh 3.7V AA Alkaline Li-Po Battery Batteries (4) Flying Tips • Consult local laws and ordinances before choosing a location to fl... -
Page 4: Transmitter Batteries Installation
Transmitter Low Battery Alarm Down Trim Power LED When the battery voltage drops too low, an Throttle Steering alarm sounds and the LED fl ashes. The batteries Up / Down must be replaced immediately. If this happens Left / Right while fl... -
Page 5: Charging Warnings
Charging Warnings The Duet transmitter has been designed to safely • Always disconnect the battery after charging, and charge the included Li-Po battery. let the charger cool between charges. • Always constantly monitor the temperature of the CAUTION: All instructions and warnings must battery pack while charging. -
Page 6: Installing The Flight Battery
Installing the Flight Battery Keep the aircraft and transmitter away from large metal objects, wireless sources or other transmitters while installing the battery. CAUTION: Always disconnect the Li-Po fl ight battery from the aircraft receiver when not fl ying to avoid over-discharging the battery. Batteries discharged to a voltage lower than the lowest approved voltage may become damaged, resulting in loss of performance and potential fi... - Page 7 Takeoff Hand Launch Get help to hand launch your aircraft so you can concentrate on fl ying. If you must hand launch the aircraft alone, hold the model in your dominant hand and the transmitter in your other hand. 100% Climbs at 100% throttle.
-
Page 8: Adjusting Trim In Flight
Flying • Set a fl ight timer for 5 minutes • Always make deliberate and steady control stick movements for smooth control of your aircraft. If you feel you are losing control, release the right (steering) stick to ™ allow the aircraft to slowly return to level fl... -
Page 9: After Flying
Landing Fly to your runway, keeping the aircraft pointed into the wind and the wings level. Bring the aircraft down by lowering the throttle to 25%. Near the ground, fully lower the throttle and pull back on the steering stick. CAUTION: Never catch a fl... -
Page 10: Troubleshooting Guide
Troubleshooting Guide Possible Cause Solution Problem Aircraft does not No connection Follow Binding Instructions. Follow respond to the “Installing the Flight Battery” instructions. transmitter Replace or recharge batteries Transmitter too near the aircraft or both Move to another location, with the trans- are too near large metal objects, wireless mitter more than 24 inches (60 cm) from sources or another transmitter during... -
Page 11: Propeller Service
Propeller Service CAUTION: DO NOT handle propeller parts while the fl ight battery is connected. Personal injury could result. Right motor Left motor 1. Remove the spinner (A) by carefully pulling it away from the propeller (B). Remove residue from the spinner and propeller if applicable. 2. -
Page 12: Limited Warranty
Limited Warranty What this Warranty Covers all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated Horizon Hobby, Inc., (Horizon) warrants to the with the use of the Product, purchaser is advised to original purchaser that the product purchased (the return the Product immediately in new and unused “Product”) will be free from defects in materials and... -
Page 13: Warranty And Service Information
the shipping carton. upon request. You must include this request with your item submitted for service. Non-warranty NOTICE: Do not ship LiPo batteries to Horizon. If service estimates will be billed a minimum of ½ you have any issue with a LiPo battery, please hour of labor. -
Page 14: Instructions For Disposal Of Weee By Users In The European Union
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2013082602 Product(s): HBZ Duet UM RTF Item Number(s): HBZ5300 Equipment class: The object of declaration described above is in conformity with the requirements of the specifi cations listed below, following the provisions of the European R&TTE directive 1999/5/EC, EMC Directive 2004/108/EC and... - Page 15 EFLB1501S25 25C Li-Po battery 25C Li-Po 150mA 25C 1S 3.7V 25C Props and Spinners HobbyZone Duet: Pro- Duet - Set d’hélices et Set eliche e ogive: Duet HBZ5308 set: Duet peller und Spinner de cônes Landing Gear Set: HobbyZone Duet:...
- Page 16 HobbyZone, the HobbyZone logo, Duet, Virtual Instructor, the Virtual Instructor logo, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc. The outline and trim scheme of the Duet were designed by Quique Somenzini in cooperation with Mirco Pecorari of Aircraft Studio Design.
