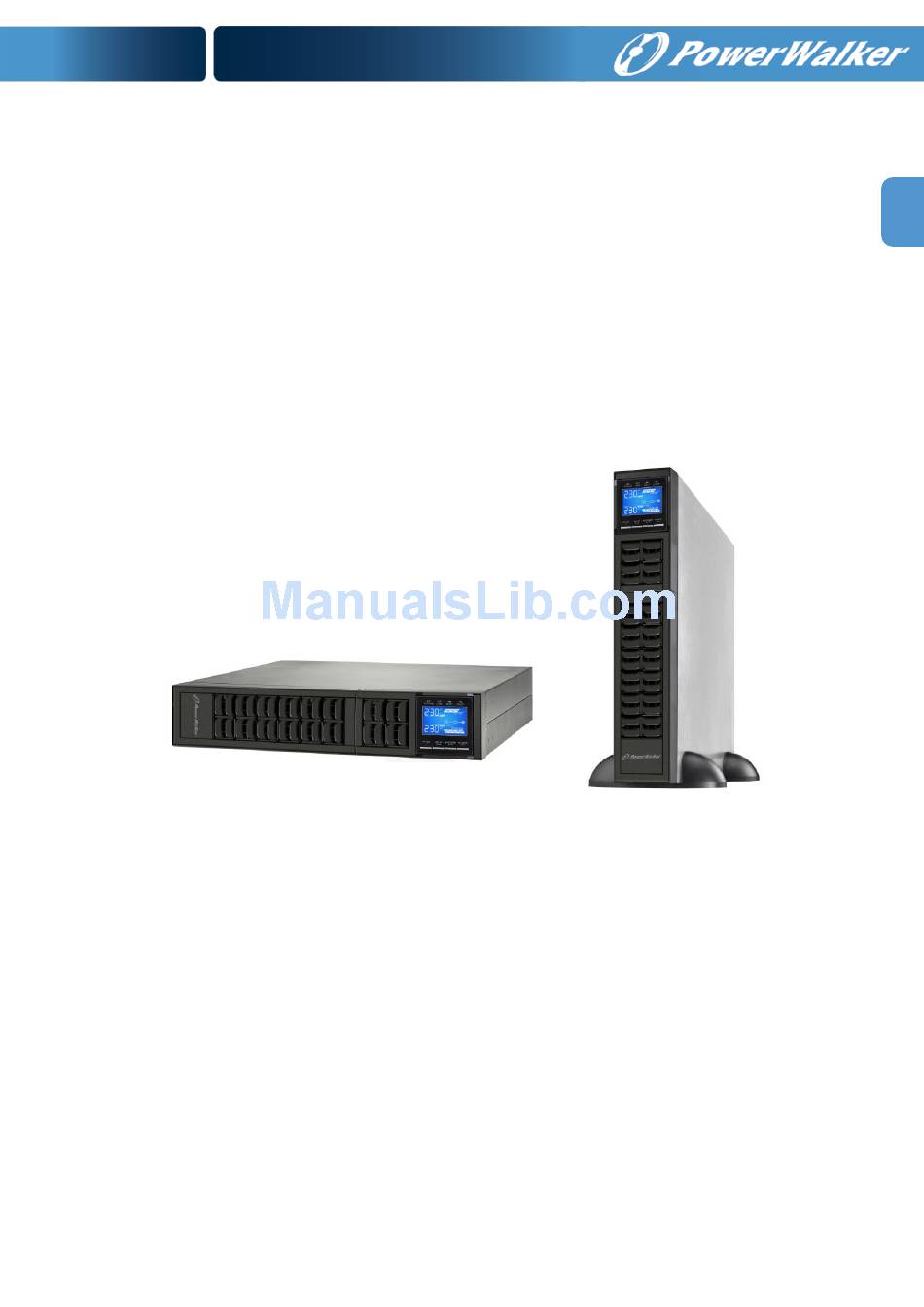

- Page 1 Online UPS PowerWalker VFI 6000CRM LCD Manual Uninterruptible Power Supply System...
- Page 3 Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.
-
Page 4: Table Of Contents
Table of Contents 1. SAFETY AND EMC INSTRUCTIONS ........................... 2 1-1. T RANSPORTATION AND TORAGE ........................... 2 1-2. P REPARATION ................................2 1-3. I NSTALLATION ................................2 1-4............................ 3 ONNECTION ARNINGS 1-5. O PERATION ................................... 4 1-6. S TANDARDS ................................... -
Page 5: Safety And Emc Instructions
1. Safety and EMC instructions Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 1-1. Transportation and Storage Please transport the UPS system only in the original package to protect against shock and impact. -
Page 6: Connection Warnings
1-4. Connection Warnings • There is no standard backfeed protection inside, please isolate the UPS before working according to this circuit. The isolation device must be able to carry the UPS input current. • This UPS should be connected with TN earthing system. •... -
Page 7: Operation
1-5. Operation Do not disconnect the earth conductor cable on the UPS or the building wiring terminals in any time since this would cancel the protective earth of the UPS system and of all connected loads. The UPS system features its own, internal current source (batteries). The UPS output sockets or output terminal blocks may be electrically live even if the UPS system is not connected to the building wiring outlet. -
Page 8: Installation And Operation
Please keep the original package in a safe place for future use. 2-2. Rear Panel View Diagram 1: PowerWalker VFI 6000CRM LCD (L) Rear Panel Diagram 2: Input/Output Terminal Diagram 3: Battery Pack Rear Panel 1. -
Page 9: Single Ups Installation
Output Battery Ground PowerWalker VFI 6000CRM LCD PowerWalker VFI 6000CRM LCDL NOTE 1: It is recommended to use suitable wire in above table or thicker for safety and efficiency. NOTE 2: The selections for color of wires should be followed by the local electrical laws and regulations. -
Page 10: Software Installation
different. If you connect them together, it maybe causes the hazard of electric shock or fire! Warning: (Only for long-run model) ● Make sure a DC breaker or other protection device between UPS and external battery pack is installed. If not, please install it carefully. -
Page 11: Operations
3. Operations 3-1. Button Operation Button Function Turn on the UPS: Press and hold the button more than 1s to turn on the UPS. ON/Enter Button Enter Key: Press this button to confirm the selection in setting menu. ... - Page 12 LCD Panel: Load Level Output Info Time & Fault Mode Operation Info Info Mute Operation Input & Battery Voltage Info Battery Level Display Function Backup time information Indicates the backup time in numbers. H: hours, M: minutes, S: seconds Fault information Indicates that the warning and fault occurs.
-
Page 13: Audible Alarm
3-3. Audible Alarm Description Buzzer status Muted UPS status Bypass mode Beeping once every 2 minutes Battery mode Beeping once every 4 seconds Fault mode Beeping continuously Warning Overload Beeping twice every second Low battery Battery unconnected Over charge EPO enable Fan failure/Over temperature Beeping once every second Charger failure... - Page 14 3. Connect devices to UPS After the UPS is turned on, you can connect devices to the UPS. 1) Switch on the devices one by one and it will display total load level in LCD panel. 2) If it is necessary to connect the inductive loads such as a printer, the in-rush current should be calculated carefully to see if it meets the capacity of the UPS, because the power consumption of this kind of loads is too big.
- Page 15 6. Turn off the UPS with utility power supply in AC mode 1) Turn off the inverter of the UPS by pressing “OFF” button for at least 1s, and then the buzzer will beep once. The UPS will turn into Bypass mode. NOTE 1: If the UPS has been set to enable the bypass output, it will bypass voltage from utility power to output sockets and terminal even though you have turned off the UPS (inverter).
-
Page 16: Abbreviation Meaning In Lcd Display
11. Operation of changing battery numbers 1) This operation is only available for professional or qualified technicians. 2) Turn off the UPS. 3) Switch off the input breaker, and switch off the battery breaker (only available for long-run model), or disconnect battery wire for standard model. 4) Remove the cabinet cover, and then modify the jumpers (CN1) on the control board to set the battery numbers as following table: Battery... -
Page 17: Lcd Setting
3-6. LCD Setting There are three parameters to set up the UPS. Refer to following diagram. Parameter 1: It’s for program alternatives. Refer Parameter 3 to below table for the programs to set up. Parameter 2 and parameter 3 are the setting options or values for each program. - Page 18 02: Output frequency Interface Setting 60 Hz, CVCF mode Parameter 2: Output Frequency Setting the output frequency. You may choose following three options in parameter 2: 50.0Hz: The output frequency is setting for 50.0Hz. 60.0Hz: The output frequency is setting for 60.0Hz. ATO: If selected, output frequency will be decided according to the latest normal utility frequency.
- Page 19 05: reserved Interface Setting reserved 06: reserved Interface Setting reserved 07: reserved Interface Setting reserved 08: Bypass mode setting Interface Setting Parameter 2: OPN: Bypass allowed. When selected, UPS will run at Bypass mode depending on bypass enabled/disabled setting. FBD: Bypass not allowed.
- Page 20 09: Battery maximum discharge time setting Interface Setting Parameter 3: 000~999: Set the maximum discharge time from 0min to 999min. UPS will shut down to protect battery after discharge time arrives. The default value is 990min. DIS: Disable battery discharge protection and backup time will depend on battery capacity.
- Page 21 13: Battery voltage calibration Interface Setting Parameter 2: Select “Add” or “Sub” function to calibrate battery voltage to real figure. Parameter 3: the voltage range is from 0V to 5.7V, the default value is 0V. 14: reserved Interface Setting reserved 15: Inverter voltage calibration...
- Page 22 17: Constant charger voltage adjustment Interface Setting Parameter 2: you may choose Add or Sub to adjust constant charger voltage. Parameter 3: the voltage range is from 0V to 3.2V, the default value is 0V. 18: Charger maximum current setting ...
-
Page 23: Operating Mode/Status Description
3-7. Operating Mode/Status Description Operating mode/status AC mode Description When the input voltage is within acceptable range, UPS will provide pure and stable AC power to output. The UPS will also charge the battery at AC mode. LCD display CVCF mode Description When input frequency is within 46 to 64Hz, the UPS can be set at a constant output frequency, 50 Hz or 60 Hz. -
Page 24: Fault Code
0.5s. Then the UPS will beep once and start “Battery Test”. The line between I/P and inverter icons will blink to remind users. This operation is used to check the battery status. LCD display Fault status Description When UPS has fault happened, it will display fault messages in LCD panel. -
Page 25: Trouble Shooting
4. Trouble Shooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in the front The AC input power is not Check if input cable firmly display panel even though the mains is connected well. -
Page 26: Storage And Maintenance
5. Storage and Maintenance 5-1. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months... -
Page 27: Specifications
6. Specifications MODEL PowerWalker VFI 6000CRM LCD CAPACITY* 6000 VA / 4800 W INPUT 110 VAC ± 3 % at 50% Load; Low Line Loss 176 VAC ± 3 % at 100% Load Voltage Range Low Line Comeback Low Line Loss Voltage + 10V High Line Loss 300 VAC ±...
