Intelix A2 Installation Manual

Specifications

20 Hz to 20 kHz
Bandwidth
Impedance 600:600 ohms, balanced to unbalanced
Max Distance 2500 feet
Common Greater than 40 dB
Mode
Rejection
Nominal Level 1.0 volts
Cable UTP Maximum capacitance: 20 pf/foot
(Cat 3, Cat 5, Cat (24 gauge or Impedance: 100 ohms @ 1 MHz
5e, Cat 6, Cat 7 lower solid
Attenuation: 6.6 dB/1000 ft. @ 1 MHz
compatible) copper UTP)
BNC Impedance: 75 ohms @ 1 MHz
Connectors Two (2) RCA to one (1) RJ45
Pin Channel 1 (R): 1 & 2, pair 2
Configuration Channel 2 (L): 3 & 6, pair 3
Isolation 500V
1 dB
Insertion Loss
Environment Conference, corporate AV, meeting halls, houses of worship,
schools, auditoriums, kiosks, monitoring stations
Operating: 32 to 131 F (0 to 55 C)
Temperature
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
Enclosure Black Plastic
2.6" x 2.6" x 1.1" (6.6 x 6.6 x 2.8 centimeters)
Dimensions
Weight 70 grams (2.5 oz)
Warranty 2 Years
*Specifications subject to change without notice
2222 Pleasant View Road, Suite #1
Middleton, WI. 53562
608-831-0880
FAX 608-831-1833
intelix@intelix.com
www.intelix.com

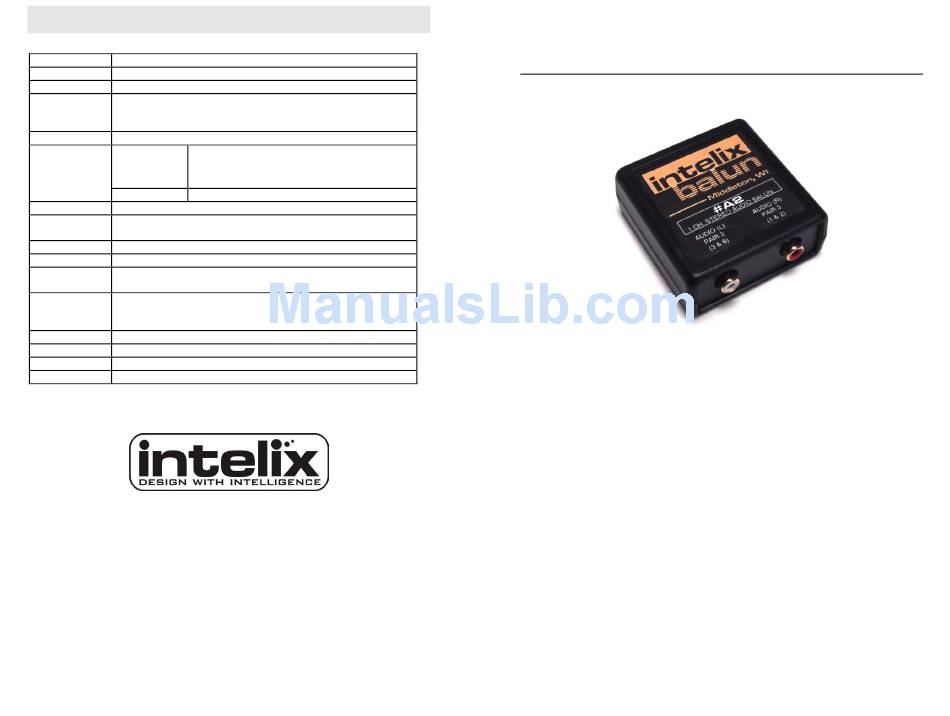

A2 Stereo Audio Balun
Installation Guide
Overview
The Intelix A2 balun passively transmits two mono or one
stereo analog audio signal via Cat 5 unshielded twisted pair
(UTP) cable, such as Cat 5. Used in pairs, the A2 transmits
analog audio in either direction up to 2500 feet, providing a
low-cost, versatile cabling solution which uses a building's
existing structured cabling system
Applications
The A2 is ideal for corporate AV, houses of worship, schools,
auditoriums, and virtually any other situation involving
structured audio distribution
