Avtech IR Dome Camera User Manual page 12

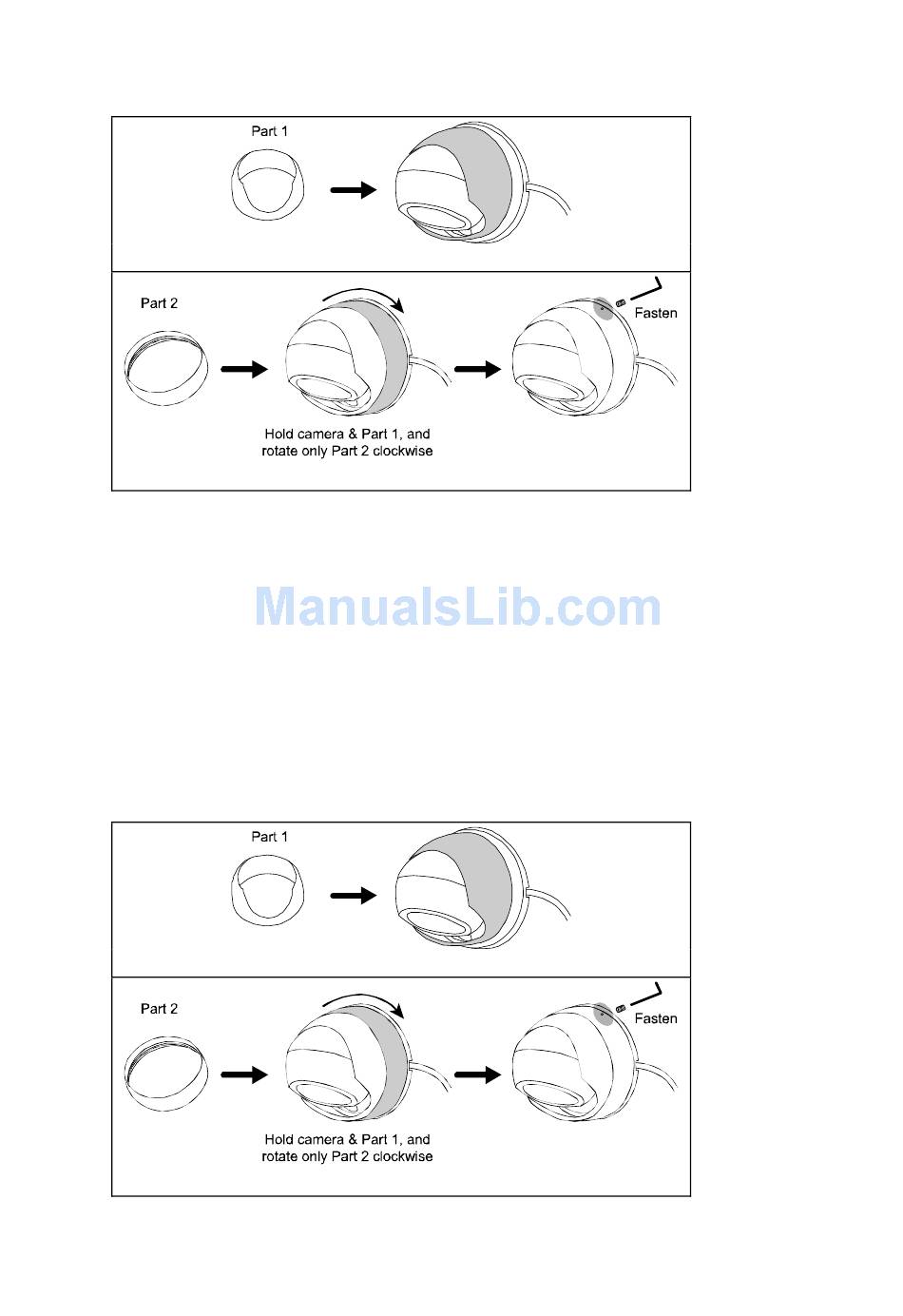

Step5: Slightly adjust the camera lens to where it's supposed to face, and replace Part 1 and Part 2
back, as shown in Figure 4 and Figure 5.
Step6: Hold the camera lens and Part 1, and rotate only Part 2 clockwise, as shown in Figure 5.
Step7: Power on your camera, and check the viewing angle on the PC.
Step8: Adjust the position and the viewing angle of the camera, if necessary.
Step5: Slightly adjust the camera lens to where it's supposed to face, and replace Part 1 and Part 2
back, as shown in Figure 4 and Figure 5.
Step6: Hold the camera lens and Part 1, and rotate only Part 2 clockwise, as shown in Figure 5.
Step7: Power on your camera, and check the viewing angle on the PC.
Step8: Adjust the position and the viewing angle of the camera, if necessary.
Figure 4
Figure 5
6
Figure 4
Figure 5
6
