1.5 Memory Module Installation

The SBOX-2110 provide one 204pins SODIMM slot for DDR3 1066MHz SDRAM
memory modules and supports memory sizes up to 4GB.
These DIMM slots are inteded for memory modules.
Installing Memory Module
1. Locate the DIMM1 SO-DIMM slot. Align the notch on the DIMM with the key on the
slot and insert the DIMM into the slot at 45-degree angle.
2. Push the DIMM gently forwards until the slot levers click and lock the DIMM in place.
Follow the same procedures to install the second DIMM if necessary.
3. To uninstall the DIMM, fl ip the slot levers outwards and the DIMM will be released
instantly.
Important
You can barely see the golden fi nger if the DIMM is properly inserted in the DIMM slot.

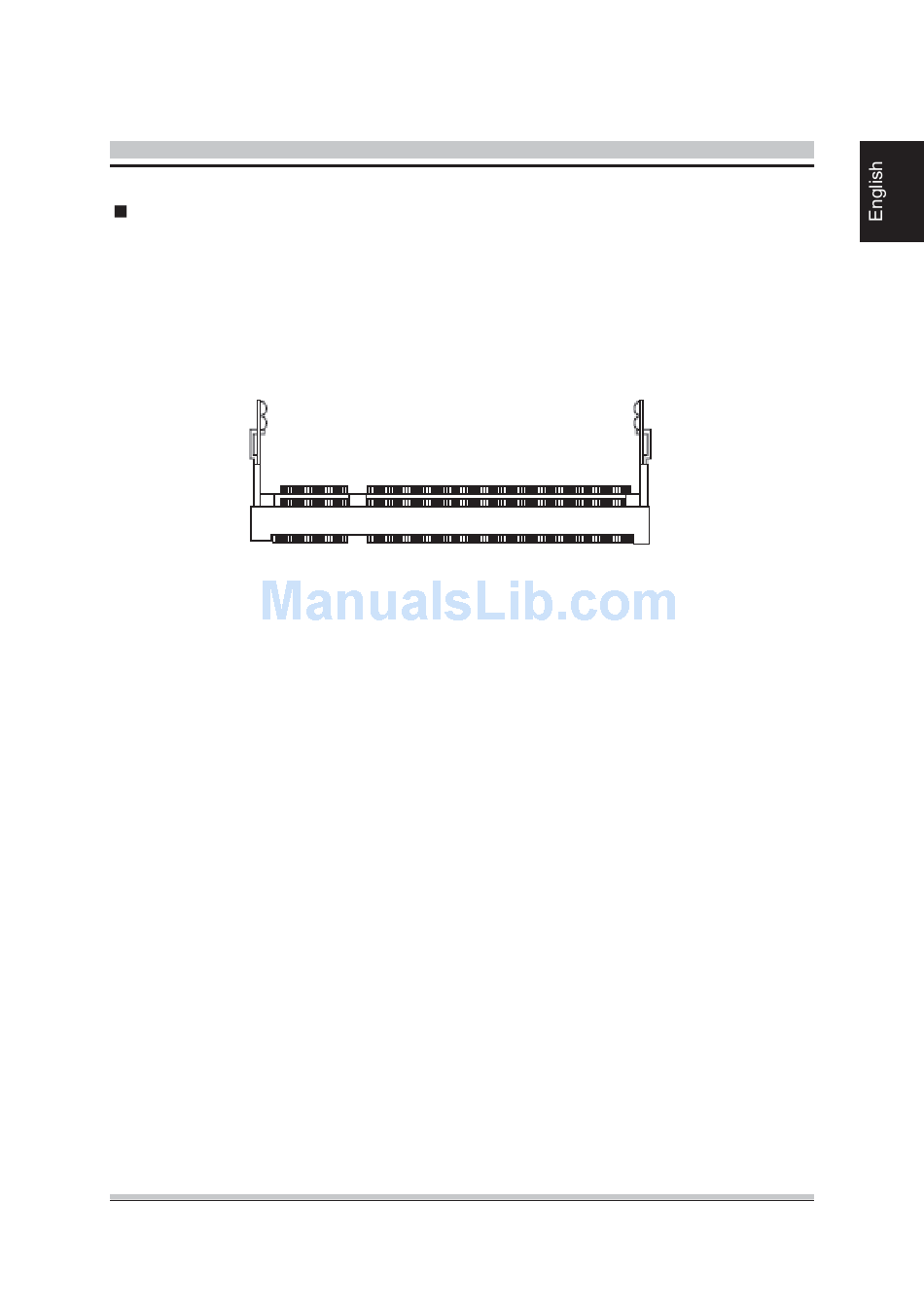

DDR3 SO-DIMM Slot
204-pin, 1.5V
