Page 1: User Manual
IS35 Color Display User Manual ENGLISH simrad-yachting.com... - Page 2 Please contact your nearest Simrad dealer if you require any further assistance. It is the owner’s sole responsibility to install and use the equipment in a manner that will not cause accidents, personal injury or property damage.
-
Page 3: Introduction
This gauge complies with the following regulations: • CE under EMC directive 2004/108/EC • Level 2 devices of the Radio communications (Electromagnetic Compatibility) standard 2008 The Declaration of conformity is available from www. simrad-yachting.com Preface | Simrad IS35 User manual... - Page 4 Warning: Used when it is necessary to warn personnel that they should proceed carefully to prevent risk of injury and/or damage to equipment/personnel. Software This manual is written for: Simrad IS35 Color Display software version 1.0 Please check www.simrad-yachting.com for details on release version. Introduction |...
-
Page 5: Table Of Contents
Contents Introduction Software Simrad IS35 Color Display Display and keys Default display pages Page transition Operation Menu operation Page menu Settings Backlight Display group Level Night mode Night mode color Pages Static gauge Default fi xed data pages Additional fi xed data pages... -
Page 6: Software
Installation Vessel setup Engine display setup Gauge limits Pop-Up setup Files Connecting a Micro-USB device Export system settings Import system settings Software Remote device software upgrade IS35 Color Display software upgrade Maintenance Specifi cations Contents | Simrad IS35 User manual... -
Page 7: Simrad Is35 Color Display

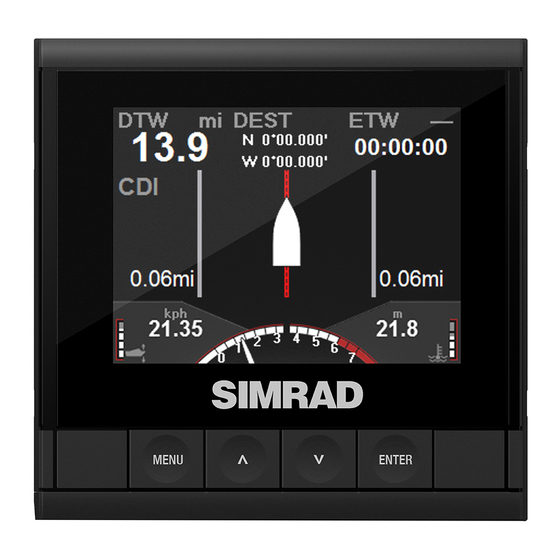

Simrad IS35 Color Display The Simrad IS35 Color Display is a networked gauge which displays the vessel’s engine data and fuel tank information. It can also display instrument data including speed, depth, heading, position, wind and environmental data measured by optional sensors and other equipment connected to the network. -
Page 8: Default Display Pages
See the Pages section of this manual for more information on page setup and confi guration. Page transition Use the UP/DOWN keys to scroll through the active pages. Simrad IS35 Color Display | Simrad IS35 User manual... -
Page 9: Operation
All page menus have a settings option. Any other option refers to the current page. Settings The Settings menu is where display options, display settings, system settings, source selection and calibration can be accessed. Operation | Simrad IS35 User manual... -
Page 10: Backlight
Example: Access Key beeps dialog via the settings menu. Note: Pressing the MENU key once returns you to the previous menu. Backlight There are two methods of adjusting the gauge backlight. Via the Menu 10 | Operation | Simrad IS35 User manual... -
Page 11: Display Group
Display group will also change to Night Mode. Note: Gauge night mode cannot be changed via a Multi-Function Display. Night mode color Changes the Night Mode color palette. | 11 Operation | Simrad IS35 User manual... -
Page 12: Static Gauge
Pitot) Depth (Requires depth data on the network) Fuel economy Fuel fl ow Note: When data from two engines is displayed, only RPM, Engine trim and Engine temperature are shown. 12 | Operation | Simrad IS35 User manual... -
Page 13: Default Fi Xed Data Pages
Dynamic data fi eld Motoring dynamic data fi eld priority order Speed (Speed Over Ground preferred. Requires GPS, paddle wheel, Pitot) Depth (Requires depth data on the network) Vessel fuel economy Vessel fuel rate | 13 Operation | Simrad IS35 User manual... - Page 14 Description Dynamic data fi elds Static gauge Engine dynamic data fi eld priority order Alternator voltage Engine temp Engine water pressure (Requires a pressure sensor on the network) Engine hours Engine trim. 14 | Operation | Simrad IS35 User manual...
- Page 15 Vessel fuel (rate) Note: Vessel Fuel Remaining will only be shown when fuel fl ow data is available and a fuel storage device such as an EP-85R is on the network. | 15 Operation | Simrad IS35 User manual...
-
Page 16: Additional Fi Xed Data Pages
Motor steer Note: Requires a Chartplotter on the network. Description Description Waypoint position Vessel indicator Distance to waypoint Cross track error limit Cross track error limit Static gauge Estimated time to waypoint 16 | Operation | Simrad IS35 User manual... - Page 17 If the vessel moves out of the cross track error limit, the gauge will change to show the direction and distance that the vessel is off course. | 17 Operation | Simrad IS35 User manual...
-
Page 18: Template Pages
Single gauge (with RPM) 2x2 grid (with RPM) 2x1 grid (with RPM) 2x2 (bars) grid (with RPM) Quad bars (with RPM) Single gauge (full screen) 2x1 grid (full screen) 2x2 grid (full screen) 18 | Operation | Simrad IS35 User manual... -
Page 19: Enabling / Disabling A Page
Press the ENTER key on the desired page to open the Enabled/Replace dialog Press ENTER to toggle On/Off . Replacing / adding a page Select the page you want to add / replace Press the ENTER key to open the Enabled/Replace dialog | 19 Operation | Simrad IS35 User manual... -
Page 20: Confi Guring Page Data
Select Change data Select the desired fi eld Select the desired data type from the menu options. Once selected, a tick appears in the check box and the gauge will revert to the page. 20 | Operation | Simrad IS35 User manual... -
Page 21: Autoscroll
If a data type is selected but there is no sensor information on the network, the gauge will show as ---. AutoScroll Select AutoScroll from the pages menu. AutoScroll time can be set between 1 and 10 seconds. | 21 Operation | Simrad IS35 User manual... -
Page 22: Trip Log
GPS is not present. No Trip Log information is recorded while the Trip Log is stopped. Start / Stop Trip Log Starts / Stops the trip log recording Reset Trip Log Resets all trip log information to zero. 22 | Operation | Simrad IS35 User manual... -
Page 23: Refuelling
The number of tanks and fuel capacity can be updated using the vessel setup dialog in the installation menu, or by using the fi rst-time start-up wizard. Go to the Refuel dialog via the Settings menu | 23 Refuelling | Simrad IS35 User manual... -
Page 24: Adding Fuel
(continuous recording). Note: If more than one engine is on the network, then the Fuel Used data shown is the total for all engines. It also lists the data for each engine. 24 | Refuelling | Simrad IS35 User manual... -
Page 25: Fuel Used Reset
You can reset the total for one engine or all engines. Reset option Description None Returns to Fuel Used page Trip Reset Trip fuel used only Seasonal Reset Seasonal fuel used only Both Reset Trip and Seasonal fuel used | 25 Refuelling | Simrad IS35 User manual... -
Page 26: Settings
Power / Charge indicator Check engine / General engine faults / Engine or its related system faults High engine temperature Warning - Engine malfunction - Check active alarms for available information Water in fuel 26 | Settings | Simrad IS35 User manual... -
Page 27: System Alarms
If a sensor is connected to the network, you can enab;e alarms by selecting them from the list in the Alarm settings menu. Enabling an alarm (alarm On/Off ) Turns an alarm on or off via the Alarm Settings menu. | 27 Settings | Simrad IS35 User manual... -
Page 28: Alarms Setting Status
Select the next level down in the menu to show the alarm status Alarm limits Some alarms may feature an adjustable limit. Select the alarm and set the limit in the Alarm Settings menu. 28 | Settings | Simrad IS35 User manual... -
Page 29: Alarm Indication
In some cases the alarm icon remains on the gauge until the fault is resolved. Active alarms Lists active alarms on the network. These alarms will be present until the alarm instance is cleared. | 29 Settings | Simrad IS35 User manual... -
Page 30: Alarm History
Alarm details Select an alarm instance to show more details of that specifi c occurrence and the action taken. Clear Alarm History Open Alarm History list Press ENTER Select Clear all 30 | Settings | Simrad IS35 User manual... -
Page 31: Engine Alarm Settings
All alarms for all engine are on Individually select which engines Custom alarms will be all on or all off Alarm siren When enabled, an audible alarm sounds when an instance is triggered. | 31 Settings | Simrad IS35 User manual... -
Page 32: Damping
The data sources are normally confi gured the fi rst time the system is turned on. It should only be necessary to update this data if 32 | Settings | Simrad IS35 User manual... - Page 33 Device list Shows a list of all devices connected to the Network. Selecting a device in this list brings up additional details and actions. | 33 Settings | Simrad IS35 User manual...
-
Page 34: Confi Gure
Calibration options vary depending on the device. Diagnostics NMEA2000 Bus diagnostic data on the network. Units Set the unit of measurement for how you want the data to be displayed. 34 | Settings | Simrad IS35 User manual... -
Page 35: Decimal Places
This is not a network function. You need to change all gauges separately. Note: The unit automatically restarts once the language is selected. Time Set the preferred time / date format and the local time off set. | 35 Settings | Simrad IS35 User manual... -
Page 36: Simulate
If the gauge does not respond to the normal restore procedures, press and hold the UP / DOWN keys while powering the unit on. A beep signifi es the reset has been completed. 36 | Settings | Simrad IS35 User manual... -
Page 37: Installation
Files dialog. Vessel setup Set the number of engines, fuel tanks and total fuel capacity. Note: These settings are applied to all devices on the network. | 37 Settings | Simrad IS35 User manual... -
Page 38: Engine Display Setup
Engine Display Setup. Gauge limits Set the RPM and vessel fuel rate limits. Note: These limits are a visual guide on the display and do not set alarms. 38 | Settings | Simrad IS35 User manual... -
Page 39: Pop-Up Setup
Set the threshold and duration that pop-up information will be displayed when the engine trim, transmission and lever control is adjusted. Pop-ups appear when the gauge sees a change in data that is greater than the set threshold. | 39 Settings | Simrad IS35 User manual... -
Page 40: Files
Each gauge on the network needs to be upgraded individually. Connecting a Micro-USB device Remove USB cover from the rear of the gauge Insert a USB Micro USB adaptor and mass storage device 40 | Settings | Simrad IS35 User manual... -
Page 41: Export System Settings
Select the Settings.iset fi le from the USB memory, the details dialog will appear. Press ENTER to confi rm import Warning: Importing system settings overwrites all existing system settings and restarts the gauge! | 41 Settings | Simrad IS35 User manual... -
Page 42: Software
Save the update fi le to a USB mass storage device Connect portable storage device to micro USB slot Select the update fi le from the USB memory When the details dialog appears, press ENTER Press ENTER again to confi rm upgrade 42 | Settings | Simrad IS35 User manual... -
Page 43: Is35 Color Display Software Upgrade
The upgrade progress dialog will appear. Press ENTER once upgrade is complete IS35 Color Display software upgrade Verify software version via the About dialog Save the latest .upd fi le to a USB mass storage device Ensure the gauge power is off Insert USB mass storage device via the USB adaptor Turn the power on. -
Page 44: Maintenance
Make sure that none of the keys are stuck in the down position. Checking the connector The connector should be checked by visual inspection only. Ensure that the cable is connected correctly and the USB port cover is in place. 44 | Maintenance | Simrad IS35 User manual... -
Page 45: Specifi Cations
Red / Green / Blue (night mode) Environmental IPX7 Protection Safe distance to 0.3 m (1.0 ft.) compass Temperature Operating -15C to +55 ºC (+5 to +131 ºF) Storage -25 to +65 ºC (-13 to +149 ºF) | 45 Specifi cations | Simrad IS35 User manual... - Page 46 www.simrad-yachting.com...
