Fuse Box; Fuse Identification - Triumph Street Triple Owner's Handbook Manual

Maintenance and Adjustment

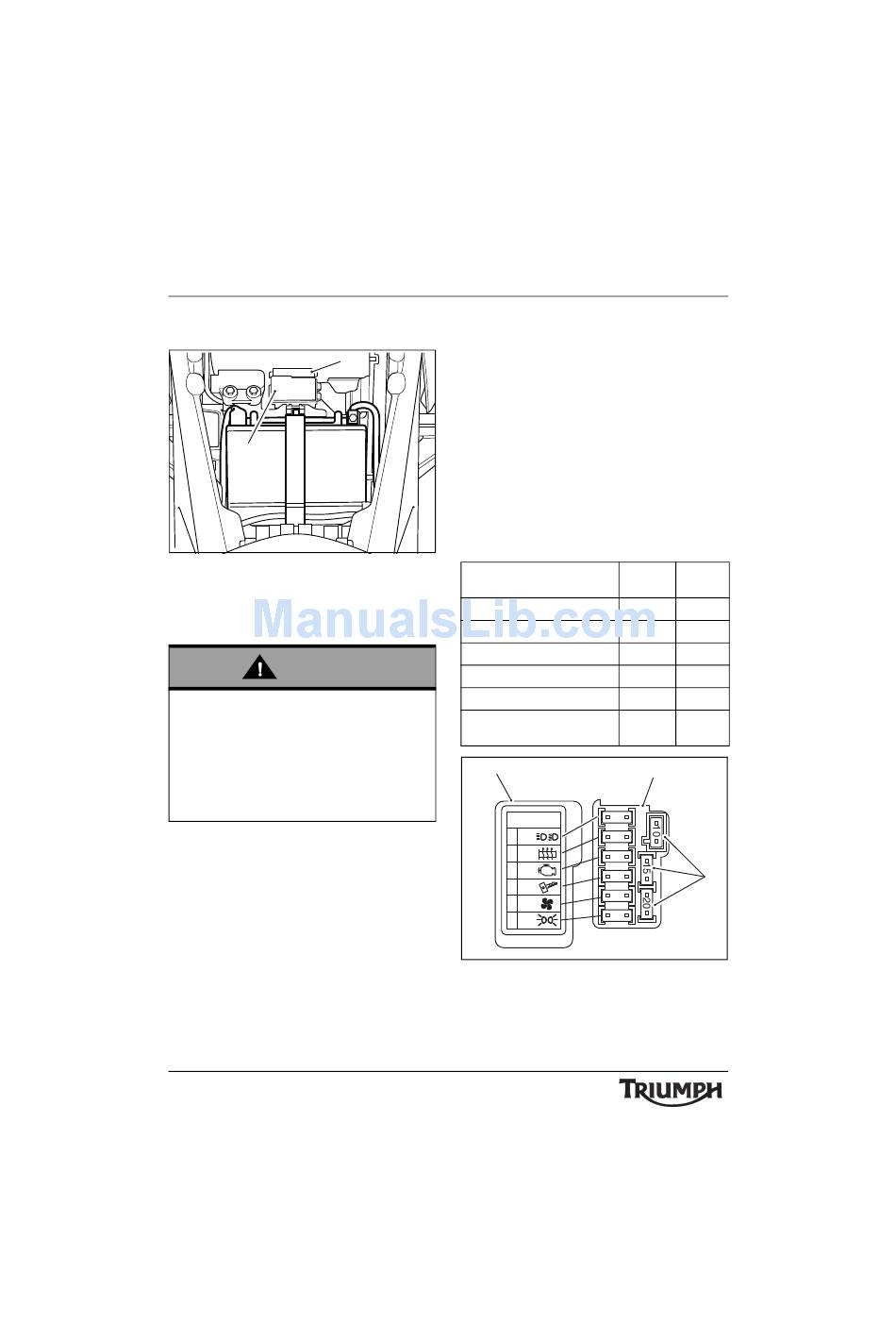

Fuse Box

1
chrx
1. Main fuse box
2. ABS fuse box, if ABS is fitted
The fuse box is located beneath the seat.
To access the fuse box, remove the seat.
Warning
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
112

Fuse Identification

A blown fuse is indicated when all of the
2
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the tables to establish which fuse has
blown.
The fuse identification numbers listed in the
tables correspond with those printed on the
fuse box cover, as shown. Spare fuses are
located at right angles to the main fuses and
should be replaced if used.
Fuse Box
Circuit Protected
Auxiliary lights
Cooling fan
Ignition switch, starter circuit
Engine management
Heated grips
Dip and main beam
headlights, starter relay
1
6
5
4
3
2
1
cebw_3
1. Fuse box cover
2. Fuse box
3. Spare fuses
Position
(Amps)
1
2
3
4
5
6
2
20
OPEN
20A 10
10A
15
15A
10
10A
15
15A
10
10A
Rating
10
15
10
15
10
20
3
