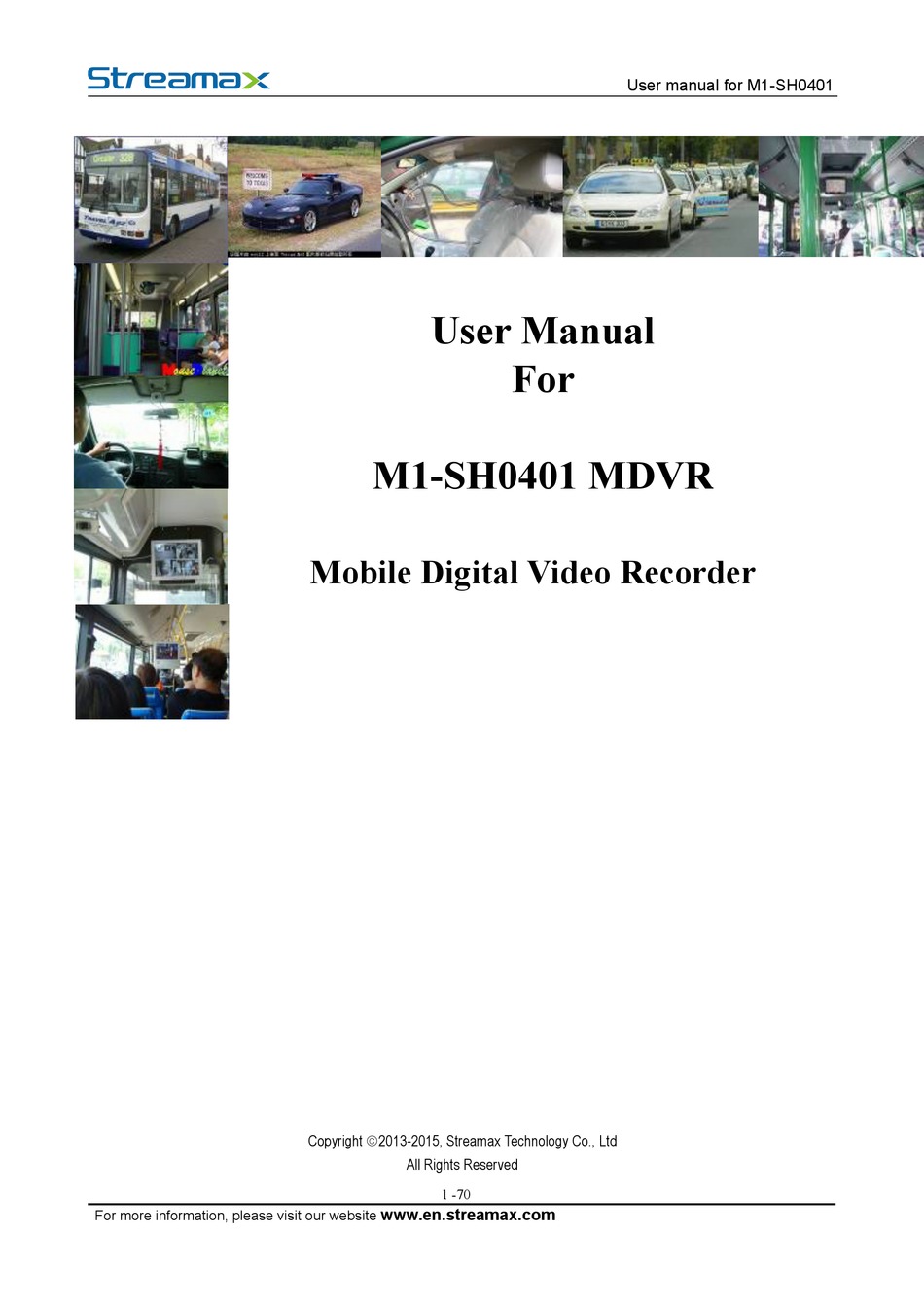

- Page 1 User manual for M1-SH0401 User Manual M1-SH0401 MDVR Mobile Digital Video Recorder Copyright 2013-2015, Streamax Technology Co., Ltd All Rights Reserved 1 -70 www.en.streamax.com For more information, please visit our website...
- Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd. Copyright (2013-2015) 2 - 70 www.en.streamax.com...
- Page 3 User manual for M1-SH0401 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing.
-
Page 4: Table Of Contents
User manual for M1-SH0401 Contents PRODUCT CHARACTERISTICS........................6 1.1. OVERVIEW............................6 1.2. SPECIFICATIONS..........................6 1.3. SYSTEM DIAGRAM..........................8 1.4. EXTERNAL INTERFACE......................... 8 1.5. DEFINITION AND PICTURES OF EXTERNAL CABLES............10 LOCAL MANAGEMENT..........................11 2.1. LOGIN INTERFACE........................11 2.2. RECORD SEARCH:........................14 2.3. LOG SEARCH..........................17 2.4. - Page 5 User manual for M1-SH0401 3.4.1. BASIC INFORMATION......................64 3.4.2. DEVICE MODULE........................64 3.4.3. STORAGE DEVICE........................ 65 3.4.4. VERSION INFORMATION..................... 66 3.5. CONFIGURATION...........................66 STORAGE CAPACITY CALCULATION.......................68 FAQ..................................69 5 - 70 www.en.streamaxtech.com For more information, please visit our website...
-
Page 6: Product Characteristics

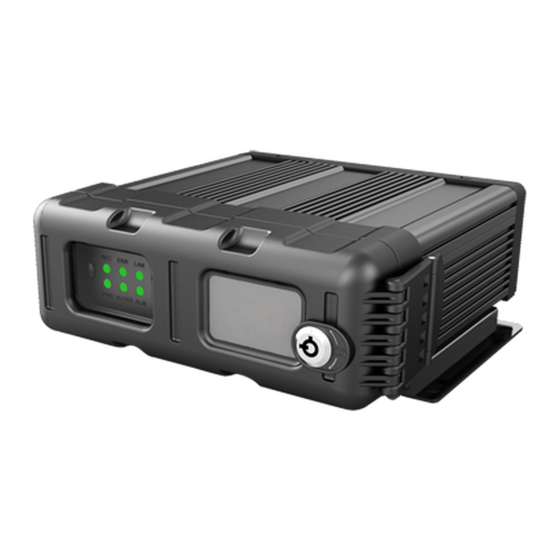

1. PRODUCT CHARACTERISTICS 1.1. OVERVIEW Streamax M1-SH0401 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. - Page 7 User manual for M1-SH0401 Digital: 720P(1280X720); Image Quality 1-8 levels adjustable (1 is the best) Recording Mode Boot up/Manual/Schedule/Alarm Pre-recording 0-60minutes Post-recording 0-30 minutes Mirror/Dual Recording Support Playback Channel 1 channel by local playback Playback Search Mode Date/time, channel, event...
-
Page 8: System Diagram
User manual for M1-SH0401 1.3. SYSTEM DIAGRAM 1.4. EXTERNAL INTERFACE DIMENSION (Unit: mm) 8 - 70 www.en.streamaxtech.com For more information, please visit our website... - Page 9 User manual for M1-SH0401 FRONT PANEL Serial No. Description Status LED USB interface Dual SD card and SIM slot REAR PANEL 9 - 70 www.en.streamaxtech.com For more information, please visit our website...
-
Page 10: Definition And Pictures Of External Cables
User manual for M1-SH0401 Serial No. Print Description Power DC 8-36 V Power Input Sensor&Serial The Interfaces of Serial Port and Switch A/V IN1~4 Audio & Video Input 1-4 A/V OUT Audio & Video Output The Interface of PON Power Supply... -
Page 11: Local Management
User manual for M1-SH0401 2. LOCAL MANAGEMENT N9M supports 3 kinds of local setting methods: Connect monitor to mobile DVR and make sure it can play real time output image. Then connect mouse to USB interface at the front panel to have MDVR parameter setting. - Page 12 User manual for M1-SH0401 Login Notice: Software is automatically assigned by user name and password, it can be divided into user and administrator privileges. Password options cannot be closed, but it can be set to null; when it is empty, user do not need to enter the password to login。...
- Page 13 User manual for M1-SH0401 Move the cursor to the number position, press 【 Enter 】 or left click mouse button to select the corresponding number. Move the cursor to 【 123】 , press 【 Enter】 or mouse to choose input type, such as numbers, letters, or special characters.
-
Page 14: Record Search
User manual for M1-SH0401 Main interface 2.2. RECORD SEARCH: Video search interface contains video file search, video data backup and video playback function. When there is a hard disk or SD card, enter the video search interface. Following is the REC Search... - Page 15 User manual for M1-SH0401 Select the date with record, click next, and then enter the following interface: Following are the search options and search result interface: Video type: User can choose all record, alarm record or normal record. Channel: The channel is optional and mark with color that has record. The channel with gray cannot be chosen if there is no record.
- Page 16 User manual for M1-SH0401 In playback interface, user can choose fast forward or fast backward to play the video, the button in the middle of screen can switch the channels. The image stops and it will not exit automatically when playing to the last video of the day.
-
Page 17: Log Search
User manual for M1-SH0401 2.3. LOG SEARCH In the log search interface, it records and displays all alarm events and login operation log. Enter the "log query”, the interface will be shown as following: Log Search interface instruction: Calendar: the date with log will be marked on the calendar with green color. - Page 18 User manual for M1-SH0401 Log search interface instruction: Start time: the start time for searching log files End time: the end time for searching log files Log types: classification of log search, including the operation log and alarm log and locking log...
-
Page 19: System Status
User manual for M1-SH0401 Log time: the time when event is triggered Log name: event content Supports page up/page down and export all log files of the specified date. Supports link to video file, click on button to playback video files... - Page 20 User manual for M1-SH0401 System-Server status System - Environment 20 - 70 www.en.streamaxtech.com For more information, please visit our website...
-
Page 21: Basic Setup
User manual for M1-SH0401 System-Storage: 2.5. BASIC SETUP Click setup button and enter the following interfaces: 2.5.1. REGISTER INFOMATION (SETUP VEHICLE INFORMATION) Register information-Device info: 21 - 70 www.en.streamaxtech.com For more information, please visit our website... - Page 22 User manual for M1-SH0401 Device ID: Currently, it is not useful. Register information- Vehicle info Vehicle Number：When connected with PAD, the vehicle number is needed. Vehicle plate：Input manually. Line number：Input manually. Register information—Driver info: 22 - 70 www.en.streamaxtech.com...
-
Page 23: Time Setup
User manual for M1-SH0401 Driver number: Input manually. Driver name: Input manually. 2.5.2. TIME SETUP Time setup-General Date format: Setup the date format of device Time format: 24 hours or 12 hours Time zone: Range from -12 district ~ +13 district ... - Page 24 User manual for M1-SH0401 Date/Time: Device time, from 2000-01-01 to 2036-12-31 Satellite: Synchronize time with GPS satellite. Once GPS signal changes to valid, device will synchronize time Center Server: synchronize time with center server NTP sync: synchronize time with NTP server...
-
Page 25: Start Up
User manual for M1-SH0401 Mode: Setup DST according to week or date Start: Time to start DST End: Time to end DST 2.5.3. START UP Startup-ON/OFF ON/OFF mode: 3 modes, including ignition, timer and ignition or timer. Ignition: Input ignition delay time for shutdown delay function Timer: When setup the start mode as Timer, please setup the start time and end time Under this mode, MDVR’s start up or shut down time will not affect the ignition. -
Page 26: User Setup
User manual for M1-SH0401 Sleep Mode: Currently, there is only no consumption standby mode available. Low Volta protect: Enabling the low voltage shutdown protection mode selected. Battery low voltage: Protect the vehicle battery. When consistently below the standard value, it will countdown shutdown. -
Page 27: Network
User manual for M1-SH0401 User name: The default ones are admin and user. User Group: It is divided into administrator and ordinary user. It supports delete user function. Select the user and click "Delete User" button. Please be noted that the administrator cannot be deleted. - Page 28 User manual for M1-SH0401 Automatically obtain IP: Dynamic acquisition, DNS can also be statically configured to dynamically obtain. Use the following IP: Static IP, need to use a static DNS. Remark: Switch from static IP to automatically obtain IP mode, it can display dynamic IP, but the static IP parameters will not be covered, to restore the last saved static IP after switching back.
- Page 29 User manual for M1-SH0401 Enable: Select to enable WIFI ESSID: Manually input the address of AP Encryption: It supports NONE, WEP and WPA Password: Manually input Static IP: Select to use static IP, or MDVR will get dynamic IP ...
- Page 30 User manual for M1-SH0401 parameters provided by the manufacturer. The default is empty, the program comes with empty arguments by dialing. Certification：Supports PAP or CHAP. Remark: When there is SIM and normal 3G/4G signal, it will dial automatically. Network- Server Center server: It supports 6 servers at most, and server 1 cannot be deleted manually.
-
Page 31: Application
User manual for M1-SH0401 2.5.6. APPLICATION Application-FTP Client FTP Enable: Enable FTP. Server: To run FTP server address. Port: To run FTP server port. (The default one is 21.) User name/password: The accounts distributed by FTP server. 2.6. SURVEILLANCE 31 - 70 www.en.streamaxtech.com... -
Page 32: Live View
User manual for M1-SH0401 2.6.1. LIVE VIEW Live view-->Preview Real-time Setting Interface: Preview audio: Enable the audio when live view the video. Image setup: Set the live-view parameters, including brightness, contrast, etc. Startup Screen: Set the live-view screen, it can be single-screen or quad screen or nine screen Channel: Set the channel when live-view ... -
Page 33: Record
User manual for M1-SH0401 Duration: Duration for each screen. Edit: Delete or Edit. Add screen: Add polling screen Auto polling: Enable the auto pulling Live view-Live OSD : It displays the information on screen, such as time, speed, license plate, GPS... - Page 34 User manual for M1-SH0401 Overwrite: The earliest recording file will be deleted while the HDD or SD card is full to realize loop recording. Lock duration: Protect the record file to be deleted by fault, default is 7 days. Pre-recording: Pre-record before the alarm happens. Default is 15min, 0-60min optional.
- Page 35 User manual for M1-SH0401 Channel: The total channel numbers of the device, including analog and digital channels. Channel name: Change the name manually. Enable: Enable the main stream record function Resolution: The analog channel supports D1/HD1/CIF/WD1/WHD1/WCIF while the digital one supports 720P.
- Page 36 User manual for M1-SH0401 Storage: The storage type for sub stream, internal SD and external SD optional. Record mode: Mirror record, alarm back-up record and sub stream. Mirror record: Channel is selectable. Video resolution and frame rate are the same with main stream.
-
Page 37: Ipc Setup
User manual for M1-SH0401 Embedded key information to video file for easily check when playback. 2.6.3. IPC SETUP IPC setup: 37 - 70 www.en.streamaxtech.com For more information, please visit our website... - Page 38 User manual for M1-SH0401 Channel: It includes the analog channels and IPC channels. Analog channel will not be shown if it connects to network camera. Enable: Enable to operate IPC. IP and port: Display channel details after searching. Setup: Search and edit IP camera recording parameters Fast setup: Search all the IP cameras in LAN network, and auto assign IP address to IP camera.
-
Page 39: Ptz
User manual for M1-SH0401 2.6.4. PTZ Channel: It includes analog channels and IPC channels. Enable: Enable PTZ. Operate: It includes serial, N9M and ONVIF. It supports Pelco-D and Pelco-P PTZ protocols with serial mode. Address: It is valid with serial mode. - Page 40 User manual for M1-SH0401 Sensor number: The total alarm input numbers of MDVR. Sensor name: IO sensor name, it can set manually. The sensor name of alarm setting interface will update synchronously after setting. OSD name: The information embedded to video image.
-
Page 41: Snap Setting
User manual for M1-SH0401 Model X3, X5 and X7 equip 4 serial ports, while model M1 and X1 equip only one RS232 port, but it can realize the following features: expansion, control panel, 485 bus, GPS data, three axis sensor, PTZ and integrated printer. - Page 42 User manual for M1-SH0401 Start time: Start to snap. End time: Stop snapping. Setup: Delete and set. Time snap: Enable to snap at the setting time. Add: To add snap period, and it supports 8 pieces at most. Snap Setting--> Trigger snap 42 - 70 www.en.streamaxtech.com...
-
Page 43: Eco-Driving
User manual for M1-SH0401 Trigger snap: It snaps when alarm is trigger. 2.7.3. ECO-DRIVING (It is still developing.) 43 - 70 www.en.streamaxtech.com For more information, please visit our website... -
Page 44: Alarm
User manual for M1-SH0401 2.8. ALARM 2.8.1. BASE Base-->Speed alarm 44 - 70 www.en.streamaxtech.com For more information, please visit our website... - Page 45 User manual for M1-SH0401 Name: The current name is over speed Enable：Enable or disable, tick to enable Alarm type: It includes the following types, important and general. Trigger: Over speed pre alarm difference: To set the pre alarm data. For example, if speed is 60 km/hour, and over speed pre alarm difference is 10 km/hour, TSS sends over speed alarm broadcast and records when it reaches 50 km/h.
- Page 46 User manual for M1-SH0401 Channel: Link to recording channel, optional. Post recording: It means the recording duration after the alarm has been removed. Lock: Enable to link recording lock when there is alarm. 3G network: When it is set as sensor trigger dial mode, it enables 3G network as it triggers alarm.
- Page 47 User manual for M1-SH0401 Name: The current name is panic. Enable：Enable to panic button. Alarm type: Important type and general type optional. Trigger: Click any button to delay the time till it reaches the setting time to alarm. Linkage: When alarm is triggered, link to business operation.
- Page 48 User manual for M1-SH0401 Channel: Link to recording channel, optional. Post recording: It means the recording duration after the alarm has been removed. Lock: Enable to link recording lock when there is alarm. 3G network: When it is set as sensor trigger dial mode, it enables 3G network as it triggers alarm.
- Page 49 User manual for M1-SH0401 Base – IO alarm interface: Name: From Sensor1 to Sensor8 (It includes all the alarm input numbers.) Enable: Enable the sensor alarm. Alarm type: Important type and general type optional. Trigger: Low and high optional. It triggers alarm when it is low as default.
- Page 50 User manual for M1-SH0401 Channel: Link to recording channel, optional. Post recording: It means the recording duration after the alarm has been removed. Lock: Enable to link recording lock when there is alarm. 3G network: When it is set as sensor trigger dial mode, it enables 3G network as it triggers alarm.
-
Page 51: Video
User manual for M1-SH0401 2.8.2. VIDEO Video-Video loss Name: The default name is video loss. Enable: Enable the video loss. Alarm type: Important type and general type optional. Trigger: 51 - 70 www.en.streamaxtech.com For more information, please visit our website... - Page 52 User manual for M1-SH0401 Video loss set: It includes all video channels that can be selected. Set period: Set the checking period when video loss alarm is triggered. Linkage: When alarm is triggered, link to business operation. 52 - 70 www.en.streamaxtech.com...
- Page 53 User manual for M1-SH0401 Channel: Link to recording channel, optional. Post recording: It means the recording duration after the alarm has been removed. Lock: Enable to link recording lock when there is alarm. 3G network: When it is set as sensor trigger dial mode, it enables 3G network as it triggers alarm.
-
Page 54: Advance
User manual for M1-SH0401 2.8.3. ADVANCE Name: The default name is ACC alarm. Enable: Enable the ACC alarm. Trigger: Set the threshold value of X/Y/Z. Linkage: When alarm is triggered, link to business operation. 54 - 70 www.en.streamaxtech.com For more information, please visit our website... -
Page 55: Maintenance
User manual for M1-SH0401 Channel: Link to recording channel, optional. Post recording: It means the recording duration after the alarm has been removed. Lock: Enable to link recording lock when there is alarm. 3G network: When it is set as sensor trigger dial mode, it enables 3G network as it triggers alarm. -
Page 56: Configuration
User manual for M1-SH0401 After login, click setup>Maintenance, and then enter into the page as follow. 2.9.1. CONFIGURATION In the configuration page, user can export and import the configuration file. Insert flash drive to export the configuration file to the root folder, the file name is ConfigFile Insert flash drive to import configuration file into MDVR, and it will display the notice when import successfully. -
Page 57: Upgrade
User manual for M1-SH0401 2.9.3. UPGRADE In the page of upgrade, user can upgrade software. Put the upgrade file in flash drive. Currently, device firmware, microcontrollers firmware, CP4 firmware and IPC firmware can be put inside. Insert flash drive and enter the upgrade interface, click software upgrade and it will indicate that upgrade file is importing. -
Page 58: Storage
User manual for M1-SH0401 Remark: Make sure don’t power off during upgrading. Put the upgrade file into the folder “upgrade”, which is at the root directory if the USB drive It support upgrade firmware, LOGO, MCU, and MCU for CP4. -
Page 59: Default
User manual for M1-SH0401 2.9.5. DEFAULT In this page, you can click the default button to reset the parameters to factory settings. Click reset to restore the original data. Remark: For, language, MAC address, register info, CMS server info, speed adaption parameter will not change during default settings. -
Page 60: Main Interface
User manual for M1-SH0401 3.2. MAIN INTERFACE 60 - 70 www.en.streamaxtech.com For more information, please visit our website... -
Page 61: Playback
User manual for M1-SH0401 Icons: quad, 9-split, preview, next page, sound, capture and video parameters. Stream switch: main stream, sub-stream and network transmission sub stream. Log out: log out and come to the log in interface 3.3. PLAYBACK 61 - 70 www.en.streamaxtech.com... - Page 62 User manual for M1-SH0401 If the date is marked as color green, it means there is recording. 62 - 70 www.en.streamaxtech.com For more information, please visit our website...
-
Page 63: Maintenance
User manual for M1-SH0401 Recording playback window: Video window, play time-line, play control button, window switch... Record list: It displays all the record. Click backup download video file to local computer hard disk. 3.4. MAINTENANCE 63 - 70 www.en.streamaxtech.com For more information, please visit our website... -
Page 64: Basic Information
User manual for M1-SH0401 3.4.1. BASIC INFORMATION Basic information: It contains the current state & history state of channel video and storage. 3.4.2. DEVICE MODULE Device module: It is about the current state of module, WIFI module and satellite location module. -
Page 65: Storage Device
User manual for M1-SH0401 3.4.3. STORAGE DEVICE Storage device: There are the volume information & format operation of storage (hard disk/flash drive/SD card), and the path of snap & record backup. 65 - 70 www.en.streamaxtech.com For more information, please visit our website... -
Page 66: Version Information
User manual for M1-SH0401 3.4.4. VERSION INFORMATION Version information: There are device type, name, firmware version, MCU version, CP3/4 version, upgrade, configuration file export and configuration file import. Log: There is Log type (operation log, alarm log and locked log), operation type (IO alarm, panel alarm, speed alarm, video loss and ACC alarm) date, and log export. - Page 67 User manual for M1-SH0401 The parameter setting is the same as the local setting. User can view the operation at the local setting. 67 - 70 www.en.streamaxtech.com For more information, please visit our website...
-
Page 68: Storage Capacity Calculation
User manual for M1-SH0401 4.STORAGE CAPACITY CALCULATION Image Quality & Streams Resolution Image quality 720P 6144 4800 4128 3456 2784 2112 1440 2662 1997 1599 1331 1170 1040 WHD1 1664 1248 Stream WCIF 1040 Kbps 2048 1536 1230 1024 1280 Record File Size Calculation Rec. -
Page 69: Faq
User manual for M1-SH0401 5.FAQ The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition. - Page 70 User manual for M1-SH0401 of the task table. Which IP waterproof level does Streamax device support? Currently, X7 and X5-E0804 support waterproof IP 54. How to install the WIFI antenna? The antenna must be installed on unobstructed place of the roof, and be fixed with glue.
