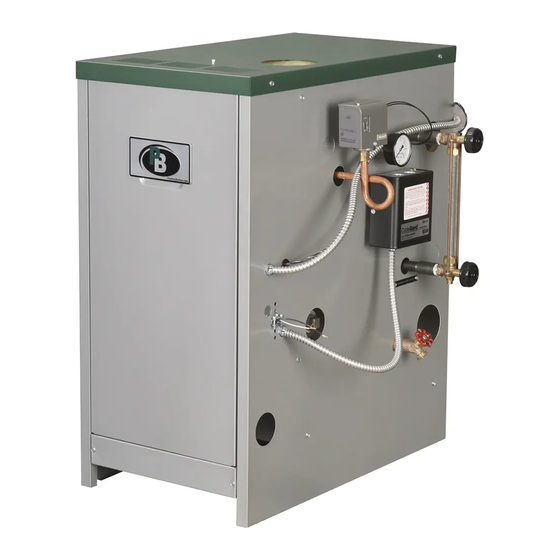

PB Heat SERIES 63 User's Information Manual

PB Heat SERIES 63 User's Information Manual

Gas boilers

Advertisement

Quick Links

U
S
ERIES
TO THE INSTALLER: This manual is the property of the owner and must be affixed near the boiler
TO THE OWNER: This boiler should be inspected annually by a Qualified Service Agency.
WARNING
If the information in this manual is not
followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your
building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
– Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Service Agency
Address
Boiler Model No.
I
SER'S
NFORMATION
63/64
for future reference.
TO BE COMPLETED BY THE INSTALLER
Serial No.
PB HEAT, LLC
131 S. CHURCH ST • BALLY, PA 19503
M
ANUAL
G
B
AS
MISE EN GARDE
Négliger de suivre ces instructions à la
lettre pourrait provoquer un incendie ou
une explosion causant des dégâts
matériels, des blessures ou la mort.
– Ne pas ranger ou utiliser de la gazoline ou
d'autres liquides ou gaz inflammables à
proximité de cet appareil ou d'un autre du
même type.
– QUE FAIRE SI VOUS DÉTECTEZ UNE
ODEUR DE GAZ
• Ne pas tenter d'allumer l'appareil.
• Ne toucher à aucun interrupteur
électrique ; n'utiliser aucun appareil
téléphonique dans l'immeuble.
• Contacter immédiatement votre fournisseur
de gaz à partir du téléphone d'un voisin.
Suivre les instructions données par votre
fournisseur de gaz.
• S'il est impossible de rejoindre le
fournisseur de gaz, appeler le service
des incendies.
– L'installation et l'entretien doivent être
effectués par un installateur qualifié, une
société d'entretien ou le fournisseur de gaz.
OILERS
Phone No.
Date of Installation:
TT8067 R3 (11/14-3M)
Printed in U.S.A.
©2014 PB Heat, LLC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SERIES 63 and is the answer not in the manual?

Questions and answers

Summary of Contents for PB Heat SERIES 63

  • Page 1 TO BE COMPLETED BY THE INSTALLER Service Agency Phone No. Address Boiler Model No. Serial No. Date of Installation: PB HEAT, LLC 131 S. CHURCH ST • BALLY, PA 19503 TT8067 R3 (11/14-3M) Printed in U.S.A. ©2014 PB Heat, LLC. All rights reserved.
  • Page 2: Basic Operation

    Basic Operation WARNING Service on this boiler should be undertaken only by trained and skilled personnel from a qualified service agency. CAUTION Should overheating occur or the gas supply fail to shut off, do not turn off or disconnect the electrical supply to the pump.
  • Page 3 4. Pilot. The pilot provides an ignition source for the main burners. Your boiler has either a standing (continuous) pilot or an intermittent (spark ignited) pilot. The standing pilot should always be lit while the intermittent pilot ignites only when there is a call for heat and extinguishes when the call for heat ends.
  • Page 4 Figure 2: Sequence of Operation Intermittent Pilot...
  • Page 5 Figure 3: Operating Instructions, Spark Ignition 63-03 thru 64-08 Natural Gas & LP Gas, 64-09 thru 64-12 LP Gas...
  • Page 6 Figure 4: Operating Instructions, Spark Ignition 63-03 thru 64-08 Natural Gas & LP Gas, 64-09 thru 64-12 LP Gas...
  • Page 7: For Your Safety Read Before Lighting

    FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. A. This appliance is equipped with an ignition device Immediately call your gas supplier from a which automatically lights the pilot.
  • Page 8: User Maintenance

    User Maintenance WARNING Product Safety Information Refractory Ceramic Fiber Product This appliance contains materials made from refractory ceramic fibers (RCF). Airborne RCF fibers, when inhaled, have been classified by the International Agency for Research on Cancer (IARC), as a possible carcinogen to humans. After the RCF materials have been exposed to temperatures above 1800°F, they can change into crystalline silica, which has been classified by the IARC as carcinogenic to humans.
  • Page 9 WARNING Service on this boiler should be undertaken only by trained and skilled personnel from a qualified service agency. Inspections should be performed at intervals specified in the Installation, Operation and Maintenance Manual and this User’s Information Manual. Maintain manuals in a legible condition. Keep boiler area clear and free of combustible materials, gasoline and other flammable vapors and liquids.
  • Page 10 D. Controls (as required by control manufacturer)¹. 1. Safety Relief Valve. Conduct try lever test as outlined in manufacturer’s instruction tag on the safety relief valve. 2. Low Water Cut-off (if used). Follow instructions provided by control manufacturer. E. General Inspection and Maintenance (Annual). For continued safe operation a qualified service agency must provide a more detailed inspection of burners, heat exchanger and vent system, and provide maintenance as specified in the Installation, Operation and Maintenance Manual.
