LEGRAND DA1101 Instruction/Installation Sheet

301Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com

1. Introduction

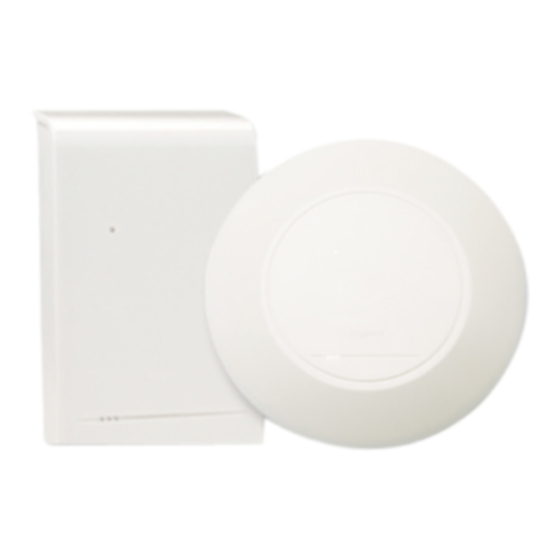

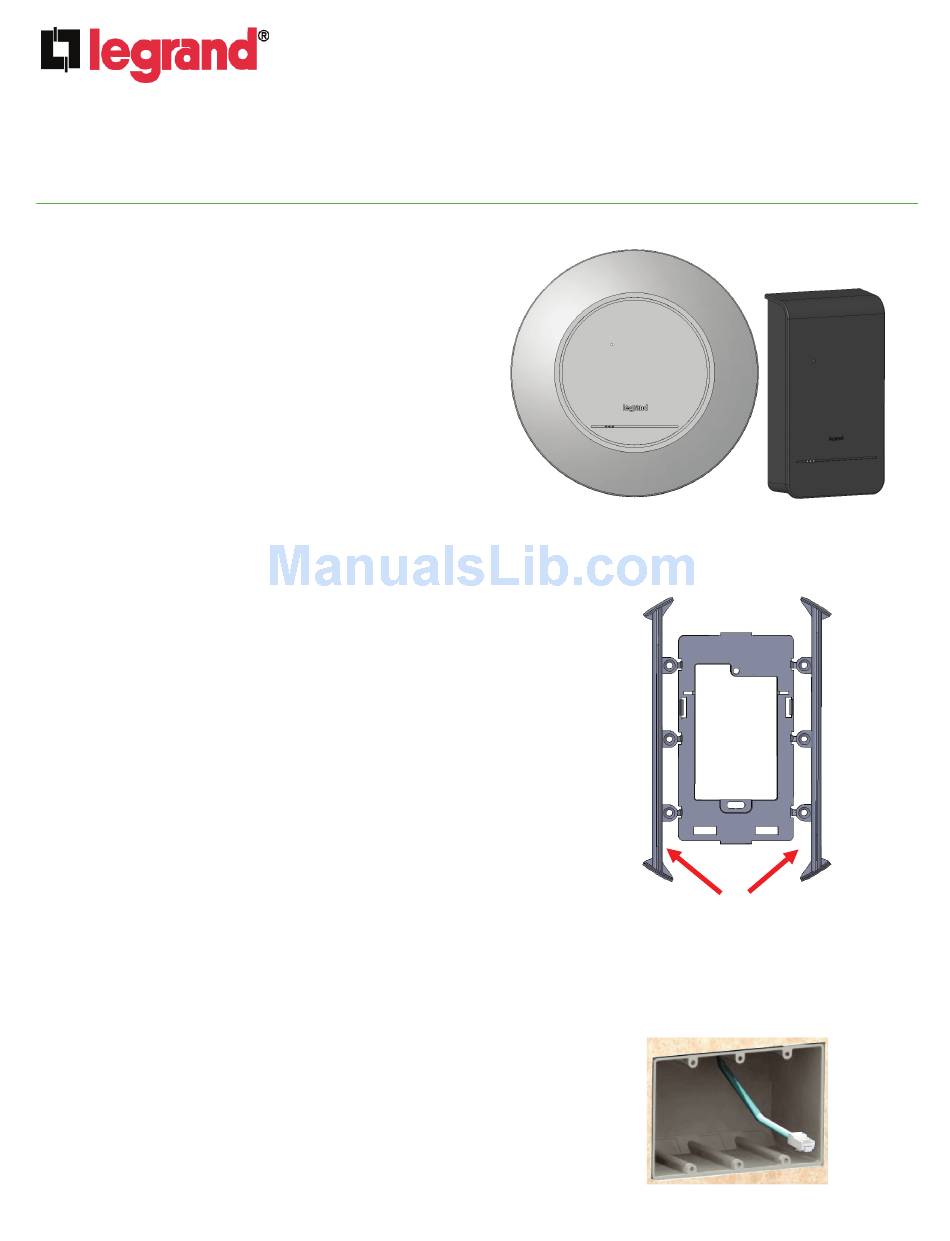

The Legrand DA1101 Wireless Access Point – N (see
Figure 1) is the latest offering for residential WiFi
support from Legrand. It supports the older 802.11 B/G
standards, and the newer "N" standard. The DA1101 is
supplied with mounting hardware for two different
installation methods. It may be mounted in a three-
gang electrical box using the round cover, or in a
single-gang electrical box using the small rectangular
cover. As such, it is suitable as a replacement or
upgrade product for existing Legrand 802.11 B/G
WAPs, or for new construction in a much smaller form
factor. This installation/instruction sheet covers only
the physical installation requirements. For additional
information related to software configuration and
operation, refer to the DA1101 Owner's Manual (P/N
1308137) supplied with the product.

2. Description

•
Provides one triple-gang installation bracket assembly and associated
round cover for mounting the DA1101 in an existing triple-gang electrical
box. This installation option is typically used for replacement/upgrade of
an existing Legrand 802.11 B/G WAP product.
•
The supplied triple-gang installation bracket may be easily modified into
a single-gang installation bracket assembly for use with the supplied
smaller rectangular cover for mounting the DA1101 in a new construction
single-gang electrical box (see Figure 2).
•
Provides the DA1101 802.11 N Wireless Access Product which snaps
into the supplied mounting bracket.
•
Provides the POE module and associated single bay bracket which is
housed in the structured wiring enclosure, and which provides both
power for the DA1101 product and data interface between the DA1101
and its associated router, both over a single Cat 5 connection to the
mounting location.

3. Installation

IMPORTANT: Read the documentation that is included with all associated Legrand products before
installation. If you are unsure of any of the following installation procedures contact Legrand Technical
Support @ 1-800-321-2343 option 1 or contact a Legrand installer.
A. Run a Category 5 cable from the triple-gang (see Figure 3) or single-
gang electrical box at the intended DA1101 room location to the POE
module located in the structured wiring enclosure.
B. Make sure that the Power Supply is not connected to the POE
module at this time.
©Copyright 2011 by Legrand All Rights Reserved.
INSTRUCTION / INSTALLATION SHEET
Wireless Access Point - N (P/N DA1101)
Triple-gang
Figure 1
cover
IS-0530 Rev. A
Single-gang
cover
Figure 2
Break off for
single-gang
Figure 3
Page 1 of 2
