Desktop N-Wireless Access Point
(P/N DA2155)
User's Guide
1308211 REV. A
301 Fulling Mill Road, Suite G
Middletown, PA 17057
i
Page
(800)-321-2343
©Copyright 2012 by Legrand,
Inc All Rights Reserved.
www.onqlegrand.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA2155 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND DA2155

Summary of Contents for LEGRAND DA2155

  • Page 1 Desktop N-Wireless Access Point (P/N DA2155) User’s Guide 1308211 REV. A 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 1 Desktop N-Wireless Access Point (P/N DA2155) User’s Guide 1308211 REV. A 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 2 (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 2 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Este aparato digital Clase B cumple con la norma canadiense ICES-003 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 3: Table Of Contents

    Appendix B: Factory Defaults ............................. 76 Appendix C: Troubleshooting ............................77 Appendix D: Specifications ............................81 Appendix E: Glossary ..............................82 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 3: Table Of Contents

    Appendix B: Factory Defaults ............................. 76 Appendix C: Troubleshooting ............................77 Appendix D: Specifications ............................81 Appendix E: Glossary ..............................82 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 4: Introduction

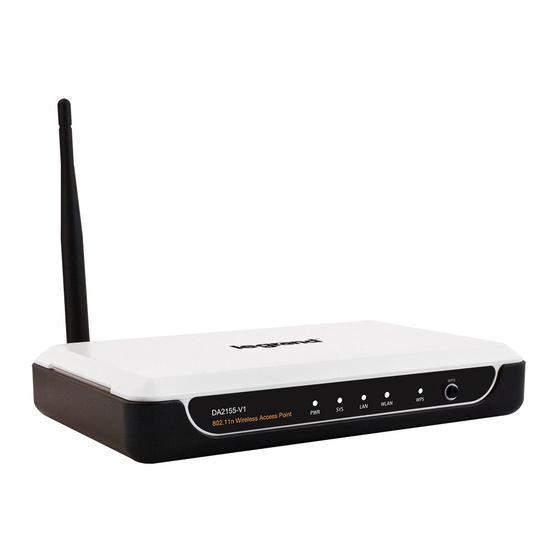

    1.0 Introduction 1.1 Product Overview The Legrand DA2155-V1 Desktop Wireless N Access Point is dedicated to Small Office/Home Office (SOHO) wireless network solutions. It allows for greater range and mobility within your wireless network while also allowing you to connect the wireless devices to a wired environment.

  • Page 4: Introduction

    1.0 Introduction 1.1 Product Overview The Legrand DA2155-V1 Desktop Wireless N Access Point is dedicated to Small Office/Home Office (SOHO) wireless network solutions. It allows for greater range and mobility within your wireless network while also allowing you to connect the wireless devices to a wired environment.

  • Page 5: Rear Panel

    The front panel of the DA2155-V1 consists of several LED indicators (described below) and one WPS button (operation covered later). LED Explanation Name Status Indication No Power Power on The device has a system error The device is initialising Flashing...

  • Page 5: Rear Panel

    The front panel of the DA2155-V1 consists of several LED indicators (described below) and one WPS button (operation covered later). LED Explanation Name Status Indication No Power Power on The device has a system error The device is initialising Flashing...
  • Page 6 Wireless antenna: The external antenna is used to transmit and receive wireless data.  Note: Ensure the AP is powered on before pressing the reset button. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 6 Wireless antenna: The external antenna is used to transmit and receive wireless data.  Note: Ensure the AP is powered on before pressing the reset button. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 7: Hardware Installation

    Use web browsers such as Microsoft Internet Explorer 5.0 or above  Operating temperature: 0℃~40℃ (32℉~104℉)  Operating Humidity: 10%~90%RH, Non-condensing 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 7: Hardware Installation

    Use web browsers such as Microsoft Internet Explorer 5.0 or above  Operating temperature: 0℃~40℃ (32℉~104℉)  Operating Humidity: 10%~90%RH, Non-condensing 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 8: Connecting The Device

    2.3 Connecting the Device Figure 2-1 is an example of the typical application of DA2155-V1 in an infrastructure network. An Infrastructure network contains an access point and a wireless or non-wireless router. DA2155-V1 Figure 2-1 The Example of Infrastructure Network Incorporating the DA2155-V1 To establish a typical connection of the AP, please take the following steps: 1.

  • Page 8: Connecting The Device

    2.3 Connecting the Device Figure 2-1 is an example of the typical application of DA2155-V1 in an infrastructure network. An Infrastructure network contains an access point and a wireless or non-wireless router. DA2155-V1 Figure 2-1 The Example of Infrastructure Network Incorporating the DA2155-V1 To establish a typical connection of the AP, please take the following steps: 1.

  • Page 9: Quick Installation Guide

    3.0 Quick Installation Guide This chapter will guide you to configure your PC to communicate with the AP and to configure and manage the DA2155-V1 easily with a web-based utility. 3.1 Configure the PC This chapter will guide you to configure your PC to communicate with the AP. The wireless adapter- equipped computer in your network must be in the same IP Address range as the AP.

  • Page 9: Quick Installation Guide

    3.0 Quick Installation Guide This chapter will guide you to configure your PC to communicate with the AP and to configure and manage the DA2155-V1 easily with a web-based utility. 3.1 Configure the PC This chapter will guide you to configure your PC to communicate with the AP. The wireless adapter- equipped computer in your network must be in the same IP Address range as the AP.
  • Page 10 Figure 3-2 In the General tab of Internet Protocol (TCP/IP) Properties window, highlight Internet Protocol (TCP/IP) and click Properties. Figure 3-3 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 10 Figure 3-2 In the General tab of Internet Protocol (TCP/IP) Properties window, highlight Internet Protocol (TCP/IP) and click Properties. Figure 3-3 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 11 Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 0ms, Average = 0ms Figure 3-5 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 11 Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 0ms, Average = 0ms Figure 3-5 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 12: Quick Setup

    192.168.40.250. 3.2 Quick Setup With a web-based utility, it is easy to configure and manage the DA2155-V1. The web-based utility can be used on any Windows, Macintosh or UNIX OS with a web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

  • Page 12: Quick Setup

    192.168.40.250. 3.2 Quick Setup With a web-based utility, it is easy to configure and manage the DA2155-V1. The web-based utility can be used on any Windows, Macintosh or UNIX OS with a web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
  • Page 13 After successfully logging in, the Quick Setup page will display. Click Next to continue. Figure 3-9 Quick Setup The Operation Mode page will appear then, shown in Figure 3-10. The DA2155-V1 supports up to five operation modes. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand,...
  • Page 13 After successfully logging in, the Quick Setup page will display. Click Next to continue. Figure 3-9 Quick Setup The Operation Mode page will appear then, shown in Figure 3-10. The DA2155-V1 supports up to five operation modes. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand,...
  • Page 14 Figure 3-10 Operation Mode In Access Point mode (typical for Legrand), the product will act as a wireless central hub for your wireless LAN clients, giving a wireless extension for your current wired network. In Multi-SSID mode, the product can be assigned up to four SSIDs to work with your VLAN.
  • Page 14 Figure 3-10 Operation Mode In Access Point mode (typical for Legrand), the product will act as a wireless central hub for your wireless LAN clients, giving a wireless extension for your current wired network. In Multi-SSID mode, the product can be assigned up to four SSIDs to work with your VLAN.
  • Page 15 Create an easy-to-remember name for your wireless network, write it into Wireless Network Name(SSID). Notice the default SSID is Legrand_ followed by the last six digits of the DA2155-V1’s MAC address. Select Most Secure (WPA/WPA2-PSK) encryption mode and enter a password below to prevent unauthorized access to your AP (the default pw is the WPS pin# on the product label).
  • Page 15 Create an easy-to-remember name for your wireless network, write it into Wireless Network Name(SSID). Notice the default SSID is Legrand_ followed by the last six digits of the DA2155-V1’s MAC address. Select Most Secure (WPA/WPA2-PSK) encryption mode and enter a password below to prevent unauthorized access to your AP (the default pw is the WPS pin# on the product label).
  • Page 16 Select the Repeater Mode, for example Universal Repeater. Click Survey, then the window displaying a list of available SSIDs will appear in Figure 3-14. Figure 3-14 AP List 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 16 Select the Repeater Mode, for example Universal Repeater. Click Survey, then the window displaying a list of available SSIDs will appear in Figure 3-14. Figure 3-14 AP List 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 17 AP selected, the security settings of the wireless network will be the same with the root AP. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 17 AP selected, the security settings of the wireless network will be the same with the root AP. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 18 Secure(WEP), the security settings of the local wireless network will/shall keep the same with the root AP. Click Next in Figure 3-16, and you will come to Network Settings page for further configuration. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 18 Secure(WEP), the security settings of the local wireless network will/shall keep the same with the root AP. Click Next in Figure 3-16, and you will come to Network Settings page for further configuration. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 19 When you have configured Wireless Settings in step 4, The Network Settings page will appear as shown in Figure 3-18. It is recommended that you keep the default settings on this page. 192.168.40.252 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 19 When you have configured Wireless Settings in step 4, The Network Settings page will appear as shown in Figure 3-18. It is recommended that you keep the default settings on this page. 192.168.40.252 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 20 Click the Reboot button to make your wireless configuration to take effect and finish the Quick Setup. Wait until the device restarts successfully. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 20 Click the Reboot button to make your wireless configuration to take effect and finish the Quick Setup. Wait until the device restarts successfully. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 21 3-21. Check your settings and click Save to save your settings for future reference. Click the Finish button to finish the Quick Setup. Legrand_123456 192.168.40.252 Figure 3-21 Quick Setup – Finish 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 21 3-21. Check your settings and click Save to save your settings for future reference. Click the Finish button to finish the Quick Setup. Legrand_123456 192.168.40.252 Figure 3-21 Quick Setup – Finish 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 22: Configure The Device

    This Chapter describes how to configure your Access Point via the web-based management page. The DA2155-V1 is easy to configure and manage with the web-based (Internet Explorer, Firefox, Safari, Opera or Chrome) management function, which can be launched on any windows, Macintosh or UNIX OS with a web browser.

  • Page 22: Configure The Device

    This Chapter describes how to configure your Access Point via the web-based management page. The DA2155-V1 is easy to configure and manage with the web-based (Internet Explorer, Firefox, Safari, Opera or Chrome) management function, which can be launched on any windows, Macintosh or UNIX OS with a web browser.

  • Page 23: Status

    Traffic Statistics - This field displays the AP's traffic statistics. System Up Time - This filed displays the run time of the AP since it’s powered on or reset.  301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 23: Status

    Traffic Statistics - This field displays the AP's traffic statistics. System Up Time - This filed displays the run time of the AP since it’s powered on or reset.  301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 24: Quick Setup

    Figure 4-4. Figure 4-4 Operation Mode In Access Point mode (typical for Legrand), the product will act as a wireless central hub for your wireless LAN clients, giving a wireless extension for your current wired network. In Multi-SSID mode, the product can be assigned up to four SSIDs to work with your VLAN.

  • Page 24: Quick Setup

    Figure 4-4. Figure 4-4 Operation Mode In Access Point mode (typical for Legrand), the product will act as a wireless central hub for your wireless LAN clients, giving a wireless extension for your current wired network. In Multi-SSID mode, the product can be assigned up to four SSIDs to work with your VLAN.

  • Page 25: Wps

     enabled manually. If the device receives multiple failed attempts to authenticate an external Register, this function will be disabled automatically. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 25: Wps

     enabled manually. If the device receives multiple failed attempts to authenticate an external Register, this function will be disabled automatically. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 26 Press and hold the WPS button of the adapter directly for 2 or 3 seconds. Step 3: Wait for a while until the next screen appears. Click OK to complete the WPS configuration. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 26 Press and hold the WPS button of the adapter directly for 2 or 3 seconds. Step 3: Wait for a while until the next screen appears. Click OK to complete the WPS configuration. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 27 The WPS Configuration Screen of Wireless Adapter Step 3: Wait for a while until the next screen appears. Click OK to complete the WPS configuration. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 27 The WPS Configuration Screen of Wireless Adapter Step 3: Wait for a while until the next screen appears. Click OK to complete the WPS configuration. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 28 For the configuration of the wireless adapter, please choose “Push the button on my Step 3: access point or wireless router” in the configuration utility of the WPS as below, and click Connect. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 28 For the configuration of the wireless adapter, please choose “Push the button on my Step 3: access point or wireless router” in the configuration utility of the WPS as below, and click Connect. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 29 Keep the default WPS Status as Enabled and click the Add device button in Figure 4-5, then the following screen will appear. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 29 Keep the default WPS Status as Enabled and click the Add device button in Figure 4-5, then the following screen will appear. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 30 The WPS Configuration Screen of Wireless Adapter  Note: In this example, the default PIN code of this adapter is 38334702 as the above figure shown. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 30 The WPS Configuration Screen of Wireless Adapter  Note: In this example, the default PIN code of this adapter is 38334702 as the above figure shown. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 31 Figure 4-5 . You will see the following screen when the wireless adapter has successfully connected to the AP. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 31 Figure 4-5 . You will see the following screen when the wireless adapter has successfully connected to the AP. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 32: Network

    2. If the new LAN IP Address you set is not in the same subnet with the IP Address pool of DHCP sever, the IP Address pool will not take effect until it is re-configured accordingly. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 32: Network

    2. If the new LAN IP Address you set is not in the same subnet with the IP Address pool of DHCP sever, the IP Address pool will not take effect until it is re-configured accordingly. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 33: Wireless

    Multi-SSID, Client, Repeater (Range Extender) and Bridge with AP. The available setting options for each operation mode are different from those of the other. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 33: Wireless

    Multi-SSID, Client, Repeater (Range Extender) and Bridge with AP. The available setting options for each operation mode are different from those of the other. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 34 Channel - Determines the operating frequency to be used. It is not necessary to change the  wireless channel unless you notice interference problems with another nearby access point. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 34 Channel - Determines the operating frequency to be used. It is not necessary to change the  wireless channel unless you notice interference problems with another nearby access point. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 35  Note: To apply any settings you have altered on the page, please click the Save button,  and then you will be reminded to reboot the device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 35  Note: To apply any settings you have altered on the page, please click the Save button,  and then you will be reminded to reboot the device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 36 Region - Select your region from the pull-down list. This field specifies the region where the  wireless function of the device can be used. It may be illegal to use the wireless function of 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 36 Region - Select your region from the pull-down list. This field specifies the region where the  wireless function of the device can be used. It may be illegal to use the wireless function of 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 37 (SSID) on the air. If it’s allowed, when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 37 (SSID) on the air. If it’s allowed, when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 38 Legrand_123456_3 Legrand_123456_4 Configure the Access Point  Select Multi-SSID as the operation mode of DA2155-V1.  Select the checkbox before Enable VLAN to enable VLAN function for this access point.  Configure the SSID and its corresponding VLAN ID. The detailed parameters are shown in the above figure.
  • Page 38 Legrand_123456_3 Legrand_123456_4 Configure the Access Point  Select Multi-SSID as the operation mode of DA2155-V1.  Select the checkbox before Enable VLAN to enable VLAN function for this access point.  Configure the SSID and its corresponding VLAN ID. The detailed parameters are shown in the above figure.
  • Page 39 LAN port of DA2155-V1.  Configure the VLAN ID of the PC that can log on to the Web management page of DA2155-V1 via the LAN port equal to the PVID of port 5. Verify the communication status after the above configuration is completed.
  • Page 39 LAN port of DA2155-V1.  Configure the VLAN ID of the PC that can log on to the Web management page of DA2155-V1 via the LAN port equal to the PVID of port 5. Verify the communication status after the above configuration is completed.
  • Page 40 Multi-SSID+VLAN  Note: If the LAN port of DA2155-V1 is not connected to a switch but directly to a PC, 1. The PC can directly log on to the Web management page of DA2155-V1 and manage the access point. 2. Only the wireless STA with its VLAN ID set to 1 can communicate with the wired PC.
  • Page 40 Multi-SSID+VLAN  Note: If the LAN port of DA2155-V1 is not connected to a switch but directly to a PC, 1. The PC can directly log on to the Web management page of DA2155-V1 and manage the access point. 2. Only the wireless STA with its VLAN ID set to 1 can communicate with the wired PC.
  • Page 41 Enable Wireless Radio - Select or deselect this check box to allow or deny wireless  stations to access the Repeater AP. Click the Survey button to detect the SSIDs in the local area. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 41 Enable Wireless Radio - Select or deselect this check box to allow or deny wireless  stations to access the Repeater AP. Click the Survey button to detect the SSIDs in the local area. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 42 MAC address. Enter the MAC address of AP that you want to access. Click the Survey button to detect the SSIDs in the local area. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 42 MAC address. Enter the MAC address of AP that you want to access. Click the Survey button to detect the SSIDs in the local area. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 43  Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 43  Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 44 Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. Click the Survey button to detect the SSIDs in the local area. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 44 Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. Click the Survey button to detect the SSIDs in the local area. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 45: Wireless Security

     WPA/WPA2-Personal(Recommended) - Check this radio button to enable personal security. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 45: Wireless Security

     WPA/WPA2-Personal(Recommended) - Check this radio button to enable personal security. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 46 For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A- F, zero key is not permitted) or 16 ASCII characters. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 46 For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A- F, zero key is not permitted) or 16 ASCII characters. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 47 WPA2-Personal - WPA version 2.  Encryption - You can select either Automatic, TKIP or AES.  Password - Enter 8-63 ASCII or 8-64 Hexadecimal characters. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 47 WPA2-Personal - WPA version 2.  Encryption - You can select either Automatic, TKIP or AES.  Password - Enter 8-63 ASCII or 8-64 Hexadecimal characters. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 48 It is strongly recommended that you choose one of the security types to enable security. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 48 It is strongly recommended that you choose one of the security types to enable security. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 49 If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. You will be reminded to reboot the device after clicking the Save button. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 49 If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. You will be reminded to reboot the device after clicking the Save button. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 50 0 or at least 30. Enter 0 to disable the update.  WPA/WPA2-Enterprise - Select WPA/WPA2 based on Radius Server. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 50 0 or at least 30. Enter 0 to disable the update.  WPA/WPA2-Enterprise - Select WPA/WPA2 based on Radius Server. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 51 If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. You will be reminded to reboot the device after clicking the Save button. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 51 If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. You will be reminded to reboot the device after clicking the Save button. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 52  Type - You can select one of following types. Automatic Shared Key - Select 802.11 Shared Key authentication type. Open System - Select 802.11 Open System authentication. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 52  Type - You can select one of following types. Automatic Shared Key - Select 802.11 Shared Key authentication type. Open System - Select 802.11 Open System authentication. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 53: Wireless Mac Filtering

    Access Point mode is used for the example. Figure 4-20 Wireless MAC address Filtering 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 53: Wireless Mac Filtering

    Access Point mode is used for the example. Figure 4-20 Wireless MAC address Filtering 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 54 To modify or delete an existing entry: Click the word Modify in the entry you want to modify it, or Delete if you want to delete the entry. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 54 To modify or delete an existing entry: Click the word Modify in the entry you want to modify it, or Delete if you want to delete the entry. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 55 Filtering Rules, and there are not any enabled entries in the list, no wireless stations will be able to access the device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 55 Filtering Rules, and there are not any enabled entries in the list, no wireless stations will be able to access the device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 56: Wireless Advanced

     Enable Short GI - This function is recommended for it will increase the data capacity by reducing the guard interval time. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 56: Wireless Advanced

     Enable Short GI - This function is recommended for it will increase the data capacity by reducing the guard interval time. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 57: Antenna Alignment

    Signal Percent - The ratio of RSSI to RSSI RANGE in percentage.  RSSI Range - Drag the Slider to set or input the RSSI RANGE value. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 57: Antenna Alignment

    Signal Percent - The ratio of RSSI to RSSI RANGE in percentage.  RSSI Range - Drag the Slider to set or input the RSSI RANGE value. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 58: Throughput Monitor

    Receive - Wireless receive rate information. Click the Start button to start wireless throughput monitor. Click the Stop button to stop wireless throughput monitor. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 58: Throughput Monitor

    Receive - Wireless receive rate information. Click the Start button to start wireless throughput monitor. Click the Stop button to stop wireless throughput monitor. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 59: Wireless Statistics

    Previous button to return the previous page.  Note: This page will be refreshed automatically every 5 seconds. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 59: Wireless Statistics

    Previous button to return the previous page.  Note: This page will be refreshed automatically every 5 seconds. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 60: Dhcp

    Start IP Address - This field specifies the first address in the IP Address pool. 192.168.40.100 is the default start IP address. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 60: Dhcp

    Start IP Address - This field specifies the first address in the IP Address pool. 192.168.40.100 is the default start IP address. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 61: Dhcp Clients List

    Lease Time - The lease time of the DHCP client. Before the time is up, the DHCP client will request to renew the lease automatically. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 61: Dhcp Clients List

    Lease Time - The lease time of the DHCP client. Before the time is up, the DHCP client will request to renew the lease automatically. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 62: Address Reservation

    Click Next to go to the next page and Click Previous to return the previous page.  Note: The changes won't take effect until the device reboots. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 62: Address Reservation

    Click Next to go to the next page and Click Previous to return the previous page.  Note: The changes won't take effect until the device reboots. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 63: System Tools

    To use this function, select Enable and enter the parameters shown in Figure 4-31. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 63: System Tools

    To use this function, select Enable and enter the parameters shown in Figure 4-31. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 64  Set Source - Set source defines the IP address or subnet for management systems that can control this 'set' community device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 64  Set Source - Set source defines the IP address or subnet for management systems that can control this 'set' community device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 65: Time Settings

    Enter the Time in Hour/Minute/Second format. Click Save.  For automatic time synchronization: Enter the IP address of the NTP Server. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 65: Time Settings

    Enter the Time in Hour/Minute/Second format. Click Save.  For automatic time synchronization: Enter the IP address of the NTP Server. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 66: Diagnostics

    Figure 4-33. Figure 4-33 Diagnostic Diagnostic Tools - Click the radio button to select one diagnostic tool 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 66: Diagnostics

    Figure 4-33. Figure 4-33 Diagnostic Diagnostic Tools - Click the radio button to select one diagnostic tool 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 67 The Diagnostic Results page displays the result of diagnosis. If the result is similar to the following screen (Figure 4-34), the connectivity of the Internet is fine. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 67 The Diagnostic Results page displays the result of diagnosis. If the result is similar to the following screen (Figure 4-34), the connectivity of the Internet is fine. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 68: Ping Watch Dog

    Figure 4-35 Ping Watch Dog Utility  Enable - Turn on/off Ping Watch Dog. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 68: Ping Watch Dog

    Figure 4-35 Ping Watch Dog Utility  Enable - Turn on/off Ping Watch Dog. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 69: Firmware Upgrade

    Selecting System Tools > Firmware Upgrade allows you to upgrade to the latest version of firmware for the device as shown in Figure 4-36. DA2155-V1 00000000 Figure 4-36 Firmware Upgrade New firmware versions may be posted on the Legrand website and can be downloaded for free.  Firmware Version - The current firmware version. ...

  • Page 69: Firmware Upgrade

    Selecting System Tools > Firmware Upgrade allows you to upgrade to the latest version of firmware for the device as shown in Figure 4-36. DA2155-V1 00000000 Figure 4-36 Firmware Upgrade New firmware versions may be posted on the Legrand website and can be downloaded for free.  Firmware Version - The current firmware version. ...

  • Page 70: Factory Defaults

    Figure 4-38. Figure 4-38 Save or Restore the Configuration 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 70: Factory Defaults

    Figure 4-38. Figure 4-38 Save or Restore the Configuration 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 71: Reboot

    Restore the device's settings to factory defaults (system will reboot automatically).  Update the configuration with a file (system will reboot automatically). 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 71: Reboot

    Restore the device's settings to factory defaults (system will reboot automatically).  Update the configuration with a file (system will reboot automatically). 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 72: Password

    Enter the new Password twice to confirm it. Click Save when finished. Click Clear All to clear all. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 72: Password

    Enter the new Password twice to confirm it. Click Save when finished. Click Clear All to clear all. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 73: System Log

    Choose menu “System Tools > Statistics”, and you can view the statistics of the device, including total traffic and current traffic of the last Packets Statistic Interval (see Figure 4-42). 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 73: System Log

    Choose menu “System Tools > Statistics”, and you can view the statistics of the device, including total traffic and current traffic of the last Packets Statistic Interval (see Figure 4-42). 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 74  Packets - The total number of packets received and transmitted by the device.  Bytes - The total number of bytes received and transmitted by the device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 74  Packets - The total number of packets received and transmitted by the device.  Bytes - The total number of bytes received and transmitted by the device. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 75 Modify  Reset - Reset the values of the entry to zero. Delete - Delete the existing entry in the table. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 75 Modify  Reset - Reset the values of the entry to zero. Delete - Delete the existing entry in the table. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...

  • Page 76: Appendix A: Application Example

    Appendix A: Application Example The DA2155-V1 allows you to connect a wireless PC to a wired network. If you want to connect your computer, equipped with wireless adapter, to a wired network wirelessly, you can perform the following instructions. Configure the AP via a wired connection.

  • Page 76: Appendix A: Application Example

    Appendix A: Application Example The DA2155-V1 allows you to connect a wireless PC to a wired network. If you want to connect your computer, equipped with wireless adapter, to a wired network wirelessly, you can perform the following instructions. Configure the AP via a wired connection.
  • Page 77 ” on the screen of the PC and then select View Available Wireless Networks. Highlight the SSID of the AP (Legrand_123456) and click Connect to add to the network. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 77 ” on the screen of the PC and then select View Available Wireless Networks. Highlight the SSID of the AP (Legrand_123456) and click Connect to add to the network. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 78 Legrand_123456 Then the following page will display, which indicates you have been successfully added to the network wirelessly. Legrand_123456 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 78 Legrand_123456 Then the following page will display, which indicates you have been successfully added to the network wirelessly. Legrand_123456 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 79: Appendix B: Factory Defaults

    Note: The default SSID is Legrand_XXXXXX (XXXXXX indicates the last unique six characters of each device’s MAC address). This value is case-sensitive. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 79: Appendix B: Factory Defaults

    Note: The default SSID is Legrand_XXXXXX (XXXXXX indicates the last unique six characters of each device’s MAC address). This value is case-sensitive. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 80: Appendix C: Troubleshooting

    Here are the procedures in Windows 7, for example. Go to Start > Settings > Control Panel, and then Click View network status and tasks. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 80: Appendix C: Troubleshooting

    Here are the procedures in Windows 7, for example. Go to Start > Settings > Control Panel, and then Click View network status and tasks. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 81 Click Change adapter settings Right-click Local Area Connection, and Click Properties. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 81 Click Change adapter settings Right-click Local Area Connection, and Click Properties. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 82 Select Use the following IP address, enter the 192.168.40.100 into the IP address field, 255.255.255.0 into the Subnet mask field. 192 . 168 . 40 . 100 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 82 Select Use the following IP address, enter the 192.168.40.100 into the IP address field, 255.255.255.0 into the Subnet mask field. 192 . 168 . 40 . 100 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 83 If you still cannot access the configuration page, please restore your Access Point’s factory default settings and reconfigure your Access Point following the instructions of this UG. Please feel free to contact Legrand Technical Support if the problem persists. ...
  • Page 83 If you still cannot access the configuration page, please restore your Access Point’s factory default settings and reconfigure your Access Point following the instructions of this UG. Please feel free to contact Legrand Technical Support if the problem persists. ...

  • Page 84: Appendix D: Specifications

    * Only 2.412GHz~2.462GHz is allowed to be used in USA, which means only channel 1~11 is available for American users to choose. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 84: Appendix D: Specifications

    * Only 2.412GHz~2.462GHz is allowed to be used in USA, which means only channel 1~11 is available for American users to choose. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

  • Page 85: Appendix E: Glossary

    With this feature, WPA provides roughly comparable security to VPN tunneling with WEP, with the benefit of easier administration and use. This is similar to IEEE 802.1x support and 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.

  • Page 85: Appendix E: Glossary

    With this feature, WPA provides roughly comparable security to VPN tunneling with WEP, with the benefit of easier administration and use. This is similar to IEEE 802.1x support and 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 86 "passphrase" as with WEP. But, using TKIP, WPA-PSK automatically changes the keys at a preset time interval, making it much more difficult for hackers to find and exploit them. The Wi-Fi Alliance will call this, WPA-Personal. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 86 "passphrase" as with WEP. But, using TKIP, WPA-PSK automatically changes the keys at a preset time interval, making it much more difficult for hackers to find and exploit them. The Wi-Fi Alliance will call this, WPA-Personal. 301 Fulling Mill Road, Suite G ©Copyright 2012 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...

This manual is also suitable for:

Da2155-v1

Table of Contents
