LEGRAND LUXUL Setup Manual

Access Point Setup Guide
1.
Setting up your AP:
Place the AP in the center
of the desired coverage area
NOTE: If installing this AP with a
wireless controller, refer to the Wireless Controller Setup Guide
3a.
Connecting Via an Ethernet Device
Use an Ethernet cable to connect your computer to the LAN port
of the AP. Ethernet is the preferred method of connection
3b.
Connecting Via a Wireless Device
Connect a wireless client device to the AP's default wireless
SSID LuxulXXXX* and use the passphrase: luxulwifi
*XXXX corresponds to the model number of the AP
NOTE: If your computer or device isn't set to obtain an IP address
automatically, you'll need to set a temporary static IP address
on that device. Set the IP address of your computer to an
address in the 192.168.0.X range and set your subnet mask to
255.255.255.0. You can leave the default gateway/router ip
address blank.

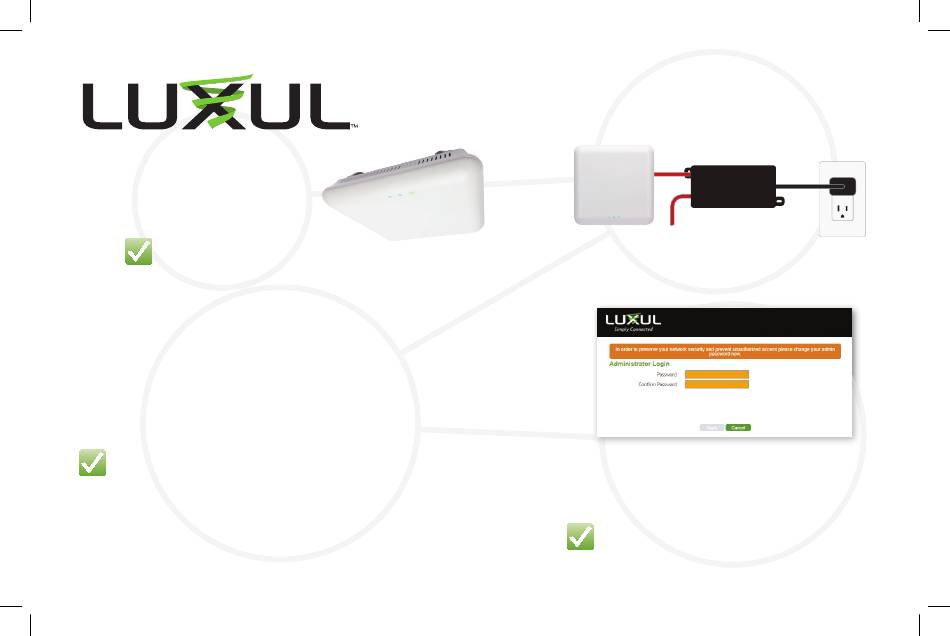

2.
Connect a PoE+ Ethernet cable to the AP's PoE
port (for power, use the included PoE injector
or a compatible PoE+ switch)
AP
OUT
POE
INJECTOR
IN
router or
switch
4.
Open a web browser and go to 192.168.0.10
Login with the default User Name and password
User Name: admin
Password: admin
SECURITY NOTE: You will be required to
change the default administrator password.
power
source
