LEGRAND DA1104 Owner's Manual

802.11ac dual band ceiling mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

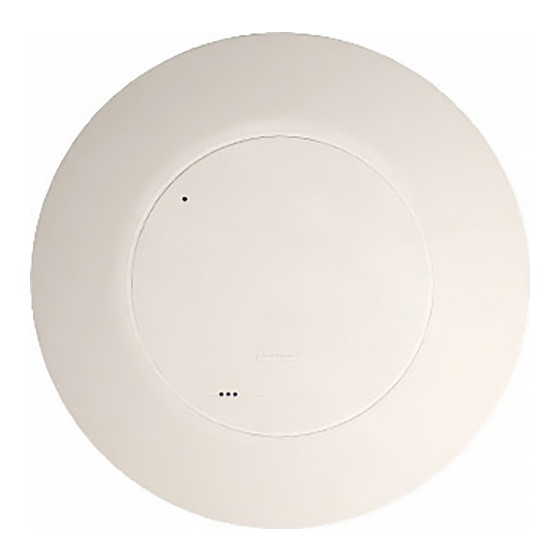

802.11ac Dual Band Ceiling Mount
Wireless Access Point
(P/N：DA1104)
Owner's Manual
P/N 1308237 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA1104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND DA1104

Summary of Contents for LEGRAND DA1104

  • Page 1 802.11ac Dual Band Ceiling Mount Wireless Access Point (P/N：DA1104) Owner’s Manual P/N 1308237 Rev. A...
  • Page 2 Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules and RSS-210 Issue 8 of Canada. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 Cat 5e to the DA1104 at the POE Inserter. This will prevent damage to the product due to lightning and power surges. It is recommended that the customer install an AC surge protector in the AC outlet to which this device is connected.
  • Page 4 If you are not sure of the type of power supplied to your home, consult your dealer or local power company. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition. Installation of this product must be in accordance with national wiring codes and conform to local regulations.

  • Page 5: Table Of Contents

    CONTENTS Chapter 1. Product Introduction......................1 Package Contents .......................1 Product Description......................2 Product Features......................... 3 Product Specifications ....................... 4 Chapter 2. Hardware Installation ......................7 Product Installation Overview.................... 7 2.1.1 Panel Layout......................8 2.1.2 Hardware Description ....................9 Chapter 3. Connecting to the AP ......................10 System Requirements ......................
  • Page 6 Chapter 5. Quick Connection to a Wireless Network ............... 90 Windows XP (Wireless Zero Configuration)..............90 Windows 7 (WLAN AutoConfig)..................92 Mac OS X 10.x........................95 iPhone / iPod Touch / iPad ....................99 Appendix A: Legrand Smart Discovery Utility ................102 Appendix B: Troubleshooting......................103 Appendix C: Glossary........................105...
  • Page 7 FIGURE 2-1 DA1104 P ..................7 IGURE RODUCT NSTALLATION RAWING 2-2 DA1104 P - LED ......................8 IGURE ANEL AYOUT 2-3 DA1104 P – R ..................8 IGURE ANEL AYOUT ESET UTTON 3-1 TCP/IP S ..........................11 IGURE ETTING 3-2 W ........................
  • Page 8 4-34 W – D ....................42 IGURE IRELESS CCESS ONTROL 4-35 WDS M – 5GH ........................43 IGURE 4-36 WDS S – 5GH ........................44 IGURE ETTINGS 4-37 WDS – S ........................44 IGURE ECURITY 4-38 S – 5GH ........................45 IGURE URVEY 4-39 WPS-PBC –...
  • Page 9 4-79 T ........................82 IGURE ETTINGS 4-80 S ......................... 83 IGURE CHEDULE EBOOT 4-81 S ....................... 84 IGURE CHEDULE EBOOT XAMPLE 4-82 S ........................... 85 IGURE YSTEM 4-83 U ........................86 IGURE PGRADE IRMWARE 4-84 S ......................... 87 IGURE ELOAD ETTINGS 4-85 P ..........................

  • Page 10: Chapter 1. Product Introduction

    Owner’s Manual of DA1104 Chapter 1. Product Introduction 1.1 Package Contents The contents of your product package should include the following items: DA1104: 802.11ac Wireless Access Point POE Module with AC adapter Installation Bracket Round Cover Installation/Instruction Sheet...

  • Page 11: Product Description

    300+866Mbps, which is 22X faster than traditional 11g Access Points. Moreover, the DA1104 is equipped with a Gigabit Ethernet Port for faster transmitting speed for network applications and less interference to enhance data throughput. The incredible wireless speed makes it ideal for handling multiple HD movies streams, high resolution on-line gaming, stereo music, VoIP and data streams at the same time in a stable and smooth fashion.

  • Page 12: Product Features

    Owner’s Manual of DA1104 Product Features Standard Compliant Hardware Interface Complies with IEEE 802.11ac and IEEE 802.11a/b/g/n standards 1 x 10/100/1000BASE-T Ports with 1-port PoE (powered device) Standard IEEE 802.3af/at Power over Ethernet design RF Interface Characteristics 2.4GHz (802.11b/g/n) & 5GHz (802.11ac) Dual Band concurrent, which is more efficiently carries high load traffic.

  • Page 13: Product Specifications

    Owner’s Manual of DA1104 1.3 Product Specifications DA1104 Product 802.11ac Dual Band Ceiling Mount Wireless Access Point Hardware Specification 1 x 10/100/1000BASE-T RJ45 port Interface Autonegotiation and Auto MDI/MDI-X 5GHz: 2 ~ 4dBi Gain: Antennas 2.4GH: 2.5 ~ 3.5dBi Orientation:...
  • Page 14 Owner’s Manual of DA1104 2.4GHz America/ FCC: 1~11 (11 Channels) Operating Channels 5GHz America/FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 149, 153, 157, 161 (16 Channels) 802.11n: 20/40MHz 刪除: Channel Width 802.11ac: 20/40/80MHz 刪除: 5GHz: 刪除:...
  • Page 15 Owner’s Manual of DA1104 Enable/Disable SSID Broadcast WMM (Wi-Fi Multimedia): 802.11e Wireless QoS Multiple SSID: up to 5 at 2.4GHz and 5 at 5GHz Wireless Isolation: Enable it to isolate each connected wireless clients from Wireless Advanced communicating with each other IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming...

  • Page 16: Chapter 2. Hardware Installation

    Owner’s Manual of DA1104 Chapter 2. Hardware Installation Please follow the instructions below to connect DA1104 to the existing network devices and your computers. 2.1 Product Installation Overview Installation Drawing : [MR1]: Drawing labels need to be cleaned up Reset Button...

  • Page 17: Panel Layout

    Owner’s Manual of DA1104 2.1.1 Panel Layout The front and rear panel provide a simple interface monitoring the AP. LED Interface Figure 2-2 DA1104 Panel Layout - LED Button definition Reset Button Figure 2-3 DA1104 Panel Layout – Reset Button...

  • Page 18: Hardware Description

    Owner’s Manual of DA1104 2.1.2 Hardware Description LED definition COLOR STATUS FUNCTION Blue Device power on Pink Initializing Pink Blinking Signal Survey Green The 2.4GHz WiFi is activated Green Blinking The 2.4GHz WiFi is streaming in session WLAN Orange The 5GHz WiFi is activated...

  • Page 19: Chapter 3. Connecting To The Ap

    Connect the DA1104 with your PC by an Ethernet cable plugging into the Data In port of the WAP connected PoEn and into the Ethernet port of PC. Power on the DA1104 by plugging in the AC adapter of the PoE Injector.
  • Page 20 Owner’s Manual of DA1104 you may choose from 192.168.40.1 to 192.168.40.252. Figure 3-1 TCP/IP Setting Now click OK to save your settings. Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the AP.
  • Page 21 Owner’s Manual of DA1104 Figure 3-2 Windows Start Menu Open a command prompt, type ping 192.168.40.253 and then press Enter. Figure 3-3, it means the connection between your PC and the AP If the result displayed is similar to has been established well.

  • Page 22: Starting Setup In The Web Ui

    Owner’s Manual of DA1104 Figure 3-4 Failed Result of Ping Command If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your AP. Some firewall software programs may block a DHCP request on newly installed adapters.
  • Page 23 Owner’s Manual of DA1104 Figure 3-6 Login Window Default IP Address: 192.168.40.253 Default User name: admin Default Password: admin If the above screen does not pop up, it may mean that your web-browser has been set to a proxy. Go to Tools menu>...

  • Page 24: Chapter 4. Configuring The Ap

    4.1 Setup Wizard The Setup Wizard will guide the user to configure the DA1104 easily and quickly. Select the Setup Wizard on the left side of the screen and by clicking on Next on the Setup Wizard screen shown below, you will then name your DA1104 and set up its security.
  • Page 25 Owner’s Manual of DA1104 Step 1: LAN Interface Setup Figure 4-3 Wizard – LAN Interface Setup The page includes the following fields: Object Description IP Address Displays the current IP address of the AP. (Default = 192.168.40.253) Subnet Mask Displays LAN mask of the AP. (Default = 255.255.255.0) Default Gateway IP address of the associated router.
  • Page 26 Owner’s Manual of DA1104 Daylight Saving automatically. Time Zone Select Select the Time Zone from the drop-down menu. NTP Server Select the NTP Server from the drop-down menu. Enable NTP client update Check this box to connect NTP Server and synchronize internet time.
  • Page 27 Owner’s Manual of DA1104 Figure 4-6 Wizard – Wireless 5GHz Security Setup Encryption: WEP The following picture shows how to set the WEP security. Figure 4-7 5GHz Wireless Security Setup – WEP Setting The page includes the following fields: Object...
  • Page 28 Owner’s Manual of DA1104 Figure 4-8 5GHz Wireless Security Setup – WPA Setting The page includes the following fields: Object Description Pre-Shared Key Format Specify the format of the key, pass phrase or hex. Pre-Shared Key Enter the key whose format is limited by the key format.
  • Page 29 Owner’s Manual of DA1104 Secure your wireless network by turning on the WPA or WEP security feature on the router. For this section you can set WEP and WPA-PSK security mode. Figure 4-10 Wizard – Wireless 2.4GHz Security Setup Encryption: WEP The following picture shows how to set the WEP security.
  • Page 30 Owner’s Manual of DA1104 Figure 4-12 2.4GHz Wireless Security Setup – WPA Setting The page includes the following fields: Object Description Pre-Shared Key Format Specify the format of the key, pass phrase or hex. Pre-Shared Key Enter the key whose format is limited by the key format.

  • Page 31: Tcp / Ip Settings

    Figure 4-14 LAN Setting The page includes the following fields: Object Description The default LAN IP address of the DA1104 is 192.168.40.253. You can IP Address change it at your request. Subnet Mask Default is 255.255.255.0. You can change it at your request.
  • Page 32 If you change the IP address of LAN, you must use the new IP address to login the When the IP address of the DA1104 is changed, the clients on the network often need to wait for a while or even reboot before they can access the new IP address.

  • Page 33: Wlan1 (5Ghz)

    First of all, the wireless AP supports multiple wireless modes for different network applications, which include: Multiple SSIDs Universal Repeater Client AP+WDS It is easy to combine the DA1104 with an existing wired network. The DA1104 provides a total network solution for the home and the SOHO users. Standard Access Point -24-...
  • Page 34 Owner’s Manual of DA1104 Figure 4-16 5GHz Wireless Basic Settings of AP The page includes the following fields: Object Description Disable Wireless LAN Check the box to disable the wireless function. Interface Band Select the desired mode. Default is “5GHz (A+N+AC)”. It is strongly recommended that you set the Band to “5GHz (A+N+AC)”, and then all...
  • Page 35 Owner’s Manual of DA1104 5 GHz (A): 802.11a mode, rate is up to 54Mbps 5 GHz (N): 802.11n mode, rate is up to 300Mbps 5 GHz (AC): 802.11n mode, rate is up to 867Mbps (2T2R) 5 GHz (A+N): 802.11a/n mode, rate is up to 300Mbps 5 GHz (N+AC): 802.11n/ac mode, rate is up to 300Mbps or...
  • Page 36 The device supports up to four multiple Service Set Identifiers. You can go back to the Basic Settings page to set the Primary SSID. The SSID’s factory default setting is Legrand 5G VAP1~4 (Multiple-SSID 1~4). The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network.
  • Page 37 Owner’s Manual of DA1104 Once you have applied and saved those settings, you can then go to the “WLAN1 (5GHz) → Security” page on the AP to set up security settings for each of the SSIDs. Universal Repeater This mode allows the AP with its own BSS to relay data to a root AP to which it is associated with WDS disabled.
  • Page 38 Owner’s Manual of DA1104 Figure 4-20 5GHz Universal Repeater-2 Step 3. Select the correct encryption method and enter the security key. Then, click “Connect”. Figure 4-21 5GHz Universal Repeater-3 Step 4. Check “Add to Wireless Profile” and click “Reboot Now”.
  • Page 39 Owner’s Manual of DA1104 Step 5. Go to “Management-> Status” page to check whether the state of Repeater interface should be “Connected”. Figure 4-23 5GHz Universal Repeater-5 Client (Infrastructure) Combine the Wireless Router to the Ethernet devices such as TV, game player, or HDD and DVD, to make them be wireless stations.
  • Page 40 Network Type In Infrastructure, the wireless LAN serves as a wireless station. And the user can use the PC equipped with the DA1104 to access the wireless network via other access points. In Ad hoc, the wireless LAN will use the Ad-hoc mode to operate.
  • Page 41 Owner’s Manual of DA1104 Default is “Enabled”. Data Rate Set the wireless data transfer rate to a certain value. Since most of wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.
  • Page 42 Owner’s Manual of DA1104 Figure 4-26 Client – Security Step 4. Wait until the connection established. Check the “Add to Wireless Profile” option and then reboot it. Figure 4-27 Client – Status Connect this Wireless AP with up to 8 WDS-capable wireless APs to expand the scope of network.
  • Page 43 Owner’s Manual of DA1104 Figure 4-28 5GHz Wireless Basic Settings – WDS The page includes the following fields: Object Description Disable Wireless LAN Check the box to disable the wireless function. Interface Band Select the desired mode. Default is “5GHz (A+N+AC)”. It is strongly recommended that you set the Band to “5GHz (A+N+AC)”, and all of...
  • Page 44 Owner’s Manual of DA1104 5 GHz (A+N): 802.11a/n mode, rate is up to 300Mbps 5 GHz (N+AC): 802.11n/ac mode, rate is up to 300Mbps or 867Mbps 5 GHz (A+N+AC): 802.11a/n/ac mode, rate is up to 54Mbps, 300Mbps, or 867Mbps Mode...
  • Page 45 Owner’s Manual of DA1104 AP+ WDS Connect this wireless AP with up to 8 WDS-capable wireless APs, and connect another AP to provide service for all wireless stations within its coverage. Figure 4-29 5GHz Wireless Basic Settings – WDS+AP The page includes the following fields:...
  • Page 46 Broadcast SSID If you enable “Broadcast SSID”, every wireless station located within the coverage of the DA1104 can discover its signal easily. If you are building a public wireless network, enabling this feature is recommended. In private network, disabling “Broadcast SSID” can provide better wireless network security.

  • Page 47: Advanced Settings

    Owner’s Manual of DA1104 Default is “Auto”. Associated Clients Click the “Show Active Clients” button to show the status table of active wireless clients. Enable Universal Universal Repeater is a technology used to extend wireless coverage. Repeater Mode To enable Universal Repeater mode, check the box and enter the SSID you want to broadcast in the field below.

  • Page 48: Rf Output Power

    Default is “Enabled” WLAN Partition This feature is also called “WLAN isolation” or “Block Relay”. If this is enabled, wireless clients cannot exchange data through the DA1104. Default is “Disabled”. STBC Activate Space Time Blocking Code (STBC) which does not need channel statement information (CSI).

  • Page 49: Security

    The DA1104 supports output power control levels up to 5. You can change the RF output power level here in accordance with various environments and signal strength.

  • Page 50: Access Control

    Choose menu “WLAN1 (5GHz) Access Control” to allow or deny the computer of specified MAC address to connect with the DA1104 on this page. After the configuration, please click the “Apply Changes” button to save the settings. Figure 4-33 Wireless Access Control – 5GHz...
  • Page 51 Owner’s Manual of DA1104 Control Mode MAC Address Enter the MAC address you want to allow or deny connection to the DA1104 in the field. Comment You can make comments on each MAC address on the list. Current Access Control You can select and delete MAC addresses with the “Delete Selected”...

  • Page 52: Wds

    Figure 4-35 WDS Mode – 5GHz Choose menu “WLAN1 (5GHz) WDS Settings” to configure WDS to connect the DA1104 with another AP on this page. To configure the security of the WDS connection, click the “Set Security” button. After finishing the configuration, click the “Apply Changes”...
  • Page 53 Owner’s Manual of DA1104 Figure 4-36 WDS Settings – 5GHz Figure 4-37 WDS – Set Security The page includes the following fields: Object Description Enable WDS Check the box to enable the WDS function. Please select WDS or -44-...

  • Page 54: Site Survey

    Owner’s Manual of DA1104 AP+WDS in the Mode of Wireless Basic Settings before you enable WDS on this page. MAC Address You can enter the MAC address of the AP you want to connect with. Data Rate Default is “Auto”.

  • Page 55: Wps

    WPS Status Here you can check if the connection via WPS is established or not. Self-PIN Number It is the PIN number of the DA1104. Push Button Click the “Start PBC” to activate WPS as well in the client device within Configuration 2 minutes.
  • Page 56 Owner’s Manual of DA1104 If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and AP using either software Push Button Configuration (PBC) method or PIN method. To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function.
  • Page 57 Owner’s Manual of DA1104 Enter the PIN code of the wireless adapter in the field behind Client PIN Number in the following figure. Then click Start PIN. The PIN code of the adapter is always displayed on the WPS configuration screen.

  • Page 58: Schedule

    Owner’s Manual of DA1104 For the configuration of the wireless adapter, please choose the option that you want to enter the PIN of the AP (Registrar) in the configuration utility of the Wireless adapter and enter it into the field. Then click Next until the process finishes.

  • Page 59: Wlan2 (2.4Ghz)

    Owner’s Manual of DA1104 4.4 WLAN2 (2.4GHz) The Wireless menu contains submenus of the settings about wireless network. Please refer to the following sections for the details. Figure 4-45 2.4GHz Wireless Main Menu 4.4.1 Basic Settings Choose menu “WLAN2 (2.4GHz) Basic Settings”...
  • Page 60 Owner’s Manual of DA1104 Figure 4-46 2.4GHz Wireless Basic Settings – AP The page includes the following fields: Object Description Disable Wireless LAN Check the box to disable the wireless function. Interface Band Select the desired mode. Default is “2.4GHz (B+G+N)”. It is strongly recommended that you set the band to “2.4GHz (B+G+N)”, and all of...
  • Page 61 Owner’s Manual of DA1104 2.4 GHz (B): 802.11b mode, rate is up to 11Mbps 2.4 GHz (G): 802.11g mode, rate is up to 54Mbps 2.4 GHz (N): 802.11n mode, rate is up to 300Mbps(2T2R) 2.4 GHz (B+G): 802.11b/g mode, rate is up to 11Mbps or 54Mbps 2.4 GHz (G+N): 802.11g/n mode, rate is up to 54Mbps or 300Mbps...
  • Page 62 The device supports up to four multiple Service Set Identifiers. You can go back to the Basic Settings page to set the Primary SSID. The SSID’s factory default setting is Legrand 2.4G VAP1~4 (Multiple-SSID 1~4). The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network.
  • Page 63 Owner’s Manual of DA1104 Universal Repeater This mode allows the AP with its own BSS to relay data to a root AP to which it is associated with WDS disabled. The wireless repeater relays the signal between its stations and the root AP for greater wireless range.
  • Page 64 Owner’s Manual of DA1104 and then click “Next”. Figure 4-50 2.4GHz Universal Repeater-2 Step 3. Select the correct encryption method and enter the security key. Then, click “Connect”. Figure 4-51 2.4GHz Universal Repeater-3 Step 4. Check “Add to Wireless Profile” and click “Reboot Now”.
  • Page 65 Owner’s Manual of DA1104 Figure 4-52 2.4GHz Universal Repeater-4 Step 5. Go to “Management-> Status” page to check whether the state of Repeater interface should be “Connected”. Figure 4-53 2.4GHz Universal Repeater-5 Client (Infrastructure) Connect the wireless router with Ethernet devices such as TVs and game players to make them wireless stations.
  • Page 66 Owner’s Manual of DA1104 Figure 4-54 2.4GHz Wireless Basic Settings – Client The page includes the following fields: Object Description Disable Wireless LAN Check the box to disable the wireless function. Interface -57-...
  • Page 67 Network Type In Infrastructure, the wireless LAN serves as a wireless station. And the user can use the PC equipped with the DA1104 to access the wireless network via other access points. In Ad hoc, the wireless LAN will use the Ad-hoc mode to operate.
  • Page 68 Owner’s Manual of DA1104 Default is “Auto”. Enable Mac Clone Enable Mac Clone. (Single Ethernet Client) Example of how to configure Client Mode. Please take the following steps: To configure each wireless parameter, please go to the “WLAN2 (2.4GHz) → Basic Settings” page.
  • Page 69 Owner’s Manual of DA1104 Figure 4-56 Client – Security Step 4. Wait until the connection established. Check the “Add to Wireless Profile” option and then reboot it. Figure 4-57 Client – Status Connect this Wireless AP with up to 8 WDS-capable wireless APs to expand the scope of network.
  • Page 70 Owner’s Manual of DA1104 Figure 4-58 2.4GHz Wireless Basic Settings – WDS The page includes the following fields: Object Description Disable Wireless LAN Check the box to disable the wireless function. Interface Band Select the desired mode. Default is “2.4GHz (B+G+N)”. It is strongly recommended that you set the Band to “2.4GHz (B+G+N)”, and all of...
  • Page 71 Owner’s Manual of DA1104 2.4 GHz (G): 802.11g mode, rate is up to 54Mbps 2.4 GHz (N): 802.11n mode, rate is up to 300Mbps(2T2R) 2.4 GHz (B+G): 802.11b/g mode, rate is up to 11Mbps or 54Mbps 2.4 GHz (G+N): 802.11g/n mode, rate is up to 54Mbps or 300Mbps 2.4 GHz (B+G+N): 802.11b/g/n mode, rate is up to 11Mbps,...
  • Page 72 Owner’s Manual of DA1104 Figure 4-59 2.4GHz Wireless Basic Settings – WDS+AP The page includes the following fields: Object Description Disable Wireless LAN Check the box to disable the wireless function. Interface Country Select your region from the pull-down list.
  • Page 73 Broadcast SSID If you enable “Broadcast SSID”, every wireless station located within the coverage of the DA1104 can discover its signal easily. If you are building a public wireless network, enabling this feature is recommended. In private network, disabling “Broadcast SSID” can provide better wireless network security.

  • Page 74: Advanced Settings

    Owner’s Manual of DA1104 Enable Universal Universal Repeater is a technology used to extend wireless coverage. Repeater Mode To enable Universal Repeater Mode, check the box and enter the SSID (Acting as AP and client you want to broadcast in the field below. Then please click “Security”...
  • Page 75 Default is “Enabled” WLAN Partition This feature also called “WLAN isolation” or “Block Relay”. If this is enabled, wireless clients cannot exchange data through the DA1104. Default is “Disabled”. STBC Activate Space Time Blocking Code (STBC) which does not need channel statement information (CSI).

  • Page 76: Rf Output Power

    Power consumption can be reduced to up to 75% from peak power consumption to serve smaller homes. The DA1104 supports 5 output power control levels. You can change the RF output power level here in accordance with various environments and signal strengths.
  • Page 77 Owner’s Manual of DA1104 Select SSID Select the SSID you want to configure the wireless security function, which includes the root one and the client one. Encryption Disable: No security setup for wireless connection. WEP: It is based on the IEEE 802.11 standard. And the default setting of...

  • Page 78: Access Control

    Choose menu “WLAN2 (2.4GHz) Access Control” to allow or deny the computer of specified MAC address to connect with the DA1104. After the configuration, click the “Apply Changes” button to save the settings. Figure 4-63 Wireless Access Control – 2.4GHz...
  • Page 79 Owner’s Manual of DA1104 repeat the above steps. Figure 4-64 Wireless Access Control – Deny -70-...

  • Page 80: Wds

    Figure 4-65 WDS Mode – 2.4GHz Choose menu “WLAN2 (2.4GHz) WDS Settings” to configure WDS to connect the DA1104 with another AP on this page. After the configuration, please click the “Apply Changes” button to save the settings. Figure 4-66 WDS Settings – 2.4GHz...
  • Page 81 Owner’s Manual of DA1104 Figure 4-67 WDS – Set Security The page includes the following fields: Object Description Enable WDS Check the box to enable the WDS function. Please select WDS or AP+WDS in the Mode of Wireless Basic Settings before you enable WDS on this page.

  • Page 82: Site Survey

    Owner’s Manual of DA1104 4.4.7 Site Survey Choose menu “WLAN2 (2.4GHz) Site Survey” to scan the available local AP. If any Access Point is found, you can choose any one to connect to it manually when the Client Mode is enabled.
  • Page 83 WPS Status Here you can check if the connection via WPS is established or not. Self-PIN Number It is the PIN number of the DA1104. Push Button Click the “Start PBC” to activate WPS as well in the client device within Configuration 2 minutes.
  • Page 84 Owner’s Manual of DA1104 Click the “Start PBC” Button on the WPS page of the AP. Figure 4-69 WPS-PBC – 2.4GHz-1 Figure 4-70 WPS-PBC – 2.4GHz-2 The process must be finished within 2 minutes. Wait for a while until the next screen appears. Click OK to complete the WPS configuration.
  • Page 85 Owner’s Manual of DA1104 Figure 4-71 WPS-PIN – 2.4GHz-1 Figure 4-72 WPS-PIN – 2.4GHz-2 For the configuration of the wireless adapter, please choose the option that you want to enter PIN into the AP (Enrollee) in the configuration utility of the WPS and click Next until the process finishes.

  • Page 86: Schedule

    Owner’s Manual of DA1104 4.4.9 Schedule Wireless Schedules will enable or disable your wireless access at a set time based on your predefined schedule. This feature is often used for restricting access to all users (such as children, employees and guests) during specific times of the day for parental control or security reasons.

  • Page 87: Status

    You can use this function to display instantaneous information about the wireless access point. The information displayed here may vary depending on the configuration. Status” to show the current status and some basic settings of the DA1104. Choose menu “Management...

  • Page 88: Statistics

    Owner’s Manual of DA1104 Figure 4-76 Status 4.5.2 Statistics Statistics” to show the packet counters for transmission and reception Choose menu “Management regarding wireless and Ethernet network. -79-...

  • Page 89: Snmp

    Owner’s Manual of DA1104 Figure 4-77 Statistics The page includes the following fields: Object Description It shows the statistical count of sent packets on the wireless LAN interface. Wireless LAN Sent Packets It shows the statistical count of received packets on the wireless LAN interface.

  • Page 90: Ntp Settings

    Owner’s Manual of DA1104 Figure 4-78 SNMP The page includes the following fields: Object Description Enable SNMP To enable the SNMP feature. Name The name of the AP for SNMP management. Location The location of the AP for SNMP management.
  • Page 91 Owner’s Manual of DA1104 Figure 4-79 Time Zone Settings The page includes the following fields: Object Description Current Time Input current time manually. You can click “Copy Computer Time” button to copy the PC’s current time to the AP. Time Zone Select Select the time zone of the country you are currently in.

  • Page 92: Schedule Reboot

    Owner’s Manual of DA1104 4.5.5 Schedule Reboot This page allows you to enable and configure system reboot schedule. The device can regularly reboot according to the reserved time when connecting to the Internet. Figure 4-80 Schedule Reboot The page includes the following fields:...
  • Page 93 Owner’s Manual of DA1104 Step 2. Enter the Reboot Time (24-hour format) to enable this function to take effect. For example, if you want this function to work at 23:00 every Sunday, choose "Weekday" in the Reboot Plan field. Figure 4-81 Schedule Reboot - Example Step 3.
  • Page 94 Owner’s Manual of DA1104 4.5.6 LOG LOG” to configure the settings of system log. You can check the box of the items Choose menu “Management you want to record it in the log. After the configuration, click the “Apply” button to save the settings.

  • Page 95: Upgrade Firmware

    Upgrade Firmware” to upgrade the firmware of the DA1104. Select the new Choose menu “Management firmware file downloaded from the LEGRAND website and then click “Upload” button to upgrade it. Figure 4-83 Upgrade Firmware The page includes the following fields:...
  • Page 96 Object Description Save Settings to File Click the “Save…” button to back up the configuration of the DA1104 and then save the “config.dat” in your computer. Load Settings from File Select the configuration file of the DA1104 and then click the “Upload”...

  • Page 97: Password

    The default user name and password are “admin”. This page will allow you to add or modify the user name and password. User Management” to change the user name and password which is inputted to Choose menu “Management access the web UI of the DA1104. Figure 4-85 Password Setup The page includes the following fields: Object...

  • Page 98: Logout

    Owner’s Manual of DA1104 4.5.10 Logout To logout the DA1104, please select “Logout” from the left-side menu. Figure 4-86 Logout -89-...

  • Page 99: Chapter 5. Quick Connection To A Wireless Network

    Owner’s Manual of DA1104 Chapter 5. Quick Connection to a Wireless Network In the following sections, the default SSID of the DA1104 is configured to “default”. 5.1 Windows XP (Wireless Zero Configuration) Step 1: Right-click on the wireless network icon displayed in the system tray Figure 5-1 System Tray –...
  • Page 100 Owner’s Manual of DA1104 Step 4: Enter the encryption key of the Wireless AP (1) The Wireless Network Connection box will appear (2) Enter the encryption key that is configured in section 4.3.4 (3) Click the [Connect] button Figure 5-3 Enter the network key Step 5: Check if “Connected”...

  • Page 101: Windows 7 (Wlan Autoconfig)

    Owner’s Manual of DA1104 Some laptops are equipped with a “Wireless ON/OFF” switch for the internal wireless LAN. Make sure the hardware wireless switch is switched to “ON” position. 5.2 Windows 7 (WLAN AutoConfig) WLAN AutoConfig service is built in to Windows 7 to detect and connect to wireless networks. This built-in wireless network connection tool is similar to the wireless zero configuration tool in Windows XP.
  • Page 102 Owner’s Manual of DA1104 If you will be connecting to this Wireless AP in the future, check [Connect automatically]. Step 4: Enter the encryption key of the Wireless AP (1) The Connect to a Network box will appear (2) Enter the encryption key that is configured in section 4.3.4...
  • Page 103 Owner’s Manual of DA1104 Figure 5-9 Connected to a Network -94-...
  • Page 104 Owner’s Manual of DA1104 5.3 Mac OS X 10.x In the following sections, the default SSID of the DA1104 is configured to “default”. Step 1: Right-click on the network icon displayed in the system tray The AirPort Network Connection menu will appear Figure 5-10 Mac OS –...
  • Page 105 Owner’s Manual of DA1104 Figure 5-12 Enter the Password If you will be connecting to this Wireless AP in the future, check [Remember this network]. Step 5: Check if the AirPort is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID.
  • Page 106 Owner’s Manual of DA1104 There is another way to configure the MAC OS X Wireless settings: Step 1: Click and open the [System Preferences] by going to Apple > System Preference or Applications Figure 5-14 System Preferences Step 2: Open Network Preference by clicking on the [Network] icon...
  • Page 107 Owner’s Manual of DA1104 Step 3: Check Wi-Fi setting and select the available wireless network (1) Choose the AirPort on the left-menu (make sure it is ON) (2) Select Network Name [default] here If this is the first time to connect to the Wireless AP, it should show “Not network selected”.

  • Page 108: Iphone / Ipod Touch / Ipad

    Owner’s Manual of DA1104 5.4 iPhone / iPod Touch / iPad In the following sections, the default SSID of the DA1104 is configured to “default”. Step 1: Tap the [Settings] icon displayed in the home screen Figure 5-17 iPhone – Settings icon...
  • Page 109 Owner’s Manual of DA1104 Figure 5-19 Wi-Fi Setting – Not Connected Step 3: Tap the target wireless network (SSID) in “Choose a Network…” (1) Turn on Wi-Fi by tapping “Wi-Fi” (2) Select SSID [default] Figure 5-20 Turn on Wi-Fi Step 4: Enter the encryption key of the Wireless AP...
  • Page 110 Owner’s Manual of DA1104 Figure 5-21 iPhone -- Enter the Password Step 5: Check if the device is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID. Figure 5-22 iPhone -- Connected to the Network...

  • Page 111: Appendix A: Legrand Smart Discovery Utility

    Owner’s Manual of DA1104 Appendix A: Legrand Smart Discovery Utility To easily list the DA1104 in your Ethernet environment, the Legrand Smart Discovery Utility is an ideal solution. NOTE: To obtain this utility, contact Legrand Technical Support. The following installation instructions guide you to running the Legrand Smart Discovery Utility.

  • Page 112: Appendix B: Troubleshooting

    AP to the factory default settings (pressing ‘reset’ button for about 10 seconds). e. Use the Legrand Smart Discovery Utility to see if you can find the AP or not. If you did a firmware upgrade and this happens, contact your dealer of purchase for help.
  • Page 113 Owner’s Manual of DA1104 something wrong with their service. a. Is ‘Broadcast SSID’ set to off? I can’t locate my AP from my b. Both two antennas are properly secured. wireless device. c. Are you too far from your AP? Try to get closer.

  • Page 114: Appendix C: Glossary

    Owner’s Manual of DA1104 Appendix C: Glossary 802.11ac wireless networking 802.11 under the - 802.11ac is a standard in the family (which is marketed brand name Wi-Fi), developed in the IEEE Standards Association process, providing high-throughput wireless local area networks...
  • Page 115 Owner’s Manual of DA1104 MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be transmitted. NAT (Network Address Translation) - NAT technology translates IP addresses of a local area network to a different IP address for the Internet.
