Advent ADV100S Installation Manual page 8

ADV100S/ADV100P
IR LED:
Clean the IR Receiver Window on the front of the VCP .
Remove Adhesive Backing and Apply IR LED to IR
Window on the Face of the VCP .

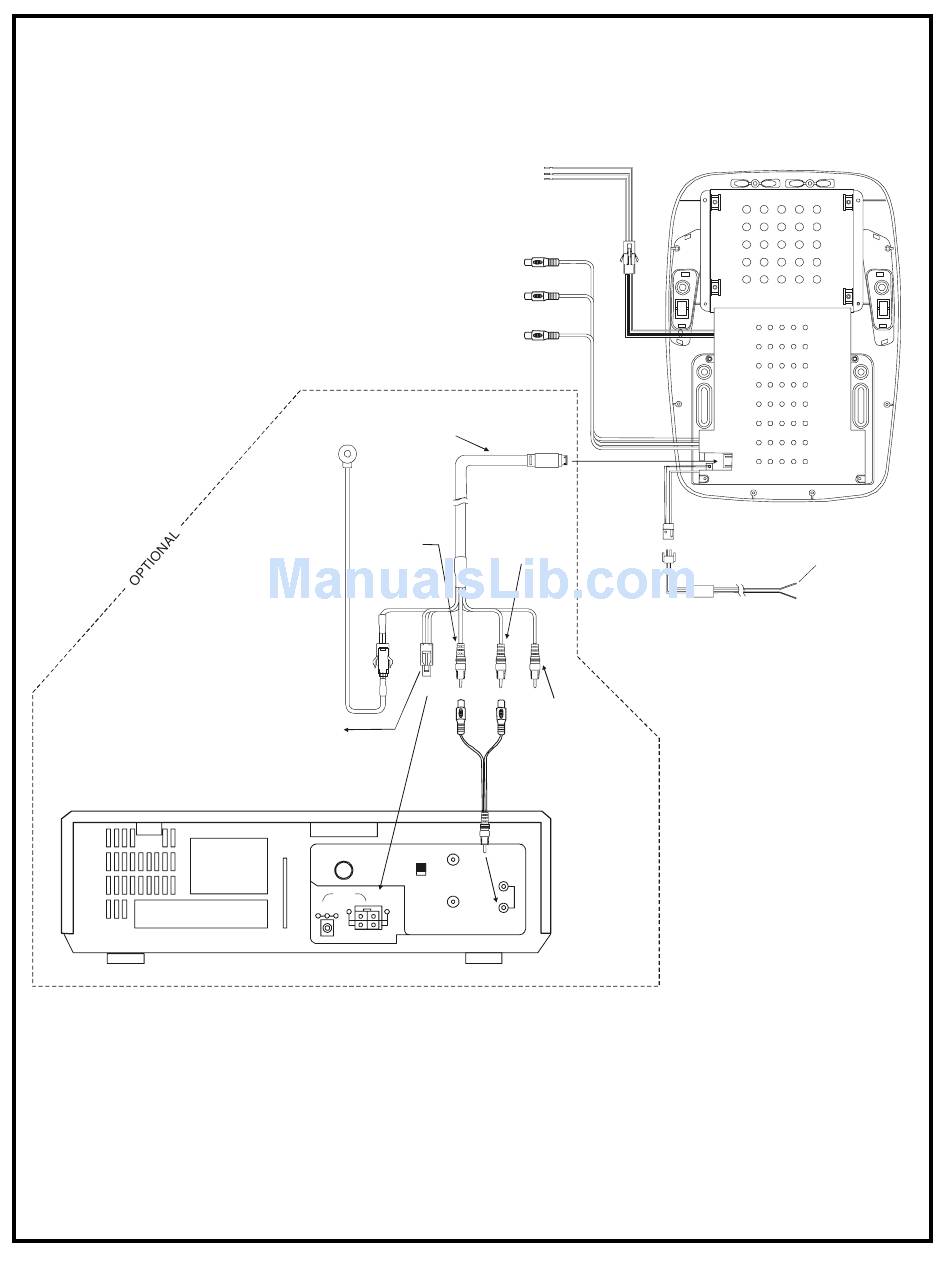

1) Connect the Circular Mini-Din Connector of the source Component Harness into the 8 pin Din
Connector on the unit (sold seperately).
2) Connect the Power Harness to the mating connector on the Video Monitor.
3) Connect the power harness to the vehicle's electrical system through an In-Line 5-Ampere fuse by
tapping into an accessory hot line.
4) Verify all functions of the System before final mounting of the finished assembly.
Violet/Brown (Lamp Auto)
RCA FEMALE
CONNECTOR
AUDIO OUT
RIGHT (RED)
RCA FEMALE
CONNECTOR
AUDIO OUT
LEFT (WHITE)
RCA FEMALE
CONNECTOR
VIDEO OUT (YELLOW)
Accessory
Harness
item #2
RCA MALE
CONNECTOR RCA MALE
AUDIO IN (RED) CONNECTOR
AUDIO IN (WHITE)
Power
Connector 4 Pin
ANT .IN
FUSE
RF OUT
DC IN
-6-
Dome Light Harness
item #5
Red/Black (Lamp On)
Black/Red (Lamp Common)
Power Harness
item #3
RCA MALE
CONNECTOR
VIDEO IN (YELLOW)
"Y" Adapter
for use with
Non-Stereo
Installations
OUT
Red: +12VDC
Accessory Ckt.
(Install 5A
Inline Fuse)
Black: Ground
