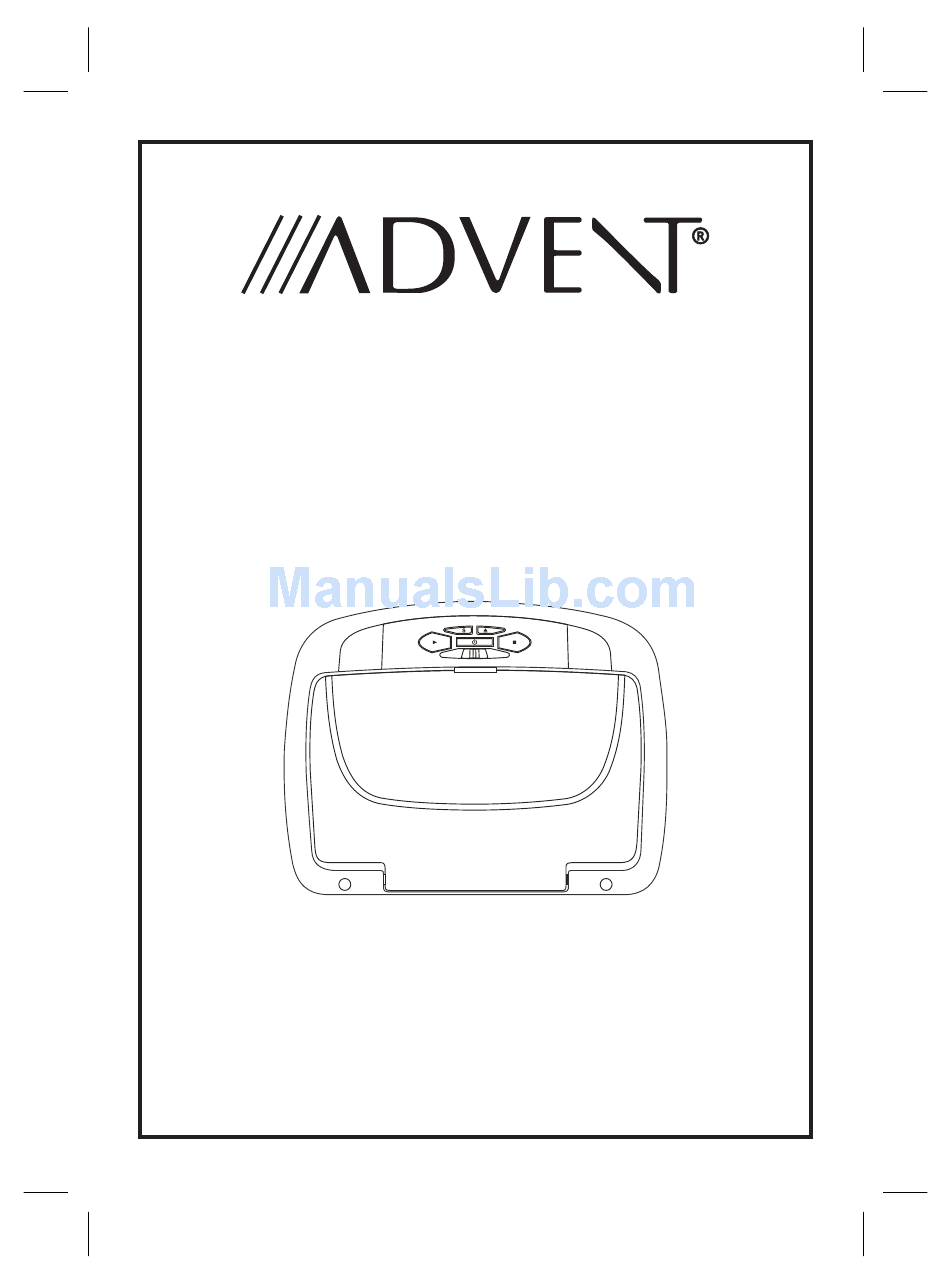

Page 1: Installation Guide
ADV38 10.1 ” OVERHEAD LED BACKLIT LCD MONITOR WITH DVD PLAYER AUTO Installation Guide... -
Page 2: Important Notice
Important Note The ADV38 incorporates three new features: 1) A wireless FM Modulator 2) Snap on Covers with matching Trim Rings (Shale and Pewter). - Page 3 MATERIALS INCLUDED IN THIS PACKAGE: ” 1) 10.1 TFT LCD Overhead Monitor With DVD Player - (1pc) 2) 12 Pin Power / Signal Harness (P/N 112-3483) - (1pc) 3) 2 Pin Power Wire Harness With Choke (P/N 112B3143) - (1pc) 4) AUX Pigtail (P/N 112B3227) - (1pc) 5) 12 Pin AV Adapter Cable (P/N 112-4094)
- Page 4 Installing The Snap On Covers AUTO Housing Snap On Cover Snap On Cover Pry Tool Screw Cap USB Cover (Shroud) (Screen Back Cab) (L & R) 1 Pewter, 1 Shale 1 Pewter, 1 Shale 2 Pewter, 2 Shale Place the pod on a soft surface to avoid damaging the plastic. Installing The Shroud catch catch...
- Page 5 Removing The Snap On Cover (Shroud) From The Housing Work on a soft surface to avoid damaging the plastic. Insert the supplied pry tool between the Housing and Snap On Cover (Shroud) , then press the pry tool to release Snap On Cover (Shroud) Removing The Snap On Cover (Screen Back) From LCD The Housing Insert the supplied...
-
Page 6: Vehicle Preparation
2) The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the ADV38 and related console accessories. 3) Generally, the best location for the video monitor is where the vehicle's factory dome light is installed. -
Page 7: Trim Ring Installation
TRIM RING INSTALLATION: Note: This page only covers special installation considerations for thick trim ring installation. If the video monitor is to be installed in a vehicle with the thick trim ring, it may need to be trimmed to fit the contour of the vehicle Headliner. - Page 8 TRIM RING INSTALLATION: Supplied screws as below use for install Trim Ring to unit. Please refer illustration below. #4 x 5/16 Self Tapping Screws (1pc) #4 x 7/16 Self Tapping Screws (3pcs) Screws ISO 3 x 8mm Long (5pcs) MOUNTING THE TRIM RING Roof Roof Support Headliner...
-
Page 9: Wiring Diagram
5. GAME - Built in Game *NOTE: If the optional relay box is P/N FMDIRB installed, it recommended that the antenna for the FM modulator antenna wire is unplugged. See ADV38 Wiring Diagram (Figure A) for antenna location. **NOTE: Extending the wireless antenna beyond its 12 inch length will cause the FM modulator to exceed FCC limits of wireless transmission. -
Page 10: Connecting The Dome Lights
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched system. Positive switched systems supply voltage to the interior lights to turn on, negative switched systems apply ground to illuminate the bulbs. -
Page 11: Troubleshooting
Negative Switched Dome Lighting Red / black - Lamp on To 12 pin Black / red - Lamp common connector Purple / brown - Lamp Auto constant constant Factory Door ajar switch or Body Control computer Troubleshooting: SYMPTOM: REMEDY: No power at Video Monitor Verify +12 VDC on Red wire at 2 pin Power Harness behind video monitor. - Page 12 © 2014 VOXX ELECTRONICS CORP., 150 Marcus Blvd. Hauppauge, NY 11788 128-8513E...
