User Manual

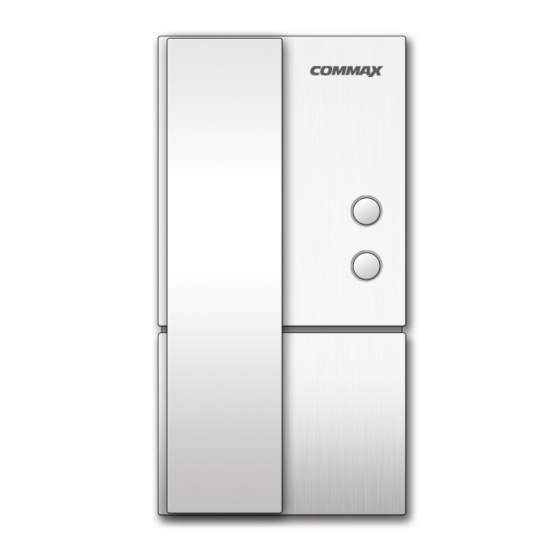

DOOR PHONE DP-ML
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax DP-ML
Summary of Contents for Commax DP-ML
-
Page 1: User Manual
User Manual DOOR PHONE DP-ML Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introduction .............2 2. Important Safeguards ........3 3. Overview............4 4. Operation ............5 5. Wiring..............6... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguards
2. Important Safeguards Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: when the power is damaged. if liquid has been spilled or objects have fallen into the unit if the equipment has been exposed to rain or water. -
Page 5: Overview
3. Overview Controls and functions ① Volume Switch ② Handset ③ Guard Call Button ④ Door Release Button ⑤ Handset Cord... -
Page 6: Operation
4. Operation 1. Can hear a call sound from receiver when press the call button of doorstation by visitors. 2. Talk with visitors when lift up handset. 3. Lift up hand set, press the guard house call button, and can hear a call sound in guard house. -
Page 7: Wiring
5. Wiring INSTALLATION Each DP-ML doorphone has a braket to facilitate wall-mounted installation. Secure the braket to the wall with screws provided. Fit the slots in the doorphone base over the hooks on the braket and pull the doorphone down slightly to secure. - Page 8 MEMO...
- Page 9 MEMO...
- Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2013.07.105...
