G300 Operations Manual
v.12.15.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Le Maitre G300

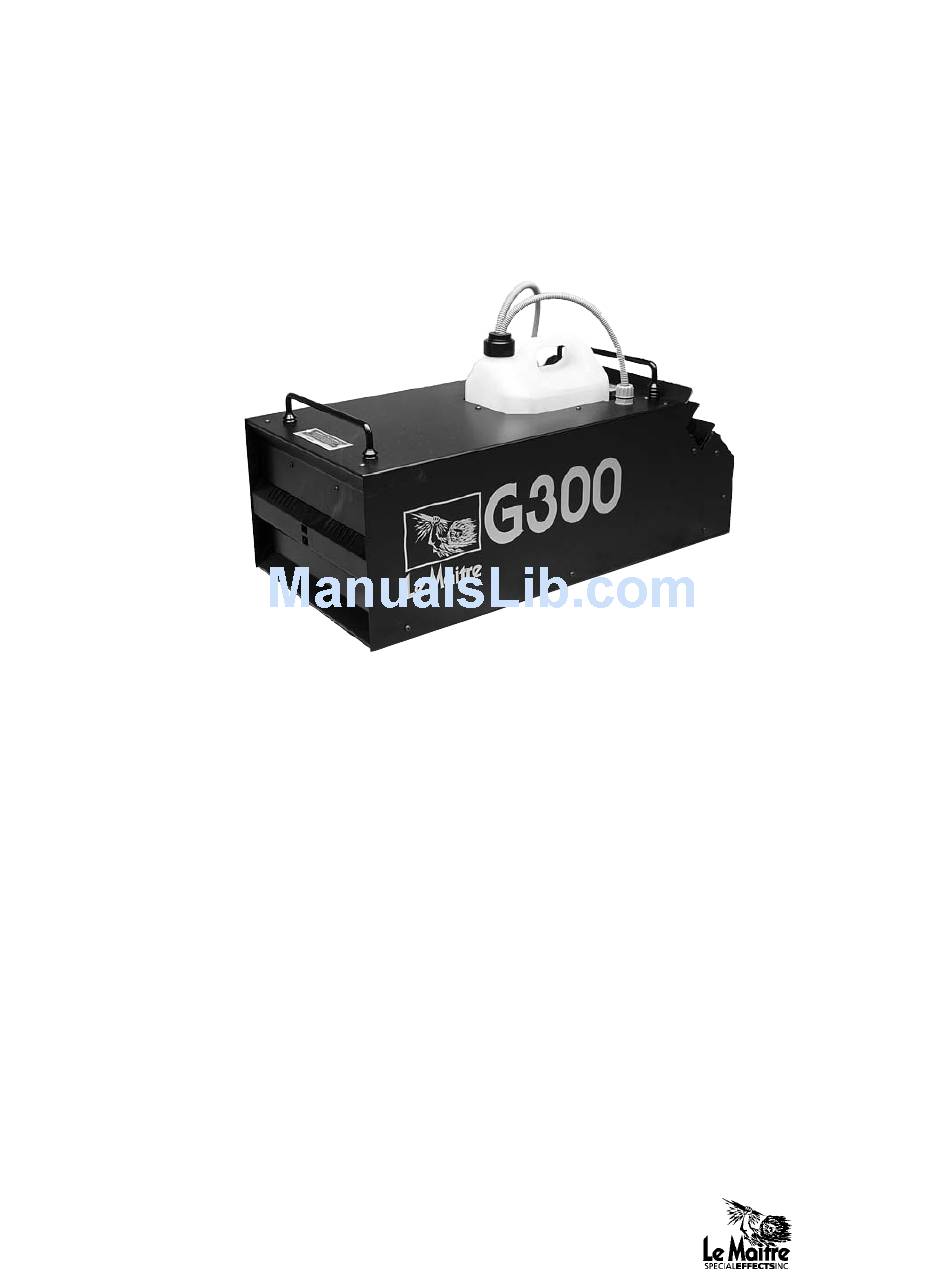

  • Page 1 G300 Operations Manual v.12.15.00...
  • Page 2: Table Of Contents

    Warranty Page 13 Safety Precautions. Page 13 Accessories Page 14 G300 Industrial 20 l. Pail Option Page 15 G300 Steamer / Air Purge Control List Page 16 LSG / G300 Operating Procedure Page 18 G300 Flow Rates Page 18 Notes...
  • Page 3: Introduction

    Introduction The G300 is a Microprocessor Controlled, Water Base Fog and Haze generating system. Microprocessor Control The Microprocessor is responsible for the following control elements - Monitoring the heat exchanger temperature. Driving the heater within the heat-exchanger in a proportional power mode.
  • Page 4: Warning

    Warning IMPORTANT SAFETY INSTRUCTIONS Do not touch or place hands, expose skin, within 50 cm. of discharge nozzle. SAVE THESE INSTRUCTIONS READ THESE IMPORTANT SAFETY INSTRUCTIONS WARNING READ THESE IMPORTANT SAFETY INSTRUCTIONS Do not remove the outer case until power has been disconnected from the machine READ THESE IMPORTANT SAFETY INSTRUCTIONS Persons suffering from asthma or allergenic...
  • Page 5: Technical Specifications

    Technical Specifications: Model: G300 Continuous Flow Fog / Haze Micro-Processor Control Management Type: Water Base Fog/Haze generating system Size: 610 x 210 x 295 mm. 23 7/8”x11 7/16”x10 1/ 2” High (Incl. Handle) Weight: 24 Kilos , 52 Lbs. Power Rating: 110 Volt A.C.50/60 Hz...
  • Page 6: Operating Procedure

    Note: Should ‘Haze’ mode be selected when the machine has been operating in the ‘G300’ mode, then it is possible that time will be required to allow the machine to adjust to the ‘Haze’ characteristics. This will be indicated by a flashing ‘C’ code in the Heat-Flash window of the...
  • Page 7 The Remote Display will now enter its standard phase. This indicates the ‘Heating’ power, the ‘Flow’ rate setting, and the ‘Ready’ status. At this stage the flow rate may be adjusted freely between minimum and maximum settings. (Upon entering a ‘ready to operate’ phase the maximum allowable flow rate will be automatically adjusted based on the energy available.
  • Page 8 The machine may now be operated fully as desired with due attention to all pre- vailing safety regulations. Note: FLUID REPLACEMENT Replacing fluid does not require any attention to ‘priming’ conditions. The G300 uses a unique system of fluid pumping which allows fluid system replenishment without requir- ing special settings of flow control. Note: ‘HAZE’...
  • Page 9: Remote And External Control Features

    Remote and External Control Features The standard Remote Handset may be removed from the machine, and operated effectively away from the issue site. The maximum recommended cable length is 30 Me- tres.(100 Feet). It is not recommended to plug/unplug the handset while the machine is still pow- ered up.
  • Page 10: G300/ Haze - Mode Changing

    G300/ HAZE - Mode Changing The two modes of operation that can be performed by the G300 machine are unique in their operating characteristics. They allow distinctly different fluid types to be used for a wide range of effects.
  • Page 11 The following colour codes are employed in the electrical connection. BROWN or BLACK LIVE BLUE or WHITE NEUTRAL YELLOW/GREEN GROUND Always ensure that the G300 is properly grounded and that the supply is in accord- ance with the specifications on the back panel of the machine.
  • Page 12: Maintenance

    Maintenance Exterior: The casing of the G300 is steel with a powder paint coating. To clean simply wash with mild soap and warm water. Fluid Pick up: Periodically check to ensure that the fluid pick up filter screen is in place and clean from debris.
  • Page 13 Never use Neutron Haze Fluid in your G300 All of our Haze Fluids are water base and leave NO residue. The G300 must always be in Haze mode when using Haze Fluids. Permanent damage will occur if Haze Fluid is used...
  • Page 14: Warranty

    30 days is considered purchased. Warning: Le Maitre Special Effects Inc. considers all it's product to be safe for use in the application it was intended. Le Maitre Special Effects takes no responsibility for misuse or incorrect use. Always refer to equipment...
  • Page 15: Safety Precautions

    2. Do not modify the machine or use a machine which has been damaged in any way. 3. Allow sufficient air circulation around the machine at all times. 4. Protect the G300 from direct weather effects and wet locations. 5. Only use fluids recommended by the Manufacturer.
  • Page 16: G300 Industrial 20 L. Pail Option

    Please allow one minute to ensure proper priming.1 Dry Contact show control terminals have been added to your G300 re mote to facilitate control through central control system. One set of Normally open contacts are all that is required.
  • Page 17: G300 Steamer/ Air Purge Control List

    E- G300 Mode Control (Key Switch): The G300 is a dual operational machine which operates in Haze (H) mode or Fog (G) mode. For the purpose of steam simulation, the fog (G) mode is used ONLY. Fog (G) mode is activated when the key is in the horizontal position.
  • Page 18: Lsg / G300 Operating Procedure

    G300. (Available on G300’s with LSG option.) 3.) Power up the G300 by turning on the Mains switch. Note that the G300 is in Fog mode, which is indicated by a flashing 'G ' on the remote display.
  • Page 19 Note: Controlling the LSG with DMX When controlling your G300/LSG with a G300 DMX Interface, the delay feature for purg- ing the supply hose is not available. We recommend using the DMX/LSG interface to con- trol the LSG, this will allow full delay flexibility between the G300 and LSG.
  • Page 20: G300 Flow Rates

    G300 Flow Rates Typical G300 Flow Rates in cc (ml.)/second Flow Flow Setting Setting Haze Haze 0.05 0.06 0.08 0.12 0.25 1.25 1.25 Notes...
