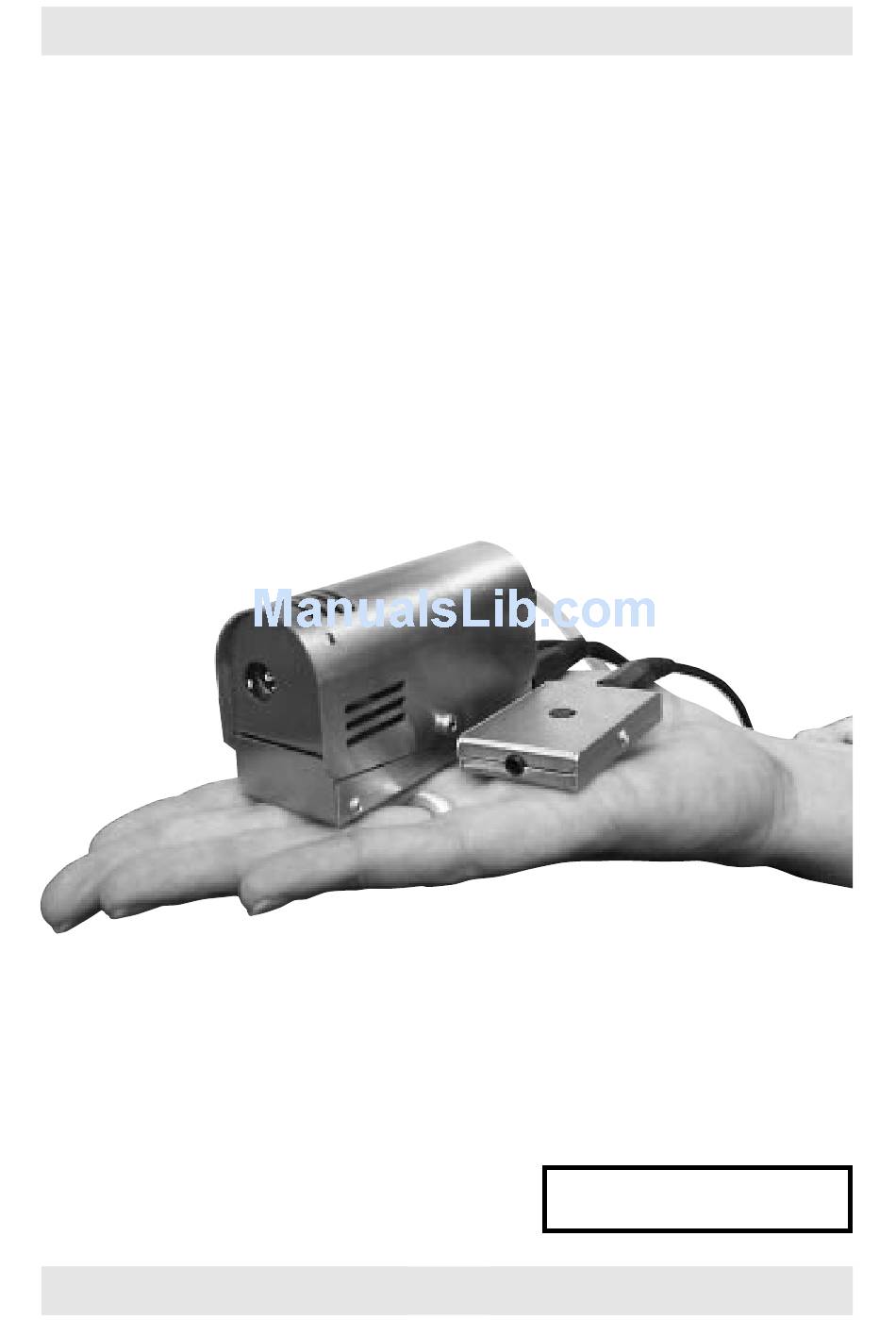

- Page 1 Operating manual TINY-FOGGER New version...
- Page 2 As you will notice from the table of contents, the manual for your new gadget is quite extensive. To guarantee perfect and successful work with this machine, please take some time to read the manual carefully. And finally we wish you a lot of fun when using your new TINY-FOGGER.
- Page 3 Set of Equipment supplied – 1 TINY-FOGGER with connected battery cable – 1 control panel with cable – 1 rechargeable battery 12V / 2 Ah – 1 charger – 1 fluid tank (50 milliliters) with quick connector and air valve –...
-
Page 4: Table Of Contents
Contents 1. Procedure of the TINY-FOGGER 2. Safety Instructions 3. Operating the TINY-FOGGER 3.1 Descriptions of the Parts 3.2 Selecting the Location 3.3 Mounting the TINY-FOGGER 3.4 Starting-up the TINY-FOGGER 3.5 Programming the fogging time 3.6 Status Display of the Battery 4. -
Page 5: Procedure Of The Tiny-Fogger
It is based (as are most fog generators) on the vaporizer principle, i.e. a glycol fluid is evaporated and condenses into fog when leaving the fog nozzle. However, the TINY-FOGGER only heats when fog is actually needed. It uses only 20 milliamperes in idle status and consequently it may remain connected to the the battery for several hours with no discharging to speak of. -
Page 6: Safety Instructions
2. Safety Instructions A fog machine is not a toy! • Very hot steam escapes from the nozzle. Danger of getting burnt. • Occasionally very hot droplets of fluid may escape when in operation. Thus never aim at persons directly and keep a minimum distance of 3 m to the nozzle. -
Page 7: Operating The Tiny-Fogger
Start button for the control panel and the radio remote 3.2 Selecting the Location The location for the TINY-FOGGER must • be dry • guarantee sufficient air supply • have sufficient distance (at least 30 cm) from inflammable materials • have very little vibration •... -
Page 8: Mounting The Tiny-Fogger
3. Operating the TINY-FOGGER 3.3 Mounting the TINY-FOGGER If the Tiny-Fogger is to be built in props or similar, make sure that a fog-free air supply is guaranteed. Too high a fog concentration can condense inside the machine and can result in damages caused by moisture. -
Page 9: Programming The Fogging Time
3.6 Battery Status Display The yellow light-emitting diode (LED) on the TINY-FOGGER indicates how strong/ efficient the battery still is and/or when it must be recharged. 1) LED flashes slowly: Battery capacity of 15% –... -
Page 10: The Rechargeable Battery
4. The rechargeable battery The supplied battery is a maintenance-free 12V lead-gel accumulator which is calibrated in the best possible way with the connected loads of the TINY-FOGGER. It can be used in every position. The connection to the TINY-FOGGER or the charger is established by means of a battery clip which also serves as protection against incorrect polarity. -
Page 11: Technical Data
4. The rechargeable battery 4.4 Safety Regulations • The supplied battery can supply high discharging currents. Therefore: – Never short-circuit the battery. – Never change the cable sizes. • Positioning of the battery – Make sure the battery is not placed near sources of heat, –... -
Page 12: The Charger
• incorrect Polarity of the connected battery if the red LED is permanently on. • the battery voltage can not reach 13,8 V (especially in the case of old batteries) 3) Protect the unit against rain 4) Use the charger exclusively for charging the TINY-FOGGER battery... -
Page 13: Technical Data
5. The Charger 5.3 Technical Data Model BCA 120-600 Input voltage 230 V~ or 110 V~/50 Hz +/– 10% Output voltage 12 V =/600 mA End of charging at 13,8 V = Temperature range –10° C to +35° C Isnsulation 4 kV between primary and second Setting regulated at 13,8 V preset... -
Page 14: Service And Maintenance
6.1.1 Removal of the Vaporizer • Separate the TINY-FOGGER from the battery (take off the battery clip), • Unscrew the two screws (5) with a suitable screwdriver (No. 1. Phillips), • Take off the casing cover, •... -
Page 15: Installation Of The Vaporizer
6.1.3 Calibration of the Vaporizer Since all evaporators have different electrical qualities, the TINY-FOGGER must be calibrated after every exchange of the vaporizer. IMPORTANT: During the calibration process the vaporizer temperature must be at 20°... -
Page 16: The Yellow Led Lights Permanently If
• Should the vaporizer become clogged, please change it in the way as described in section 6.3. • If the TINY-FOGGER isn‘t in use for a longer time, please take care that the fluid tube is emptied. It could be that some fluid drops come out of the nozzle... -
Page 17: Technical Data
300 g Look Manufactured for – Solutions made in Germany Le Maitre Special Effects Inc. 1960 Blue Heron Drive, London ON Canada N6H 5L9 1915 Dove Street, Port Huron Michigan, USA 48060 Ph. 519-659-7972 Fax. 519-659-7713 www.lemaitrefx.com e-mail info@lemaitrefx.com... -
Page 18: Warranty Conditions
The right of guarantee service is also lost if fluids other than the original „TINY-FOGGER FLUID“ have been used or if units are sent to us with full fluid bottles. Also non compliance with the instructions in this manual or mistakes by incorrect handling/ treating of the machine will lead to a loss of guarantee and also any faults and damages caused by undue force.
