MVS Hazer
®
Operating Manual

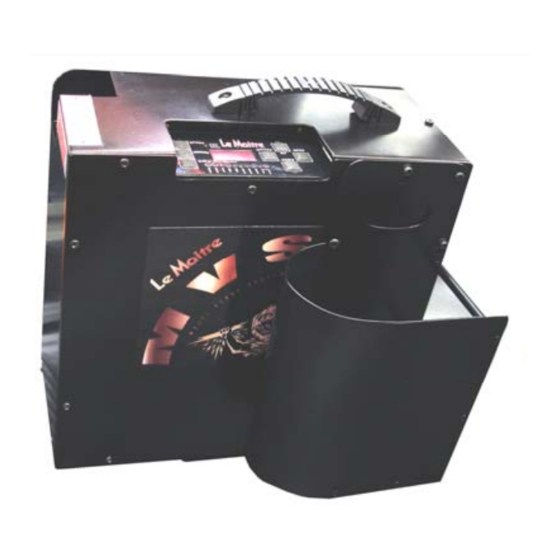

The MVS is a High technology, feature rich Hazer machine.
All features are variable and storable.
High Haze Output is variable down to a whisper
Twin Projection fans are variable from 2800ft/min velocity down.
Haze output direction is electronically variable from 0 to 90 degrees
utilising differential air flow techniques.
Four Channel DMX 512 built in. Selectable channel usage.
Digital display and control panel.
Uses the unique Le Maitre Hazing Fluid.
Separate fluid supply allows the machine to be positioned at virtually any angle.
Advertisement
Table of Contents
Related Manuals for Le Maitre MVS
Summary of Contents for Le Maitre MVS

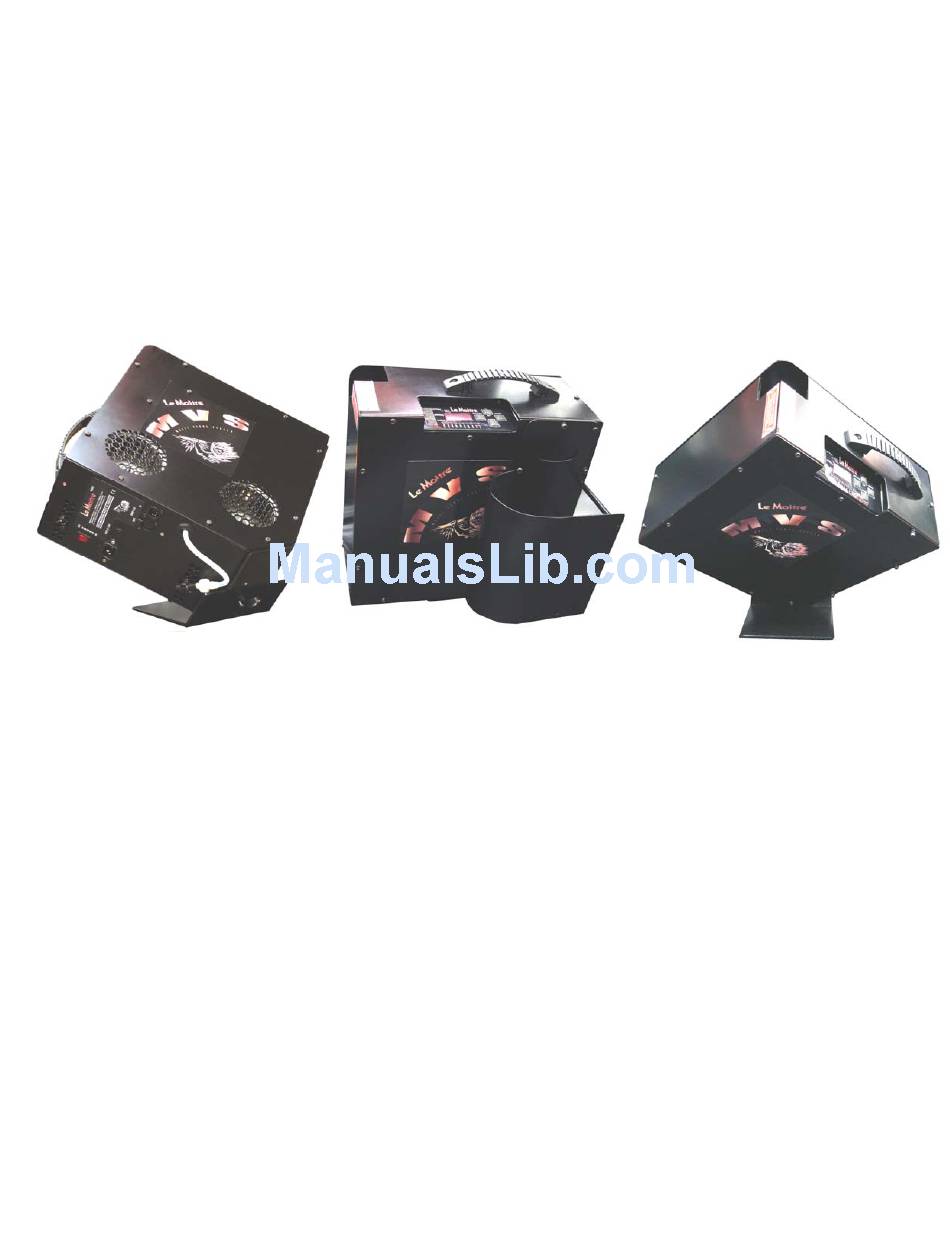

- Page 1 Le Maitre MVS Hazer ® Operating Manual The MVS is a High technology, feature rich Hazer machine. All features are variable and storable. High Haze Output is variable down to a whisper Twin Projection fans are variable from 2800ft/min velocity down.
- Page 2 Introduction The Le Maitre MVS hazer is the latest in the range of high specification hazers and as such will fulfil the majority of applications where higher demands are required. It utilizes the original and patented technique of producing haze via an easily replaceable ‘conversion’...
- Page 3 Safety and Cautions All electro-mechanical machines have the ability to cause injury, either mechanically or electrically. The user should be fully aware of the correct operational procedures involved in the use of this machine, and should feel comfortable about being in control of it. All users should make themselves aware of any national or local restrictions to the use of these types of machines in applications involving public venues or areas.
- Page 4 M.V.S. Specifications Power Source Requirements 230VAC 300 Watt 50Hz External Fusing 3.15AT ceramic Internal Fusing 500mA PCB transformer VLM (very low mass) stainless steel replaceable vapour tube Virtually Instant Operation Fluid Capacity 2.5 Litres Bottle Carrier Fluid Use - 100cc / Hr. 1cc /Hr.
- Page 5 Fluid Use Please note that the fluid used with the MVS hazer is not like any other fluid used typically in smoke or hazer machines. It is a high concentration fluid, which other manufacturers’ machines are unable to process without incurring damage.
- Page 6 Operation Instructions All features are adjusted and set up using the main control panel. Three buttons on the left hand side: These select the MODE of operation i.e. DMX or Manual and also allow settings to be stored. Just press the corresponding switch for the desired mode. All adjustments are made in the Manual mode and can be stored by pressing the Manual and Store buttons at the same time.
- Page 7 The Haze button allows an instant on/off switching in the Manual mode, so that the haze output setting need not be reduced to zero in order to switch the effect off.
- Page 8 It also allows simplified DMX control if the full range of MVS features do not need to be varied. In the DMX mode, the upper Led ( Store / DMX status) will indicate if a correct dmx signal is being received.
- Page 9 When the machine is switched on, it will perform a single cleaning process routine. This will last approximately 2 minutes. This is a very short time compared to alternative systems which have to heat a standard type heat exchanger. After this operation the machine will be ready to operate.
- Page 10 45 to 135 degree coverage. For even more versatility, this base plate can be mounted such that the MVS is at 45 degrees in two planes (as shown on the front page of this manual). This will give a 45 to 135 degree spread at 45 degrees from the horizontal.
- Page 11 Should however, the filter become clogged with debris, the performance of the MVS will be reduced. Should this occur, detach the filter and wash in warm soapy water, flush with clean water and re-attach to the silicon supply tubing.
- Page 12 Le Maitre fluid. Le Maitre Ltd considers all of its products to be safe for use in the application it was intended. Le Maitre Ltd takes no responsibility for misuse or incorrect use. Always refer to the equipment owner’s manual for proper use, and be aware of local...
