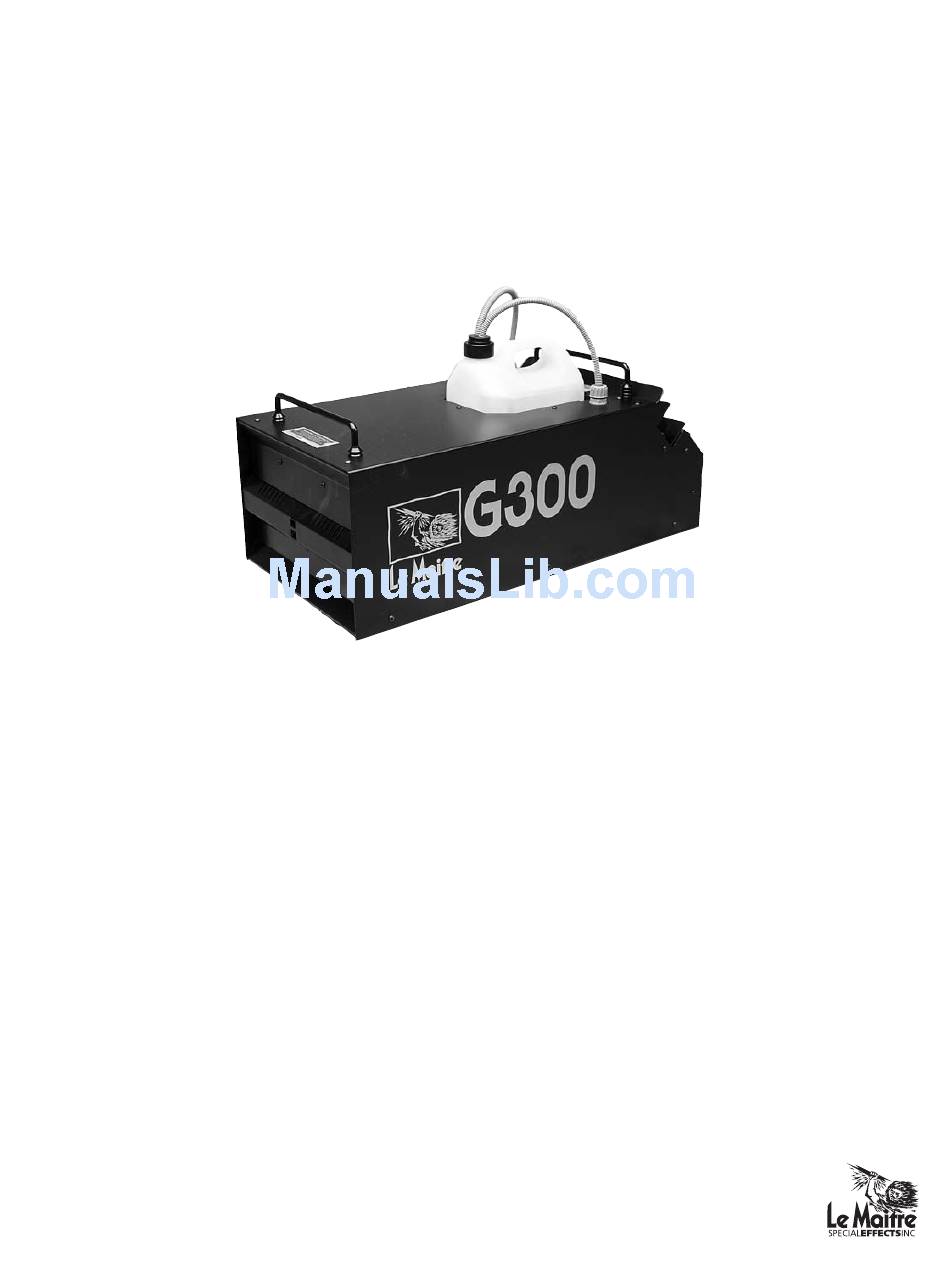

- Page 1 G300 Operations Manual v. 06.10.05 lemaitrefx.com...
-
Page 2: Table Of Contents
Technical Specifications Page 4 Operating Procedure Page 7 Remote and External Control Features; Analog 0-10V Control Page 8 Linking Switch Setting Options; G300/ Haze - Mode Changing; Machine to Machine Linking Page 9 Electrical Connections Page 10 Maintenance Page 11... -
Page 3: Introduction

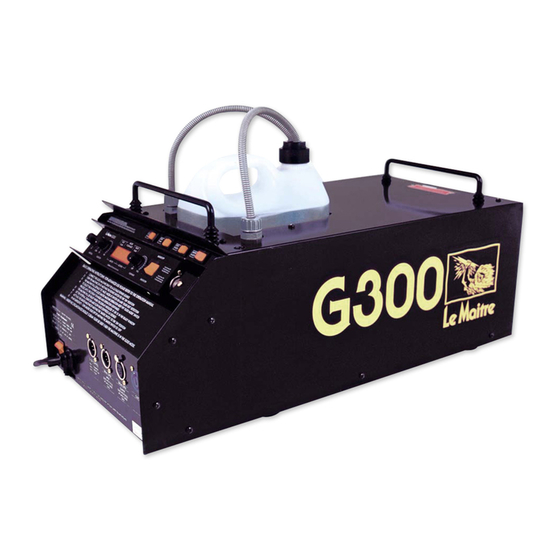

Introduction The G300 is a Microprocessor Controlled, Water Base Fog and Haze generating system. Microprocessor Control The Microprocessor is responsible for the following control elements - Monitoring the heat exchanger temperature. Driving the heater within the heat-exchanger in a proportional power mode. -
Page 4: Warnings
Warning Important Safety Instructions: Do not touch or place hands, expose skins, within 50 cm. of discharge nozzle. Important Safety Instructions: Do not remove the outer case until power has been disconnected from the machine. Important Safety Instructions: Persons suffering from asthma or allergenic sensitivity may experience irritation, discomfort, or allergic symptoms when exposed to fog effects. -
Page 5: Technical Specifications
Technical Specifications Model: G300 Continuous Flow Fog / Haze Micro-Processor Control Management Type: Water Base Fog/Haze generating system Size: 610 x 210 x 295 mm. 23 7/8”x11 7/16”x10 1/2” High (Incl. Handle) Weight: 24 Kilos , 52 Lbs. Power Rating: 110 Volt A.C.50/60 Hz... -
Page 6: Operating Procedure
MODE keyswitch please refer to key card for proper keyswitch position. Should ‘Haze’ mode be selected when the machine has been operating in the ‘G300’ mode, then it is possible that time will be required to allow the machine to adjust to the ‘Haze’ characteristics. - Page 7 The Remote Display will now enter its standard phase. This indicates the ‘Heating’ power, the ‘Flow’ rate setting, and the ‘Ready’ status. At this stage the flow rate may be adjusted freely between minimum and maximum settings. (Upon entering a ‘ready to operate’ phase the maximum allowable flow rate will be automatically adjusted based on the energy available.
- Page 8 The machine may now be operated fully as desired with due attention to all prevailing safety regulations. Note: FLUID REPLACEMENT Replacing fluid does not require any attention to ‘priming’ conditions. The G300 uses a unique system of fluid pumping which allows fluid system replenishment without requiring special settings of flow control. ‘HAZE’ FLOW CONTROL Note: The machine will change the characteristics of the ‘Flow Rate’...
-
Page 9: Remote And External Control Features; Analog 0-10V Control
Remote and External Control Features The standard Remote Handset may be removed from the machine, and operated effectively away from the issue site. The maximum recommended cable length is 30 Me- tres.(100 Feet). It is not recommended to plug/unplug the handset while the machine is still pow- ered up. -
Page 10: Machine To Machine Linking
As stated repeatedly throughout this operations manual, ‘Hazing’ type fluid should not be used in the Hi-Power G300 Fog Mode. Although actual machine damage will not result, long term performance will suffer as a result. -
Page 11: Electrical Connections
The following colour codes are employed in the electrical connection. BROWN or BLACK LIVE BLUE or WHITE NEUTRAL YELLOW/GREEN GROUND Always ensure that the G300 is properly grounded and that the supply is in accord- ance with the specifications on the back panel of the machine. lemaitrefx.com... -
Page 12: Maintenance
Maintenance Exterior: The casing of the G300 is steel with a powder paint coating. To clean simply wash with mild soap and warm water. Fluid Pick Up: Periodically check to ensure that the fluid pick up filter screen is in place and clean from debris. -
Page 13: G300 Industrial Hose Option
1. Remove G300 cover and existing fluid assembly 2. Drill hole in front control panel to accept key switch Figure 1. Solder wires from G300 mode button to Pins 1 and 3 on key switch (be careful not to over-heat the switch). -
Page 14: G300 Steamer/ Air Purge Control List
E- G300 Mode Control (Key Switch): The G300 is a dual operational machine which operates in Haze (H) mode or Fog (G) mode. For the purpose of steam simulation, the fog (G) mode is used ONLY. -
Page 15: Lsg/ G300 Operating Procedure
2.) Connect the blue Twist lock connector into Custom port on the rear panel of the G300. (Available on G300’s with LSG option.) 3.) Power up the G300 by turning on the Mains switch. Note that the G300 is in Fog mode, which is indicated by a flashing 'G ' on the remote display. - Page 16 Note: Controlling the LSG with DMX When controlling your G300/LSG with a G300 DMX Interface, the delay feature for purging the supply hose is not available. We recommend using the DMX/LSG interface to control the LSG, this will allow full delay flexibility between the G300 and LSG.
-
Page 17: Recommended Fluids
Never use Neutron Haze Fluid in your G300! All of our Fog & Haze Fluids are water based and leave NO residue. The G300 must always be in Haze Mode when using Haze Fluids. Permanent damage will occur if Haze Fluid is used in the Power Fog Industrial for any length of time. -
Page 18: Warranty
Any product not returned within 30 days is considered purchased. Warning: Le Maitre Special Effects Inc. considers all it's product to be safe for use in the application it was intended. Le Maitre Special Effects takes no responsibility for misuse or incorrect use. Always refer to equip- ment owners manual for proper use. -
Page 19: Safety Precautions; Accessories
2. Do not modify the machine or use a machine which has been damaged in any way. 3. Allow sufficient air circulation around the machine at all times. 4. Protect the G300 from direct weather effects and wet locations. 5. Only use fluids recommended by the Manufacturer. -
Page 20: G300 Flow Rates
G300 Flow Rates Typical G300 Flow Rates in cc (ml.)/second Flow Flow Setting Setting Haze Haze 0.05 0.06 0.08 0.12 0.25 1.25 1.25 Notes lemaitrefx.com...
