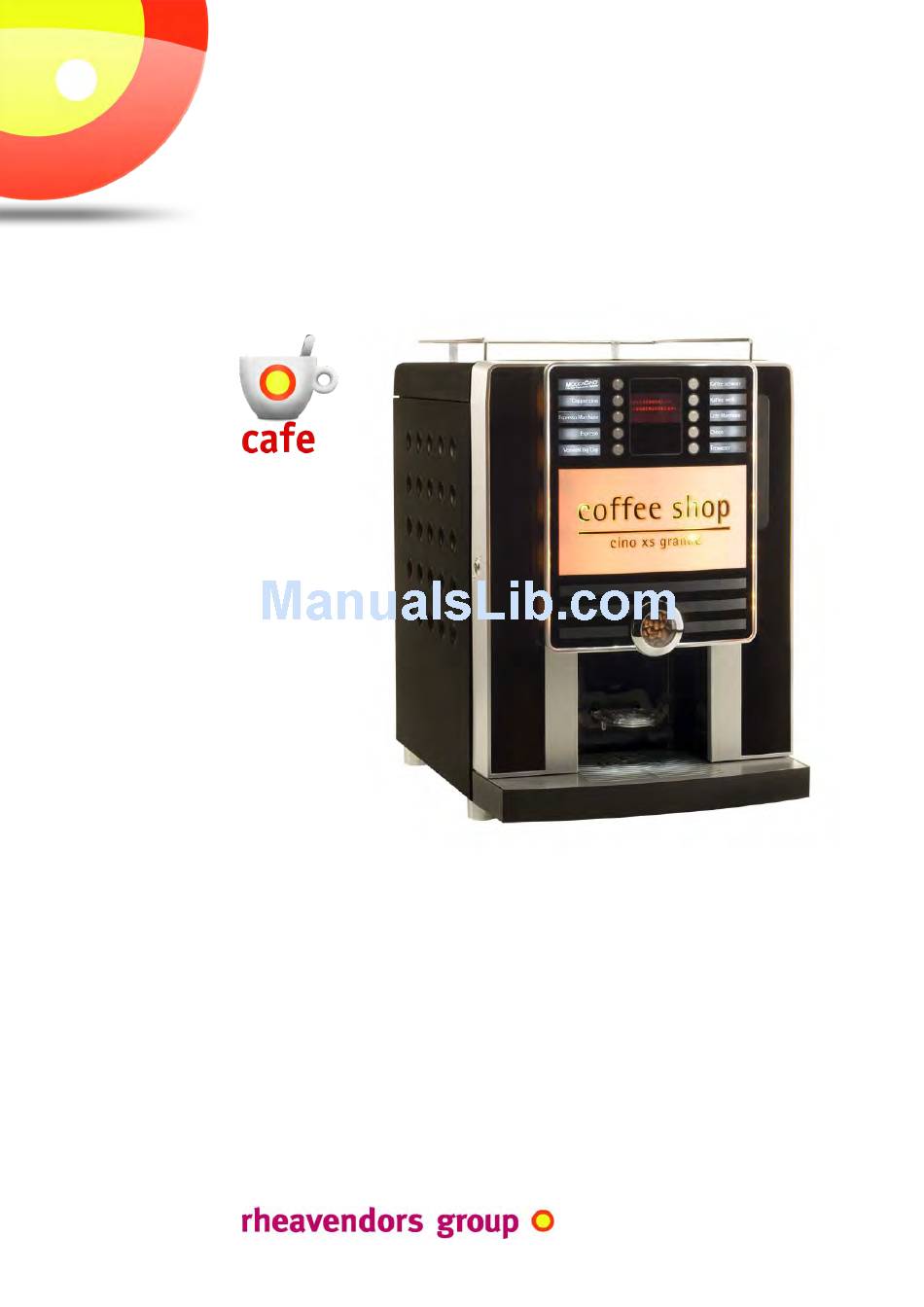

Cino XS grande
type: xs grande
INSTALLATION AND MAINTENANCE MANUAL
Original instructions
MAN2100105 rel. 02 dated 31.08.2012
__________________________________________
www.rheavendors.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cino XS Grande and is the answer not in the manual?

Questions and answers

Summary of Contents for Rheavendors Group Cino XS Grande

  • Page 1 Cino XS grande type: xs grande INSTALLATION AND MAINTENANCE MANUAL Original instructions MAN2100105 rel. 02 dated 31.08.2012 __________________________________________ www.rheavendors.com...
  • Page 2 Cino XS grande by 31.08.2012 Company names; implementation of safety warnings, general information and maintenance; 12.04.2010 Graphics adaptation, compliance with European standards, hydraulic diagrams; 30.01.2009 First issue; REL. DATE DESCRIPTION MAN2100105 rel. 02 dated 31.08.2012 page no. 2 of 47 pages www.rheavendors.com...
  • Page 3 Cino XS grande by general guarantee these conditions regulate Rheavendors Industries S.p.A.’s conditions obligations with reference to guarantee and repair; any other term or condition, either verbal or written, is not applicable, including those in the purchaser’s purchase orders, if not explicitly accepted and signed by Rheavendors Industries S.p.A.;...
  • Page 4 Cino XS grande by declaration of Rheavendors Industries S.p.A. declares that this drink vending conformity machine has been designed and manufactured in compliance with the following directives and safety standards: Directives: 2004/108/EC; 2006/95/EC; 2006/42EC; 2002/95/EC (RoHS); 2002/96/EC (RAEE); 1907/2006/EC (REACH);...
  • Page 5: Table Of Contents

    46 instant hydraulic diagram page 47 in the listed chapters, the manual describes a Cino XS grande vending machine in its hardware and software components for a complete and fully-aware use of all machine functions; due to the large variety of available options and the constant technical update of our vending machines, some special device or function might be indicated and described not in the manner you expect;...
  • Page 6: Legend

    Cino XS grande by legend some general instructions that may be of use for reference to this manual; 01.01. abbreviations and pictograms dispensing cycle of drinks based on instant products dispensing cycle of drinks based on instant products and coffee beans;...
  • Page 7: Introduction

    Cino XS grande by introduction 02.01. copyright © Rheavendors Industries S.p.A.; all rights reserved; information this document contains some confidential information Rheavendors Industries S.p.A.’s exclusive property; the content of this document can be neither disclosed in favour of third parties,...
  • Page 8: Technical Data

    Cino XS grande by technical data 03.01. dimensions height (including upper rail of 28 mm): 618 mm width: 420 mm depth: 563 mm depth with open door: 880 mm 03.02. weight instant machine: 33 kg espresso machine: 40 kg 03.03. supply water - connection by means of a solenoid valve with 3/8“...
  • Page 9 (see 09.06.); 03.23. notes the water and energy supply tolerance limits that can ensure a good and proper operation of the Cino XS grande machine are: water: - total hardness: from 10 °F to 25 °F (*) - recommended conductivity: 400 μS @ 20 °C...
  • Page 10: Configurations

    Cino XS grande by configurations 04.01. Cino XS grande configurations are numerous; they are coded by means some categories exemplified here below abbreviation of the machine: a. instant - instant products only: Cino XS I Cino XS E b. instant and espresso - instant products and coffee beans: c.
  • Page 11 Cino XS grande by 04.04. LM selection Cino XS grande can produce a drink called Latte Macchiato, composed by milk and coffee and served in the cup in differently coloured bands, typically milk, coffee and milk; to get this special drink, refer to a specific package of instructions, every step of which is called “LM dispensing cycle”;...
  • Page 12: Presentation

    Cino XS grande by presentation espresso 05.12. door switch 05.21. and service key instant product canister 05.13. 05.21. internal button (PROG) coffee beans canister protection carter 05.17. doser 05.14. flash key housing 05.16. coffee brewer 05.24. nozzle support 05.05. door lock 05.18.
  • Page 13 Cino XS grande by instant 05.12. door switch and service key 05.21. 05.13. instant product canister internal button (PROG) 05.21. closing baffle 05.21. 05.14. product slide flash key housing 05.23. mixing bowl 05.06. 05.05. waste water from the boiler door lock 05.06.
  • Page 14 Cino XS grande by 05.01. general the Rhea Cino XS grande vending machine is a machine explicitly information designed for being easily used by all users since no specific competence is required in preparing drinks; the function consists in dispensing drinks by mixing food products and water at a proper temperature;...
  • Page 15 Cino XS grande with timing doser in which the amount of ground coffee is poured directly into the chamber of the coffee brewer and the quantity of which is determined by the software "grind time"...
  • Page 16 Cino XS grande by 05.23. mixing bowls the mixing bowls of the mixers will accommodate the instant products you have poured to mix them with water; the fan of mixer motors will act at the bottom and the drink outflow to the dispenser occurs by means of a silicone tube;...
  • Page 17 Cino XS grande by attention these components may be very hot even if the machine is off; 05.33. pressure boiler in the E machine, pressure boiler complete with a temperature probe and protection clicsons; the drain tap may be used to empty the hydraulic circuit (vedi 09.01.f.);...
  • Page 18 Cino XS grande by 05.36. electronics 05.36.a. CPU phone cable connector to the flash key box connector to the door display board boiler heating element led instant level probes 230 V output to the boiler heating element temperature probe Executive payment...
  • Page 19 Cino XS grande by 05.37. software the software installed in in Cino XS grande can be subdivided into two different chapters called: - master: it is the software determining the machine cycles, the links between the functions, the order of execution of operations;...
  • Page 20: Preliminary Actions

    Cino XS grande by preliminary actions 06.01. handling the vending machine may be transported, handled and positioned by skilled and trained personnel only; while handling, never overturn the machine; observe the orientation arrows on the package; attention handle the machine carefully to prevent the authorised personnel from being injured;...
  • Page 21: Connections

    Cino XS grande by connections 07.01. water make sure that the water used to supply the vending machine has all proper features for human consumption; make sure that there is no sign of impurity and check the degree of hardness; if necessary, contact an analysis lab;...
  • Page 22: First Power On

    Cino XS grande by first power on 08.01. introduction after having unpacked the vending machine, arranged it firmly in the work place and connected or supplied it (machine A) hydraulically and electrically, carry out some actions to operate it; wash hands thoroughly with water and soap before handling the machine and the products;...
  • Page 23 Cino XS grande by repeat the operation for some times to rinse the whole water circuit of the machine; during the wash cycles, the display shows: cleaning power off the vending machine by means of the service key; arrange it in its support (see 05.12.); power off the main switch at the back of the machine (see 05.08.);...
  • Page 24: Programming

    Cino XS grande by programming the vending machine is programmed by means of parameters considered standard for the specific configuration required; values forming the composition of recipes – written in the board memories – enable the user to dispense drinks without requiring the installer to set up special programmes;...
  • Page 25 Cino XS grande by SALES AUDIT 09.01.h. sales audit to display the quantity of dispensing cycles you have performed; PROGRAMMING 09.01.i. MDB it contains the programming of the MDB protocol parameters; PROGRAMMING 09.01.l. clock to set up the machine clock;...
  • Page 26 Cino XS grande by if the time you have programmed is other than zero, the N product start delay motor will be activated at the expiry of the delay time you have PRODUCT N programmed; the delay time is increased or decreased by pressing keys “4”...
  • Page 27 Cino XS grande by to repeat the selection by N times automatically and produce drinks 0=no n:00 of remarkable volume (jug); selection name press “4” and “5” to choose the drink name to display during the dispensing cycle; options are listed here below:...
  • Page 28 Cino XS grande by “sugar” - to choose the sugar canister; to enable see (*); canister SUGAR “long” - to increase the water quantity of the drink by the percentage water you have set up; to enable see (*); LONG +00 % “jug”...
  • Page 29 Cino XS grande by - access code: to access the programming mode only after having access code typed a password you can choose by pressing keys “4” and “5”; carefully note down the combination you have chosen; - fan time: to determine for how many minutes after the latest fan time dispensing cycle the powder suction fan will remain active;...
  • Page 30 Cino XS grande by 09.01.h. sales audit this menu is intended to gather the quantities of the selections made by the machine: names are assigned according to the EVA- DTS standard: - VA 102 TOTAL SELECTIONS quantity of total vends (parameter not resettable);...
  • Page 31 Cino XS grande by 09.01.i. MDB press “2” to display the variables necessary for the MDB protocol; since Cino XS grande is unable to accommodate changegiver payment systems, some of these variables will significance, even if made available; press keys “4” and “5” to scroll the values;...
  • Page 32 Cino XS grande by 09.01.m. out of service to display the recording of the twenty errors last occurred in the n. N off NN machine; press key “2” to scroll the records and key “4” to reset hh:mm dd-mm-yyyy the recording (see 11.);...
  • Page 33 Cino XS grande by 09.01.q. tuning motors with respect to the setup in 09.01.a: - only in the I machines, the rotation speed of the boiler pumps tuning pump can be changed (keys “4” and “5”) by +/- 30 %; the change...
  • Page 34 Cino XS grande by 09.06. data support the values of the variables composing the machine programming (configuration) can be transferred to an external support, i.e. the flash key; to transfer the machine parameters to the key: - power off the machine;...
  • Page 35 Cino XS grande by 09.07. programming diagram 1. PROG button n functioning programming total coffee water exp programming partial coffee sequence inhibited product n preselection start delay product n cold breaks number grinder time prices price n prebrewing pr.LM see details 04.04...
  • Page 36 Cino XS grande by 09.07. programming diagram clock hour ejection tubes escrow enable month credit max year rest max day of week sell type start fn token value end fn coin rest switching on coin no rest switching off bill validator...
  • Page 37: Parameters

    Cino XS grande software; if not otherwise specified, the numeric time values of devices are understood in tenths of a second (e.g. 27 corresponds to 2 seconds and 7 tenths);...
  • Page 38 Cino XS grande by 10.02. limits the table is intended to list the minimum and maximum values you can assign to programmable variables; m.u. from exp coffee water 0 = no espresso; product sec. 0 = no product; product start delay sec.
  • Page 39: Solution Of Problems

    Cino XS grande by solution of problems some malfunctions produce an error message on the display; some general information is supplied here below for these messages; error actions/comments error OFF 2 check the connection between the machine and the payment...
  • Page 40 Cino XS grande by OFF 9 there is a control for the maximum grinding time; after this grinding time too long (E machines) threshold has been exceeded, error 9 is produced; no coffee, hopper orange blade closed; wear, grinders excessively closed;...
  • Page 41: Maintenance

    Cino XS grande by maintenance the Cino XS grande vending machine requires no special maintenance procedure to do its job; however, if you provide for careful and frequent cleaning, this may help the machine keep its performance constant, prevent failures and ensure the high quality of dispensed drinks;...
  • Page 42 Cino XS grande by 12.01. weekly power off the machine; detach the power supply cable and carefully make sure that there is no sign of wear; carefully check the stability and efficiency of the internal connections of the mains supply;...
  • Page 43 Cino XS grande by 12.03. yearly dispensing system replace the gasket at the base of the mixing bowl of the mixer; remove the mixer motor fan by pulling it; replace the gasket of the mixer motor shaft “I”; products canister disassemble the products canister from the machine;...
  • Page 44: How To Do To

    Cino XS grande by how to do to: 13.01. empty the drip the drip tray is arranged in its work seat and retained by the see 05.06. tray notches in the structure; pull to remove it; 13.02. empty the after having opened the door and removed the drip tray, pull the see 05.18.
  • Page 45 13.20. install a payment there is a kit including all the parts necessary to install a payment system system in Cino XS grande; after having installed the components of this kit, refer to the above to programme the system functionality;...
