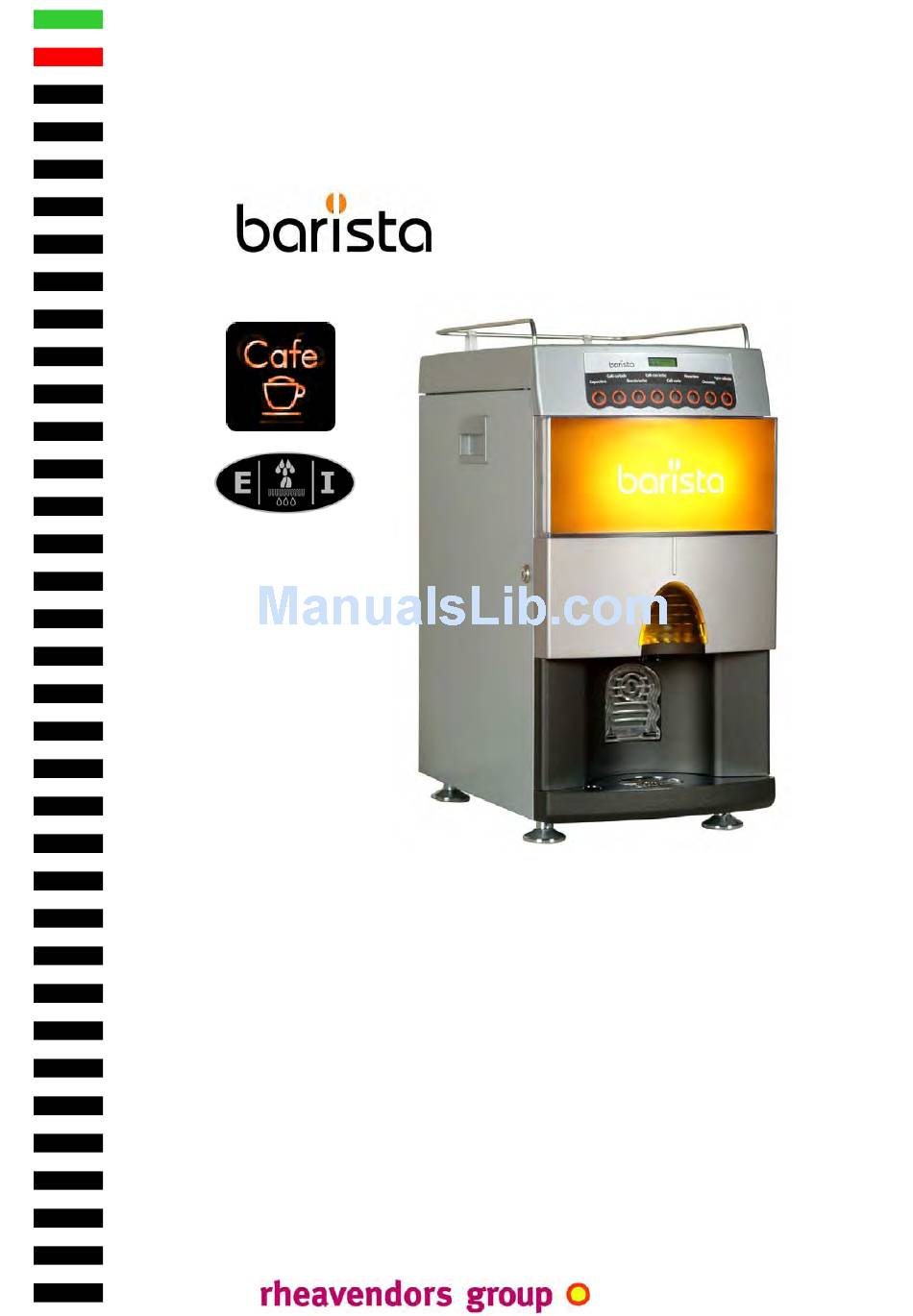

- Page 1 copertina type: XX INSTALLATION AND MAINTENANCE MANUAL Original instructions MAN1920124 rel. 01 dated 23.09.2011 _________________________________________ www.rheavendors.com...
- Page 2 copertina 2 notes 23.09.2011 Company names; implementation of safety warnings, general information and maintenance; 17.11.2010 First issue; REL. DATE DESCRIPTION MAN1920124 rel. 01 dated 23.09.2011 page no. 2 of 48 pages...
- Page 3 garanzia General guarantee these conditions regulate Rheavendors Industries S.p.A.’s conditions obligations with reference to guarantee and repair; any other term or condition, either verbal or written, is not applicable, including those in the purchaser’s purchase orders, if not explicitly accepted and signed by Rheavendors Industries S.p.A.;...
- Page 4 dichiar. conf. declaration of Rheavendors Industries S.p.A. declares that this vending machine conformity has been designed and manufactured in compliance with the following directives and safety standards: Directives: 2004/108/EC; 2006/95/EC; 2006/42EC; 2002/95/EC (RoHS); 2002/96/EC (RAEE); 1907/2006/EC (REACH); 1935/2004/EC; Standards: SAFETY part.
-
Page 5: Table Of Contents
indice table of contents legend page 06 introduction page 07 technical data page 08 configurations page 10 presentation page 12 preliminary actions page 23 connections page 24 first power on page 25 programming page 27 maintenance page 34 solution of problems page 37 parameters page 39... -
Page 6: Legend
legenda legend some general instructions that may be of use for reference to this manual; 01.01. abbreviations and pictograms dispensing cycle of drinks based on instant products; dispensing cycle of drinks based on instant products and coffee beans; machines with internal water tank; machines with external water supply;... -
Page 7: Introduction
introduzione introduction 02.01. copyright © Rheavendors Industries S.p.A.; all rights reserved; information this document contains some confidential information Rheavendors Industries S.p.A.’s exclusive property; the content of this document can be neither disclosed in favour of third parties, nor copied or reproduced in any form whatsoever, either fully or partially, without Rheavendors... -
Page 8: Technical Data
dati tecnici technical data 03.01. dimensions height (including the 30 mm upper rail): 600 mm width: 300 mm depth: 455 mm depth with open door: 700 mm 03.02. weight instant machine: 20 kg espresso machine: 30 kg 03.03. supply water - connection by means of a solenoid valve with 3/8“... - Page 9 dati tecnici 03.21. product canisters max. three, according to the machine configuration; single (55 mm) or double (110 mm) width; dispensing worm screws 9 mm or 18 mm in pitch; with mixer gear and stirrer, if arranged by the configuration and with standard or shorter product slide outlet (see 05.24.);...
-
Page 10: Configurations
configurazioni configurations Barista configurations are numerous; they are coded by means of some categories exemplified here below in the abbreviation of the 04.01. machine: a. instant - instant products only: Barista I b. instant and espresso - instant products and coffee beans: Barista E c. - Page 11 04.04. LM selection Barista can produce a drink called Latte Macchiato, composed by milk and coffee and served in the cup in differently coloured bands, typically milk, coffee and milk; to get this special drink, refer to a specific package of instructions, every step of which is called “LM dispensing cycle”;...
-
Page 12: Presentation
espresso presentation 05.04. display 05.02. selection keyboard 05.03. selection label pocket 05.05. orange panel in espresso machines 05.08. 05.06. door lock orange light indicator 05.07. dispenser 05.09. drip tray flap support for cups instant rail stop cups 05.05. light blue panel in instant product machines 05.06. - Page 13 espresso fronte espresso front 05.17. flash key connection 05.15. door switch 05.16. internal button PROG 05.24. instant product canister 05.18. coffee beans canister 05.15. 05.24. service key closing baffle 05.19. 05.24. grinder product slide 05.20. coffee brewer 05.05. neon power supply 05.08.
- Page 14 espresso retro espresso rear 05.10. electric connection 05.11. 05.31. power on switch environment aspirator 05.12. 05.30. fuses powder aspirator 05.14. water inlet solenoid valve 05.38.a. 05.38.c. expansion board toroidal transformer 05.38.d. 05.31. resistor supply environment aspirator 05.25. product motor 05.12. fuses 05.27.
- Page 15 espresso interno espresso to extract the slide including the fundamental components of the vending machine, just remove the three screws A and separate the two electric connectors B after having removed the coffee unit (see 13.05.) and the connectors of the temperature probes (see 05.38.a.
- Page 16 fronte e retro solubile instant front and rear 05.16. internal button PROG 05.29. water door 05.29. internal water tank 05.24. instant product canister 05.24. product slide 05.24. closing baffle 05.05. neon power supply 05.08. 05.06. light indicator door lock power supply 05.28.
- Page 17 presentazione the Rhea Barista vending machine is a machine explicitly designed 05.01. general information for being easily used by all users since no specific competence is required in preparing drinks; the function consists in dispensing drinks by mixing food products and water at a proper temperature;...
- Page 18 presentazione 05.15. door switch to power off the machine when the door is open; attention some parts remain anyway network-connected act extremely carefully use the service key to supply the vending machine if it is necessary to activate the machine when the door is open; the service key is in a support on the left wall inside the vending machine;...
- Page 19 presentazione 05.27. mixer motor the motors of mixers help to mix instant products with water by means of the rotation of the fan mounted on their axis; the rotation speed can be adjusted (see 09.01.a.) to the features of the various products;...
- Page 20 presentazione attention these components may be very hot even if the machine is off; 05.36. espresso machine heat exchanger it produces hot water for the espresso circuit; complete with temperature probe and overtemperature protection (see 09.01.e.); heat safety three-way valve temperature probe boiler it heats and accumulates water for the circuit of instant drinks;...
- Page 21 presentazione 05.38. electronics 05.38.a. CPU alla scheda display alla scheda espansione led 12 V d.c. fusibile led 5 V d.c. 2 A (5 V d.c.) led resistenza bollitore fusibile 6,15 A (12 V d.c.) OUT bollitore ingresso sonda temperatura bollitore IN 24 V a.c., 5 V a.c.
- Page 22 presentazione 05.39. software the software installed in Barista can be subdivided into two different chapters called: - master: it is the software determining the machine cycles, the links between the functions, the order of execution of operations; this software can not be modified by the operator, but it can be replaced in the CPU by means of a flash key written at works or by means of rheAction (see 09.06.
-
Page 23: Preliminary Actions
preliminari preliminary actions 06.01. handling the vending machine may be transported, handled and positioned by skilled and trained personnel only; while handling, never overturn the machine; observe the orientation arrows on the package; attention handle the machine carefully to prevent the authorised personnel from being injured;... -
Page 24: Connections
connessioni connections 07.01. water make sure that the water used to supply the vending machine has all proper features for human consumption; make sure that there is no sign of impurity and check the degree of hardness; if necessary, contact an analysis lab; if necessary, use a softening filter and replace the cartridge at regular intervals to preserve the machine components;... -
Page 25: First Power On
prima accensione first power on 08.01. introduction after having unpacked the vending machine, arranged it firmly in the work place and connected or supplied it (machine A) hydraulically and electrically, carry out some actions to operate it; wash hands thoroughly with water and soap before handling the machine and the products;... - Page 26 prima accensione repeat the operation for some times to rinse the whole water circuit cleaning of the machine; during the wash cycles, the display shows: power off the vending machine by means of the service key; arrange it in its support; power off the main switch at the back of the machine (see 05.11.);...
-
Page 27: Programming
programmazione programming the vending machine is programmed by means of parameters considered standard for the specific configuration required; values forming the composition of recipes – written in the board memories – enable the user to dispense drinks without requiring the installer to set up special programmes;... - Page 28 programmazione SALES AUDIT 09.01.h. sales audit to display the quantity of dispensing cycles you have performed; 09.01.i. clock to set up the machine clock; PROGRAMMING CLOCK 09.01.l. out of service to record any failure that may have occurred; REGISTRATION OUT OF SERVICE 09.01.m.
- Page 29 programmazione WATER N time to determine the pump power on time and the water quantity it will 0= inhib. deliver; you can carry out a “time test” on the set-point; (see 13.19.); start delay water will be dispensed in the mixing bowls at the expiry of the WATER N delay time you have programmed;...
- Page 30 programmazione 09.01.f. miscellaneous the “miscellaneous” item includes some options (press keys “4” and “5” to modify the values of these options): - machine code A and B: you can number the machine to machine code distinguish it from others similar (data collection); machine code - message number: press keys “4”...
- Page 31 programmazione PARTIAL MONEY - VA 103 total amount of receipts after the reset; 0.00 TOTAL TESTS - VA 202 quantity of total tests (parameter not resettable); PARTIAL TESTS - VA 204 quantity of tests after the reset; total loaded on - DA 401 card 0.00...
- Page 32 programmazione 09.01.n. maintenance in this ensemble of parameters, key “2”, you can set up some counters to trigger an alarm after a programmable number of events (press “4” and “5” to set up and PROG to store): - dispensing cycles before having to replace the cartridge of the water filter cnt external filter, if any;...
- Page 33 programmazione schema 09.07. programming diagram 1. PROG button n functioning coffe water exp inhibited coffee sequence start delay water n grinder time water flow prices product n mixer n start delay product n start delay mixer n happy price breaks number mixer speed n pr.LM see details 04.04 numero jug...
-
Page 34: Maintenance
manutenzione maintenance the Barista vending machine requires no special maintenance procedure to do its job; however, if you provide for careful and frequent cleaning, this may help the machine keep its performance constant, prevent failures and ensure the high quality of dispensed drinks;... - Page 35 manutenzione 10.01. weekly power off the machine; detach the power supply cable and carefully make sure that there is no sign of wear; carefully check the stability and efficiency of the internal connections of the mains supply; external body use a non-abrasive piece of cloth after having dampened it with lukewarm water;...
- Page 36 manutenzione 10.03. yearly dispensing system replace the gasket at the base of the mixing bowl of the mixer; remove the mixer motor fan by pulling it; replace the gasket of the mixer motor shaft “I”; products canister disassemble the products canister from the machine; empty them, disassemble them in their basic components and wash them carefully “L”;...
-
Page 37: Solution Of Problems
risoluzione problemi solution of problems some malfunctions produce an error message on the display; some general information is supplied here below for these messages; error actions/comments cause OFF 3 drip tray full empty the drip tray (see 13.01.); OFF 5 no data storage EAROM board... - Page 38 risoluzione problemi OFF 14 no water reload there is a control causing the machine to reload water after a well- defined number of dispensing cycles; otherwise, error 14 is produced; make sure that the water supply from the outside is correct (see 03.03.) and that the water circuit of the machine is orderly (tubes, gaskets, …);...
-
Page 39: Parameters
parametri parameters the following tables are intended to supply some information on the programmable parameters of the Barista software; if not otherwise specified, the numeric time values of devices are understood in tenths of a second (e.g. 27 corresponds to 2 seconds and 7 tenths);... -
Page 40: How To Do To
come fare a how to do to: 13.01. empty the drip the drip tray is arranged in its work seat and retained by the see 05.09. tray notches in the structure; pull to remove it; 13.02. empty the after having opened the door and removed the drip tray, pull the see 05.23. - Page 41 come fare a 13.15. programme dispensing starts as soon as the user presses a selection key; the see 09.01.a. delays order in which instant products are poured into the cup depends upon the values of delays (e.g. the one, the delay value of which is zero, will be dispensed before the one, the value of which is 40, dispensed four seconds after the user has pressed the selection key);...
-
Page 42: Espresso Hydraulic Diagram
schema idraulico... -
Page 43: Instant Hydraulic Diagram
schema idraulico I... -
Page 44: Addendum Light
addendum Light light 16. addendum Barista Light light a version of the Rhea Barista espresso vending machine is referred to as Barista Light even if similar to the machine described as far as here, it has some different components; the selection keyboard, the door lighting, the light indicator and all external features are perfectly the same as Barista, which has been described as far as here;... - Page 45 Light retro aperta light add. 05. presentation rear 05.12. fuses 05.14. water inlet solenoid valve 05.10. electric connection 05.38.c. 05.38.a. expansion board 05.23. product motor 05.32. 05.30. air break powder aspirator 05.31. 05.33. environment aspirator volumetric counter 05.11. add. 03.20. power on switch pressure boiler attention...
- Page 46 Light varie light for the operations necessary to install the vending machine, refer to the hints of the following chapters: 06. preliminary actions; 07. connections; 08. first power on; chapter 09. Programming, which is intended to list and describe the actions necessary to program the machine parameters includes the correct information for the Barista Light software;...
- Page 47 Light varie light add. 10.04. out of order if the vending machine should be inactive for a long period, please act as follows: temporary - perform the uninstall cycle (see add. 09.01.f.); - detach the water and energy supply; - empty the drip tray; - empty and clean the product canisters and the coffee brewer;...
- Page 48 Light schema idraulico...
