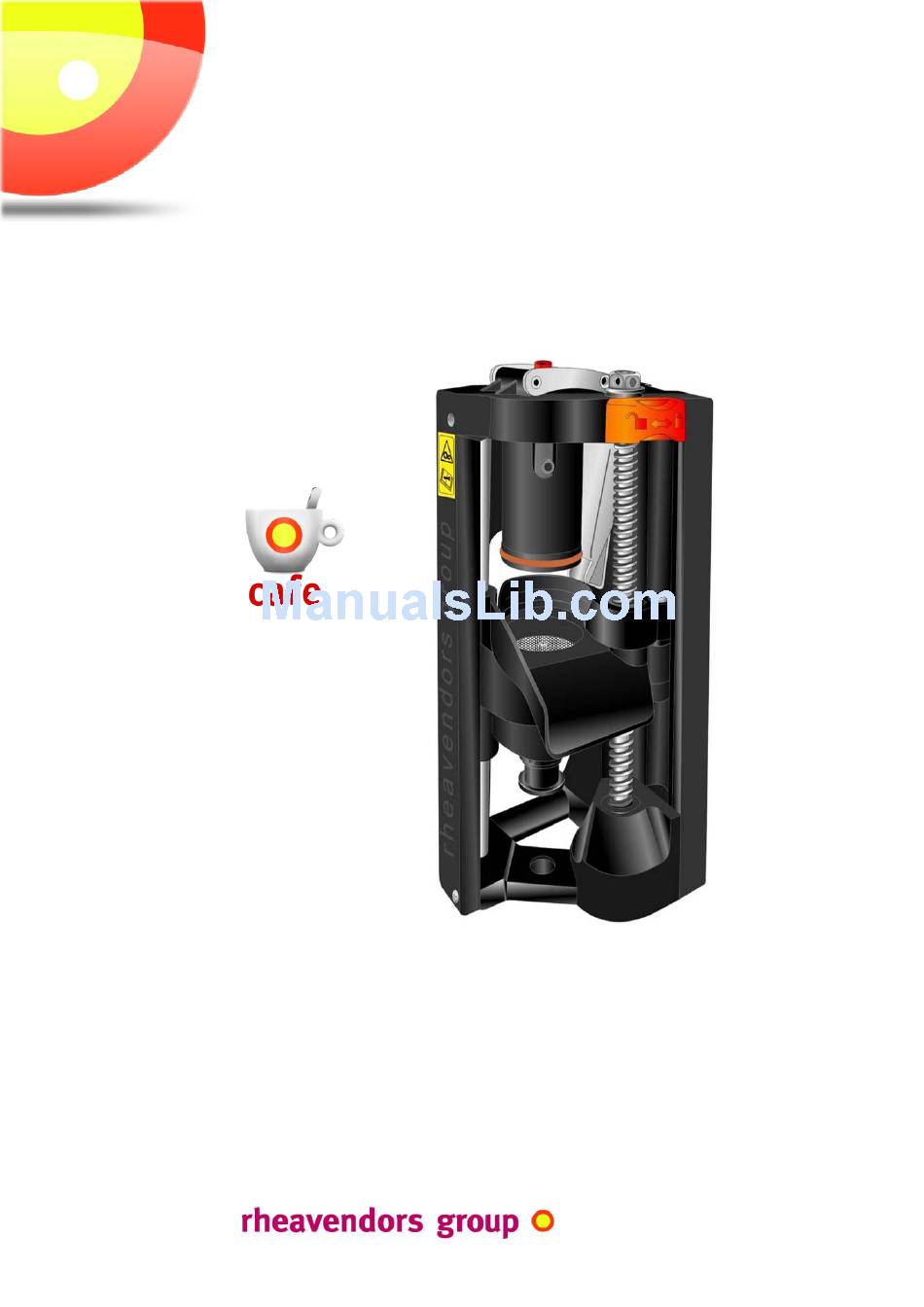

- Page 1 Variflex coffee brewer ® by variable dose GENERAL USER'S MANUAL Translation of the original instructions MAN0000014 rel. 00 dated 03.02.2014 __________________________________________ www.rheavendors.com...
- Page 2 "Vending Machine Installation and Maintenance manual" of the machine, in which the Variflex coffee brewer is ®...
- Page 3 Variflex coffee brewer; ® the software conceived at the same time as the Variflex coffee ® brewer enables the operator to program the coffee dose ground traditionally (time required to activate the grinder), but - as an alternative - to determine its weight (see 06.);...
- Page 4 Variflex coffee brewer ®, structure is mechanically connected with the lower rear bush of the trapezoidally threaded screw by means of a toothed belt drive;...
- Page 5 MAN0000014 rel. 00 dated 03.02.2014 page n° 5 of n° 18 pages www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com rheavendors group's sole property...
- Page 6 Variflex coffee brewer by ® 04. work cycle dispensing cycle: a dispensing cycle of the Variflex coffee brewer consists of the ® following phases: 1.positioning 2.grinding (*) 3.compression 4.pre-brewing 5.brewing (*) 6.opening 7.ejection 8.re-positioning it may happen that some of these phases are not made available in...
- Page 7 50 cc. 20 sec. note: as soon as the vending machine is powered on, the Variflex coffee ® brewer software performs a 7-second cycle once only in order to position the brewer body and establish the exact position of the brewing chamber;...
- Page 8 MAN0000014 rel. 00 dated 03.02.2014 page n° 8 of n° 18 pages www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com rheavendors group's sole property...
- Page 9 Variflex coffee brewer by ® page intentionally left blank MAN0000014 rel. 00 dated 03.02.2014 page n° 9 of n° 18 pages www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com rheavendors group's sole property...
- Page 10 ® 06. Variflex coffee brewer ® 025 0014 000CL MAN0000014 rel. 00 dated 03.02.2014 page n° 10 of n° 18 pages www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com rheavendors group's sole property...
- Page 11 Variflex coffee brewer by ® 0250014000CL Guppo caffè Variflex® Ø45 Variflex® brewer group Ø45 0250014005R Traversa superiore - * vedi pagine seguenti Upper support - * see next pages 0250014008 Scivolo Ø45 Chute Ø45 0250014009 Cavallotto scivolo Chute hinge VIT0004810 Dado M4 autoblocc.
- Page 12 Vite aut. TC B 3,5x6,5 s/punta Pan head self-tapping screw 3,5x6,5 GUA0011022 Tappo a scatto PGM12 F15,9 H6,5 Plug PGM12 F15,9 H6,5 0250014000CL Guppo caffè Variflex® Ø45 Variflex® brewer group Ø45 VIT0000249 Vite TE M6x16 A2 UNI5739 Hex head screw M6x16 A2 UNI5739 VIT0003113 Roset.vent.
- Page 13 0020039539 Tubetto prodotto d.4 Spout deliveri d.4 MAN0000014 rel. 00 dated 03.02.2014 page n° 13 of n° 18 pages www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com rheavendors group's sole property...
- Page 14 C ountersunk screw M3X8 UNI7688 0250014027 Blocco Pistone Inferiore Piston lower locking MAN0000014 rel. 00 dated 03.02.2014 page n° 14 of n° 18 pages www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com rheavendors group's sole property...
- Page 15 C ountersunk screw M3X8 UNI7688 0250014027 Blocco Pistone Inferiore Piston lower locking MAN0000014 rel. 00 dated 03.02.2014 page n° 15 of n° 18 pages www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com rheavendors group's sole property...
- Page 16 VIT0009320 C uscinetto SKF 608-2RSH Ball bearing SKF 608-2RSH MAN0000014 rel. 00 dated 03.02.2014 page n° 16 of n° 18 pages www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com rheavendors group's sole property...
- Page 17 Variflex coffee brewer ® (Ø 45 mm) 025 0014 000CL 0250014086CL1 0250014000C L Guppo caffè Variflex® Ø45 Variflex® brewer group Ø45 VIT0000249 Vite TE M6x16 A2 UNI5739 Hex head screw M6x16 A2 UNI5739 VIT0003113 Roset.vent. -E- 6,4 A2 DIN6798 Spring washer -E- 6,4 A2 DIN6798 0250014079 Rosetta D15 d6.5 Sp.1.5...
- Page 18 (see the Installation and Maintenance manual supplied with the specific vending machine); some of these variables are described herein for guidance; the chapter where you can programme the settings of the Variflex ® PROGRAMMING------ coffee brewer is supplied by PROGRAMMING;...
