LED PAR 64
RGBAW LED LIGHT
DSY-LP-64-177
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED PAR 64 and is the answer not in the manual?

Questions and answers

Related Manuals for Eddylight LED PAR 64

Summary of Contents for Eddylight LED PAR 64

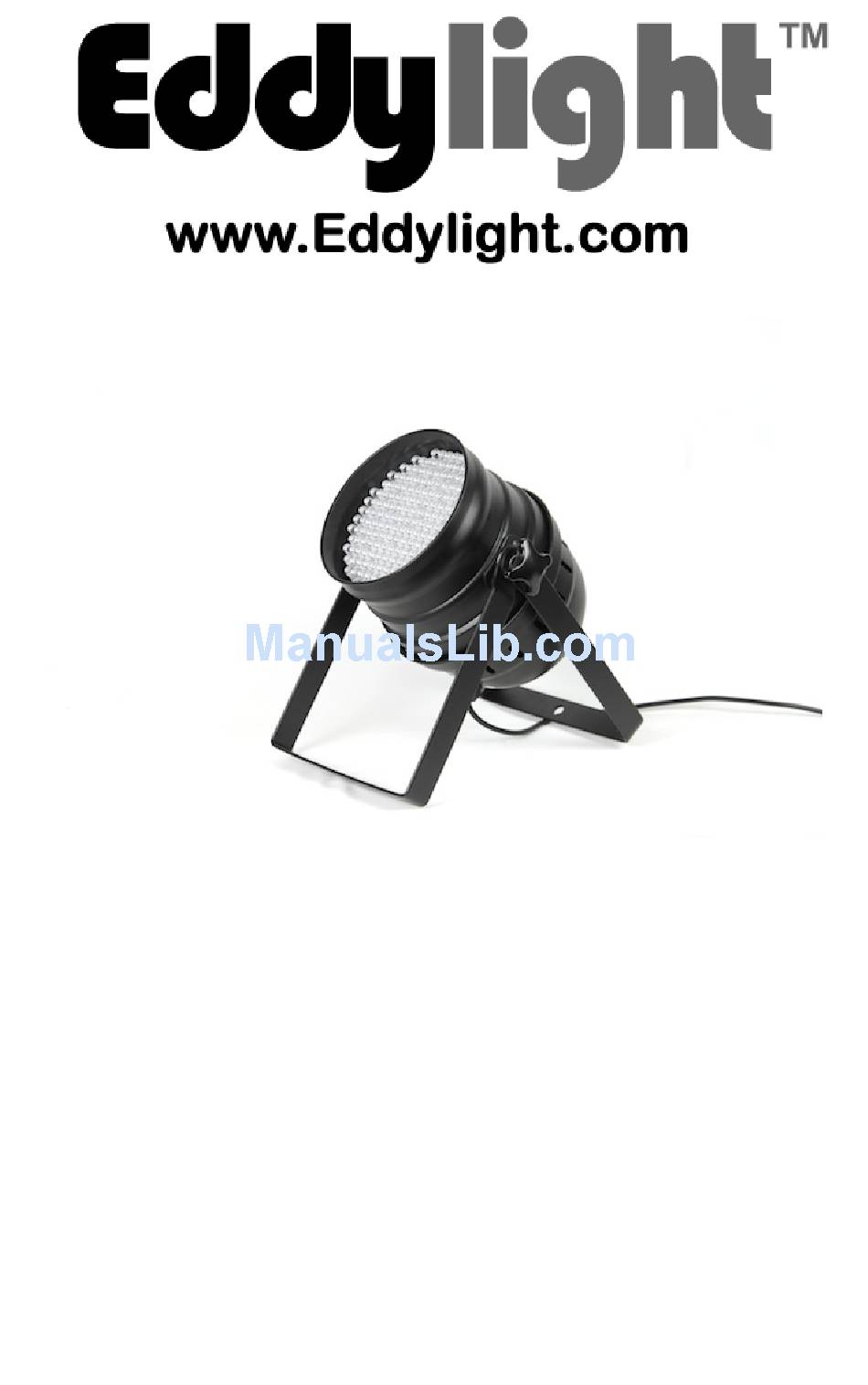

  • Page 1 LED PAR 64 RGBAW LED LIGHT DSY-LP-64-177 USER MANUAL...

  • Page 2: Safety Information

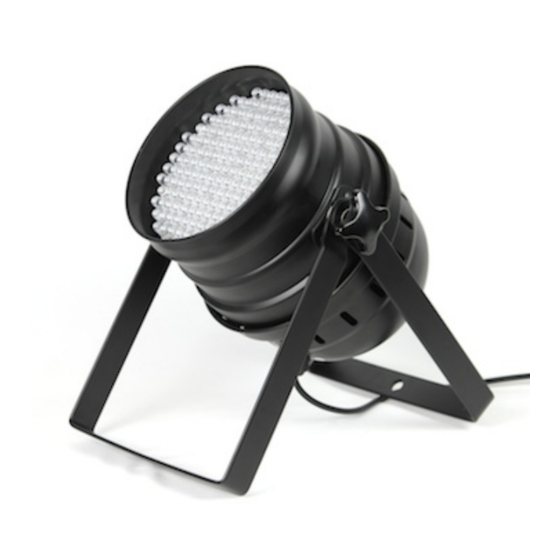

    The LED PAR 64 light has a hydrodynamic aluminum shell. Five colors of high-brightness LED lights (red, blue, green, amber, white) are used to create a wide spectrum of colors. Each color can be independently dimmed, faded and so on.
  • Page 3 3. Dimensions and Specifications Voltage: AC110V/220 VAC Frequency: 50-60 Hz Power Consumption: 28 W Lamp: 10mm x 177pcs LED Beam Angle: 25 degrees Net Weight: 2 Kg Dimensions: www.EddyLight.com 1-800-914-3538...

  • Page 4: Main Function

    4. Main Function 5 Channel Mode Channel Function Notes Value 0-255 Red dimming 0—100% 0-255 Green dimming 0—100% 0-255 Blue dimming 0—100% 0-255 Amber dimming 0—100% 0-255 White dimming 0—100% 6 Channel Mode Channel Function Notes Value 0-255 Red dimming 0—100% 0-255 Green dimming...
  • Page 5 Overrides color Overrides color Overrides color selection from selection from selection from 202-240 Preset program; CH1-5 CH1-5 CH1-5 speed 241-255 Sound activation 0-15 No function Overrides color Overrides color selection from selection from 16-255 Color changing; CH1-5 CH1-5 speed www.EddyLight.com 1-800-914-3538...
  • Page 6 5. Rear Panel Display and Operation LED Display Selection buttons Menu Up Down Enter DMX OUT DMX IN DMX input/output MENU: Access the menu or return to a previous menu option UP: Menu selection or parameter increments DOWN: Menu selection or parameter increments ENTER: Select the current menu option 6.
  • Page 7 • Press ENTER to select and store the current menu options. Color Chart Color Name Green Blue Amber White     Green   Blue   Amber   White   Yellow   Magenta   Cyan   Champagne   Cold White   Warm White www.EddyLight.com 1-800-914-3538...
  • Page 8 7. Master/Slave Control The MASTER functions as a master as long as it’s not in DMX mode (and ideally no cable plugged into the DMX INPUT on the unit). It sends a signal to the SLAVE through a DMX cable and synchronizes its settings to it.
