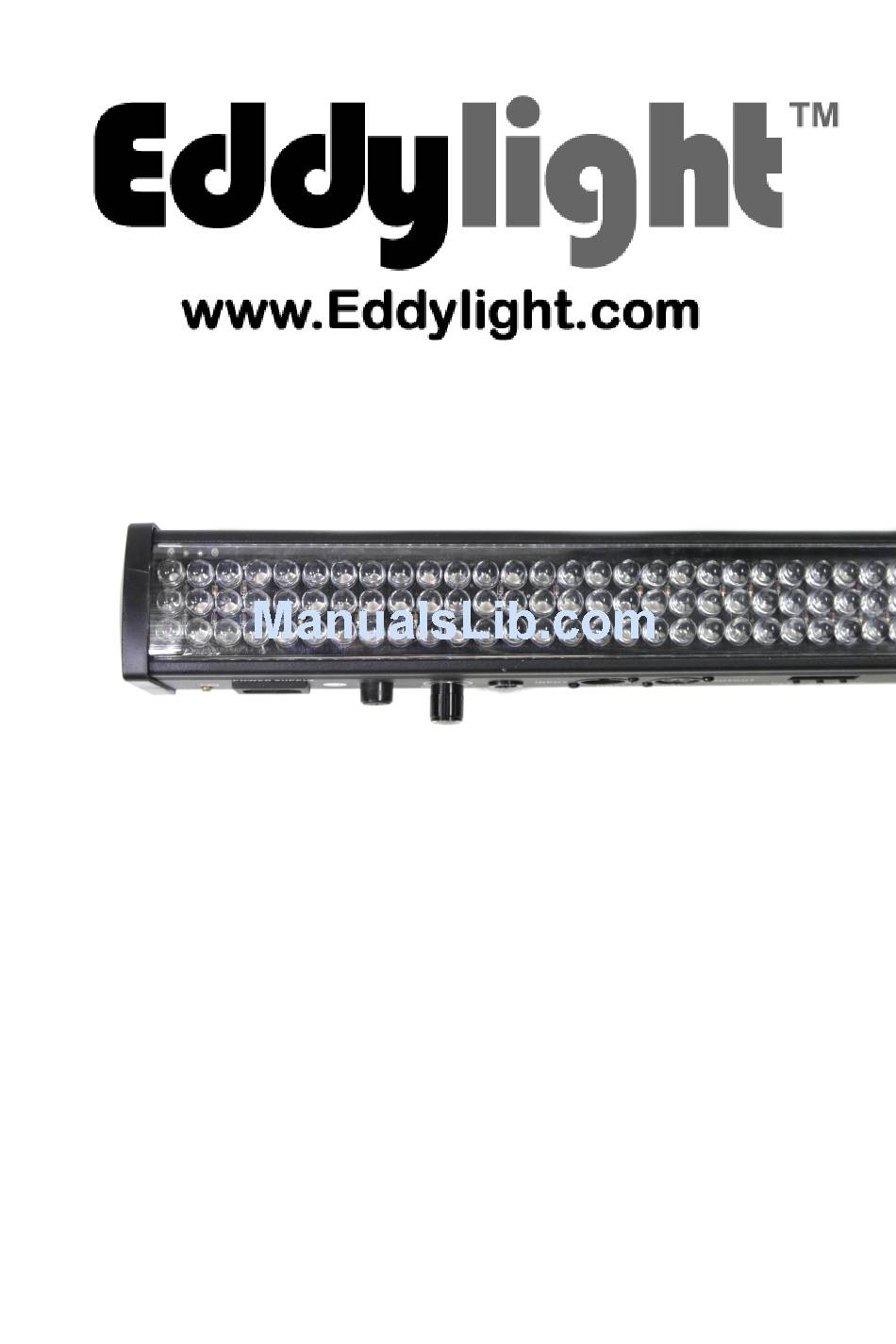

- Page 1 LED 3.3’ Light Bar RGBAW LED Light Bar DSY-LED252-IP65-RGB USER MANUAL...
-
Page 2: Safety Information
1. Introduction Thank you for purchasing our LED 3.3’ Light Bar. Please read these instructions carefully before operating to avoid any possible damage and accidents caused by misuse. The LED 3.3’ LED Light Bar has an extruded aluminum shell. Five colors of high-brightness LED lights (red, green, blue, amber, white) are used to create a wide spectrum of colors. -
Page 3: Dimensions And Specifications
3. Dimensions and Specifications Weight: 2 kg Total Wattage: 22 W Intensive brightness LEDs: 258 pcs 10mm LEDs Beam angle: 25 deg beam angle of each LED Power supply: Voltage: 100-240 VAC Frequency: 50-60 Hz Dimensions: 3.3’ 2.5” www.EddyLight.com 1-800-914-3538... -
Page 4: Dmx Channel Assignment
4. DMX Channel Assignment 5 Channel Mode Channel Function Notes Value 0-255 Red dimming 0—100% 0-255 Green dimming 0—100% 0-255 Blue dimming 0—100% 0-255 Amber dimming 0—100% 0-255 White dimming 0—100% 6 Channel Mode Channel Function Notes Value 0-255 Red dimming 0—100% 0-255 Green dimming... - Page 5 Settings for 1/3 Settings for 1/3 Settings for 1/3 0—100% 0-255 Green dimming 0—100% 0-255 Blue dimming 0—100% 0-255 Amber dimming 0—100% 0-255 White dimming 0—100% 0-255 Red dimming Settings for 2/3 Settings for 2/3 0-255 Green dimming www.EddyLight.com 1-800-914-3538...
-
Page 6: Rear Panel Display And Operation
Settings for 2/3 Settings for 2/3 Settings for 2/3 DMX Value Function Notes 0-255 Blue dimming 0-255 Amber dimming 0-255 White dimming 0-255 Red dimming Settings for 3/3 Settings for 3/3 Settings for 3/3 Settings for 3/3 Settings for 3/3 0-255 Green dimming 0-255... -
Page 7: Master/Slave Control
The SLAVE units should be set to DMX mode and the address code set to “A001” to receive the MASTER’s signal. Only one light can be set as a master, but multiple lights can be set as slaves. www.EddyLight.com 1-800-914-3538... -
Page 8: Cable Connection
Color Chart: Color Name Green Blue Amber White Green Blue Amber White Yellow Magenta Cyan Champagne Cold White Warm White 8. Cable Connection A standard XLR connection is used for the DMX 512 protocol. DMX512 does not include automatic error checking and correction, and so is not an appropriate control for hazardous applications, such as pyrotechnics or movement of theatrical rigging.
