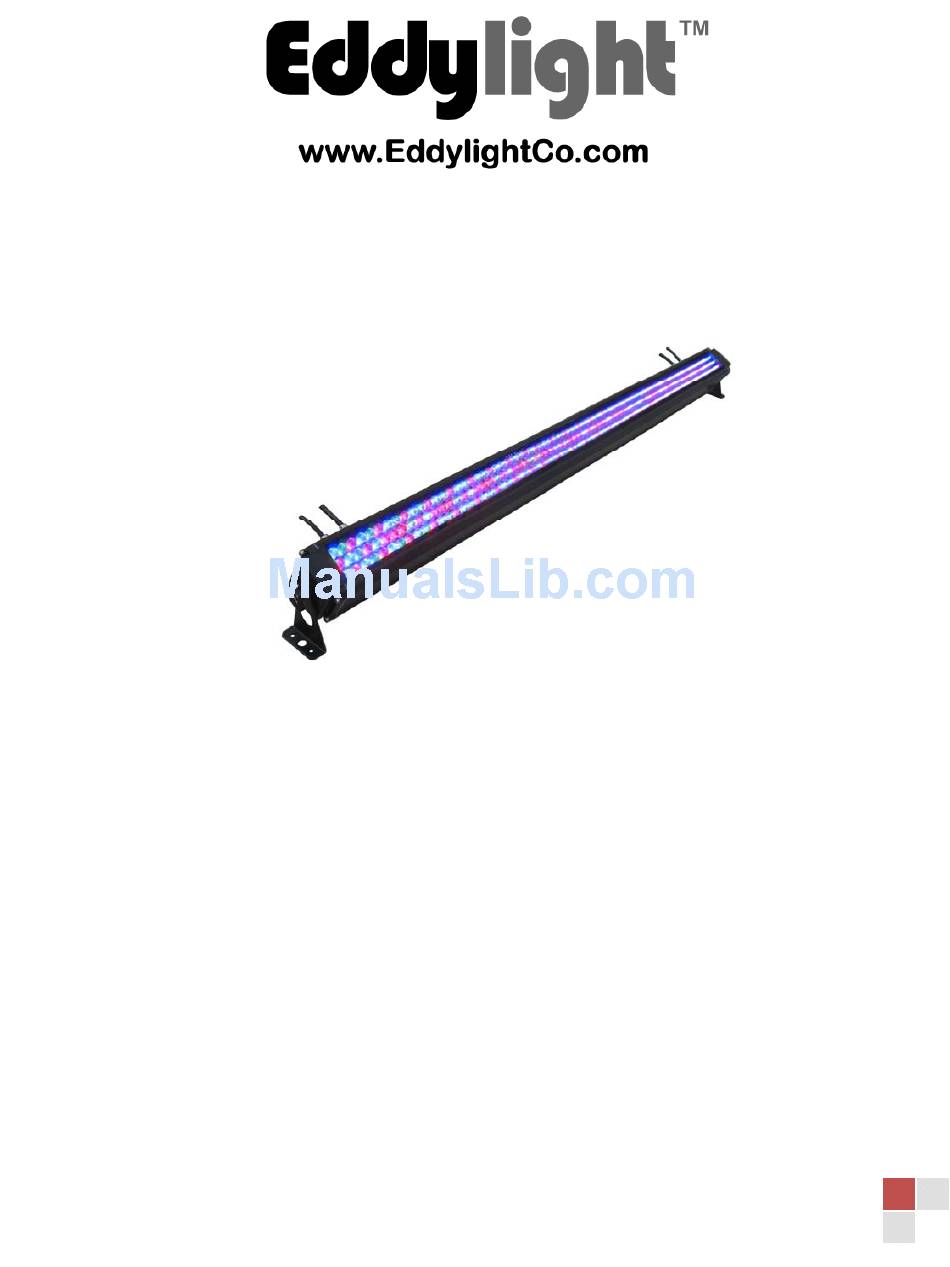

- Page 1 LED 3.3ft LIGHT BAR DSY-LED252-IP65-RGB USER MANUAL EventDecorDirect.com | 1.888.592.0224 ...
-
Page 2: Table Of Contents
Table of Contents summarize ........................1 safety instruction ......................1 outside size picture ......................2 main function ......................... 3 DMX controller function ....................3 Display operation instruction ..................4 Manual instruction ....................... 4 Operating control instruction ..................6 XRL connection instruction ..................6 Connection picture ...................... -
Page 3: Summarize
Summarize Thank you for purchasing our LED wall wash lighting. Please read these instructions carefully before begin and operate the fixtures according to these instructions to avoid any possible damages and accidents causes by misusage. Products introduce This led par color-changing projecting light is covered by tensile aluminum, designed in a fashion of hydrodynamic form. -
Page 4: Safety Instruction
Safety instuction ● Make sure the power supply voltage are consistent with this lights，Ensure the use of voltage is in the range of the request technical parameter. ●before the installation , please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage. -
Page 5: Main Function
4.Main Function high quality LED:low consumption,brighness, stable capability and long life each color of LED with 256 dimming. RGB can make over 16.7 million colors. dim 0%-100%, Strobe、gradual change、jumping change DMX512 Controller，3 button set DMX ID address with led display,each pixel with 84 LEDS and total in 3 pixel. - Page 6 Mode 4 170——189 Mode 5 190——209 Mode 6 210——229 Mode 7 230——249 Comprehensive mode1‐7 250——255 CH2 0‐9 Red dimming (one pixel to another) 10‐255 Red general dimming 0‐100% CH3 0‐9 Green dimming (one pixel to another) 10‐255 Green general dimming 0‐100% CH4 0‐9 Blue dimming (one pixel to another) 10‐255 Blue general dimming 0‐100% CH5 0‐255 The first red pixel dimming 0‐100% CH6 0‐255 The first green pixel dimming 0‐100% CH7 0‐255 The first blue pixel dimming 0‐100% CH8 0‐255 The second red pixel dimming 0‐100% CH9 0‐255 The second green pixel dimming 0‐100% ...
-
Page 7: Manual Instruction
MENU : access the menu or return to a previous menu option ENTER:select the current menu option UP:menu selection or parameter increments DOWN:menu selection or parameters decrease 7.Manual Instruction Operating instruction: ENTER MENU ENTER UP/DOWN ... -
Page 8: Operating Control Instruction
”bL”: blue dimmer（b000- b255, b255 brightest） 2. Press ENTER to access the further menu setting. This process can be saved automatically; that means you will enter the process saved previously when you activate the light next time. For example, if you want to choose DMX mode A001, operate as follows: Press MENU, go back to the initial setting Press UP / DOWN until Addr Press ENTER to choose, the display will glinting at this moment... -
Page 9: Xrl Cable
Master/Slave Master：The master should always working as a master as long as it is not set in a DMX mode whatever other modes it is. And it send out the signal so that the slave synchronous with it. To avoid the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals. -
Page 10: Connection Picture
Noted：In order to avoid failures and interference signal transmission，we connect a resistance120Ω（1/4W） at the end of the DMX connecting as below: The Conversion between 3pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable 10.Connecting picture Light connecting picture：... -
Page 11: Problem Analyse
Power IN 11.Problem Analysis Problem Checking way Check the power source plug is in normal or not Check the switch of the lights is off or on Can not turn on the Check the fuse if in normal light Check the DMX cable is connect to the lights or not Check the DMX512 controller work in normal or not... -
Page 12: Technical Specification
Display not bright switch and the transformer has power out Check if the power input of the IC board is normal Check if the cable connect to the display loose Change the main board to see if it is normal. Chang the display When connect to the electricity，did the led flash one time? If so，the power source is normal;... - Page 13 ● Consume：22W ● Lamp Type： LED(Φ10) ● Lamp Spec：red（108PCS）、green（72PCS）,blue（72PCS） ● Life span:50000-100000 hours ● Control mode：stand alone/ master and slaver ● Channel： 13CH ● Beam Angle: 25° ● Anti-electricity intension：1.5KV ● Insulation Resistance：＞２MΩ ● Size:：1000*60*60mm ● Net Weight：2KG EventDecorDirect.com | 1.888.592.0224 ...
