Summary of Contents for Eddylight EDD-RP-WBIF1006

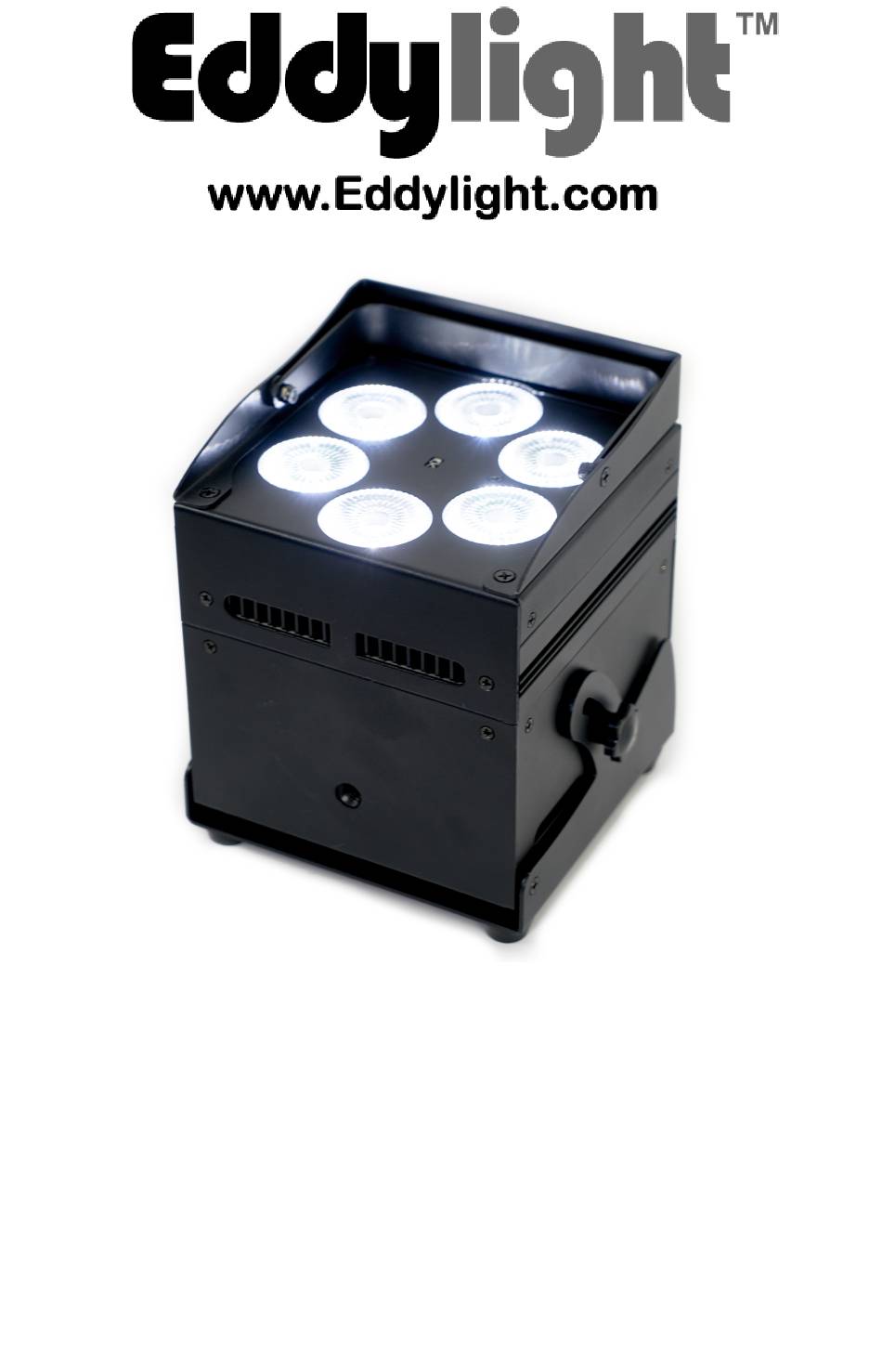

- Page 1 EDD-RP-WBIF1006 USER MANUAL...
- Page 2 1. Introduction 2. Safety Information 3. Photos and Specifications 4. Main Function 5. 5. Rear Panel Display and Operation 6. Instructions for Manual Programming 7. Master/Slave Control 8. Cable Connection...
- Page 3 - The light is designed for indoor use, below 40 degrees celsius - The fixture may be mounted in any position provided there is adequate room for ventilation. Make sure there are no flammable and explosive items within 0.5 meters. - Please ensure the ground is always connected www.eddylight.com 1-800-914-3538...

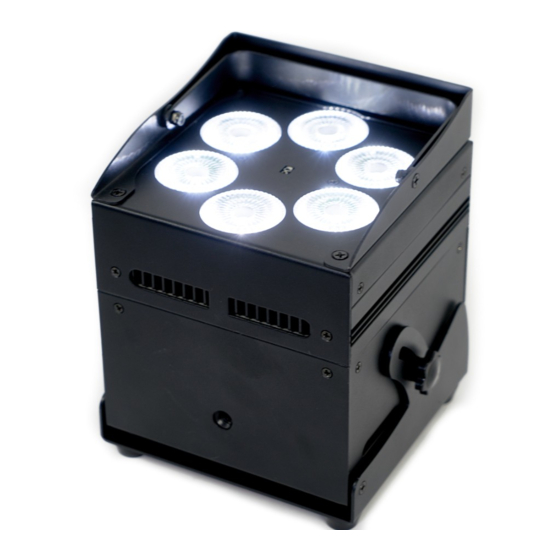

- Page 4 3. Photos and Specifications Input Voltage: AC 100V - 260V, 50-60Hz LEDs: 6 X 10W R/G/B/A/W 5-in-1 LEDs Battery Spec: 15,600 mAH,11.1 VDC Battery Life: (full brightness, all colors on) >8 hours Recharger Output voltage: 12.6 V, 3A DMX Channels: 5 or 9CH Control Mode: Standalone, Mater/slave, Auto, Sound Active Wireless: 2.4G IR: Infrared remote control up to 30 ft./10m...
- Page 5 0-32 0—100% Amber dimming 0-255 0—100% White dimming 0-255 0—100% 0-255 Master dimmer 15-255 Strobe speed 196-255 Built-in programs Overrides CH1-7 28-127 Dimmer mode (See “nodE” in MENU) 128-250 Color fading Overrides CH1-8 Overrides CH1-8 251-255 Sound activation www.eddylight.com 1-800-914-3538...
- Page 6 5. Rear Panel Display and Operation LED Display Selection buttons Menu Up Down Enter DMX OUT DMX IN DMX input/output MENU: Access the menu or return to a previous menu option UP: Menu selection or parameter increments DOWN: Menu selection or parameter increments ENTER: Select the current menu option 6.
- Page 7 • Repeat the process for each color, including amber and white Sample colors: Color Name Green Blue Amber White Green Blue Amber White Yellow Magenta Cyan Champagne Cold White Warm White www.eddylight.com 1-800-914-3538...
- Page 8 7. Master/Slave Control The MASTER functions as a master as long as it’s not in DMX mode (and ideally no cable plugged into the DMX INPUT on the unit). It sends a signal to the SLAVE through a DMX cable and synchronizes its settings to it.
