Summary of Contents for Eddylight LED GOBO

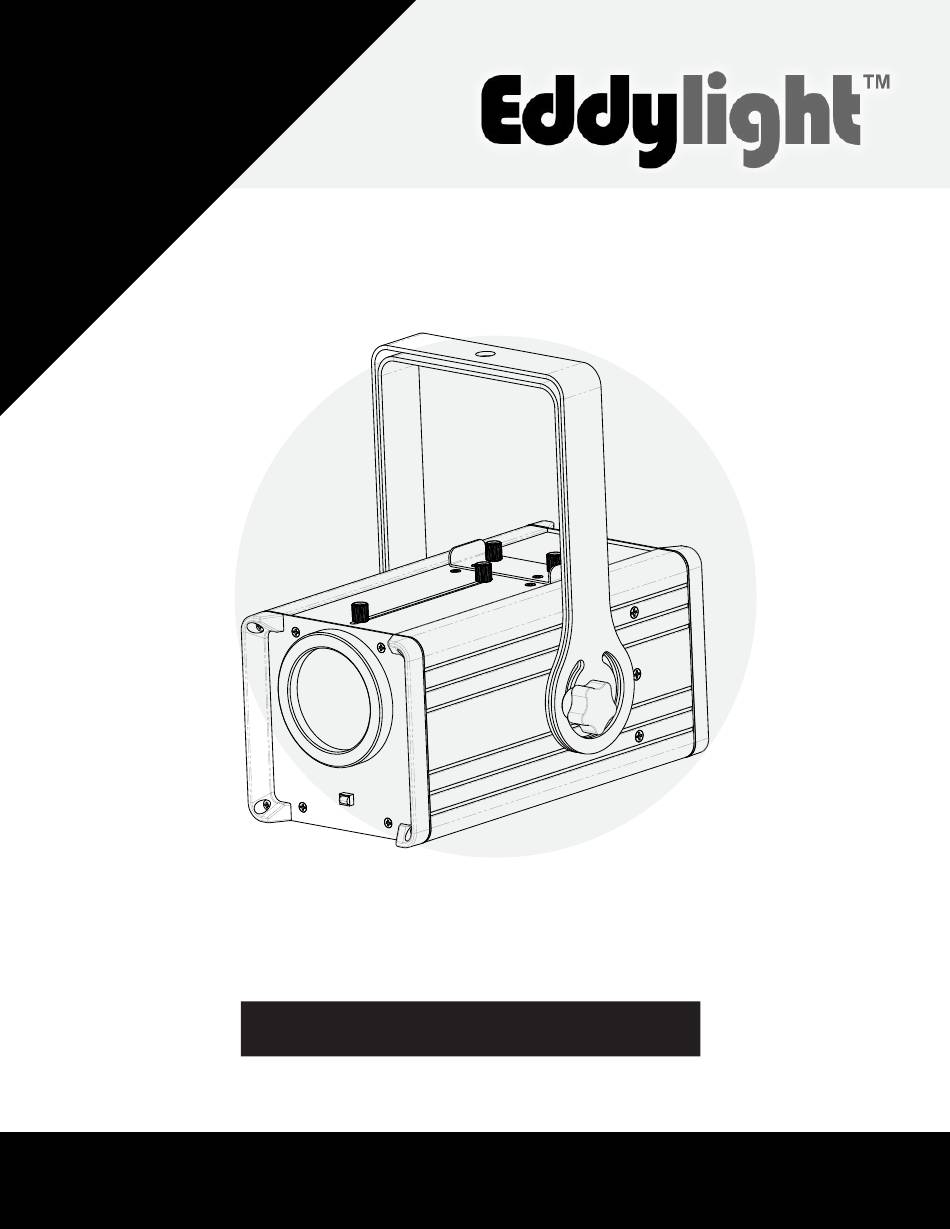

  • Page 1 LED GOBO Light 30-watt LED (white) USER MANUAL...
  • Page 2: Table Of Contents

    CONTROL PANEL MENU SYSTEM DMX CONTROL IR REMOTE TROUBLESHOOTING SPECIFICATIONS PACKAGE CONTENTS 1 X LED GOBO Light 30-watt LED 1 X AC power cable 1 X User’s manual 1 X IR controller 1 X gobo ring 1 x gobo clip...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Please read these instructions carefully.They include important information about the installation,usage and maintenance of this product. Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide. ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the ficture.
  • Page 4: Features

    FEATURES 30-watt white LED. 2,3,4 -channel DMX modes. USB for wireless receiver/transmitter. IR control:Infrared remote control up to 45 ft./ 15M . 32-bit smooth dimming technology, flicker free for TV and camera shooting. Variable electronic strobe, dimming and color changing effect. Stand-alone, Master/Slave and DMX modes.
  • Page 5: Control Panel

    CONTROL PANEL ENTER UP DOWN MENU POWER IN USB for DMX IN DMX OUT wireless DMX...
  • Page 6: Menu System

    MENU SYSTEM Use the four buttons (MENU, UP, DOWN, ENTER) to set the mode in which the light will operate. The buttons perform the following functions: MENU: Accesses the menu system or backs out of editing an entry. UP: Selects the previous mode or increases the value of the selected mode. DOWN: Selects the next mode or decreases the value of the selected mode.
  • Page 7: Dmx Control

    DMX CONTROL When the light is set to a DMX address it will respond to signals from a DMX controller. The number and complexity of the signals it can respond to correspond directly to the number of channels selected. The following tables show the functions and values for each channel in the three different channel modes (2,3,4).
  • Page 8: Ir Remote

    IRC REMOTE When using IR remote controller, please turn off wireless DMX and cut off DMX connections. The function of each button on the remote controller is shown in below chart. down white strobe gobo rotation dimmer: Press “white” use the up/down keys to select desired fade speed strobe: Press “strobe”...
  • Page 9: Troubleshooting

    TROUBLESHOOTING Following are some sample problems and potential solutions to those problems. Q1: The light does not turn on and the menu will not display. A1: Check the power cable to ensure it is properly plugged in. Check the source power outlet by plugging in a different device.
  • Page 10: Specifications

    SPECIFICATIONS Input Voltage AC 100V - 260V,50-60Hz Power Consumption LEDs 30- watt white LED LED Life Span 50000 ~100000 hours DMX Channels 2,3,4 CH USITT DMX512 Control Protocol Control Mode Standalone, Auto Signal Input&Output 3 - pin XLR Male, 3 - pin XLR Female IR Control Infrared remote control up to 15 ft./ 45M .
  • Page 11 USER MANUAL LED GOBO Light 30-watt LED (white)
